• Korloy Indexable Ball End Mill BRE
1 1

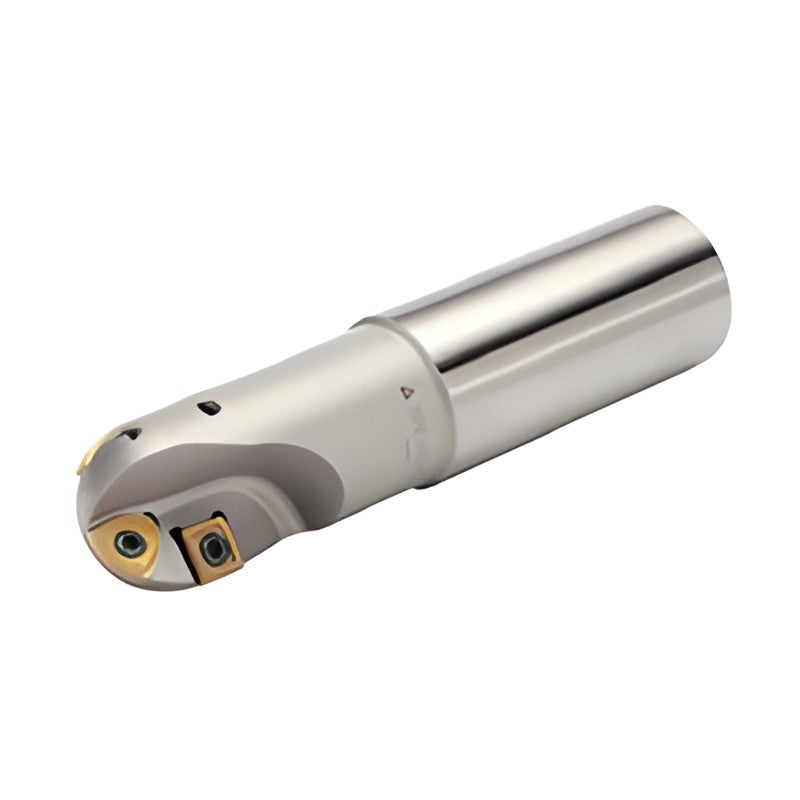

Korloy Indexable Ball End Mill BRE

Korloy Indexable Ball End Mill BRE

Indexable ball end mill for roughing.

Key features

  • Good chip control with optimized cutting edge
  • Special surface treatment on the holder
  • 3D flute design
  • For high speed and high feed machining
BRE20R-S D (mm): 20 | d (mm): 20 | l (mm): 50 | L (mm): 125 | ap max (mm): 20 | Stock: Yes
BRE20R-M D (mm): 20 | d (mm): 20 | l (mm): 75 | L (mm): 150 | ap max (mm): 20 | Stock: Yes
BRE20R-L D (mm): 20 | d (mm): 25 | l (mm): 100 | L (mm): 200 | ap max (mm): 20
BRE20R-SL D (mm): 20 | d (mm): 25 | l (mm): 65 | L (mm): 125 | ap max (mm): 20 | Stock: Yes
BRE25R-S D (mm): 25 | d (mm): 25 | l (mm): 70 | L (mm): 150 | ap max (mm): 23 | Stock: Yes
BRE25R-M D (mm): 25 | d (mm): 25 | l (mm): 95 | L (mm): 175 | ap max (mm): 23 | Stock: Yes
BRE25R-L D (mm): 25 | d (mm): 32 | l (mm): 100 | L (mm): 200 | ap max (mm): 23 | Stock: Yes
BRE25R-SL D (mm): 25 | d (mm): 25 | l (mm): 75 | L (mm): 135 | ap max (mm): 23
BRE32R-S D (mm): 32 | d (mm): 32 | l (mm): 85 | L (mm): 175 | ap max (mm): 31 | Stock: Yes
BRE32R-M D (mm): 32 | d (mm): 32 | l (mm): 100 | L (mm): 200 | ap max (mm): 31 | Stock: Yes
BRE32R-L D (mm): 32 | d (mm): 32 | l (mm): 150 | L (mm): 250 | ap max (mm): 31 | Stock: Yes
BRE32R-SL D (mm): 32 | d (mm): 32 | l (mm): 75 | L (mm): 150 | ap max (mm): 31
BRE40R-S D (mm): 40 | d (mm): 42 | l (mm): 85 | L (mm): 175 | ap max (mm): 41 | Stock: Yes
BRE40R-S-40 D (mm): 40 | d (mm): 40 | l (mm): 85 | L (mm): 175 | ap max (mm): 41
BRE40R-M D (mm): 40 | d (mm): 42 | l (mm): 100 | L (mm): 200 | ap max (mm): 41 | Stock: Yes
BRE40R-M-40 D (mm): 40 | d (mm): 40 | l (mm): 100 | L (mm): 200 | ap max (mm): 41
BRE40R-L D (mm): 40 | d (mm): 42 | l (mm): 150 | L (mm): 250 | ap max (mm): 41 | Stock: Yes
BRE40R-L-40 D (mm): 40 | d (mm): 40 | l (mm): 150 | L (mm): 250 | ap max (mm): 41
BRE40R-SL D (mm): 40 | d (mm): 42 | l (mm): 80 | L (mm): 160 | ap max (mm): 41
BRE40R-SL-40 D (mm): 40 | d (mm): 40 | l (mm): 80 | L (mm): 160 | ap max (mm): 41
BRE50R-S D (mm): 50 | d (mm): 42 | l (mm): 100 | L (mm): 200 | ap max (mm): 45 | Stock: Yes
BRE50R-S-40 D (mm): 50 | d (mm): 40 | l (mm): 100 | L (mm): 200 | ap max (mm): 45
BRE50R-L D (mm): 50 | d (mm): 42 | l (mm): 100 | L (mm): 300 | ap max (mm): 45
BRE50R-L-40 D (mm): 50 | d (mm): 40 | l (mm): 100 | L (mm): 300 | ap max (mm): 45
BRE50R-SL D (mm): 50 | d (mm): 42 | l (mm): 100 | L (mm): 250 | ap max (mm): 45 | Stock: Yes
BRE50R-SL-40 D (mm): 50 | d (mm): 40 | l (mm): 100 | L (mm): 250 | ap max (mm): 45
BRE63R-S D (mm): 63 | d (mm): 42 | l (mm): 100 | L (mm): 200 | ap max (mm): 52
BRE63R-S-40 D (mm): 63 | d (mm): 40 | l (mm): 100 | L (mm): 200 | ap max (mm): 52
BRE63R-L D (mm): 63 | d (mm): 42 | l (mm): 100 | L (mm): 300 | ap max (mm): 52
BRE63R-L-40 D (mm): 63 | d (mm): 40 | l (mm): 100 | L (mm): 300 | ap max (mm): 52
BRE63R-SL D (mm): 63 | d (mm): 42 | l (mm): 100 | L (mm): 250 | ap max (mm): 52 | Stock: Yes
BRE63R-SL-40 D (mm): 63 | d (mm): 40 | l (mm): 100 | L (mm): 250 | ap max (mm): 52
BRE40XR-SC40 D (mm): 40 | d (mm): 40 | l (mm): 110 | L (mm): 200 | ap max (mm): 54
BRE40XR-LC40 D (mm): 40 | d (mm): 40 | l (mm): 150 | L (mm): 250 | ap max (mm): 54 | Stock: Yes
BRE50XR-SC50.8 D (mm): 50 | d (mm): 50.8 | l (mm): 110 | L (mm): 200 | ap max (mm): 57 | Stock: Yes
BRE50XR-LC50.8 D (mm): 50 | d (mm): 50.8 | l (mm): 150 | L (mm): 250 | ap max (mm): 57
Milling CuttersKorloy
36 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Indexable Ball End Mill BRE

Brand Korloy·Milling Cutters

Available part numbers (36)

BRE20R-S, BRE20R-M, BRE20R-L, BRE20R-SL, BRE25R-S, BRE25R-M, BRE25R-L, BRE25R-SL, BRE32R-S, BRE32R-M + 26 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
BRE20R-SD (mm): 20 | d (mm): 20 | l (mm): 50 | L (mm): 125 | ap max (mm): 20 | Stock: Yes
BRE20R-MD (mm): 20 | d (mm): 20 | l (mm): 75 | L (mm): 150 | ap max (mm): 20 | Stock: Yes
BRE20R-LD (mm): 20 | d (mm): 25 | l (mm): 100 | L (mm): 200 | ap max (mm): 20
BRE20R-SLD (mm): 20 | d (mm): 25 | l (mm): 65 | L (mm): 125 | ap max (mm): 20 | Stock: Yes
BRE25R-SD (mm): 25 | d (mm): 25 | l (mm): 70 | L (mm): 150 | ap max (mm): 23 | Stock: Yes
BRE25R-MD (mm): 25 | d (mm): 25 | l (mm): 95 | L (mm): 175 | ap max (mm): 23 | Stock: Yes
BRE25R-LD (mm): 25 | d (mm): 32 | l (mm): 100 | L (mm): 200 | ap max (mm): 23 | Stock: Yes
BRE25R-SLD (mm): 25 | d (mm): 25 | l (mm): 75 | L (mm): 135 | ap max (mm): 23
BRE32R-SD (mm): 32 | d (mm): 32 | l (mm): 85 | L (mm): 175 | ap max (mm): 31 | Stock: Yes
BRE32R-MD (mm): 32 | d (mm): 32 | l (mm): 100 | L (mm): 200 | ap max (mm): 31 | Stock: Yes
BRE32R-LD (mm): 32 | d (mm): 32 | l (mm): 150 | L (mm): 250 | ap max (mm): 31 | Stock: Yes
BRE32R-SLD (mm): 32 | d (mm): 32 | l (mm): 75 | L (mm): 150 | ap max (mm): 31
BRE40R-SD (mm): 40 | d (mm): 42 | l (mm): 85 | L (mm): 175 | ap max (mm): 41 | Stock: Yes
BRE40R-S-40D (mm): 40 | d (mm): 40 | l (mm): 85 | L (mm): 175 | ap max (mm): 41
BRE40R-MD (mm): 40 | d (mm): 42 | l (mm): 100 | L (mm): 200 | ap max (mm): 41 | Stock: Yes
BRE40R-M-40D (mm): 40 | d (mm): 40 | l (mm): 100 | L (mm): 200 | ap max (mm): 41
BRE40R-LD (mm): 40 | d (mm): 42 | l (mm): 150 | L (mm): 250 | ap max (mm): 41 | Stock: Yes
BRE40R-L-40D (mm): 40 | d (mm): 40 | l (mm): 150 | L (mm): 250 | ap max (mm): 41
BRE40R-SLD (mm): 40 | d (mm): 42 | l (mm): 80 | L (mm): 160 | ap max (mm): 41
BRE40R-SL-40D (mm): 40 | d (mm): 40 | l (mm): 80 | L (mm): 160 | ap max (mm): 41
BRE50R-SD (mm): 50 | d (mm): 42 | l (mm): 100 | L (mm): 200 | ap max (mm): 45 | Stock: Yes
BRE50R-S-40D (mm): 50 | d (mm): 40 | l (mm): 100 | L (mm): 200 | ap max (mm): 45
BRE50R-LD (mm): 50 | d (mm): 42 | l (mm): 100 | L (mm): 300 | ap max (mm): 45
BRE50R-L-40D (mm): 50 | d (mm): 40 | l (mm): 100 | L (mm): 300 | ap max (mm): 45
BRE50R-SLD (mm): 50 | d (mm): 42 | l (mm): 100 | L (mm): 250 | ap max (mm): 45 | Stock: Yes
BRE50R-SL-40D (mm): 50 | d (mm): 40 | l (mm): 100 | L (mm): 250 | ap max (mm): 45
BRE63R-SD (mm): 63 | d (mm): 42 | l (mm): 100 | L (mm): 200 | ap max (mm): 52
BRE63R-S-40D (mm): 63 | d (mm): 40 | l (mm): 100 | L (mm): 200 | ap max (mm): 52
BRE63R-LD (mm): 63 | d (mm): 42 | l (mm): 100 | L (mm): 300 | ap max (mm): 52
BRE63R-L-40D (mm): 63 | d (mm): 40 | l (mm): 100 | L (mm): 300 | ap max (mm): 52
BRE63R-SLD (mm): 63 | d (mm): 42 | l (mm): 100 | L (mm): 250 | ap max (mm): 52 | Stock: Yes
BRE63R-SL-40D (mm): 63 | d (mm): 40 | l (mm): 100 | L (mm): 250 | ap max (mm): 52
BRE40XR-SC40D (mm): 40 | d (mm): 40 | l (mm): 110 | L (mm): 200 | ap max (mm): 54
BRE40XR-LC40D (mm): 40 | d (mm): 40 | l (mm): 150 | L (mm): 250 | ap max (mm): 54 | Stock: Yes
BRE50XR-SC50.8D (mm): 50 | d (mm): 50.8 | l (mm): 110 | L (mm): 200 | ap max (mm): 57 | Stock: Yes
BRE50XR-LC50.8D (mm): 50 | d (mm): 50.8 | l (mm): 150 | L (mm): 250 | ap max (mm): 57
