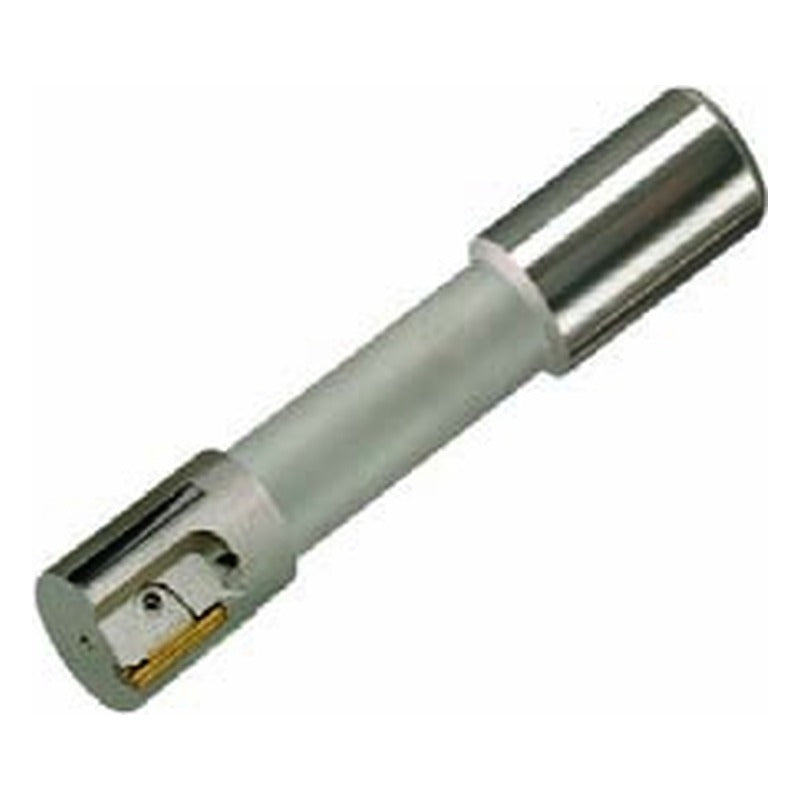

Korloy Indexable Reamer IRB (Blind Hole)

Indexable single-insert reamer for blind hole machining, 10 to 31 mm diameter.

Key features

For mass production and high speed machining
PCD or coated inserts
Adjustable diameter for high precision
Internal coolant

IRB10.000-16125-15		Reamer dia. D (mm): 10 \| l (mm): 15 \| l1 (mm): 30 \| l2 (mm): 75 \| l3 (mm): 45 \| L (mm): 125 \| Shank dia. d (mm): 16 \| Insert: RI15 \| Clamp: CV15 \| Adjusting wedge: AW2430
IRB11.000-16125-15		Reamer dia. D (mm): 11 \| l (mm): 15 \| l1 (mm): 30 \| l2 (mm): 75 \| l3 (mm): 45 \| L (mm): 125 \| Shank dia. d (mm): 16 \| Insert: RI15 \| Clamp: CV15 \| Adjusting wedge: AW2430
IRB12.000-16135-16		Reamer dia. D (mm): 12 \| l (mm): 16 \| l1 (mm): 30 \| l2 (mm): 85 \| l3 (mm): 45 \| L (mm): 135 \| Shank dia. d (mm): 16 \| Insert: RI16 \| Clamp: CV16 \| Adjusting wedge: AW2435
IRB13.000-16135-16		Reamer dia. D (mm): 13 \| l (mm): 16 \| l1 (mm): 30 \| l2 (mm): 85 \| l3 (mm): 45 \| L (mm): 135 \| Shank dia. d (mm): 16 \| Insert: RI16 \| Clamp: CV16 \| Adjusting wedge: AW2435
IRB14.000-16135-16		Reamer dia. D (mm): 14 \| l (mm): 16 \| l1 (mm): 30 \| l2 (mm): 85 \| l3 (mm): 45 \| L (mm): 135 \| Shank dia. d (mm): 16 \| Insert: RI16 \| Clamp: CV16 \| Adjusting wedge: AW2435
IRB15.000-16135-16		Reamer dia. D (mm): 15 \| l (mm): 16 \| l1 (mm): 30 \| l2 (mm): 85 \| l3 (mm): 45 \| L (mm): 135 \| Shank dia. d (mm): 16 \| Insert: RI16 \| Clamp: CV16 \| Adjusting wedge: AW2435
IRB16.000-20155-16		Reamer dia. D (mm): 16 \| l (mm): 16 \| l1 (mm): 30 \| l2 (mm): 100 \| l3 (mm): 50 \| L (mm): 155 \| Shank dia. d (mm): 20 \| Insert: RI16 \| Clamp: CV16 \| Adjusting wedge: AW2435
IRB17.000-20155-16		Reamer dia. D (mm): 17 \| l (mm): 16 \| l1 (mm): 30 \| l2 (mm): 100 \| l3 (mm): 50 \| L (mm): 155 \| Shank dia. d (mm): 20 \| Insert: RI16 \| Clamp: CV16 \| Adjusting wedge: AW2435
IRB18.000-20155-17		Reamer dia. D (mm): 18 \| l (mm): 17 \| l1 (mm): 30 \| l2 (mm): 100 \| l3 (mm): 50 \| L (mm): 155 \| Shank dia. d (mm): 20 \| Insert: RI17 \| Clamp: CV17 \| Adjusting wedge: AW3240
IRB19.000-20155-17		Reamer dia. D (mm): 19 \| l (mm): 17 \| l1 (mm): 30 \| l2 (mm): 100 \| l3 (mm): 50 \| L (mm): 155 \| Shank dia. d (mm): 20 \| Insert: RI17 \| Clamp: CV17 \| Adjusting wedge: AW3240
IRB20.000-25165-17		Reamer dia. D (mm): 20 \| l (mm): 17 \| l1 (mm): 30 \| l2 (mm): 110 \| l3 (mm): 56 \| L (mm): 165 \| Shank dia. d (mm): 25 \| Insert: RI17 \| Clamp: CV17 \| Adjusting wedge: AW3240
IRB21.000-25165-17		Reamer dia. D (mm): 21 \| l (mm): 17 \| l1 (mm): 30 \| l2 (mm): 110 \| l3 (mm): 56 \| L (mm): 165 \| Shank dia. d (mm): 25 \| Insert: RI17 \| Clamp: CV17 \| Adjusting wedge: AW3240
IRB22.000-25165-17		Reamer dia. D (mm): 22 \| l (mm): 17 \| l1 (mm): 30 \| l2 (mm): 110 \| l3 (mm): 56 \| L (mm): 165 \| Shank dia. d (mm): 25 \| Insert: RI17 \| Clamp: CV17 \| Adjusting wedge: AW3240
IRB23.000-25165-17		Reamer dia. D (mm): 23 \| l (mm): 17 \| l1 (mm): 30 \| l2 (mm): 110 \| l3 (mm): 56 \| L (mm): 165 \| Shank dia. d (mm): 25 \| Insert: RI17 \| Clamp: CV17 \| Adjusting wedge: AW3240
IRB24.000-25165-17		Reamer dia. D (mm): 24 \| l (mm): 17 \| l1 (mm): 30 \| l2 (mm): 110 \| l3 (mm): 56 \| L (mm): 165 \| Shank dia. d (mm): 25 \| Insert: RI17 \| Clamp: CV17 \| Adjusting wedge: AW3240
IRB25.000-25165-17		Reamer dia. D (mm): 25 \| l (mm): 17 \| l1 (mm): 30 \| l2 (mm): 110 \| l3 (mm): 56 \| L (mm): 165 \| Shank dia. d (mm): 25 \| Insert: RI17 \| Clamp: CV17 \| Adjusting wedge: AW3240
IRB26.000-25165-17		Reamer dia. D (mm): 26 \| l (mm): 17 \| l1 (mm): 30 \| l2 (mm): 110 \| l3 (mm): 56 \| L (mm): 165 \| Shank dia. d (mm): 25 \| Insert: RI17 \| Clamp: CV17 \| Adjusting wedge: AW3240
IRB27.000-25165-17		Reamer dia. D (mm): 27 \| l (mm): 17 \| l1 (mm): 30 \| l2 (mm): 110 \| l3 (mm): 56 \| L (mm): 165 \| Shank dia. d (mm): 25 \| Insert: RI17 \| Clamp: CV17 \| Adjusting wedge: AW3240
IRB28.000-32165-22		Reamer dia. D (mm): 28 \| l (mm): 22 \| l1 (mm): 30 \| l2 (mm): 110 \| l3 (mm): 56 \| L (mm): 165 \| Shank dia. d (mm): 32 \| Insert: RI22 \| Clamp: CV22 \| Adjusting wedge: AW3260
IRB29.000-32165-22		Reamer dia. D (mm): 29 \| l (mm): 22 \| l1 (mm): 30 \| l2 (mm): 110 \| l3 (mm): 56 \| L (mm): 165 \| Shank dia. d (mm): 32 \| Insert: RI22 \| Clamp: CV22 \| Adjusting wedge: AW3260
IRB30.000-32165-22		Reamer dia. D (mm): 30 \| l (mm): 22 \| l1 (mm): 30 \| l2 (mm): 110 \| l3 (mm): 56 \| L (mm): 165 \| Shank dia. d (mm): 32 \| Insert: RI22 \| Clamp: CV22 \| Adjusting wedge: AW3260
IRB31.000-32165-22		Reamer dia. D (mm): 31 \| l (mm): 22 \| l1 (mm): 30 \| l2 (mm): 110 \| l3 (mm): 56 \| L (mm): 165 \| Shank dia. d (mm): 32 \| Insert: RI22 \| Clamp: CV22 \| Adjusting wedge: AW3260

ReamersKorloy

22 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Indexable Reamer IRB (Blind Hole)

Brand Korloy·Reamers

Available part numbers (22)

IRB10.000-16125-15, IRB11.000-16125-15, IRB12.000-16135-16, IRB13.000-16135-16, IRB14.000-16135-16, IRB15.000-16135-16, IRB16.000-20155-16, IRB17.000-20155-16, IRB18.000-20155-17, IRB19.000-20155-17 + 12 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	IRB10.000-16125-15	Reamer dia. D (mm): 10 \| l (mm): 15 \| l1 (mm): 30 \| l2 (mm): 75 \| l3 (mm): 45 \| L (mm): 125 \| Shank dia. d (mm): 16 \| Insert: RI15 \| Clamp: CV15 \| Adjusting wedge: AW2430
	IRB11.000-16125-15	Reamer dia. D (mm): 11 \| l (mm): 15 \| l1 (mm): 30 \| l2 (mm): 75 \| l3 (mm): 45 \| L (mm): 125 \| Shank dia. d (mm): 16 \| Insert: RI15 \| Clamp: CV15 \| Adjusting wedge: AW2430
	IRB12.000-16135-16	Reamer dia. D (mm): 12 \| l (mm): 16 \| l1 (mm): 30 \| l2 (mm): 85 \| l3 (mm): 45 \| L (mm): 135 \| Shank dia. d (mm): 16 \| Insert: RI16 \| Clamp: CV16 \| Adjusting wedge: AW2435
	IRB13.000-16135-16	Reamer dia. D (mm): 13 \| l (mm): 16 \| l1 (mm): 30 \| l2 (mm): 85 \| l3 (mm): 45 \| L (mm): 135 \| Shank dia. d (mm): 16 \| Insert: RI16 \| Clamp: CV16 \| Adjusting wedge: AW2435
	IRB14.000-16135-16	Reamer dia. D (mm): 14 \| l (mm): 16 \| l1 (mm): 30 \| l2 (mm): 85 \| l3 (mm): 45 \| L (mm): 135 \| Shank dia. d (mm): 16 \| Insert: RI16 \| Clamp: CV16 \| Adjusting wedge: AW2435
	IRB15.000-16135-16	Reamer dia. D (mm): 15 \| l (mm): 16 \| l1 (mm): 30 \| l2 (mm): 85 \| l3 (mm): 45 \| L (mm): 135 \| Shank dia. d (mm): 16 \| Insert: RI16 \| Clamp: CV16 \| Adjusting wedge: AW2435
	IRB16.000-20155-16	Reamer dia. D (mm): 16 \| l (mm): 16 \| l1 (mm): 30 \| l2 (mm): 100 \| l3 (mm): 50 \| L (mm): 155 \| Shank dia. d (mm): 20 \| Insert: RI16 \| Clamp: CV16 \| Adjusting wedge: AW2435
	IRB17.000-20155-16	Reamer dia. D (mm): 17 \| l (mm): 16 \| l1 (mm): 30 \| l2 (mm): 100 \| l3 (mm): 50 \| L (mm): 155 \| Shank dia. d (mm): 20 \| Insert: RI16 \| Clamp: CV16 \| Adjusting wedge: AW2435
	IRB18.000-20155-17	Reamer dia. D (mm): 18 \| l (mm): 17 \| l1 (mm): 30 \| l2 (mm): 100 \| l3 (mm): 50 \| L (mm): 155 \| Shank dia. d (mm): 20 \| Insert: RI17 \| Clamp: CV17 \| Adjusting wedge: AW3240
	IRB19.000-20155-17	Reamer dia. D (mm): 19 \| l (mm): 17 \| l1 (mm): 30 \| l2 (mm): 100 \| l3 (mm): 50 \| L (mm): 155 \| Shank dia. d (mm): 20 \| Insert: RI17 \| Clamp: CV17 \| Adjusting wedge: AW3240
	IRB20.000-25165-17	Reamer dia. D (mm): 20 \| l (mm): 17 \| l1 (mm): 30 \| l2 (mm): 110 \| l3 (mm): 56 \| L (mm): 165 \| Shank dia. d (mm): 25 \| Insert: RI17 \| Clamp: CV17 \| Adjusting wedge: AW3240
	IRB21.000-25165-17	Reamer dia. D (mm): 21 \| l (mm): 17 \| l1 (mm): 30 \| l2 (mm): 110 \| l3 (mm): 56 \| L (mm): 165 \| Shank dia. d (mm): 25 \| Insert: RI17 \| Clamp: CV17 \| Adjusting wedge: AW3240
	IRB22.000-25165-17	Reamer dia. D (mm): 22 \| l (mm): 17 \| l1 (mm): 30 \| l2 (mm): 110 \| l3 (mm): 56 \| L (mm): 165 \| Shank dia. d (mm): 25 \| Insert: RI17 \| Clamp: CV17 \| Adjusting wedge: AW3240
	IRB23.000-25165-17	Reamer dia. D (mm): 23 \| l (mm): 17 \| l1 (mm): 30 \| l2 (mm): 110 \| l3 (mm): 56 \| L (mm): 165 \| Shank dia. d (mm): 25 \| Insert: RI17 \| Clamp: CV17 \| Adjusting wedge: AW3240
	IRB24.000-25165-17	Reamer dia. D (mm): 24 \| l (mm): 17 \| l1 (mm): 30 \| l2 (mm): 110 \| l3 (mm): 56 \| L (mm): 165 \| Shank dia. d (mm): 25 \| Insert: RI17 \| Clamp: CV17 \| Adjusting wedge: AW3240
	IRB25.000-25165-17	Reamer dia. D (mm): 25 \| l (mm): 17 \| l1 (mm): 30 \| l2 (mm): 110 \| l3 (mm): 56 \| L (mm): 165 \| Shank dia. d (mm): 25 \| Insert: RI17 \| Clamp: CV17 \| Adjusting wedge: AW3240
	IRB26.000-25165-17	Reamer dia. D (mm): 26 \| l (mm): 17 \| l1 (mm): 30 \| l2 (mm): 110 \| l3 (mm): 56 \| L (mm): 165 \| Shank dia. d (mm): 25 \| Insert: RI17 \| Clamp: CV17 \| Adjusting wedge: AW3240
	IRB27.000-25165-17	Reamer dia. D (mm): 27 \| l (mm): 17 \| l1 (mm): 30 \| l2 (mm): 110 \| l3 (mm): 56 \| L (mm): 165 \| Shank dia. d (mm): 25 \| Insert: RI17 \| Clamp: CV17 \| Adjusting wedge: AW3240
	IRB28.000-32165-22	Reamer dia. D (mm): 28 \| l (mm): 22 \| l1 (mm): 30 \| l2 (mm): 110 \| l3 (mm): 56 \| L (mm): 165 \| Shank dia. d (mm): 32 \| Insert: RI22 \| Clamp: CV22 \| Adjusting wedge: AW3260
	IRB29.000-32165-22	Reamer dia. D (mm): 29 \| l (mm): 22 \| l1 (mm): 30 \| l2 (mm): 110 \| l3 (mm): 56 \| L (mm): 165 \| Shank dia. d (mm): 32 \| Insert: RI22 \| Clamp: CV22 \| Adjusting wedge: AW3260
	IRB30.000-32165-22	Reamer dia. D (mm): 30 \| l (mm): 22 \| l1 (mm): 30 \| l2 (mm): 110 \| l3 (mm): 56 \| L (mm): 165 \| Shank dia. d (mm): 32 \| Insert: RI22 \| Clamp: CV22 \| Adjusting wedge: AW3260
	IRB31.000-32165-22	Reamer dia. D (mm): 31 \| l (mm): 22 \| l1 (mm): 30 \| l2 (mm): 110 \| l3 (mm): 56 \| L (mm): 165 \| Shank dia. d (mm): 32 \| Insert: RI22 \| Clamp: CV22 \| Adjusting wedge: AW3260
