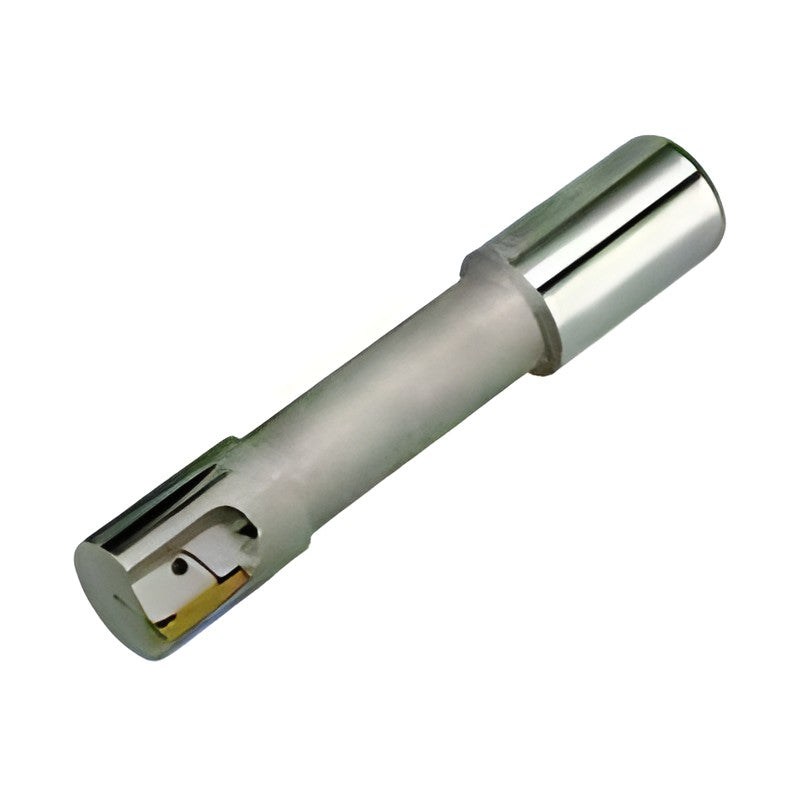

Korloy Indexable Reamer IRT

Korloy Indexable Reamer IRT

Indexable reamer body for mass production reaming with replaceable RI inserts, Ø10 to Ø31 mm.

Key features

  • Replaceable RI reamer inserts
  • High productivity for mass production
  • Easy insert setting
IRT10.000-16125-15 D (mm): 10 | l (mm): 15 | l1 (mm): 30 | l2 (mm): 75 | l3 (mm): 45 | L (mm): 125 | Shank d (mm): 16 | Insert: RI15
IRT11.000-16125-15 D (mm): 11 | l (mm): 15 | l1 (mm): 30 | l2 (mm): 75 | l3 (mm): 45 | L (mm): 125 | Shank d (mm): 16 | Insert: RI15
IRT12.000-16135-16 D (mm): 12 | l (mm): 16 | l1 (mm): 30 | l2 (mm): 85 | l3 (mm): 45 | L (mm): 135 | Shank d (mm): 16 | Insert: RI16
IRT13.000-16135-16 D (mm): 13 | l (mm): 16 | l1 (mm): 30 | l2 (mm): 85 | l3 (mm): 45 | L (mm): 135 | Shank d (mm): 16 | Insert: RI16
IRT14.000-16135-16 D (mm): 14 | l (mm): 16 | l1 (mm): 30 | l2 (mm): 85 | l3 (mm): 45 | L (mm): 135 | Shank d (mm): 16 | Insert: RI16
IRT15.000-16135-16 D (mm): 15 | l (mm): 16 | l1 (mm): 30 | l2 (mm): 85 | l3 (mm): 45 | L (mm): 135 | Shank d (mm): 16 | Insert: RI16
IRT16.000-20155-16 D (mm): 16 | l (mm): 16 | l1 (mm): 30 | l2 (mm): 100 | l3 (mm): 50 | L (mm): 155 | Shank d (mm): 20 | Insert: RI16
IRT17.000-20155-16 D (mm): 17 | l (mm): 16 | l1 (mm): 30 | l2 (mm): 100 | l3 (mm): 50 | L (mm): 155 | Shank d (mm): 20 | Insert: RI16
IRT18.000-20155-17 D (mm): 18 | l (mm): 17 | l1 (mm): 30 | l2 (mm): 100 | l3 (mm): 50 | L (mm): 155 | Shank d (mm): 20 | Insert: RI17
IRT19.000-20155-17 D (mm): 19 | l (mm): 17 | l1 (mm): 30 | l2 (mm): 100 | l3 (mm): 50 | L (mm): 155 | Shank d (mm): 20 | Insert: RI17
IRT20.000-25165-17 D (mm): 20 | l (mm): 17 | l1 (mm): 30 | l2 (mm): 110 | l3 (mm): 56 | L (mm): 165 | Shank d (mm): 25 | Insert: RI17
IRT21.000-25165-17 D (mm): 21 | l (mm): 17 | l1 (mm): 30 | l2 (mm): 110 | l3 (mm): 56 | L (mm): 165 | Shank d (mm): 25 | Insert: RI17
IRT22.000-25165-17 D (mm): 22 | l (mm): 17 | l1 (mm): 30 | l2 (mm): 110 | l3 (mm): 56 | L (mm): 165 | Shank d (mm): 25 | Insert: RI17
IRT23.000-25165-17 D (mm): 23 | l (mm): 17 | l1 (mm): 30 | l2 (mm): 110 | l3 (mm): 56 | L (mm): 165 | Shank d (mm): 25 | Insert: RI17
IRT24.000-25165-17 D (mm): 24 | l (mm): 17 | l1 (mm): 30 | l2 (mm): 110 | l3 (mm): 56 | L (mm): 165 | Shank d (mm): 25 | Insert: RI17
IRT25.000-25165-17 D (mm): 25 | l (mm): 17 | l1 (mm): 30 | l2 (mm): 110 | l3 (mm): 56 | L (mm): 165 | Shank d (mm): 25 | Insert: RI17
IRT26.000-25165-17 D (mm): 26 | l (mm): 17 | l1 (mm): 30 | l2 (mm): 110 | l3 (mm): 56 | L (mm): 165 | Shank d (mm): 25 | Insert: RI17
IRT27.000-25165-17 D (mm): 27 | l (mm): 17 | l1 (mm): 30 | l2 (mm): 110 | l3 (mm): 56 | L (mm): 165 | Shank d (mm): 25 | Insert: RI17
IRT28.000-32165-22 D (mm): 28 | l (mm): 22 | l1 (mm): 30 | l2 (mm): 110 | l3 (mm): 56 | L (mm): 165 | Shank d (mm): 32 | Insert: RI22
IRT29.000-32165-22 D (mm): 29 | l (mm): 22 | l1 (mm): 30 | l2 (mm): 110 | l3 (mm): 56 | L (mm): 165 | Shank d (mm): 32 | Insert: RI22
IRT30.000-32165-22 D (mm): 30 | l (mm): 22 | l1 (mm): 30 | l2 (mm): 110 | l3 (mm): 56 | L (mm): 165 | Shank d (mm): 32 | Insert: RI22
IRT31.000-32165-22 D (mm): 31 | l (mm): 22 | l1 (mm): 30 | l2 (mm): 110 | l3 (mm): 56 | L (mm): 165 | Shank d (mm): 32 | Insert: RI22
ReamersKorloy
22 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Indexable Reamer IRT

Brand Korloy·Reamers

Available part numbers (22)

IRT10.000-16125-15, IRT11.000-16125-15, IRT12.000-16135-16, IRT13.000-16135-16, IRT14.000-16135-16, IRT15.000-16135-16, IRT16.000-20155-16, IRT17.000-20155-16, IRT18.000-20155-17, IRT19.000-20155-17 + 12 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
IRT10.000-16125-15D (mm): 10 | l (mm): 15 | l1 (mm): 30 | l2 (mm): 75 | l3 (mm): 45 | L (mm): 125 | Shank d (mm): 16 | Insert: RI15
IRT11.000-16125-15D (mm): 11 | l (mm): 15 | l1 (mm): 30 | l2 (mm): 75 | l3 (mm): 45 | L (mm): 125 | Shank d (mm): 16 | Insert: RI15
IRT12.000-16135-16D (mm): 12 | l (mm): 16 | l1 (mm): 30 | l2 (mm): 85 | l3 (mm): 45 | L (mm): 135 | Shank d (mm): 16 | Insert: RI16
IRT13.000-16135-16D (mm): 13 | l (mm): 16 | l1 (mm): 30 | l2 (mm): 85 | l3 (mm): 45 | L (mm): 135 | Shank d (mm): 16 | Insert: RI16
IRT14.000-16135-16D (mm): 14 | l (mm): 16 | l1 (mm): 30 | l2 (mm): 85 | l3 (mm): 45 | L (mm): 135 | Shank d (mm): 16 | Insert: RI16
IRT15.000-16135-16D (mm): 15 | l (mm): 16 | l1 (mm): 30 | l2 (mm): 85 | l3 (mm): 45 | L (mm): 135 | Shank d (mm): 16 | Insert: RI16
IRT16.000-20155-16D (mm): 16 | l (mm): 16 | l1 (mm): 30 | l2 (mm): 100 | l3 (mm): 50 | L (mm): 155 | Shank d (mm): 20 | Insert: RI16
IRT17.000-20155-16D (mm): 17 | l (mm): 16 | l1 (mm): 30 | l2 (mm): 100 | l3 (mm): 50 | L (mm): 155 | Shank d (mm): 20 | Insert: RI16
IRT18.000-20155-17D (mm): 18 | l (mm): 17 | l1 (mm): 30 | l2 (mm): 100 | l3 (mm): 50 | L (mm): 155 | Shank d (mm): 20 | Insert: RI17
IRT19.000-20155-17D (mm): 19 | l (mm): 17 | l1 (mm): 30 | l2 (mm): 100 | l3 (mm): 50 | L (mm): 155 | Shank d (mm): 20 | Insert: RI17
IRT20.000-25165-17D (mm): 20 | l (mm): 17 | l1 (mm): 30 | l2 (mm): 110 | l3 (mm): 56 | L (mm): 165 | Shank d (mm): 25 | Insert: RI17
IRT21.000-25165-17D (mm): 21 | l (mm): 17 | l1 (mm): 30 | l2 (mm): 110 | l3 (mm): 56 | L (mm): 165 | Shank d (mm): 25 | Insert: RI17
IRT22.000-25165-17D (mm): 22 | l (mm): 17 | l1 (mm): 30 | l2 (mm): 110 | l3 (mm): 56 | L (mm): 165 | Shank d (mm): 25 | Insert: RI17
IRT23.000-25165-17D (mm): 23 | l (mm): 17 | l1 (mm): 30 | l2 (mm): 110 | l3 (mm): 56 | L (mm): 165 | Shank d (mm): 25 | Insert: RI17
IRT24.000-25165-17D (mm): 24 | l (mm): 17 | l1 (mm): 30 | l2 (mm): 110 | l3 (mm): 56 | L (mm): 165 | Shank d (mm): 25 | Insert: RI17
IRT25.000-25165-17D (mm): 25 | l (mm): 17 | l1 (mm): 30 | l2 (mm): 110 | l3 (mm): 56 | L (mm): 165 | Shank d (mm): 25 | Insert: RI17
IRT26.000-25165-17D (mm): 26 | l (mm): 17 | l1 (mm): 30 | l2 (mm): 110 | l3 (mm): 56 | L (mm): 165 | Shank d (mm): 25 | Insert: RI17
IRT27.000-25165-17D (mm): 27 | l (mm): 17 | l1 (mm): 30 | l2 (mm): 110 | l3 (mm): 56 | L (mm): 165 | Shank d (mm): 25 | Insert: RI17
IRT28.000-32165-22D (mm): 28 | l (mm): 22 | l1 (mm): 30 | l2 (mm): 110 | l3 (mm): 56 | L (mm): 165 | Shank d (mm): 32 | Insert: RI22
IRT29.000-32165-22D (mm): 29 | l (mm): 22 | l1 (mm): 30 | l2 (mm): 110 | l3 (mm): 56 | L (mm): 165 | Shank d (mm): 32 | Insert: RI22
IRT30.000-32165-22D (mm): 30 | l (mm): 22 | l1 (mm): 30 | l2 (mm): 110 | l3 (mm): 56 | L (mm): 165 | Shank d (mm): 32 | Insert: RI22
IRT31.000-32165-22D (mm): 31 | l (mm): 22 | l1 (mm): 30 | l2 (mm): 110 | l3 (mm): 56 | L (mm): 165 | Shank d (mm): 32 | Insert: RI22
