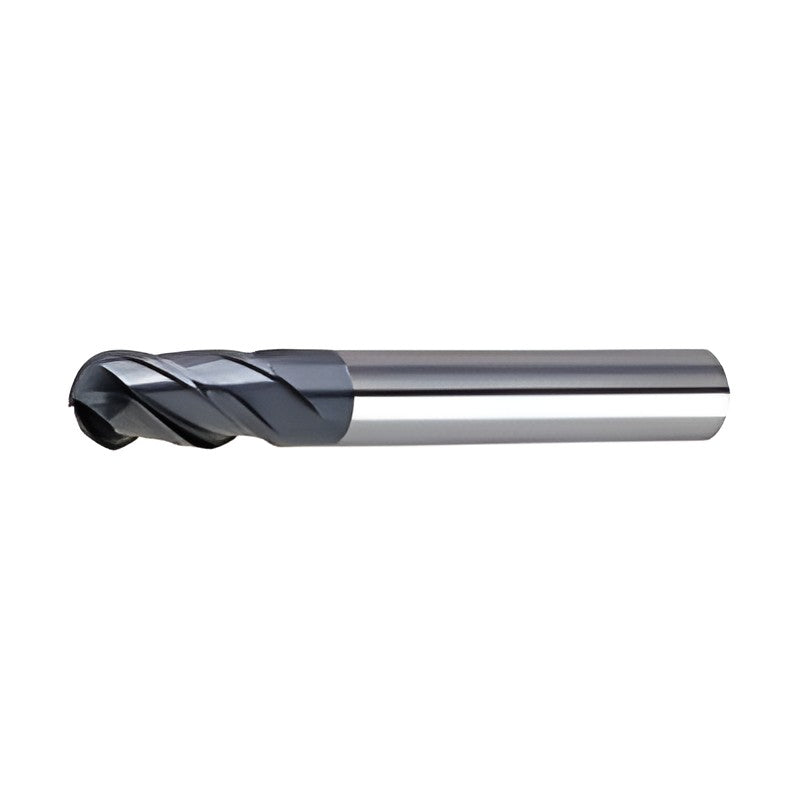

Korloy IPBE4000 I+ Ball End Mill

Korloy IPBE4000 I+ Ball End Mill

Solid carbide end mill with a tough substrate and wear-resisting coating for stable general machining of workpieces under HRC45.

Key features

  • Stable performance on workpieces under HRC45
  • Tough substrate and wear-resisting coating
  • Wide application range in general use

Specifications

Grade PC320
Helix angle 35 deg
Shank tolerance h6
IPBE4010-050-S4 Ball radius R (mm): 0.5 | Dia. D (mm): 1 | Shank dia. d (mm): 4 | Flute length l (mm): 2 | Overall length L (mm): 50 | Flutes: 4
IPBE4010-050 Ball radius R (mm): 0.5 | Dia. D (mm): 1 | Shank dia. d (mm): 6 | Flute length l (mm): 2 | Overall length L (mm): 50 | Flutes: 4
IPBE4015-050-S4 Ball radius R (mm): 0.75 | Dia. D (mm): 1.5 | Shank dia. d (mm): 4 | Flute length l (mm): 3 | Overall length L (mm): 50 | Flutes: 4
IPBE4015-050 Ball radius R (mm): 0.75 | Dia. D (mm): 1.5 | Shank dia. d (mm): 6 | Flute length l (mm): 3 | Overall length L (mm): 50 | Flutes: 4
IPBE4020-050-S4 Ball radius R (mm): 1 | Dia. D (mm): 2 | Shank dia. d (mm): 4 | Flute length l (mm): 4 | Overall length L (mm): 50 | Flutes: 4
IPBE4020-050 Ball radius R (mm): 1 | Dia. D (mm): 2 | Shank dia. d (mm): 6 | Flute length l (mm): 4 | Overall length L (mm): 50 | Flutes: 4
IPBE4025-050-S4 Ball radius R (mm): 1.25 | Dia. D (mm): 2.5 | Shank dia. d (mm): 4 | Flute length l (mm): 5 | Overall length L (mm): 50 | Flutes: 4
IPBE4025-050 Ball radius R (mm): 1.25 | Dia. D (mm): 2.5 | Shank dia. d (mm): 6 | Flute length l (mm): 5 | Overall length L (mm): 50 | Flutes: 4
IPBE4030-050-S3 Ball radius R (mm): 1.5 | Dia. D (mm): 3 | Shank dia. d (mm): 3 | Flute length l (mm): 6 | Overall length L (mm): 50 | Flutes: 4
IPBE4030-050-S4 Ball radius R (mm): 1.5 | Dia. D (mm): 3 | Shank dia. d (mm): 4 | Flute length l (mm): 6 | Overall length L (mm): 50 | Flutes: 4
IPBE4030-050 Ball radius R (mm): 1.5 | Dia. D (mm): 3 | Shank dia. d (mm): 6 | Flute length l (mm): 6 | Overall length L (mm): 50 | Flutes: 4
IPBE4035-050-S4 Ball radius R (mm): 1.75 | Dia. D (mm): 3.5 | Shank dia. d (mm): 4 | Flute length l (mm): 7 | Overall length L (mm): 50 | Flutes: 4
IPBE4035-050 Ball radius R (mm): 1.75 | Dia. D (mm): 3.5 | Shank dia. d (mm): 6 | Flute length l (mm): 7 | Overall length L (mm): 50 | Flutes: 4
IPBE4040-050-S4 Ball radius R (mm): 2 | Dia. D (mm): 4 | Shank dia. d (mm): 4 | Flute length l (mm): 8 | Overall length L (mm): 50 | Flutes: 4
IPBE4040-050 Ball radius R (mm): 2 | Dia. D (mm): 4 | Shank dia. d (mm): 6 | Flute length l (mm): 8 | Overall length L (mm): 50 | Flutes: 4
IPBE4045-050 Ball radius R (mm): 2.25 | Dia. D (mm): 4.5 | Shank dia. d (mm): 6 | Flute length l (mm): 9 | Overall length L (mm): 50 | Flutes: 4
IPBE4050-050 Ball radius R (mm): 2.5 | Dia. D (mm): 5 | Shank dia. d (mm): 6 | Flute length l (mm): 10 | Overall length L (mm): 50 | Flutes: 4
IPBE4060-050 Ball radius R (mm): 3 | Dia. D (mm): 6 | Shank dia. d (mm): 6 | Flute length l (mm): 12 | Overall length L (mm): 50 | Flutes: 4
IPBE4070-060 Ball radius R (mm): 3.5 | Dia. D (mm): 7 | Shank dia. d (mm): 8 | Flute length l (mm): 14 | Overall length L (mm): 60 | Flutes: 4
IPBE4080-060 Ball radius R (mm): 4 | Dia. D (mm): 8 | Shank dia. d (mm): 8 | Flute length l (mm): 16 | Overall length L (mm): 60 | Flutes: 4
IPBE4090-075 Ball radius R (mm): 4.5 | Dia. D (mm): 9 | Shank dia. d (mm): 10 | Flute length l (mm): 18 | Overall length L (mm): 75 | Flutes: 4
IPBE4100-075 Ball radius R (mm): 5 | Dia. D (mm): 10 | Shank dia. d (mm): 10 | Flute length l (mm): 20 | Overall length L (mm): 75 | Flutes: 4
IPBE4120-075 Ball radius R (mm): 6 | Dia. D (mm): 12 | Shank dia. d (mm): 12 | Flute length l (mm): 24 | Overall length L (mm): 75 | Flutes: 4
IPBE4140-100 Ball radius R (mm): 7 | Dia. D (mm): 14 | Shank dia. d (mm): 16 | Flute length l (mm): 28 | Overall length L (mm): 100 | Flutes: 4
IPBE4160-100 Ball radius R (mm): 8 | Dia. D (mm): 16 | Shank dia. d (mm): 16 | Flute length l (mm): 32 | Overall length L (mm): 100 | Flutes: 4
IPBE4180-100 Ball radius R (mm): 9 | Dia. D (mm): 18 | Shank dia. d (mm): 20 | Flute length l (mm): 36 | Overall length L (mm): 100 | Flutes: 4
IPBE4200-100 Ball radius R (mm): 10 | Dia. D (mm): 20 | Shank dia. d (mm): 20 | Flute length l (mm): 40 | Overall length L (mm): 100 | Flutes: 4
Ball End MillsKorloy
27 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy IPBE4000 I+ Ball End Mill

Brand Korloy·Ball End Mills

Available part numbers (27)

IPBE4010-050-S4, IPBE4010-050, IPBE4015-050-S4, IPBE4015-050, IPBE4020-050-S4, IPBE4020-050, IPBE4025-050-S4, IPBE4025-050, IPBE4030-050-S3, IPBE4030-050-S4 + 17 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
IPBE4010-050-S4Ball radius R (mm): 0.5 | Dia. D (mm): 1 | Shank dia. d (mm): 4 | Flute length l (mm): 2 | Overall length L (mm): 50 | Flutes: 4
IPBE4010-050Ball radius R (mm): 0.5 | Dia. D (mm): 1 | Shank dia. d (mm): 6 | Flute length l (mm): 2 | Overall length L (mm): 50 | Flutes: 4
IPBE4015-050-S4Ball radius R (mm): 0.75 | Dia. D (mm): 1.5 | Shank dia. d (mm): 4 | Flute length l (mm): 3 | Overall length L (mm): 50 | Flutes: 4
IPBE4015-050Ball radius R (mm): 0.75 | Dia. D (mm): 1.5 | Shank dia. d (mm): 6 | Flute length l (mm): 3 | Overall length L (mm): 50 | Flutes: 4
IPBE4020-050-S4Ball radius R (mm): 1 | Dia. D (mm): 2 | Shank dia. d (mm): 4 | Flute length l (mm): 4 | Overall length L (mm): 50 | Flutes: 4
IPBE4020-050Ball radius R (mm): 1 | Dia. D (mm): 2 | Shank dia. d (mm): 6 | Flute length l (mm): 4 | Overall length L (mm): 50 | Flutes: 4
IPBE4025-050-S4Ball radius R (mm): 1.25 | Dia. D (mm): 2.5 | Shank dia. d (mm): 4 | Flute length l (mm): 5 | Overall length L (mm): 50 | Flutes: 4
IPBE4025-050Ball radius R (mm): 1.25 | Dia. D (mm): 2.5 | Shank dia. d (mm): 6 | Flute length l (mm): 5 | Overall length L (mm): 50 | Flutes: 4
IPBE4030-050-S3Ball radius R (mm): 1.5 | Dia. D (mm): 3 | Shank dia. d (mm): 3 | Flute length l (mm): 6 | Overall length L (mm): 50 | Flutes: 4
IPBE4030-050-S4Ball radius R (mm): 1.5 | Dia. D (mm): 3 | Shank dia. d (mm): 4 | Flute length l (mm): 6 | Overall length L (mm): 50 | Flutes: 4
IPBE4030-050Ball radius R (mm): 1.5 | Dia. D (mm): 3 | Shank dia. d (mm): 6 | Flute length l (mm): 6 | Overall length L (mm): 50 | Flutes: 4
IPBE4035-050-S4Ball radius R (mm): 1.75 | Dia. D (mm): 3.5 | Shank dia. d (mm): 4 | Flute length l (mm): 7 | Overall length L (mm): 50 | Flutes: 4
IPBE4035-050Ball radius R (mm): 1.75 | Dia. D (mm): 3.5 | Shank dia. d (mm): 6 | Flute length l (mm): 7 | Overall length L (mm): 50 | Flutes: 4
IPBE4040-050-S4Ball radius R (mm): 2 | Dia. D (mm): 4 | Shank dia. d (mm): 4 | Flute length l (mm): 8 | Overall length L (mm): 50 | Flutes: 4
IPBE4040-050Ball radius R (mm): 2 | Dia. D (mm): 4 | Shank dia. d (mm): 6 | Flute length l (mm): 8 | Overall length L (mm): 50 | Flutes: 4
IPBE4045-050Ball radius R (mm): 2.25 | Dia. D (mm): 4.5 | Shank dia. d (mm): 6 | Flute length l (mm): 9 | Overall length L (mm): 50 | Flutes: 4
IPBE4050-050Ball radius R (mm): 2.5 | Dia. D (mm): 5 | Shank dia. d (mm): 6 | Flute length l (mm): 10 | Overall length L (mm): 50 | Flutes: 4
IPBE4060-050Ball radius R (mm): 3 | Dia. D (mm): 6 | Shank dia. d (mm): 6 | Flute length l (mm): 12 | Overall length L (mm): 50 | Flutes: 4
IPBE4070-060Ball radius R (mm): 3.5 | Dia. D (mm): 7 | Shank dia. d (mm): 8 | Flute length l (mm): 14 | Overall length L (mm): 60 | Flutes: 4
IPBE4080-060Ball radius R (mm): 4 | Dia. D (mm): 8 | Shank dia. d (mm): 8 | Flute length l (mm): 16 | Overall length L (mm): 60 | Flutes: 4
IPBE4090-075Ball radius R (mm): 4.5 | Dia. D (mm): 9 | Shank dia. d (mm): 10 | Flute length l (mm): 18 | Overall length L (mm): 75 | Flutes: 4
IPBE4100-075Ball radius R (mm): 5 | Dia. D (mm): 10 | Shank dia. d (mm): 10 | Flute length l (mm): 20 | Overall length L (mm): 75 | Flutes: 4
IPBE4120-075Ball radius R (mm): 6 | Dia. D (mm): 12 | Shank dia. d (mm): 12 | Flute length l (mm): 24 | Overall length L (mm): 75 | Flutes: 4
IPBE4140-100Ball radius R (mm): 7 | Dia. D (mm): 14 | Shank dia. d (mm): 16 | Flute length l (mm): 28 | Overall length L (mm): 100 | Flutes: 4
IPBE4160-100Ball radius R (mm): 8 | Dia. D (mm): 16 | Shank dia. d (mm): 16 | Flute length l (mm): 32 | Overall length L (mm): 100 | Flutes: 4
IPBE4180-100Ball radius R (mm): 9 | Dia. D (mm): 18 | Shank dia. d (mm): 20 | Flute length l (mm): 36 | Overall length L (mm): 100 | Flutes: 4
IPBE4200-100Ball radius R (mm): 10 | Dia. D (mm): 20 | Shank dia. d (mm): 20 | Flute length l (mm): 40 | Overall length L (mm): 100 | Flutes: 4
