• Korloy IPFE2000 I+ Flat End Mill
1 1

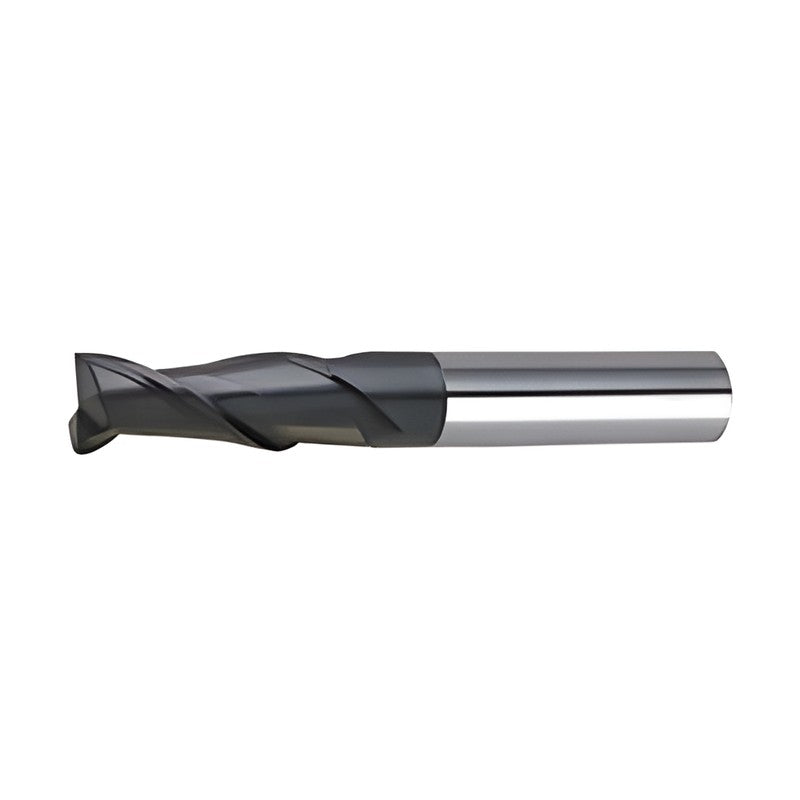

Korloy IPFE2000 I+ Flat End Mill

Korloy IPFE2000 I+ Flat End Mill

Solid carbide end mill with a tough substrate and wear-resisting coating for stable general machining of workpieces under HRC45.

Key features

  • Stable performance on workpieces under HRC45
  • Tough substrate and wear-resisting coating
  • Wide application range in general use

Specifications

Grade PC320
Helix angle 35 deg
Shank tolerance h6
IPFE2010-050-S3 Dia. D (mm): 1 | Shank dia. d (mm): 3 | Flute length l (mm): 3 | Overall length L (mm): 50 | Flutes: 2
IPFE2010-050-S4 Dia. D (mm): 1 | Shank dia. d (mm): 4 | Flute length l (mm): 3 | Overall length L (mm): 50 | Flutes: 2
IPFE2010-050 Dia. D (mm): 1 | Shank dia. d (mm): 6 | Flute length l (mm): 3 | Overall length L (mm): 50 | Flutes: 2
IPFE2015-050-S3 Dia. D (mm): 1.5 | Shank dia. d (mm): 3 | Flute length l (mm): 4 | Overall length L (mm): 50 | Flutes: 2
IPFE2015-050-S4 Dia. D (mm): 1.5 | Shank dia. d (mm): 4 | Flute length l (mm): 4 | Overall length L (mm): 50 | Flutes: 2
IPFE2015-050 Dia. D (mm): 1.5 | Shank dia. d (mm): 6 | Flute length l (mm): 4 | Overall length L (mm): 50 | Flutes: 2
IPFE2020-050-S3 Dia. D (mm): 2 | Shank dia. d (mm): 3 | Flute length l (mm): 6 | Overall length L (mm): 50 | Flutes: 2
IPFE2020-050-S4 Dia. D (mm): 2 | Shank dia. d (mm): 4 | Flute length l (mm): 6 | Overall length L (mm): 50 | Flutes: 2
IPFE2020-050 Dia. D (mm): 2 | Shank dia. d (mm): 6 | Flute length l (mm): 6 | Overall length L (mm): 50 | Flutes: 2
IPFE2025-050-S3 Dia. D (mm): 2.5 | Shank dia. d (mm): 3 | Flute length l (mm): 8 | Overall length L (mm): 50 | Flutes: 2
IPFE2025-050-S4 Dia. D (mm): 2.5 | Shank dia. d (mm): 4 | Flute length l (mm): 8 | Overall length L (mm): 50 | Flutes: 2
IPFE2025-050 Dia. D (mm): 2.5 | Shank dia. d (mm): 6 | Flute length l (mm): 8 | Overall length L (mm): 50 | Flutes: 2
IPFE2030-050-S3 Dia. D (mm): 3 | Shank dia. d (mm): 3 | Flute length l (mm): 8 | Overall length L (mm): 50 | Flutes: 2
IPFE2030-050-S4 Dia. D (mm): 3 | Shank dia. d (mm): 4 | Flute length l (mm): 8 | Overall length L (mm): 50 | Flutes: 2
IPFE2030-050 Dia. D (mm): 3 | Shank dia. d (mm): 6 | Flute length l (mm): 8 | Overall length L (mm): 50 | Flutes: 2
IPFE2035-050-S4 Dia. D (mm): 3.5 | Shank dia. d (mm): 4 | Flute length l (mm): 10 | Overall length L (mm): 50 | Flutes: 2
IPFE2035-050 Dia. D (mm): 3.5 | Shank dia. d (mm): 6 | Flute length l (mm): 10 | Overall length L (mm): 50 | Flutes: 2
IPFE2040-050-S4 Dia. D (mm): 4 | Shank dia. d (mm): 4 | Flute length l (mm): 11 | Overall length L (mm): 50 | Flutes: 2
IPFE2040-050 Dia. D (mm): 4 | Shank dia. d (mm): 6 | Flute length l (mm): 11 | Overall length L (mm): 50 | Flutes: 2
IPFE2045-050 Dia. D (mm): 4.5 | Shank dia. d (mm): 6 | Flute length l (mm): 13 | Overall length L (mm): 50 | Flutes: 2
IPFE2050-050 Dia. D (mm): 5 | Shank dia. d (mm): 6 | Flute length l (mm): 13 | Overall length L (mm): 50 | Flutes: 2
IPFE2055-050 Dia. D (mm): 5.5 | Shank dia. d (mm): 6 | Flute length l (mm): 13 | Overall length L (mm): 50 | Flutes: 2
IPFE2060-050 Dia. D (mm): 6 | Shank dia. d (mm): 6 | Flute length l (mm): 16 | Overall length L (mm): 50 | Flutes: 2
IPFE2065-060 Dia. D (mm): 6.5 | Shank dia. d (mm): 8 | Flute length l (mm): 16 | Overall length L (mm): 60 | Flutes: 2
IPFE2070-060 Dia. D (mm): 7 | Shank dia. d (mm): 8 | Flute length l (mm): 16 | Overall length L (mm): 60 | Flutes: 2
IPFE2075-060 Dia. D (mm): 7.5 | Shank dia. d (mm): 8 | Flute length l (mm): 19 | Overall length L (mm): 60 | Flutes: 2
IPFE2080-060 Dia. D (mm): 8 | Shank dia. d (mm): 8 | Flute length l (mm): 20 | Overall length L (mm): 60 | Flutes: 2
IPFE2085-075 Dia. D (mm): 8.5 | Shank dia. d (mm): 10 | Flute length l (mm): 20 | Overall length L (mm): 75 | Flutes: 2
IPFE2090-075 Dia. D (mm): 9 | Shank dia. d (mm): 10 | Flute length l (mm): 20 | Overall length L (mm): 75 | Flutes: 2
IPFE2095-075 Dia. D (mm): 9.5 | Shank dia. d (mm): 10 | Flute length l (mm): 25 | Overall length L (mm): 75 | Flutes: 2
IPFE2100-075 Dia. D (mm): 10 | Shank dia. d (mm): 10 | Flute length l (mm): 25 | Overall length L (mm): 75 | Flutes: 2
IPFE2105-075 Dia. D (mm): 10.5 | Shank dia. d (mm): 12 | Flute length l (mm): 25 | Overall length L (mm): 75 | Flutes: 2
IPFE2110-075 Dia. D (mm): 11 | Shank dia. d (mm): 12 | Flute length l (mm): 30 | Overall length L (mm): 75 | Flutes: 2
IPFE2115-075 Dia. D (mm): 11.5 | Shank dia. d (mm): 12 | Flute length l (mm): 30 | Overall length L (mm): 75 | Flutes: 2
IPFE2120-075 Dia. D (mm): 12 | Shank dia. d (mm): 12 | Flute length l (mm): 32 | Overall length L (mm): 75 | Flutes: 2
IPFE2140-100 Dia. D (mm): 14 | Shank dia. d (mm): 16 | Flute length l (mm): 40 | Overall length L (mm): 100 | Flutes: 2
IPFE2160-100 Dia. D (mm): 16 | Shank dia. d (mm): 16 | Flute length l (mm): 40 | Overall length L (mm): 100 | Flutes: 2
IPFE2180-100 Dia. D (mm): 18 | Shank dia. d (mm): 20 | Flute length l (mm): 45 | Overall length L (mm): 100 | Flutes: 2
IPFE2200-100 Dia. D (mm): 20 | Shank dia. d (mm): 20 | Flute length l (mm): 45 | Overall length L (mm): 100 | Flutes: 2
End MillsKorloy
39 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy IPFE2000 I+ Flat End Mill

Brand Korloy·End Mills

Available part numbers (39)

IPFE2010-050-S3, IPFE2010-050-S4, IPFE2010-050, IPFE2015-050-S3, IPFE2015-050-S4, IPFE2015-050, IPFE2020-050-S3, IPFE2020-050-S4, IPFE2020-050, IPFE2025-050-S3 + 29 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
IPFE2010-050-S3Dia. D (mm): 1 | Shank dia. d (mm): 3 | Flute length l (mm): 3 | Overall length L (mm): 50 | Flutes: 2
IPFE2010-050-S4Dia. D (mm): 1 | Shank dia. d (mm): 4 | Flute length l (mm): 3 | Overall length L (mm): 50 | Flutes: 2
IPFE2010-050Dia. D (mm): 1 | Shank dia. d (mm): 6 | Flute length l (mm): 3 | Overall length L (mm): 50 | Flutes: 2
IPFE2015-050-S3Dia. D (mm): 1.5 | Shank dia. d (mm): 3 | Flute length l (mm): 4 | Overall length L (mm): 50 | Flutes: 2
IPFE2015-050-S4Dia. D (mm): 1.5 | Shank dia. d (mm): 4 | Flute length l (mm): 4 | Overall length L (mm): 50 | Flutes: 2
IPFE2015-050Dia. D (mm): 1.5 | Shank dia. d (mm): 6 | Flute length l (mm): 4 | Overall length L (mm): 50 | Flutes: 2
IPFE2020-050-S3Dia. D (mm): 2 | Shank dia. d (mm): 3 | Flute length l (mm): 6 | Overall length L (mm): 50 | Flutes: 2
IPFE2020-050-S4Dia. D (mm): 2 | Shank dia. d (mm): 4 | Flute length l (mm): 6 | Overall length L (mm): 50 | Flutes: 2
IPFE2020-050Dia. D (mm): 2 | Shank dia. d (mm): 6 | Flute length l (mm): 6 | Overall length L (mm): 50 | Flutes: 2
IPFE2025-050-S3Dia. D (mm): 2.5 | Shank dia. d (mm): 3 | Flute length l (mm): 8 | Overall length L (mm): 50 | Flutes: 2
IPFE2025-050-S4Dia. D (mm): 2.5 | Shank dia. d (mm): 4 | Flute length l (mm): 8 | Overall length L (mm): 50 | Flutes: 2
IPFE2025-050Dia. D (mm): 2.5 | Shank dia. d (mm): 6 | Flute length l (mm): 8 | Overall length L (mm): 50 | Flutes: 2
IPFE2030-050-S3Dia. D (mm): 3 | Shank dia. d (mm): 3 | Flute length l (mm): 8 | Overall length L (mm): 50 | Flutes: 2
IPFE2030-050-S4Dia. D (mm): 3 | Shank dia. d (mm): 4 | Flute length l (mm): 8 | Overall length L (mm): 50 | Flutes: 2
IPFE2030-050Dia. D (mm): 3 | Shank dia. d (mm): 6 | Flute length l (mm): 8 | Overall length L (mm): 50 | Flutes: 2
IPFE2035-050-S4Dia. D (mm): 3.5 | Shank dia. d (mm): 4 | Flute length l (mm): 10 | Overall length L (mm): 50 | Flutes: 2
IPFE2035-050Dia. D (mm): 3.5 | Shank dia. d (mm): 6 | Flute length l (mm): 10 | Overall length L (mm): 50 | Flutes: 2
IPFE2040-050-S4Dia. D (mm): 4 | Shank dia. d (mm): 4 | Flute length l (mm): 11 | Overall length L (mm): 50 | Flutes: 2
IPFE2040-050Dia. D (mm): 4 | Shank dia. d (mm): 6 | Flute length l (mm): 11 | Overall length L (mm): 50 | Flutes: 2
IPFE2045-050Dia. D (mm): 4.5 | Shank dia. d (mm): 6 | Flute length l (mm): 13 | Overall length L (mm): 50 | Flutes: 2
IPFE2050-050Dia. D (mm): 5 | Shank dia. d (mm): 6 | Flute length l (mm): 13 | Overall length L (mm): 50 | Flutes: 2
IPFE2055-050Dia. D (mm): 5.5 | Shank dia. d (mm): 6 | Flute length l (mm): 13 | Overall length L (mm): 50 | Flutes: 2
IPFE2060-050Dia. D (mm): 6 | Shank dia. d (mm): 6 | Flute length l (mm): 16 | Overall length L (mm): 50 | Flutes: 2
IPFE2065-060Dia. D (mm): 6.5 | Shank dia. d (mm): 8 | Flute length l (mm): 16 | Overall length L (mm): 60 | Flutes: 2
IPFE2070-060Dia. D (mm): 7 | Shank dia. d (mm): 8 | Flute length l (mm): 16 | Overall length L (mm): 60 | Flutes: 2
IPFE2075-060Dia. D (mm): 7.5 | Shank dia. d (mm): 8 | Flute length l (mm): 19 | Overall length L (mm): 60 | Flutes: 2
IPFE2080-060Dia. D (mm): 8 | Shank dia. d (mm): 8 | Flute length l (mm): 20 | Overall length L (mm): 60 | Flutes: 2
IPFE2085-075Dia. D (mm): 8.5 | Shank dia. d (mm): 10 | Flute length l (mm): 20 | Overall length L (mm): 75 | Flutes: 2
IPFE2090-075Dia. D (mm): 9 | Shank dia. d (mm): 10 | Flute length l (mm): 20 | Overall length L (mm): 75 | Flutes: 2
IPFE2095-075Dia. D (mm): 9.5 | Shank dia. d (mm): 10 | Flute length l (mm): 25 | Overall length L (mm): 75 | Flutes: 2
IPFE2100-075Dia. D (mm): 10 | Shank dia. d (mm): 10 | Flute length l (mm): 25 | Overall length L (mm): 75 | Flutes: 2
IPFE2105-075Dia. D (mm): 10.5 | Shank dia. d (mm): 12 | Flute length l (mm): 25 | Overall length L (mm): 75 | Flutes: 2
IPFE2110-075Dia. D (mm): 11 | Shank dia. d (mm): 12 | Flute length l (mm): 30 | Overall length L (mm): 75 | Flutes: 2
IPFE2115-075Dia. D (mm): 11.5 | Shank dia. d (mm): 12 | Flute length l (mm): 30 | Overall length L (mm): 75 | Flutes: 2
IPFE2120-075Dia. D (mm): 12 | Shank dia. d (mm): 12 | Flute length l (mm): 32 | Overall length L (mm): 75 | Flutes: 2
IPFE2140-100Dia. D (mm): 14 | Shank dia. d (mm): 16 | Flute length l (mm): 40 | Overall length L (mm): 100 | Flutes: 2
IPFE2160-100Dia. D (mm): 16 | Shank dia. d (mm): 16 | Flute length l (mm): 40 | Overall length L (mm): 100 | Flutes: 2
IPFE2180-100Dia. D (mm): 18 | Shank dia. d (mm): 20 | Flute length l (mm): 45 | Overall length L (mm): 100 | Flutes: 2
IPFE2200-100Dia. D (mm): 20 | Shank dia. d (mm): 20 | Flute length l (mm): 45 | Overall length L (mm): 100 | Flutes: 2
