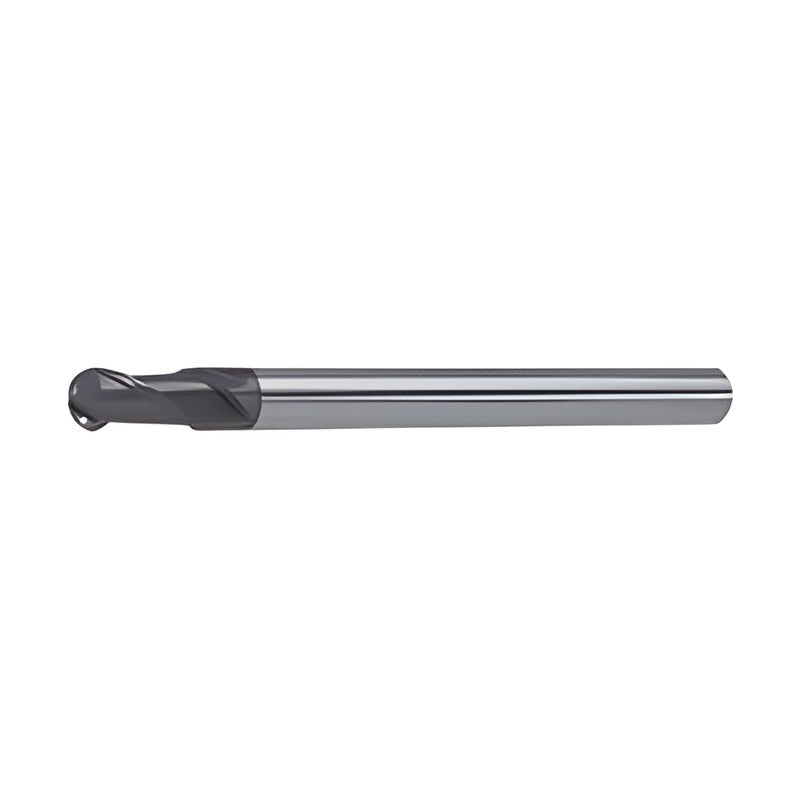

Korloy IPLBE2000 I+ Long Ball End Mill

Korloy IPLBE2000 I+ Long Ball End Mill

Solid carbide end mill with a tough substrate and wear-resisting coating for stable general machining of workpieces under HRC45.

Key features

  • Stable performance on workpieces under HRC45
  • Tough substrate and wear-resisting coating
  • Wide application range in general use

Specifications

Grade PC320
Helix angle 35 deg
Shank tolerance h6
IPLBE2010-075 Ball radius R (mm): 0.5 | Dia. D (mm): 1 | Shank dia. d (mm): 6 | Flute length l (mm): 2 | Overall length L (mm): 75 | Flutes: 2
IPLBE2010-100 Ball radius R (mm): 0.5 | Dia. D (mm): 1 | Shank dia. d (mm): 6 | Flute length l (mm): 2 | Overall length L (mm): 100 | Flutes: 2
IPLBE2015-075 Ball radius R (mm): 0.75 | Dia. D (mm): 1.5 | Shank dia. d (mm): 6 | Flute length l (mm): 3 | Overall length L (mm): 75 | Flutes: 2
IPLBE2015-100 Ball radius R (mm): 0.75 | Dia. D (mm): 1.5 | Shank dia. d (mm): 6 | Flute length l (mm): 3 | Overall length L (mm): 100 | Flutes: 2
IPLBE2020-075 Ball radius R (mm): 1 | Dia. D (mm): 2 | Shank dia. d (mm): 6 | Flute length l (mm): 4 | Overall length L (mm): 75 | Flutes: 2
IPLBE2020-100 Ball radius R (mm): 1 | Dia. D (mm): 2 | Shank dia. d (mm): 6 | Flute length l (mm): 4 | Overall length L (mm): 100 | Flutes: 2
IPLBE2025-075 Ball radius R (mm): 1.25 | Dia. D (mm): 2.5 | Shank dia. d (mm): 6 | Flute length l (mm): 5 | Overall length L (mm): 75 | Flutes: 2
IPLBE2025-100 Ball radius R (mm): 1.25 | Dia. D (mm): 2.5 | Shank dia. d (mm): 6 | Flute length l (mm): 5 | Overall length L (mm): 100 | Flutes: 2
IPLBE2030-075 Ball radius R (mm): 1.5 | Dia. D (mm): 3 | Shank dia. d (mm): 6 | Flute length l (mm): 6 | Overall length L (mm): 75 | Flutes: 2
IPLBE2030-100 Ball radius R (mm): 1.5 | Dia. D (mm): 3 | Shank dia. d (mm): 6 | Flute length l (mm): 6 | Overall length L (mm): 100 | Flutes: 2
IPLBE2035-100 Ball radius R (mm): 1.75 | Dia. D (mm): 3.5 | Shank dia. d (mm): 6 | Flute length l (mm): 7 | Overall length L (mm): 100 | Flutes: 2
IPLBE2040-075 Ball radius R (mm): 2 | Dia. D (mm): 4 | Shank dia. d (mm): 6 | Flute length l (mm): 8 | Overall length L (mm): 75 | Flutes: 2
IPLBE2040-100 Ball radius R (mm): 2 | Dia. D (mm): 4 | Shank dia. d (mm): 6 | Flute length l (mm): 8 | Overall length L (mm): 100 | Flutes: 2
IPLBE2050-075 Ball radius R (mm): 2.5 | Dia. D (mm): 5 | Shank dia. d (mm): 6 | Flute length l (mm): 10 | Overall length L (mm): 75 | Flutes: 2
IPLBE2050-100 Ball radius R (mm): 2.5 | Dia. D (mm): 5 | Shank dia. d (mm): 6 | Flute length l (mm): 10 | Overall length L (mm): 100 | Flutes: 2
IPLBE2060-075 Ball radius R (mm): 3 | Dia. D (mm): 6 | Shank dia. d (mm): 6 | Flute length l (mm): 12 | Overall length L (mm): 75 | Flutes: 2
IPLBE2060-100 Ball radius R (mm): 3 | Dia. D (mm): 6 | Shank dia. d (mm): 6 | Flute length l (mm): 12 | Overall length L (mm): 100 | Flutes: 2
IPLBE2060-150 Ball radius R (mm): 3 | Dia. D (mm): 6 | Shank dia. d (mm): 6 | Flute length l (mm): 12 | Overall length L (mm): 150 | Flutes: 2
IPLBE2080-075 Ball radius R (mm): 4 | Dia. D (mm): 8 | Shank dia. d (mm): 8 | Flute length l (mm): 16 | Overall length L (mm): 75 | Flutes: 2
IPLBE2080-100 Ball radius R (mm): 4 | Dia. D (mm): 8 | Shank dia. d (mm): 8 | Flute length l (mm): 16 | Overall length L (mm): 100 | Flutes: 2
IPLBE2080-150 Ball radius R (mm): 4 | Dia. D (mm): 8 | Shank dia. d (mm): 8 | Flute length l (mm): 16 | Overall length L (mm): 150 | Flutes: 2
IPLBE2100-100 Ball radius R (mm): 5 | Dia. D (mm): 10 | Shank dia. d (mm): 10 | Flute length l (mm): 20 | Overall length L (mm): 100 | Flutes: 2
IPLBE2100-150 Ball radius R (mm): 5 | Dia. D (mm): 10 | Shank dia. d (mm): 10 | Flute length l (mm): 20 | Overall length L (mm): 150 | Flutes: 2
IPLBE2100-200 Ball radius R (mm): 5 | Dia. D (mm): 10 | Shank dia. d (mm): 10 | Flute length l (mm): 20 | Overall length L (mm): 200 | Flutes: 2
IPLBE2120-100 Ball radius R (mm): 6 | Dia. D (mm): 12 | Shank dia. d (mm): 12 | Flute length l (mm): 24 | Overall length L (mm): 100 | Flutes: 2
IPLBE2120-150 Ball radius R (mm): 6 | Dia. D (mm): 12 | Shank dia. d (mm): 12 | Flute length l (mm): 24 | Overall length L (mm): 150 | Flutes: 2
IPLBE2120-200 Ball radius R (mm): 6 | Dia. D (mm): 12 | Shank dia. d (mm): 12 | Flute length l (mm): 24 | Overall length L (mm): 200 | Flutes: 2
IPLBE2160-150 Ball radius R (mm): 8 | Dia. D (mm): 16 | Shank dia. d (mm): 16 | Flute length l (mm): 32 | Overall length L (mm): 150 | Flutes: 2
IPLBE2160-200 Ball radius R (mm): 8 | Dia. D (mm): 16 | Shank dia. d (mm): 16 | Flute length l (mm): 32 | Overall length L (mm): 200 | Flutes: 2
Ball End MillsKorloy
29 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy IPLBE2000 I+ Long Ball End Mill

Brand Korloy·Ball End Mills

Available part numbers (29)

IPLBE2010-075, IPLBE2010-100, IPLBE2015-075, IPLBE2015-100, IPLBE2020-075, IPLBE2020-100, IPLBE2025-075, IPLBE2025-100, IPLBE2030-075, IPLBE2030-100 + 19 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
IPLBE2010-075Ball radius R (mm): 0.5 | Dia. D (mm): 1 | Shank dia. d (mm): 6 | Flute length l (mm): 2 | Overall length L (mm): 75 | Flutes: 2
IPLBE2010-100Ball radius R (mm): 0.5 | Dia. D (mm): 1 | Shank dia. d (mm): 6 | Flute length l (mm): 2 | Overall length L (mm): 100 | Flutes: 2
IPLBE2015-075Ball radius R (mm): 0.75 | Dia. D (mm): 1.5 | Shank dia. d (mm): 6 | Flute length l (mm): 3 | Overall length L (mm): 75 | Flutes: 2
IPLBE2015-100Ball radius R (mm): 0.75 | Dia. D (mm): 1.5 | Shank dia. d (mm): 6 | Flute length l (mm): 3 | Overall length L (mm): 100 | Flutes: 2
IPLBE2020-075Ball radius R (mm): 1 | Dia. D (mm): 2 | Shank dia. d (mm): 6 | Flute length l (mm): 4 | Overall length L (mm): 75 | Flutes: 2
IPLBE2020-100Ball radius R (mm): 1 | Dia. D (mm): 2 | Shank dia. d (mm): 6 | Flute length l (mm): 4 | Overall length L (mm): 100 | Flutes: 2
IPLBE2025-075Ball radius R (mm): 1.25 | Dia. D (mm): 2.5 | Shank dia. d (mm): 6 | Flute length l (mm): 5 | Overall length L (mm): 75 | Flutes: 2
IPLBE2025-100Ball radius R (mm): 1.25 | Dia. D (mm): 2.5 | Shank dia. d (mm): 6 | Flute length l (mm): 5 | Overall length L (mm): 100 | Flutes: 2
IPLBE2030-075Ball radius R (mm): 1.5 | Dia. D (mm): 3 | Shank dia. d (mm): 6 | Flute length l (mm): 6 | Overall length L (mm): 75 | Flutes: 2
IPLBE2030-100Ball radius R (mm): 1.5 | Dia. D (mm): 3 | Shank dia. d (mm): 6 | Flute length l (mm): 6 | Overall length L (mm): 100 | Flutes: 2
IPLBE2035-100Ball radius R (mm): 1.75 | Dia. D (mm): 3.5 | Shank dia. d (mm): 6 | Flute length l (mm): 7 | Overall length L (mm): 100 | Flutes: 2
IPLBE2040-075Ball radius R (mm): 2 | Dia. D (mm): 4 | Shank dia. d (mm): 6 | Flute length l (mm): 8 | Overall length L (mm): 75 | Flutes: 2
IPLBE2040-100Ball radius R (mm): 2 | Dia. D (mm): 4 | Shank dia. d (mm): 6 | Flute length l (mm): 8 | Overall length L (mm): 100 | Flutes: 2
IPLBE2050-075Ball radius R (mm): 2.5 | Dia. D (mm): 5 | Shank dia. d (mm): 6 | Flute length l (mm): 10 | Overall length L (mm): 75 | Flutes: 2
IPLBE2050-100Ball radius R (mm): 2.5 | Dia. D (mm): 5 | Shank dia. d (mm): 6 | Flute length l (mm): 10 | Overall length L (mm): 100 | Flutes: 2
IPLBE2060-075Ball radius R (mm): 3 | Dia. D (mm): 6 | Shank dia. d (mm): 6 | Flute length l (mm): 12 | Overall length L (mm): 75 | Flutes: 2
IPLBE2060-100Ball radius R (mm): 3 | Dia. D (mm): 6 | Shank dia. d (mm): 6 | Flute length l (mm): 12 | Overall length L (mm): 100 | Flutes: 2
IPLBE2060-150Ball radius R (mm): 3 | Dia. D (mm): 6 | Shank dia. d (mm): 6 | Flute length l (mm): 12 | Overall length L (mm): 150 | Flutes: 2
IPLBE2080-075Ball radius R (mm): 4 | Dia. D (mm): 8 | Shank dia. d (mm): 8 | Flute length l (mm): 16 | Overall length L (mm): 75 | Flutes: 2
IPLBE2080-100Ball radius R (mm): 4 | Dia. D (mm): 8 | Shank dia. d (mm): 8 | Flute length l (mm): 16 | Overall length L (mm): 100 | Flutes: 2
IPLBE2080-150Ball radius R (mm): 4 | Dia. D (mm): 8 | Shank dia. d (mm): 8 | Flute length l (mm): 16 | Overall length L (mm): 150 | Flutes: 2
IPLBE2100-100Ball radius R (mm): 5 | Dia. D (mm): 10 | Shank dia. d (mm): 10 | Flute length l (mm): 20 | Overall length L (mm): 100 | Flutes: 2
IPLBE2100-150Ball radius R (mm): 5 | Dia. D (mm): 10 | Shank dia. d (mm): 10 | Flute length l (mm): 20 | Overall length L (mm): 150 | Flutes: 2
IPLBE2100-200Ball radius R (mm): 5 | Dia. D (mm): 10 | Shank dia. d (mm): 10 | Flute length l (mm): 20 | Overall length L (mm): 200 | Flutes: 2
IPLBE2120-100Ball radius R (mm): 6 | Dia. D (mm): 12 | Shank dia. d (mm): 12 | Flute length l (mm): 24 | Overall length L (mm): 100 | Flutes: 2
IPLBE2120-150Ball radius R (mm): 6 | Dia. D (mm): 12 | Shank dia. d (mm): 12 | Flute length l (mm): 24 | Overall length L (mm): 150 | Flutes: 2
IPLBE2120-200Ball radius R (mm): 6 | Dia. D (mm): 12 | Shank dia. d (mm): 12 | Flute length l (mm): 24 | Overall length L (mm): 200 | Flutes: 2
IPLBE2160-150Ball radius R (mm): 8 | Dia. D (mm): 16 | Shank dia. d (mm): 16 | Flute length l (mm): 32 | Overall length L (mm): 150 | Flutes: 2
IPLBE2160-200Ball radius R (mm): 8 | Dia. D (mm): 16 | Shank dia. d (mm): 16 | Flute length l (mm): 32 | Overall length L (mm): 200 | Flutes: 2
