• Korloy IPLFE2000 I+ Long Flat End Mill
1 1

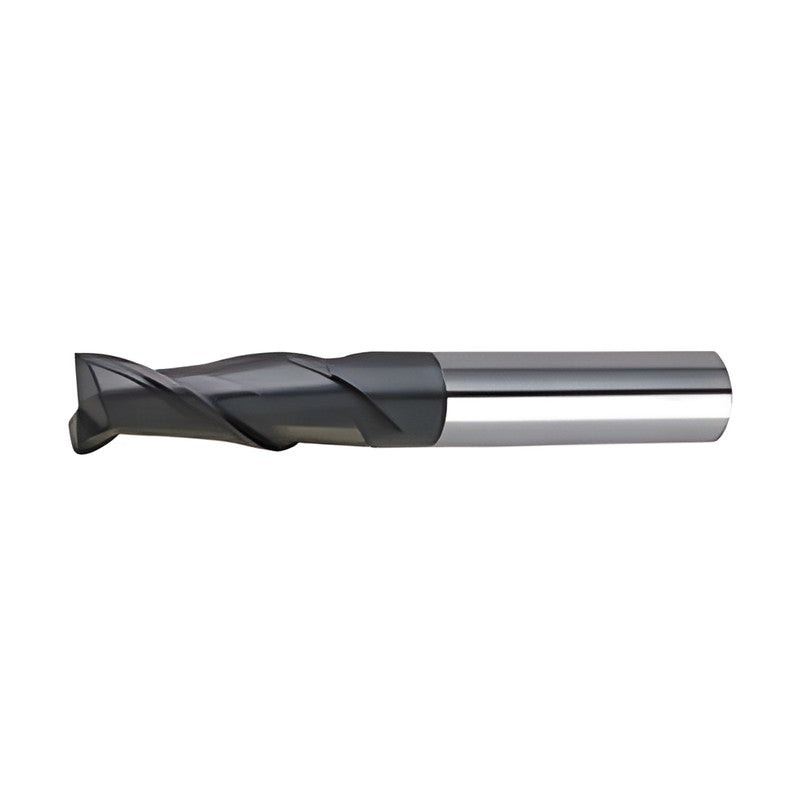

Korloy IPLFE2000 I+ Long Flat End Mill

Korloy IPLFE2000 I+ Long Flat End Mill

Solid carbide end mill with a tough substrate and wear-resisting coating for stable general machining of workpieces under HRC45.

Key features

  • Stable performance on workpieces under HRC45
  • Tough substrate and wear-resisting coating
  • Wide application range in general use

Specifications

Grade PC320
Helix angle 35 deg
Shank tolerance h6
IPLFE2060-075 Dia. D (mm): 6 | Shank dia. d (mm): 6 | Flute length l (mm): 16 | Overall length L (mm): 75 | Flutes: 2 | Type: Long shank type
IPLFE2060-100 Dia. D (mm): 6 | Shank dia. d (mm): 6 | Flute length l (mm): 16 | Overall length L (mm): 100 | Flutes: 2 | Type: Long shank type
IPLFE2080-075 Dia. D (mm): 8 | Shank dia. d (mm): 8 | Flute length l (mm): 20 | Overall length L (mm): 75 | Flutes: 2 | Type: Long shank type
IPLFE2080-100 Dia. D (mm): 8 | Shank dia. d (mm): 8 | Flute length l (mm): 20 | Overall length L (mm): 100 | Flutes: 2 | Type: Long shank type
IPLFE2100-100 Dia. D (mm): 10 | Shank dia. d (mm): 10 | Flute length l (mm): 25 | Overall length L (mm): 100 | Flutes: 2 | Type: Long shank type
IPLFE2100-150 Dia. D (mm): 10 | Shank dia. d (mm): 10 | Flute length l (mm): 25 | Overall length L (mm): 150 | Flutes: 2 | Type: Long shank type
IPLFE2120-100 Dia. D (mm): 12 | Shank dia. d (mm): 12 | Flute length l (mm): 32 | Overall length L (mm): 100 | Flutes: 2 | Type: Long shank type
IPLFE2120-150 Dia. D (mm): 12 | Shank dia. d (mm): 12 | Flute length l (mm): 32 | Overall length L (mm): 150 | Flutes: 2 | Type: Long shank type
IPLFE2010-050-V7S4 Dia. D (mm): 1 | Shank dia. d (mm): 4 | Flute length l (mm): 7 | Overall length L (mm): 50 | Flutes: 2 | Type: Long flute type
IPLFE2015-050-V9S4 Dia. D (mm): 1.5 | Shank dia. d (mm): 4 | Flute length l (mm): 9 | Overall length L (mm): 50 | Flutes: 2 | Type: Long flute type
IPLFE2020-050-V12S4 Dia. D (mm): 2 | Shank dia. d (mm): 4 | Flute length l (mm): 12 | Overall length L (mm): 50 | Flutes: 2 | Type: Long flute type
IPLFE2025-050-V12S4 Dia. D (mm): 2.5 | Shank dia. d (mm): 4 | Flute length l (mm): 12 | Overall length L (mm): 50 | Flutes: 2 | Type: Long flute type
IPLFE2030-060-V15S6 Dia. D (mm): 3 | Shank dia. d (mm): 6 | Flute length l (mm): 15 | Overall length L (mm): 60 | Flutes: 2 | Type: Long flute type
IPLFE2035-060-V15S6 Dia. D (mm): 3.5 | Shank dia. d (mm): 6 | Flute length l (mm): 15 | Overall length L (mm): 60 | Flutes: 2 | Type: Long flute type
IPLFE2040-075-V20S6 Dia. D (mm): 4 | Shank dia. d (mm): 6 | Flute length l (mm): 20 | Overall length L (mm): 75 | Flutes: 2 | Type: Long flute type
IPLFE2045-075-V20S6 Dia. D (mm): 4.5 | Shank dia. d (mm): 6 | Flute length l (mm): 20 | Overall length L (mm): 75 | Flutes: 2 | Type: Long flute type
IPLFE2050-075-V25S6 Dia. D (mm): 5 | Shank dia. d (mm): 6 | Flute length l (mm): 25 | Overall length L (mm): 75 | Flutes: 2 | Type: Long flute type
IPLFE2055-075-V25S6 Dia. D (mm): 5.5 | Shank dia. d (mm): 6 | Flute length l (mm): 25 | Overall length L (mm): 75 | Flutes: 2 | Type: Long flute type
IPLFE2060-075-V30S6 Dia. D (mm): 6 | Shank dia. d (mm): 6 | Flute length l (mm): 30 | Overall length L (mm): 75 | Flutes: 2 | Type: Long flute type
IPLFE2070-100-V30S8 Dia. D (mm): 7 | Shank dia. d (mm): 8 | Flute length l (mm): 30 | Overall length L (mm): 100 | Flutes: 2 | Type: Long flute type
IPLFE2080-100-V40S8 Dia. D (mm): 8 | Shank dia. d (mm): 8 | Flute length l (mm): 40 | Overall length L (mm): 100 | Flutes: 2 | Type: Long flute type
IPLFE2090-100-V40S10 Dia. D (mm): 9 | Shank dia. d (mm): 10 | Flute length l (mm): 40 | Overall length L (mm): 100 | Flutes: 2 | Type: Long flute type
IPLFE2100-100-V40S10 Dia. D (mm): 10 | Shank dia. d (mm): 10 | Flute length l (mm): 40 | Overall length L (mm): 100 | Flutes: 2 | Type: Long flute type
IPLFE2110-100-V40S12 Dia. D (mm): 11 | Shank dia. d (mm): 12 | Flute length l (mm): 40 | Overall length L (mm): 100 | Flutes: 2 | Type: Long flute type
IPLFE2120-100-V50S12 Dia. D (mm): 12 | Shank dia. d (mm): 12 | Flute length l (mm): 50 | Overall length L (mm): 100 | Flutes: 2 | Type: Long flute type
IPLFE2140-150-V50S16 Dia. D (mm): 14 | Shank dia. d (mm): 16 | Flute length l (mm): 50 | Overall length L (mm): 150 | Flutes: 2 | Type: Long flute type
IPLFE2160-150-V60S16 Dia. D (mm): 16 | Shank dia. d (mm): 16 | Flute length l (mm): 60 | Overall length L (mm): 150 | Flutes: 2 | Type: Long flute type
IPLFE2200-200-V90S20 Dia. D (mm): 20 | Shank dia. d (mm): 20 | Flute length l (mm): 90 | Overall length L (mm): 200 | Flutes: 2 | Type: Long flute type
End MillsKorloy
28 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy IPLFE2000 I+ Long Flat End Mill

Brand Korloy·End Mills

Available part numbers (28)

IPLFE2060-075, IPLFE2060-100, IPLFE2080-075, IPLFE2080-100, IPLFE2100-100, IPLFE2100-150, IPLFE2120-100, IPLFE2120-150, IPLFE2010-050-V7S4, IPLFE2015-050-V9S4 + 18 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
IPLFE2060-075Dia. D (mm): 6 | Shank dia. d (mm): 6 | Flute length l (mm): 16 | Overall length L (mm): 75 | Flutes: 2 | Type: Long shank type
IPLFE2060-100Dia. D (mm): 6 | Shank dia. d (mm): 6 | Flute length l (mm): 16 | Overall length L (mm): 100 | Flutes: 2 | Type: Long shank type
IPLFE2080-075Dia. D (mm): 8 | Shank dia. d (mm): 8 | Flute length l (mm): 20 | Overall length L (mm): 75 | Flutes: 2 | Type: Long shank type
IPLFE2080-100Dia. D (mm): 8 | Shank dia. d (mm): 8 | Flute length l (mm): 20 | Overall length L (mm): 100 | Flutes: 2 | Type: Long shank type
IPLFE2100-100Dia. D (mm): 10 | Shank dia. d (mm): 10 | Flute length l (mm): 25 | Overall length L (mm): 100 | Flutes: 2 | Type: Long shank type
IPLFE2100-150Dia. D (mm): 10 | Shank dia. d (mm): 10 | Flute length l (mm): 25 | Overall length L (mm): 150 | Flutes: 2 | Type: Long shank type
IPLFE2120-100Dia. D (mm): 12 | Shank dia. d (mm): 12 | Flute length l (mm): 32 | Overall length L (mm): 100 | Flutes: 2 | Type: Long shank type
IPLFE2120-150Dia. D (mm): 12 | Shank dia. d (mm): 12 | Flute length l (mm): 32 | Overall length L (mm): 150 | Flutes: 2 | Type: Long shank type
IPLFE2010-050-V7S4Dia. D (mm): 1 | Shank dia. d (mm): 4 | Flute length l (mm): 7 | Overall length L (mm): 50 | Flutes: 2 | Type: Long flute type
IPLFE2015-050-V9S4Dia. D (mm): 1.5 | Shank dia. d (mm): 4 | Flute length l (mm): 9 | Overall length L (mm): 50 | Flutes: 2 | Type: Long flute type
IPLFE2020-050-V12S4Dia. D (mm): 2 | Shank dia. d (mm): 4 | Flute length l (mm): 12 | Overall length L (mm): 50 | Flutes: 2 | Type: Long flute type
IPLFE2025-050-V12S4Dia. D (mm): 2.5 | Shank dia. d (mm): 4 | Flute length l (mm): 12 | Overall length L (mm): 50 | Flutes: 2 | Type: Long flute type
IPLFE2030-060-V15S6Dia. D (mm): 3 | Shank dia. d (mm): 6 | Flute length l (mm): 15 | Overall length L (mm): 60 | Flutes: 2 | Type: Long flute type
IPLFE2035-060-V15S6Dia. D (mm): 3.5 | Shank dia. d (mm): 6 | Flute length l (mm): 15 | Overall length L (mm): 60 | Flutes: 2 | Type: Long flute type
IPLFE2040-075-V20S6Dia. D (mm): 4 | Shank dia. d (mm): 6 | Flute length l (mm): 20 | Overall length L (mm): 75 | Flutes: 2 | Type: Long flute type
IPLFE2045-075-V20S6Dia. D (mm): 4.5 | Shank dia. d (mm): 6 | Flute length l (mm): 20 | Overall length L (mm): 75 | Flutes: 2 | Type: Long flute type
IPLFE2050-075-V25S6Dia. D (mm): 5 | Shank dia. d (mm): 6 | Flute length l (mm): 25 | Overall length L (mm): 75 | Flutes: 2 | Type: Long flute type
IPLFE2055-075-V25S6Dia. D (mm): 5.5 | Shank dia. d (mm): 6 | Flute length l (mm): 25 | Overall length L (mm): 75 | Flutes: 2 | Type: Long flute type
IPLFE2060-075-V30S6Dia. D (mm): 6 | Shank dia. d (mm): 6 | Flute length l (mm): 30 | Overall length L (mm): 75 | Flutes: 2 | Type: Long flute type
IPLFE2070-100-V30S8Dia. D (mm): 7 | Shank dia. d (mm): 8 | Flute length l (mm): 30 | Overall length L (mm): 100 | Flutes: 2 | Type: Long flute type
IPLFE2080-100-V40S8Dia. D (mm): 8 | Shank dia. d (mm): 8 | Flute length l (mm): 40 | Overall length L (mm): 100 | Flutes: 2 | Type: Long flute type
IPLFE2090-100-V40S10Dia. D (mm): 9 | Shank dia. d (mm): 10 | Flute length l (mm): 40 | Overall length L (mm): 100 | Flutes: 2 | Type: Long flute type
IPLFE2100-100-V40S10Dia. D (mm): 10 | Shank dia. d (mm): 10 | Flute length l (mm): 40 | Overall length L (mm): 100 | Flutes: 2 | Type: Long flute type
IPLFE2110-100-V40S12Dia. D (mm): 11 | Shank dia. d (mm): 12 | Flute length l (mm): 40 | Overall length L (mm): 100 | Flutes: 2 | Type: Long flute type
IPLFE2120-100-V50S12Dia. D (mm): 12 | Shank dia. d (mm): 12 | Flute length l (mm): 50 | Overall length L (mm): 100 | Flutes: 2 | Type: Long flute type
IPLFE2140-150-V50S16Dia. D (mm): 14 | Shank dia. d (mm): 16 | Flute length l (mm): 50 | Overall length L (mm): 150 | Flutes: 2 | Type: Long flute type
IPLFE2160-150-V60S16Dia. D (mm): 16 | Shank dia. d (mm): 16 | Flute length l (mm): 60 | Overall length L (mm): 150 | Flutes: 2 | Type: Long flute type
IPLFE2200-200-V90S20Dia. D (mm): 20 | Shank dia. d (mm): 20 | Flute length l (mm): 90 | Overall length L (mm): 200 | Flutes: 2 | Type: Long flute type
