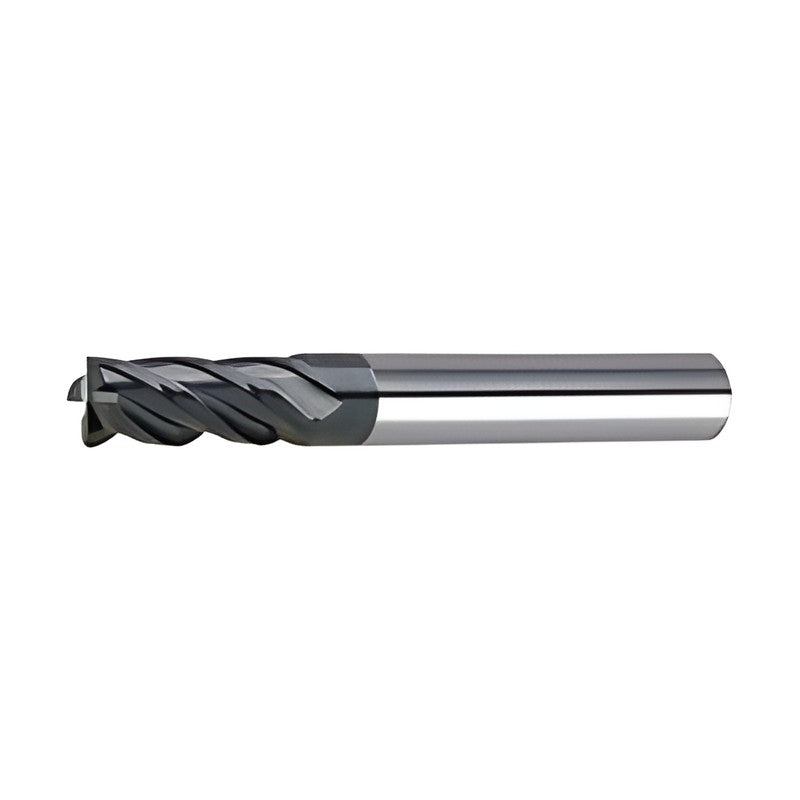

Korloy IPLFE4000 I+ Long Flat End Mill

Korloy IPLFE4000 I+ Long Flat End Mill

Solid carbide end mill with a tough substrate and wear-resisting coating for stable general machining of workpieces under HRC45.

Key features

  • Stable performance on workpieces under HRC45
  • Tough substrate and wear-resisting coating
  • Wide application range in general use

Specifications

Grade PC320
Helix angle 35 deg
Shank tolerance h6
IPLFE4060-075 Dia. D (mm): 6 | Shank dia. d (mm): 6 | Flute length l (mm): 16 | Overall length L (mm): 75 | Flutes: 4 | Type: Long shank type
IPLFE4060-100 Dia. D (mm): 6 | Shank dia. d (mm): 6 | Flute length l (mm): 16 | Overall length L (mm): 100 | Flutes: 4 | Type: Long shank type
IPLFE4080-075 Dia. D (mm): 8 | Shank dia. d (mm): 8 | Flute length l (mm): 20 | Overall length L (mm): 75 | Flutes: 4 | Type: Long shank type
IPLFE4080-100 Dia. D (mm): 8 | Shank dia. d (mm): 8 | Flute length l (mm): 20 | Overall length L (mm): 100 | Flutes: 4 | Type: Long shank type
IPLFE4100-100 Dia. D (mm): 10 | Shank dia. d (mm): 10 | Flute length l (mm): 30 | Overall length L (mm): 100 | Flutes: 4 | Type: Long shank type
IPLFE4100-150 Dia. D (mm): 10 | Shank dia. d (mm): 10 | Flute length l (mm): 30 | Overall length L (mm): 150 | Flutes: 4 | Type: Long shank type
IPLFE4120-100 Dia. D (mm): 12 | Shank dia. d (mm): 12 | Flute length l (mm): 32 | Overall length L (mm): 100 | Flutes: 4 | Type: Long shank type
IPLFE4120-150 Dia. D (mm): 12 | Shank dia. d (mm): 12 | Flute length l (mm): 32 | Overall length L (mm): 150 | Flutes: 4 | Type: Long shank type
IPLFE4010-050-V6S4 Dia. D (mm): 1 | Shank dia. d (mm): 4 | Flute length l (mm): 6 | Overall length L (mm): 50 | Flutes: 4 | Type: Long flute type
IPLFE4015-050-V9S4 Dia. D (mm): 1.5 | Shank dia. d (mm): 4 | Flute length l (mm): 9 | Overall length L (mm): 50 | Flutes: 4 | Type: Long flute type
IPLFE4020-050-V12S4 Dia. D (mm): 2 | Shank dia. d (mm): 4 | Flute length l (mm): 12 | Overall length L (mm): 50 | Flutes: 4 | Type: Long flute type
IPLFE4025-050-V12S4 Dia. D (mm): 2.5 | Shank dia. d (mm): 4 | Flute length l (mm): 12 | Overall length L (mm): 50 | Flutes: 4 | Type: Long flute type
IPLFE4030-060-V15S6 Dia. D (mm): 3 | Shank dia. d (mm): 6 | Flute length l (mm): 15 | Overall length L (mm): 60 | Flutes: 4 | Type: Long flute type
IPLFE4035-060-V15S6 Dia. D (mm): 3.5 | Shank dia. d (mm): 6 | Flute length l (mm): 15 | Overall length L (mm): 60 | Flutes: 4 | Type: Long flute type
IPLFE4040-075-V20S6 Dia. D (mm): 4 | Shank dia. d (mm): 6 | Flute length l (mm): 20 | Overall length L (mm): 75 | Flutes: 4 | Type: Long flute type
IPLFE4045-075-V20S6 Dia. D (mm): 4.5 | Shank dia. d (mm): 6 | Flute length l (mm): 20 | Overall length L (mm): 75 | Flutes: 4 | Type: Long flute type
IPLFE4050-075-V25S6 Dia. D (mm): 5 | Shank dia. d (mm): 6 | Flute length l (mm): 25 | Overall length L (mm): 75 | Flutes: 4 | Type: Long flute type
IPLFE4055-075-V25S6 Dia. D (mm): 5.5 | Shank dia. d (mm): 6 | Flute length l (mm): 25 | Overall length L (mm): 75 | Flutes: 4 | Type: Long flute type
IPLFE4060-075-V30S6 Dia. D (mm): 6 | Shank dia. d (mm): 6 | Flute length l (mm): 30 | Overall length L (mm): 75 | Flutes: 4 | Type: Long flute type
IPLFE4070-100-V30S8 Dia. D (mm): 7 | Shank dia. d (mm): 8 | Flute length l (mm): 30 | Overall length L (mm): 100 | Flutes: 4 | Type: Long flute type
IPLFE4080-100-V40S8 Dia. D (mm): 8 | Shank dia. d (mm): 8 | Flute length l (mm): 40 | Overall length L (mm): 100 | Flutes: 4 | Type: Long flute type
IPLFE4090-100-V40S10 Dia. D (mm): 9 | Shank dia. d (mm): 10 | Flute length l (mm): 40 | Overall length L (mm): 100 | Flutes: 4 | Type: Long flute type
IPLFE4100-100-V40S10 Dia. D (mm): 10 | Shank dia. d (mm): 10 | Flute length l (mm): 40 | Overall length L (mm): 100 | Flutes: 4 | Type: Long flute type
IPLFE4110-100-V40S12 Dia. D (mm): 11 | Shank dia. d (mm): 12 | Flute length l (mm): 40 | Overall length L (mm): 100 | Flutes: 4 | Type: Long flute type
IPLFE4120-100-V50S12 Dia. D (mm): 12 | Shank dia. d (mm): 12 | Flute length l (mm): 50 | Overall length L (mm): 100 | Flutes: 4 | Type: Long flute type
IPLFE4140-150-V50S16 Dia. D (mm): 14 | Shank dia. d (mm): 16 | Flute length l (mm): 50 | Overall length L (mm): 150 | Flutes: 4 | Type: Long flute type
IPLFE4160-150-V60S16 Dia. D (mm): 16 | Shank dia. d (mm): 16 | Flute length l (mm): 60 | Overall length L (mm): 150 | Flutes: 4 | Type: Long flute type
IPLFE4200-200-V90S20 Dia. D (mm): 20 | Shank dia. d (mm): 20 | Flute length l (mm): 90 | Overall length L (mm): 200 | Flutes: 4 | Type: Long flute type
