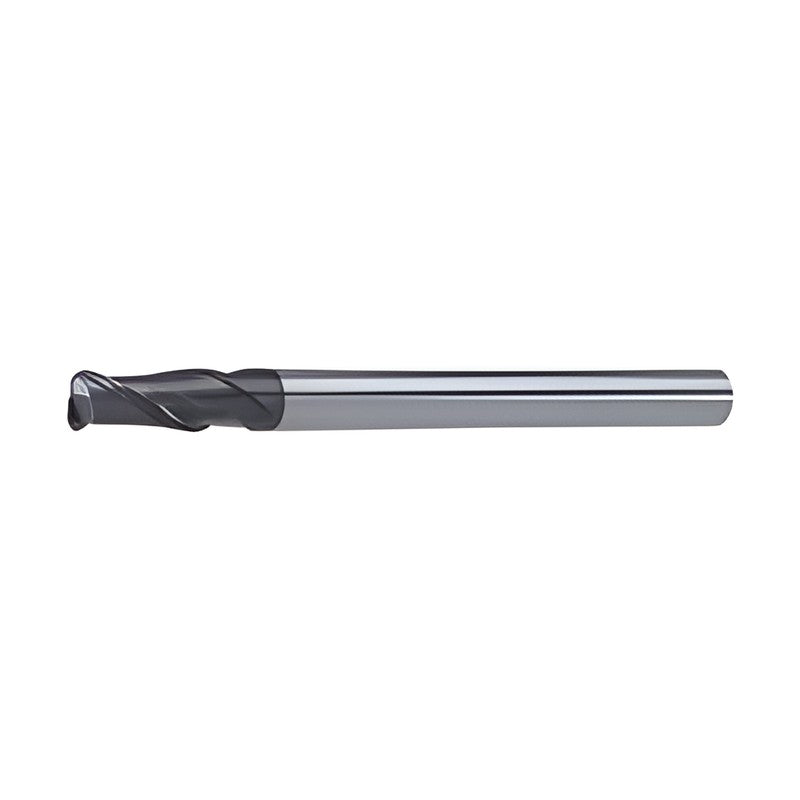

Korloy IPLRE2000 I+ Long Radius End Mill

Korloy IPLRE2000 I+ Long Radius End Mill

Solid carbide end mill with a tough substrate and wear-resisting coating for stable general machining of workpieces under HRC45.

Key features

  • Stable performance on workpieces under HRC45
  • Tough substrate and wear-resisting coating
  • Wide application range in general use

Specifications

Grade PC320
Helix angle 35 deg
Shank tolerance h6
IPLRE2030-075-R03 Dia. D (mm): 3 | Shank dia. d (mm): 3 | Flute length l (mm): 8 | Overall length L (mm): 75 | Corner radius r (mm): 0.3 | Flutes: 2
IPLRE2030-075-R05 Dia. D (mm): 3 | Shank dia. d (mm): 3 | Flute length l (mm): 8 | Overall length L (mm): 75 | Corner radius r (mm): 0.5 | Flutes: 2
IPLRE2030-075-R10 Dia. D (mm): 3 | Shank dia. d (mm): 3 | Flute length l (mm): 8 | Overall length L (mm): 75 | Corner radius r (mm): 1 | Flutes: 2
IPLRE2040-075-R03 Dia. D (mm): 4 | Shank dia. d (mm): 4 | Flute length l (mm): 10 | Overall length L (mm): 75 | Corner radius r (mm): 0.3 | Flutes: 2
IPLRE2040-075-R05 Dia. D (mm): 4 | Shank dia. d (mm): 4 | Flute length l (mm): 10 | Overall length L (mm): 75 | Corner radius r (mm): 0.5 | Flutes: 2
IPLRE2040-075-R10 Dia. D (mm): 4 | Shank dia. d (mm): 4 | Flute length l (mm): 10 | Overall length L (mm): 75 | Corner radius r (mm): 1 | Flutes: 2
IPLRE2040-075-R15 Dia. D (mm): 4 | Shank dia. d (mm): 4 | Flute length l (mm): 10 | Overall length L (mm): 75 | Corner radius r (mm): 1.5 | Flutes: 2
IPLRE2060-100-R03 Dia. D (mm): 6 | Shank dia. d (mm): 6 | Flute length l (mm): 15 | Overall length L (mm): 100 | Corner radius r (mm): 0.3 | Flutes: 2
IPLRE2060-100-R05 Dia. D (mm): 6 | Shank dia. d (mm): 6 | Flute length l (mm): 15 | Overall length L (mm): 100 | Corner radius r (mm): 0.5 | Flutes: 2
IPLRE2060-100-R10 Dia. D (mm): 6 | Shank dia. d (mm): 6 | Flute length l (mm): 15 | Overall length L (mm): 100 | Corner radius r (mm): 1 | Flutes: 2
IPLRE2060-100-R15 Dia. D (mm): 6 | Shank dia. d (mm): 6 | Flute length l (mm): 15 | Overall length L (mm): 100 | Corner radius r (mm): 1.5 | Flutes: 2
IPLRE2060-100-R20 Dia. D (mm): 6 | Shank dia. d (mm): 6 | Flute length l (mm): 15 | Overall length L (mm): 100 | Corner radius r (mm): 2 | Flutes: 2
IPLRE2080-100-R03 Dia. D (mm): 8 | Shank dia. d (mm): 8 | Flute length l (mm): 20 | Overall length L (mm): 100 | Corner radius r (mm): 0.3 | Flutes: 2
IPLRE2080-100-R05 Dia. D (mm): 8 | Shank dia. d (mm): 8 | Flute length l (mm): 20 | Overall length L (mm): 100 | Corner radius r (mm): 0.5 | Flutes: 2
IPLRE2080-100-R10 Dia. D (mm): 8 | Shank dia. d (mm): 8 | Flute length l (mm): 20 | Overall length L (mm): 100 | Corner radius r (mm): 1 | Flutes: 2
IPLRE2080-100-R15 Dia. D (mm): 8 | Shank dia. d (mm): 8 | Flute length l (mm): 20 | Overall length L (mm): 100 | Corner radius r (mm): 1.5 | Flutes: 2
IPLRE2080-100-R20 Dia. D (mm): 8 | Shank dia. d (mm): 8 | Flute length l (mm): 20 | Overall length L (mm): 100 | Corner radius r (mm): 2 | Flutes: 2
IPLRE2080-100-R25 Dia. D (mm): 8 | Shank dia. d (mm): 8 | Flute length l (mm): 20 | Overall length L (mm): 100 | Corner radius r (mm): 2.5 | Flutes: 2
IPLRE2080-100-R30 Dia. D (mm): 8 | Shank dia. d (mm): 8 | Flute length l (mm): 20 | Overall length L (mm): 100 | Corner radius r (mm): 3 | Flutes: 2
IPLRE2100-100-R03 Dia. D (mm): 10 | Shank dia. d (mm): 10 | Flute length l (mm): 25 | Overall length L (mm): 100 | Corner radius r (mm): 0.3 | Flutes: 2
IPLRE2100-100-R05 Dia. D (mm): 10 | Shank dia. d (mm): 10 | Flute length l (mm): 25 | Overall length L (mm): 100 | Corner radius r (mm): 0.5 | Flutes: 2
IPLRE2100-100-R10 Dia. D (mm): 10 | Shank dia. d (mm): 10 | Flute length l (mm): 25 | Overall length L (mm): 100 | Corner radius r (mm): 1 | Flutes: 2
IPLRE2100-100-R15 Dia. D (mm): 10 | Shank dia. d (mm): 10 | Flute length l (mm): 25 | Overall length L (mm): 100 | Corner radius r (mm): 1.5 | Flutes: 2
IPLRE2100-100-R20 Dia. D (mm): 10 | Shank dia. d (mm): 10 | Flute length l (mm): 25 | Overall length L (mm): 100 | Corner radius r (mm): 2 | Flutes: 2
IPLRE2100-100-R25 Dia. D (mm): 10 | Shank dia. d (mm): 10 | Flute length l (mm): 25 | Overall length L (mm): 100 | Corner radius r (mm): 2.5 | Flutes: 2
IPLRE2100-100-R30 Dia. D (mm): 10 | Shank dia. d (mm): 10 | Flute length l (mm): 25 | Overall length L (mm): 100 | Corner radius r (mm): 3 | Flutes: 2
IPLRE2120-100-R03 Dia. D (mm): 12 | Shank dia. d (mm): 12 | Flute length l (mm): 30 | Overall length L (mm): 100 | Corner radius r (mm): 0.3 | Flutes: 2
IPLRE2120-100-R05 Dia. D (mm): 12 | Shank dia. d (mm): 12 | Flute length l (mm): 30 | Overall length L (mm): 100 | Corner radius r (mm): 0.5 | Flutes: 2
IPLRE2120-100-R10 Dia. D (mm): 12 | Shank dia. d (mm): 12 | Flute length l (mm): 30 | Overall length L (mm): 100 | Corner radius r (mm): 1 | Flutes: 2
IPLRE2120-100-R15 Dia. D (mm): 12 | Shank dia. d (mm): 12 | Flute length l (mm): 30 | Overall length L (mm): 100 | Corner radius r (mm): 1.5 | Flutes: 2
IPLRE2120-100-R20 Dia. D (mm): 12 | Shank dia. d (mm): 12 | Flute length l (mm): 30 | Overall length L (mm): 100 | Corner radius r (mm): 2 | Flutes: 2
IPLRE2120-100-R25 Dia. D (mm): 12 | Shank dia. d (mm): 12 | Flute length l (mm): 30 | Overall length L (mm): 100 | Corner radius r (mm): 2.5 | Flutes: 2
IPLRE2120-100-R30 Dia. D (mm): 12 | Shank dia. d (mm): 12 | Flute length l (mm): 30 | Overall length L (mm): 100 | Corner radius r (mm): 3 | Flutes: 2
End MillsKorloy
33 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy IPLRE2000 I+ Long Radius End Mill

Brand Korloy·End Mills

Available part numbers (33)

IPLRE2030-075-R03, IPLRE2030-075-R05, IPLRE2030-075-R10, IPLRE2040-075-R03, IPLRE2040-075-R05, IPLRE2040-075-R10, IPLRE2040-075-R15, IPLRE2060-100-R03, IPLRE2060-100-R05, IPLRE2060-100-R10 + 23 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
IPLRE2030-075-R03Dia. D (mm): 3 | Shank dia. d (mm): 3 | Flute length l (mm): 8 | Overall length L (mm): 75 | Corner radius r (mm): 0.3 | Flutes: 2
IPLRE2030-075-R05Dia. D (mm): 3 | Shank dia. d (mm): 3 | Flute length l (mm): 8 | Overall length L (mm): 75 | Corner radius r (mm): 0.5 | Flutes: 2
IPLRE2030-075-R10Dia. D (mm): 3 | Shank dia. d (mm): 3 | Flute length l (mm): 8 | Overall length L (mm): 75 | Corner radius r (mm): 1 | Flutes: 2
IPLRE2040-075-R03Dia. D (mm): 4 | Shank dia. d (mm): 4 | Flute length l (mm): 10 | Overall length L (mm): 75 | Corner radius r (mm): 0.3 | Flutes: 2
IPLRE2040-075-R05Dia. D (mm): 4 | Shank dia. d (mm): 4 | Flute length l (mm): 10 | Overall length L (mm): 75 | Corner radius r (mm): 0.5 | Flutes: 2
IPLRE2040-075-R10Dia. D (mm): 4 | Shank dia. d (mm): 4 | Flute length l (mm): 10 | Overall length L (mm): 75 | Corner radius r (mm): 1 | Flutes: 2
IPLRE2040-075-R15Dia. D (mm): 4 | Shank dia. d (mm): 4 | Flute length l (mm): 10 | Overall length L (mm): 75 | Corner radius r (mm): 1.5 | Flutes: 2
IPLRE2060-100-R03Dia. D (mm): 6 | Shank dia. d (mm): 6 | Flute length l (mm): 15 | Overall length L (mm): 100 | Corner radius r (mm): 0.3 | Flutes: 2
IPLRE2060-100-R05Dia. D (mm): 6 | Shank dia. d (mm): 6 | Flute length l (mm): 15 | Overall length L (mm): 100 | Corner radius r (mm): 0.5 | Flutes: 2
IPLRE2060-100-R10Dia. D (mm): 6 | Shank dia. d (mm): 6 | Flute length l (mm): 15 | Overall length L (mm): 100 | Corner radius r (mm): 1 | Flutes: 2
IPLRE2060-100-R15Dia. D (mm): 6 | Shank dia. d (mm): 6 | Flute length l (mm): 15 | Overall length L (mm): 100 | Corner radius r (mm): 1.5 | Flutes: 2
IPLRE2060-100-R20Dia. D (mm): 6 | Shank dia. d (mm): 6 | Flute length l (mm): 15 | Overall length L (mm): 100 | Corner radius r (mm): 2 | Flutes: 2
IPLRE2080-100-R03Dia. D (mm): 8 | Shank dia. d (mm): 8 | Flute length l (mm): 20 | Overall length L (mm): 100 | Corner radius r (mm): 0.3 | Flutes: 2
IPLRE2080-100-R05Dia. D (mm): 8 | Shank dia. d (mm): 8 | Flute length l (mm): 20 | Overall length L (mm): 100 | Corner radius r (mm): 0.5 | Flutes: 2
IPLRE2080-100-R10Dia. D (mm): 8 | Shank dia. d (mm): 8 | Flute length l (mm): 20 | Overall length L (mm): 100 | Corner radius r (mm): 1 | Flutes: 2
IPLRE2080-100-R15Dia. D (mm): 8 | Shank dia. d (mm): 8 | Flute length l (mm): 20 | Overall length L (mm): 100 | Corner radius r (mm): 1.5 | Flutes: 2
IPLRE2080-100-R20Dia. D (mm): 8 | Shank dia. d (mm): 8 | Flute length l (mm): 20 | Overall length L (mm): 100 | Corner radius r (mm): 2 | Flutes: 2
IPLRE2080-100-R25Dia. D (mm): 8 | Shank dia. d (mm): 8 | Flute length l (mm): 20 | Overall length L (mm): 100 | Corner radius r (mm): 2.5 | Flutes: 2
IPLRE2080-100-R30Dia. D (mm): 8 | Shank dia. d (mm): 8 | Flute length l (mm): 20 | Overall length L (mm): 100 | Corner radius r (mm): 3 | Flutes: 2
IPLRE2100-100-R03Dia. D (mm): 10 | Shank dia. d (mm): 10 | Flute length l (mm): 25 | Overall length L (mm): 100 | Corner radius r (mm): 0.3 | Flutes: 2
IPLRE2100-100-R05Dia. D (mm): 10 | Shank dia. d (mm): 10 | Flute length l (mm): 25 | Overall length L (mm): 100 | Corner radius r (mm): 0.5 | Flutes: 2
IPLRE2100-100-R10Dia. D (mm): 10 | Shank dia. d (mm): 10 | Flute length l (mm): 25 | Overall length L (mm): 100 | Corner radius r (mm): 1 | Flutes: 2
IPLRE2100-100-R15Dia. D (mm): 10 | Shank dia. d (mm): 10 | Flute length l (mm): 25 | Overall length L (mm): 100 | Corner radius r (mm): 1.5 | Flutes: 2
IPLRE2100-100-R20Dia. D (mm): 10 | Shank dia. d (mm): 10 | Flute length l (mm): 25 | Overall length L (mm): 100 | Corner radius r (mm): 2 | Flutes: 2
IPLRE2100-100-R25Dia. D (mm): 10 | Shank dia. d (mm): 10 | Flute length l (mm): 25 | Overall length L (mm): 100 | Corner radius r (mm): 2.5 | Flutes: 2
IPLRE2100-100-R30Dia. D (mm): 10 | Shank dia. d (mm): 10 | Flute length l (mm): 25 | Overall length L (mm): 100 | Corner radius r (mm): 3 | Flutes: 2
IPLRE2120-100-R03Dia. D (mm): 12 | Shank dia. d (mm): 12 | Flute length l (mm): 30 | Overall length L (mm): 100 | Corner radius r (mm): 0.3 | Flutes: 2
IPLRE2120-100-R05Dia. D (mm): 12 | Shank dia. d (mm): 12 | Flute length l (mm): 30 | Overall length L (mm): 100 | Corner radius r (mm): 0.5 | Flutes: 2
IPLRE2120-100-R10Dia. D (mm): 12 | Shank dia. d (mm): 12 | Flute length l (mm): 30 | Overall length L (mm): 100 | Corner radius r (mm): 1 | Flutes: 2
IPLRE2120-100-R15Dia. D (mm): 12 | Shank dia. d (mm): 12 | Flute length l (mm): 30 | Overall length L (mm): 100 | Corner radius r (mm): 1.5 | Flutes: 2
IPLRE2120-100-R20Dia. D (mm): 12 | Shank dia. d (mm): 12 | Flute length l (mm): 30 | Overall length L (mm): 100 | Corner radius r (mm): 2 | Flutes: 2
IPLRE2120-100-R25Dia. D (mm): 12 | Shank dia. d (mm): 12 | Flute length l (mm): 30 | Overall length L (mm): 100 | Corner radius r (mm): 2.5 | Flutes: 2
IPLRE2120-100-R30Dia. D (mm): 12 | Shank dia. d (mm): 12 | Flute length l (mm): 30 | Overall length L (mm): 100 | Corner radius r (mm): 3 | Flutes: 2
