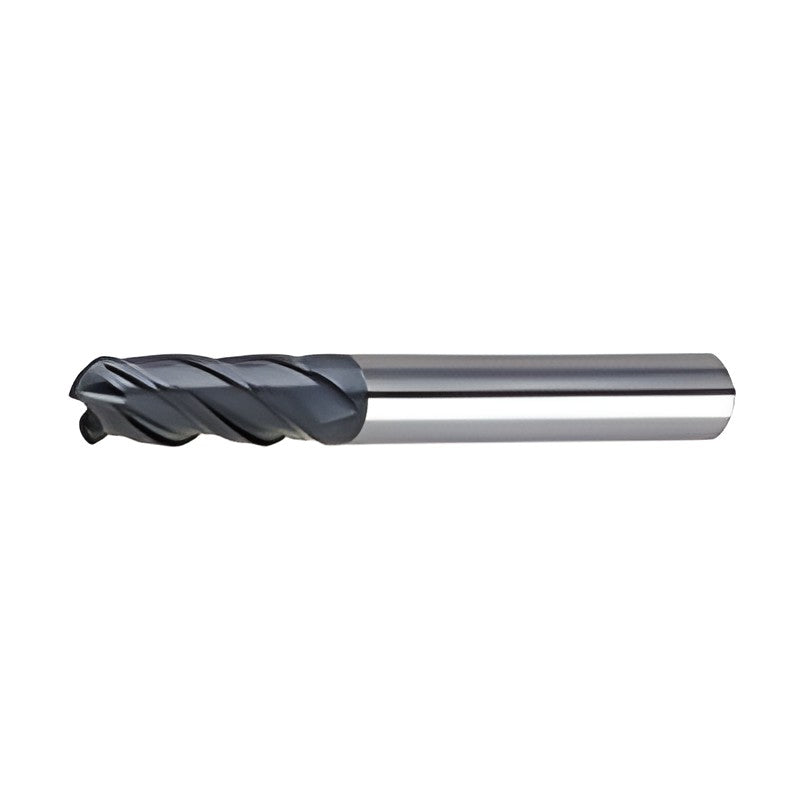

Korloy IPLRE4000 I+ Long Radius End Mill

Korloy IPLRE4000 I+ Long Radius End Mill

Solid carbide end mill with a tough substrate and wear-resisting coating for stable general machining of workpieces under HRC45.

Key features

  • Stable performance on workpieces under HRC45
  • Tough substrate and wear-resisting coating
  • Wide application range in general use

Specifications

Grade PC320
Helix angle 35 deg
Shank tolerance h6
IPLRE4030-075-R03 Dia. D (mm): 3 | Shank dia. d (mm): 3 | Flute length l (mm): 8 | Overall length L (mm): 75 | Corner radius r (mm): 0.3 | Flutes: 4
IPLRE4030-075-R05 Dia. D (mm): 3 | Shank dia. d (mm): 3 | Flute length l (mm): 8 | Overall length L (mm): 75 | Corner radius r (mm): 0.5 | Flutes: 4
IPLRE4030-075-R10 Dia. D (mm): 3 | Shank dia. d (mm): 3 | Flute length l (mm): 8 | Overall length L (mm): 75 | Corner radius r (mm): 1 | Flutes: 4
IPLRE4040-075-R03 Dia. D (mm): 4 | Shank dia. d (mm): 4 | Flute length l (mm): 10 | Overall length L (mm): 75 | Corner radius r (mm): 0.3 | Flutes: 4
IPLRE4040-075-R05 Dia. D (mm): 4 | Shank dia. d (mm): 4 | Flute length l (mm): 10 | Overall length L (mm): 75 | Corner radius r (mm): 0.5 | Flutes: 4
IPLRE4040-075-R10 Dia. D (mm): 4 | Shank dia. d (mm): 4 | Flute length l (mm): 10 | Overall length L (mm): 75 | Corner radius r (mm): 1 | Flutes: 4
IPLRE4040-075-R15 Dia. D (mm): 4 | Shank dia. d (mm): 4 | Flute length l (mm): 10 | Overall length L (mm): 75 | Corner radius r (mm): 1.5 | Flutes: 4
IPLRE4060-100-R03 Dia. D (mm): 6 | Shank dia. d (mm): 6 | Flute length l (mm): 15 | Overall length L (mm): 100 | Corner radius r (mm): 0.3 | Flutes: 4
IPLRE4060-100-R05 Dia. D (mm): 6 | Shank dia. d (mm): 6 | Flute length l (mm): 15 | Overall length L (mm): 100 | Corner radius r (mm): 0.5 | Flutes: 4
IPLRE4060-100-R10 Dia. D (mm): 6 | Shank dia. d (mm): 6 | Flute length l (mm): 15 | Overall length L (mm): 100 | Corner radius r (mm): 1 | Flutes: 4
IPLRE4060-100-R15 Dia. D (mm): 6 | Shank dia. d (mm): 6 | Flute length l (mm): 15 | Overall length L (mm): 100 | Corner radius r (mm): 1.5 | Flutes: 4
IPLRE4060-100-R20 Dia. D (mm): 6 | Shank dia. d (mm): 6 | Flute length l (mm): 15 | Overall length L (mm): 100 | Corner radius r (mm): 2 | Flutes: 4
IPLRE4080-100-R03 Dia. D (mm): 8 | Shank dia. d (mm): 8 | Flute length l (mm): 20 | Overall length L (mm): 100 | Corner radius r (mm): 0.3 | Flutes: 4
IPLRE4080-100-R05 Dia. D (mm): 8 | Shank dia. d (mm): 8 | Flute length l (mm): 20 | Overall length L (mm): 100 | Corner radius r (mm): 0.5 | Flutes: 4
IPLRE4080-100-R10 Dia. D (mm): 8 | Shank dia. d (mm): 8 | Flute length l (mm): 20 | Overall length L (mm): 100 | Corner radius r (mm): 1 | Flutes: 4
IPLRE4080-100-R15 Dia. D (mm): 8 | Shank dia. d (mm): 8 | Flute length l (mm): 20 | Overall length L (mm): 100 | Corner radius r (mm): 1.5 | Flutes: 4
IPLRE4080-100-R20 Dia. D (mm): 8 | Shank dia. d (mm): 8 | Flute length l (mm): 20 | Overall length L (mm): 100 | Corner radius r (mm): 2 | Flutes: 4
IPLRE4080-100-R25 Dia. D (mm): 8 | Shank dia. d (mm): 8 | Flute length l (mm): 20 | Overall length L (mm): 100 | Corner radius r (mm): 2.5 | Flutes: 4
IPLRE4080-100-R30 Dia. D (mm): 8 | Shank dia. d (mm): 8 | Flute length l (mm): 20 | Overall length L (mm): 100 | Corner radius r (mm): 3 | Flutes: 4
IPLRE4100-100-R03 Dia. D (mm): 10 | Shank dia. d (mm): 10 | Flute length l (mm): 25 | Overall length L (mm): 100 | Corner radius r (mm): 0.3 | Flutes: 4
IPLRE4100-100-R05 Dia. D (mm): 10 | Shank dia. d (mm): 10 | Flute length l (mm): 25 | Overall length L (mm): 100 | Corner radius r (mm): 0.5 | Flutes: 4
IPLRE4100-100-R10 Dia. D (mm): 10 | Shank dia. d (mm): 10 | Flute length l (mm): 25 | Overall length L (mm): 100 | Corner radius r (mm): 1 | Flutes: 4
IPLRE4100-100-R15 Dia. D (mm): 10 | Shank dia. d (mm): 10 | Flute length l (mm): 25 | Overall length L (mm): 100 | Corner radius r (mm): 1.5 | Flutes: 4
IPLRE4100-100-R20 Dia. D (mm): 10 | Shank dia. d (mm): 10 | Flute length l (mm): 25 | Overall length L (mm): 100 | Corner radius r (mm): 2 | Flutes: 4
IPLRE4100-100-R25 Dia. D (mm): 10 | Shank dia. d (mm): 10 | Flute length l (mm): 25 | Overall length L (mm): 100 | Corner radius r (mm): 2.5 | Flutes: 4
IPLRE4100-100-R30 Dia. D (mm): 10 | Shank dia. d (mm): 10 | Flute length l (mm): 25 | Overall length L (mm): 100 | Corner radius r (mm): 3 | Flutes: 4
IPLRE4120-100-R03 Dia. D (mm): 12 | Shank dia. d (mm): 12 | Flute length l (mm): 30 | Overall length L (mm): 100 | Corner radius r (mm): 0.3 | Flutes: 4
IPLRE4120-100-R05 Dia. D (mm): 12 | Shank dia. d (mm): 12 | Flute length l (mm): 30 | Overall length L (mm): 100 | Corner radius r (mm): 0.5 | Flutes: 4
IPLRE4120-100-R10 Dia. D (mm): 12 | Shank dia. d (mm): 12 | Flute length l (mm): 30 | Overall length L (mm): 100 | Corner radius r (mm): 1 | Flutes: 4
IPLRE4120-100-R15 Dia. D (mm): 12 | Shank dia. d (mm): 12 | Flute length l (mm): 30 | Overall length L (mm): 100 | Corner radius r (mm): 1.5 | Flutes: 4
IPLRE4120-100-R20 Dia. D (mm): 12 | Shank dia. d (mm): 12 | Flute length l (mm): 30 | Overall length L (mm): 100 | Corner radius r (mm): 2 | Flutes: 4
IPLRE4120-100-R25 Dia. D (mm): 12 | Shank dia. d (mm): 12 | Flute length l (mm): 30 | Overall length L (mm): 100 | Corner radius r (mm): 2.5 | Flutes: 4
IPLRE4120-100-R30 Dia. D (mm): 12 | Shank dia. d (mm): 12 | Flute length l (mm): 30 | Overall length L (mm): 100 | Corner radius r (mm): 3 | Flutes: 4
