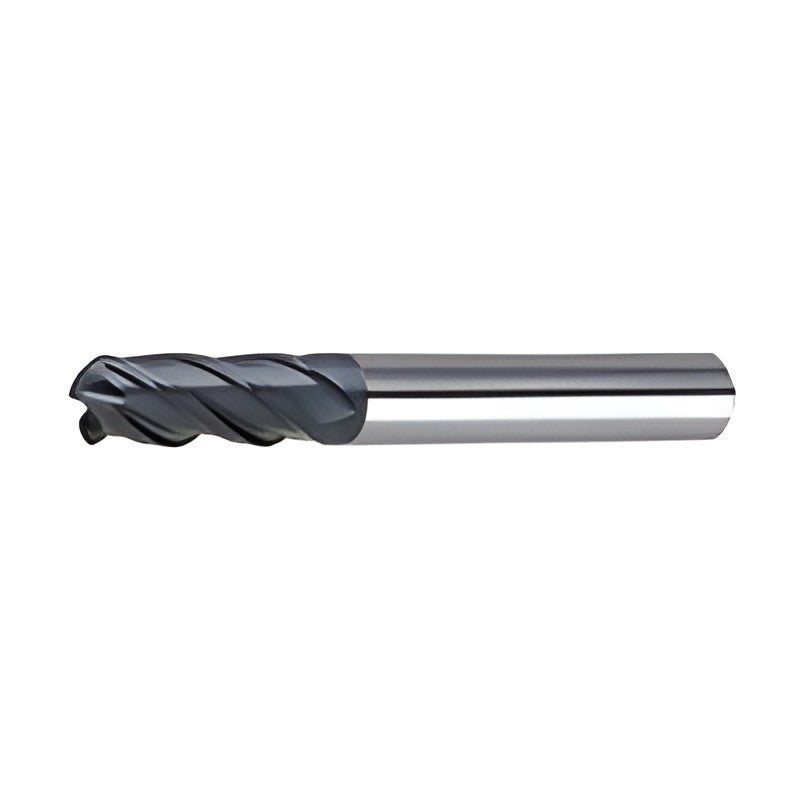

Korloy IPRE4000 I+ Radius End Mill

Korloy IPRE4000 I+ Radius End Mill

Solid carbide end mill with a tough substrate and wear-resisting coating for stable general machining of workpieces under HRC45.

Key features

  • Stable performance on workpieces under HRC45
  • Tough substrate and wear-resisting coating
  • Wide application range in general use

Specifications

Grade PC320
Helix angle 35 deg
Shank tolerance h6
IPRE4020-050-R02 Dia. D (mm): 2 | Shank dia. d (mm): 4 | Flute length l (mm): 6 | Overall length L (mm): 50 | Corner radius r (mm): 0.2 | Flutes: 4
IPRE4020-050-R03 Dia. D (mm): 2 | Shank dia. d (mm): 4 | Flute length l (mm): 6 | Overall length L (mm): 50 | Corner radius r (mm): 0.3 | Flutes: 4
IPRE4020-050-R05 Dia. D (mm): 2 | Shank dia. d (mm): 4 | Flute length l (mm): 6 | Overall length L (mm): 50 | Corner radius r (mm): 0.5 | Flutes: 4
IPRE4025-050-R02 Dia. D (mm): 2.5 | Shank dia. d (mm): 4 | Flute length l (mm): 8 | Overall length L (mm): 50 | Corner radius r (mm): 0.2 | Flutes: 4
IPRE4030-050-R02-S3 Dia. D (mm): 3 | Shank dia. d (mm): 3 | Flute length l (mm): 8 | Overall length L (mm): 50 | Corner radius r (mm): 0.2 | Flutes: 4
IPRE4030-050-R03-S3 Dia. D (mm): 3 | Shank dia. d (mm): 3 | Flute length l (mm): 8 | Overall length L (mm): 50 | Corner radius r (mm): 0.3 | Flutes: 4
IPRE4030-050-R05-S3 Dia. D (mm): 3 | Shank dia. d (mm): 3 | Flute length l (mm): 8 | Overall length L (mm): 50 | Corner radius r (mm): 0.5 | Flutes: 4
IPRE4030-050-R10-S3 Dia. D (mm): 3 | Shank dia. d (mm): 3 | Flute length l (mm): 8 | Overall length L (mm): 50 | Corner radius r (mm): 1 | Flutes: 4
IPRE4030-050-R02 Dia. D (mm): 3 | Shank dia. d (mm): 4 | Flute length l (mm): 8 | Overall length L (mm): 50 | Corner radius r (mm): 0.2 | Flutes: 4
IPRE4030-050-R03 Dia. D (mm): 3 | Shank dia. d (mm): 4 | Flute length l (mm): 8 | Overall length L (mm): 50 | Corner radius r (mm): 0.3 | Flutes: 4
IPRE4030-050-R05 Dia. D (mm): 3 | Shank dia. d (mm): 4 | Flute length l (mm): 8 | Overall length L (mm): 50 | Corner radius r (mm): 0.5 | Flutes: 4
IPRE4030-050-R10 Dia. D (mm): 3 | Shank dia. d (mm): 4 | Flute length l (mm): 8 | Overall length L (mm): 50 | Corner radius r (mm): 1 | Flutes: 4
IPRE4040-050-R02 Dia. D (mm): 4 | Shank dia. d (mm): 4 | Flute length l (mm): 10 | Overall length L (mm): 50 | Corner radius r (mm): 0.2 | Flutes: 4
IPRE4040-050-R03 Dia. D (mm): 4 | Shank dia. d (mm): 4 | Flute length l (mm): 10 | Overall length L (mm): 50 | Corner radius r (mm): 0.3 | Flutes: 4
IPRE4040-050-R05 Dia. D (mm): 4 | Shank dia. d (mm): 4 | Flute length l (mm): 10 | Overall length L (mm): 50 | Corner radius r (mm): 0.5 | Flutes: 4
IPRE4040-050-R10 Dia. D (mm): 4 | Shank dia. d (mm): 4 | Flute length l (mm): 10 | Overall length L (mm): 50 | Corner radius r (mm): 1 | Flutes: 4
IPRE4040-050-R15 Dia. D (mm): 4 | Shank dia. d (mm): 4 | Flute length l (mm): 10 | Overall length L (mm): 50 | Corner radius r (mm): 1.5 | Flutes: 4
IPRE4050-050-R02 Dia. D (mm): 5 | Shank dia. d (mm): 6 | Flute length l (mm): 13 | Overall length L (mm): 50 | Corner radius r (mm): 0.2 | Flutes: 4
IPRE4050-050-R03 Dia. D (mm): 5 | Shank dia. d (mm): 6 | Flute length l (mm): 13 | Overall length L (mm): 50 | Corner radius r (mm): 0.3 | Flutes: 4
IPRE4050-050-R05 Dia. D (mm): 5 | Shank dia. d (mm): 6 | Flute length l (mm): 13 | Overall length L (mm): 50 | Corner radius r (mm): 0.5 | Flutes: 4
IPRE4050-050-R10 Dia. D (mm): 5 | Shank dia. d (mm): 6 | Flute length l (mm): 13 | Overall length L (mm): 50 | Corner radius r (mm): 1 | Flutes: 4
IPRE4060-050-R02 Dia. D (mm): 6 | Shank dia. d (mm): 6 | Flute length l (mm): 15 | Overall length L (mm): 50 | Corner radius r (mm): 0.2 | Flutes: 4
IPRE4060-050-R03 Dia. D (mm): 6 | Shank dia. d (mm): 6 | Flute length l (mm): 15 | Overall length L (mm): 50 | Corner radius r (mm): 0.3 | Flutes: 4
IPRE4060-050-R05 Dia. D (mm): 6 | Shank dia. d (mm): 6 | Flute length l (mm): 15 | Overall length L (mm): 50 | Corner radius r (mm): 0.5 | Flutes: 4
IPRE4060-050-R10 Dia. D (mm): 6 | Shank dia. d (mm): 6 | Flute length l (mm): 15 | Overall length L (mm): 50 | Corner radius r (mm): 1 | Flutes: 4
IPRE4060-050-R15 Dia. D (mm): 6 | Shank dia. d (mm): 6 | Flute length l (mm): 15 | Overall length L (mm): 50 | Corner radius r (mm): 1.5 | Flutes: 4
IPRE4060-050-R20 Dia. D (mm): 6 | Shank dia. d (mm): 6 | Flute length l (mm): 15 | Overall length L (mm): 50 | Corner radius r (mm): 2 | Flutes: 4
IPRE4080-060-R03 Dia. D (mm): 8 | Shank dia. d (mm): 8 | Flute length l (mm): 20 | Overall length L (mm): 60 | Corner radius r (mm): 0.3 | Flutes: 4
IPRE4080-060-R05 Dia. D (mm): 8 | Shank dia. d (mm): 8 | Flute length l (mm): 20 | Overall length L (mm): 60 | Corner radius r (mm): 0.5 | Flutes: 4
IPRE4080-060-R10 Dia. D (mm): 8 | Shank dia. d (mm): 8 | Flute length l (mm): 20 | Overall length L (mm): 60 | Corner radius r (mm): 1 | Flutes: 4
IPRE4080-060-R15 Dia. D (mm): 8 | Shank dia. d (mm): 8 | Flute length l (mm): 20 | Overall length L (mm): 60 | Corner radius r (mm): 1.5 | Flutes: 4
IPRE4080-060-R20 Dia. D (mm): 8 | Shank dia. d (mm): 8 | Flute length l (mm): 20 | Overall length L (mm): 60 | Corner radius r (mm): 2 | Flutes: 4
IPRE4080-060-R25 Dia. D (mm): 8 | Shank dia. d (mm): 8 | Flute length l (mm): 20 | Overall length L (mm): 60 | Corner radius r (mm): 2.5 | Flutes: 4
IPRE4080-060-R30 Dia. D (mm): 8 | Shank dia. d (mm): 8 | Flute length l (mm): 20 | Overall length L (mm): 60 | Corner radius r (mm): 3 | Flutes: 4
IPRE4100-075-R03 Dia. D (mm): 10 | Shank dia. d (mm): 10 | Flute length l (mm): 25 | Overall length L (mm): 75 | Corner radius r (mm): 0.3 | Flutes: 4
IPRE4100-075-R05 Dia. D (mm): 10 | Shank dia. d (mm): 10 | Flute length l (mm): 25 | Overall length L (mm): 75 | Corner radius r (mm): 0.5 | Flutes: 4
IPRE4100-075-R10 Dia. D (mm): 10 | Shank dia. d (mm): 10 | Flute length l (mm): 25 | Overall length L (mm): 75 | Corner radius r (mm): 1 | Flutes: 4
IPRE4100-075-R15 Dia. D (mm): 10 | Shank dia. d (mm): 10 | Flute length l (mm): 25 | Overall length L (mm): 75 | Corner radius r (mm): 1.5 | Flutes: 4
IPRE4100-075-R20 Dia. D (mm): 10 | Shank dia. d (mm): 10 | Flute length l (mm): 25 | Overall length L (mm): 75 | Corner radius r (mm): 2 | Flutes: 4
IPRE4100-075-R25 Dia. D (mm): 10 | Shank dia. d (mm): 10 | Flute length l (mm): 25 | Overall length L (mm): 75 | Corner radius r (mm): 2.5 | Flutes: 4
IPRE4100-075-R30 Dia. D (mm): 10 | Shank dia. d (mm): 10 | Flute length l (mm): 25 | Overall length L (mm): 75 | Corner radius r (mm): 3 | Flutes: 4
IPRE4120-075-R03 Dia. D (mm): 12 | Shank dia. d (mm): 12 | Flute length l (mm): 30 | Overall length L (mm): 75 | Corner radius r (mm): 0.3 | Flutes: 4
IPRE4120-075-R05 Dia. D (mm): 12 | Shank dia. d (mm): 12 | Flute length l (mm): 30 | Overall length L (mm): 75 | Corner radius r (mm): 0.5 | Flutes: 4
IPRE4120-075-R10 Dia. D (mm): 12 | Shank dia. d (mm): 12 | Flute length l (mm): 30 | Overall length L (mm): 75 | Corner radius r (mm): 1 | Flutes: 4
IPRE4120-075-R15 Dia. D (mm): 12 | Shank dia. d (mm): 12 | Flute length l (mm): 30 | Overall length L (mm): 75 | Corner radius r (mm): 1.5 | Flutes: 4
IPRE4120-075-R20 Dia. D (mm): 12 | Shank dia. d (mm): 12 | Flute length l (mm): 30 | Overall length L (mm): 75 | Corner radius r (mm): 2 | Flutes: 4
IPRE4120-075-R25 Dia. D (mm): 12 | Shank dia. d (mm): 12 | Flute length l (mm): 30 | Overall length L (mm): 75 | Corner radius r (mm): 2.5 | Flutes: 4
IPRE4120-075-R30 Dia. D (mm): 12 | Shank dia. d (mm): 12 | Flute length l (mm): 30 | Overall length L (mm): 75 | Corner radius r (mm): 3 | Flutes: 4
End MillsKorloy
48 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy IPRE4000 I+ Radius End Mill

Brand Korloy·End Mills

Available part numbers (48)

IPRE4020-050-R02, IPRE4020-050-R03, IPRE4020-050-R05, IPRE4025-050-R02, IPRE4030-050-R02-S3, IPRE4030-050-R03-S3, IPRE4030-050-R05-S3, IPRE4030-050-R10-S3, IPRE4030-050-R02, IPRE4030-050-R03 + 38 more — see full table ↓
