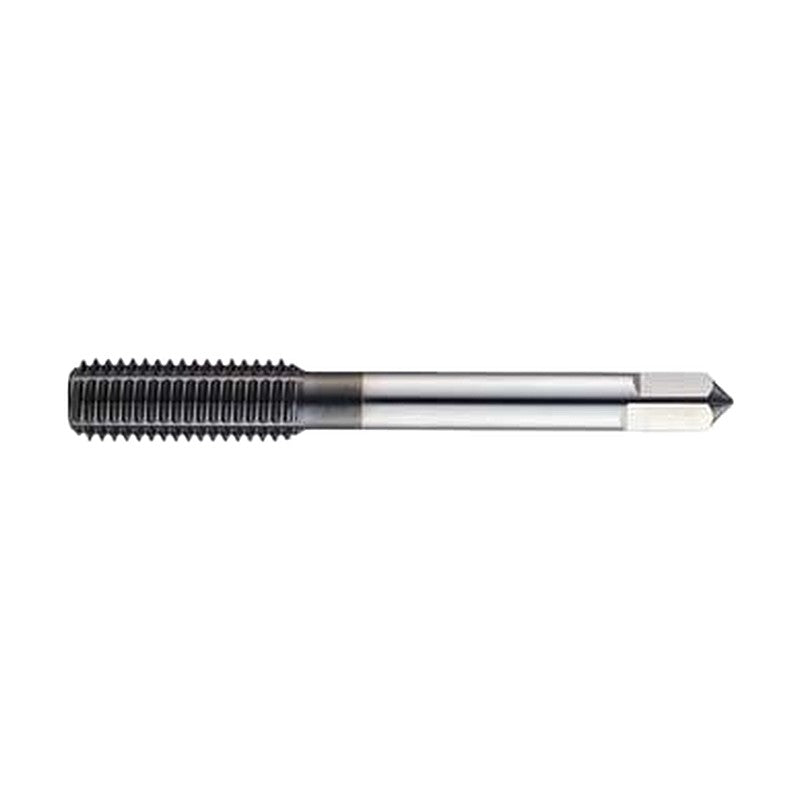

Korloy JIS Roll Tap VRCM HSSE TiCN

Korloy JIS Roll Tap VRCM HSSE TiCN

JIS roll tap in HSSE (TiCN coated) for metric threads M3 to M12.

Key features

  • HSSE (cobalt high-speed steel)
  • Surface treatment: TiCN
  • JIS dimensions
  • Chamfer length 2P, 4P
  • Oil groove versions S (1 groove) and M (4 grooves)

Specifications

Material HSSE
Surface treatment TiCN
Standard JIS
Workpiece (excellent) Copper, Brass, Casting brass, Aluminium rolled material, Aluminium alloy castings, Zinc alloy castings
VRCM0305020S Thread size: M3x0.5 | Chamfer length: 2P | Limits: GH5 | Overall length L (mm): 46 | Thread length ℓ (mm): 11 | Shank dia. d (mm): 4 | Square K (mm): 3.2 | Square length Kl (mm): 6 | Oil groove: S (1 groove)
VRCM0305020M Thread size: M3x0.5 | Chamfer length: 2P | Limits: GH5 | Overall length L (mm): 46 | Thread length ℓ (mm): 11 | Shank dia. d (mm): 4 | Square K (mm): 3.2 | Square length Kl (mm): 6 | Oil groove: M (4 grooves)
VRCM0305040M Thread size: M3x0.5 | Chamfer length: 4P | Limits: GH5 | Overall length L (mm): 46 | Thread length ℓ (mm): 11 | Shank dia. d (mm): 4 | Square K (mm): 3.2 | Square length Kl (mm): 6 | Oil groove: M (4 grooves)
VRCM0407020S Thread size: M4x0.7 | Chamfer length: 2P | Limits: GH6 | Overall length L (mm): 52 | Thread length ℓ (mm): 13 | Shank dia. d (mm): 5 | Square K (mm): 4 | Square length Kl (mm): 7 | Oil groove: S (1 groove)
VRCM0407020M Thread size: M4x0.7 | Chamfer length: 2P | Limits: GH6 | Overall length L (mm): 52 | Thread length ℓ (mm): 13 | Shank dia. d (mm): 5 | Square K (mm): 4 | Square length Kl (mm): 7 | Oil groove: M (4 grooves)
VRCM0407040M Thread size: M4x0.7 | Chamfer length: 4P | Limits: GH6 | Overall length L (mm): 52 | Thread length ℓ (mm): 13 | Shank dia. d (mm): 5 | Square K (mm): 4 | Square length Kl (mm): 7 | Oil groove: M (4 grooves)
VRCM0508020S Thread size: M5x0.8 | Chamfer length: 2P | Limits: GH6 | Overall length L (mm): 60 | Thread length ℓ (mm): 16 | Shank dia. d (mm): 5.5 | Square K (mm): 4.5 | Square length Kl (mm): 7 | Oil groove: S (1 groove)
VRCM0508020M Thread size: M5x0.8 | Chamfer length: 2P | Limits: GH6 | Overall length L (mm): 60 | Thread length ℓ (mm): 16 | Shank dia. d (mm): 5.5 | Square K (mm): 4.5 | Square length Kl (mm): 7 | Oil groove: M (4 grooves)
VRCM0508040M Thread size: M5x0.8 | Chamfer length: 4P | Limits: GH6 | Overall length L (mm): 60 | Thread length ℓ (mm): 16 | Shank dia. d (mm): 5.5 | Square K (mm): 4.5 | Square length Kl (mm): 7 | Oil groove: M (4 grooves)
VRCM0610020S Thread size: M6x1.0 | Chamfer length: 2P | Limits: GH7 | Overall length L (mm): 62 | Thread length ℓ (mm): 19 | Shank dia. d (mm): 6 | Square K (mm): 4.5 | Square length Kl (mm): 7 | Oil groove: S (1 groove)
VRCM0610020M Thread size: M6x1.0 | Chamfer length: 2P | Limits: GH7 | Overall length L (mm): 62 | Thread length ℓ (mm): 19 | Shank dia. d (mm): 6 | Square K (mm): 4.5 | Square length Kl (mm): 7 | Oil groove: M (4 grooves)
VRCM0610040M Thread size: M6x1.0 | Chamfer length: 4P | Limits: GH7 | Overall length L (mm): 62 | Thread length ℓ (mm): 19 | Shank dia. d (mm): 6 | Square K (mm): 4.5 | Square length Kl (mm): 7 | Oil groove: M (4 grooves)
VRCM0812520S Thread size: M8x1.25 | Chamfer length: 2P | Limits: GH7 | Overall length L (mm): 70 | Thread length ℓ (mm): 22 | Shank dia. d (mm): 6.2 | Square K (mm): 5 | Square length Kl (mm): 8 | Oil groove: S (1 groove)
VRCM0812520M Thread size: M8x1.25 | Chamfer length: 2P | Limits: GH7 | Overall length L (mm): 70 | Thread length ℓ (mm): 22 | Shank dia. d (mm): 6.2 | Square K (mm): 5 | Square length Kl (mm): 8 | Oil groove: M (4 grooves)
VRCM0812540M Thread size: M8x1.25 | Chamfer length: 4P | Limits: GH7 | Overall length L (mm): 70 | Thread length ℓ (mm): 22 | Shank dia. d (mm): 6.2 | Square K (mm): 5 | Square length Kl (mm): 8 | Oil groove: M (4 grooves)
VRCM1012520S Thread size: M10x1.25 | Chamfer length: 2P | Limits: GH7 | Overall length L (mm): 75 | Thread length ℓ (mm): 24 | Shank dia. d (mm): 7 | Square K (mm): 5.5 | Square length Kl (mm): 8 | Oil groove: S (1 groove)
VRCM1012520M Thread size: M10x1.25 | Chamfer length: 2P | Limits: GH7 | Overall length L (mm): 75 | Thread length ℓ (mm): 24 | Shank dia. d (mm): 7 | Square K (mm): 5.5 | Square length Kl (mm): 8 | Oil groove: M (4 grooves)
VRCM1012540M Thread size: M10x1.25 | Chamfer length: 4P | Limits: GH7 | Overall length L (mm): 75 | Thread length ℓ (mm): 24 | Shank dia. d (mm): 7 | Square K (mm): 5.5 | Square length Kl (mm): 8 | Oil groove: M (4 grooves)
VRCM1015020S Thread size: M10x1.50 | Chamfer length: 2P | Limits: GH7 | Overall length L (mm): 75 | Thread length ℓ (mm): 24 | Shank dia. d (mm): 7 | Square K (mm): 5.5 | Square length Kl (mm): 8 | Oil groove: S (1 groove)
VRCM1015020M Thread size: M10x1.50 | Chamfer length: 2P | Limits: GH7 | Overall length L (mm): 75 | Thread length ℓ (mm): 24 | Shank dia. d (mm): 7 | Square K (mm): 5.5 | Square length Kl (mm): 8 | Oil groove: M (4 grooves)
VRCM1015040M Thread size: M10x1.50 | Chamfer length: 4P | Limits: GH7 | Overall length L (mm): 75 | Thread length ℓ (mm): 24 | Shank dia. d (mm): 7 | Square K (mm): 5.5 | Square length Kl (mm): 8 | Oil groove: M (4 grooves)
VRCM1210020S Thread size: M12x1.0 | Chamfer length: 2P | Limits: GH7 | Overall length L (mm): 82 | Thread length ℓ (mm): 29 | Shank dia. d (mm): 8.5 | Square K (mm): 6.5 | Square length Kl (mm): 9 | Oil groove: S (1 groove)
VRCM1210020M Thread size: M12x1.0 | Chamfer length: 2P | Limits: GH7 | Overall length L (mm): 82 | Thread length ℓ (mm): 29 | Shank dia. d (mm): 8.5 | Square K (mm): 6.5 | Square length Kl (mm): 9 | Oil groove: M (4 grooves)
VRCM1210040M Thread size: M12x1.0 | Chamfer length: 4P | Limits: GH7 | Overall length L (mm): 82 | Thread length ℓ (mm): 29 | Shank dia. d (mm): 8.5 | Square K (mm): 6.5 | Square length Kl (mm): 9 | Oil groove: M (4 grooves)
VRCM1212520S Thread size: M12x1.25 | Chamfer length: 2P | Limits: GH7 | Overall length L (mm): 82 | Thread length ℓ (mm): 29 | Shank dia. d (mm): 8.5 | Square K (mm): 6.5 | Square length Kl (mm): 9 | Oil groove: S (1 groove)
VRCM1212520M Thread size: M12x1.25 | Chamfer length: 2P | Limits: GH7 | Overall length L (mm): 82 | Thread length ℓ (mm): 29 | Shank dia. d (mm): 8.5 | Square K (mm): 6.5 | Square length Kl (mm): 9 | Oil groove: M (4 grooves)
VRCM1212540M Thread size: M12x1.25 | Chamfer length: 4P | Limits: GH7 | Overall length L (mm): 82 | Thread length ℓ (mm): 29 | Shank dia. d (mm): 8.5 | Square K (mm): 6.5 | Square length Kl (mm): 9 | Oil groove: M (4 grooves)
VRCM1215020S Thread size: M12x1.5 | Chamfer length: 2P | Limits: GH7 | Overall length L (mm): 82 | Thread length ℓ (mm): 29 | Shank dia. d (mm): 8.5 | Square K (mm): 6.5 | Square length Kl (mm): 9 | Oil groove: S (1 groove)
VRCM1215020M Thread size: M12x1.5 | Chamfer length: 2P | Limits: GH7 | Overall length L (mm): 82 | Thread length ℓ (mm): 29 | Shank dia. d (mm): 8.5 | Square K (mm): 6.5 | Square length Kl (mm): 9 | Oil groove: M (4 grooves)
VRCM1215040M Thread size: M12x1.5 | Chamfer length: 4P | Limits: GH7 | Overall length L (mm): 82 | Thread length ℓ (mm): 29 | Shank dia. d (mm): 8.5 | Square K (mm): 6.5 | Square length Kl (mm): 9 | Oil groove: M (4 grooves)
VRCM1217520S Thread size: M12x1.75 | Chamfer length: 2P | Limits: GH8 | Overall length L (mm): 82 | Thread length ℓ (mm): 29 | Shank dia. d (mm): 8.5 | Square K (mm): 6.5 | Square length Kl (mm): 9 | Oil groove: S (1 groove)
VRCM1217520M Thread size: M12x1.75 | Chamfer length: 2P | Limits: GH8 | Overall length L (mm): 82 | Thread length ℓ (mm): 29 | Shank dia. d (mm): 8.5 | Square K (mm): 6.5 | Square length Kl (mm): 9 | Oil groove: M (4 grooves)
VRCM1217540M Thread size: M12x1.75 | Chamfer length: 4P | Limits: GH8 | Overall length L (mm): 82 | Thread length ℓ (mm): 29 | Shank dia. d (mm): 8.5 | Square K (mm): 6.5 | Square length Kl (mm): 9 | Oil groove: M (4 grooves)
TapsKorloy
33 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy JIS Roll Tap VRCM HSSE TiCN

Brand Korloy·Taps

Available part numbers (33)

VRCM0305020S, VRCM0305020M, VRCM0305040M, VRCM0407020S, VRCM0407020M, VRCM0407040M, VRCM0508020S, VRCM0508020M, VRCM0508040M, VRCM0610020S + 23 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
VRCM0305020SThread size: M3x0.5 | Chamfer length: 2P | Limits: GH5 | Overall length L (mm): 46 | Thread length ℓ (mm): 11 | Shank dia. d (mm): 4 | Square K (mm): 3.2 | Square length Kl (mm): 6 | Oil groove: S (1 groove)
VRCM0305020MThread size: M3x0.5 | Chamfer length: 2P | Limits: GH5 | Overall length L (mm): 46 | Thread length ℓ (mm): 11 | Shank dia. d (mm): 4 | Square K (mm): 3.2 | Square length Kl (mm): 6 | Oil groove: M (4 grooves)
VRCM0305040MThread size: M3x0.5 | Chamfer length: 4P | Limits: GH5 | Overall length L (mm): 46 | Thread length ℓ (mm): 11 | Shank dia. d (mm): 4 | Square K (mm): 3.2 | Square length Kl (mm): 6 | Oil groove: M (4 grooves)
VRCM0407020SThread size: M4x0.7 | Chamfer length: 2P | Limits: GH6 | Overall length L (mm): 52 | Thread length ℓ (mm): 13 | Shank dia. d (mm): 5 | Square K (mm): 4 | Square length Kl (mm): 7 | Oil groove: S (1 groove)
VRCM0407020MThread size: M4x0.7 | Chamfer length: 2P | Limits: GH6 | Overall length L (mm): 52 | Thread length ℓ (mm): 13 | Shank dia. d (mm): 5 | Square K (mm): 4 | Square length Kl (mm): 7 | Oil groove: M (4 grooves)
VRCM0407040MThread size: M4x0.7 | Chamfer length: 4P | Limits: GH6 | Overall length L (mm): 52 | Thread length ℓ (mm): 13 | Shank dia. d (mm): 5 | Square K (mm): 4 | Square length Kl (mm): 7 | Oil groove: M (4 grooves)
VRCM0508020SThread size: M5x0.8 | Chamfer length: 2P | Limits: GH6 | Overall length L (mm): 60 | Thread length ℓ (mm): 16 | Shank dia. d (mm): 5.5 | Square K (mm): 4.5 | Square length Kl (mm): 7 | Oil groove: S (1 groove)
VRCM0508020MThread size: M5x0.8 | Chamfer length: 2P | Limits: GH6 | Overall length L (mm): 60 | Thread length ℓ (mm): 16 | Shank dia. d (mm): 5.5 | Square K (mm): 4.5 | Square length Kl (mm): 7 | Oil groove: M (4 grooves)
VRCM0508040MThread size: M5x0.8 | Chamfer length: 4P | Limits: GH6 | Overall length L (mm): 60 | Thread length ℓ (mm): 16 | Shank dia. d (mm): 5.5 | Square K (mm): 4.5 | Square length Kl (mm): 7 | Oil groove: M (4 grooves)
VRCM0610020SThread size: M6x1.0 | Chamfer length: 2P | Limits: GH7 | Overall length L (mm): 62 | Thread length ℓ (mm): 19 | Shank dia. d (mm): 6 | Square K (mm): 4.5 | Square length Kl (mm): 7 | Oil groove: S (1 groove)
VRCM0610020MThread size: M6x1.0 | Chamfer length: 2P | Limits: GH7 | Overall length L (mm): 62 | Thread length ℓ (mm): 19 | Shank dia. d (mm): 6 | Square K (mm): 4.5 | Square length Kl (mm): 7 | Oil groove: M (4 grooves)
VRCM0610040MThread size: M6x1.0 | Chamfer length: 4P | Limits: GH7 | Overall length L (mm): 62 | Thread length ℓ (mm): 19 | Shank dia. d (mm): 6 | Square K (mm): 4.5 | Square length Kl (mm): 7 | Oil groove: M (4 grooves)
VRCM0812520SThread size: M8x1.25 | Chamfer length: 2P | Limits: GH7 | Overall length L (mm): 70 | Thread length ℓ (mm): 22 | Shank dia. d (mm): 6.2 | Square K (mm): 5 | Square length Kl (mm): 8 | Oil groove: S (1 groove)
VRCM0812520MThread size: M8x1.25 | Chamfer length: 2P | Limits: GH7 | Overall length L (mm): 70 | Thread length ℓ (mm): 22 | Shank dia. d (mm): 6.2 | Square K (mm): 5 | Square length Kl (mm): 8 | Oil groove: M (4 grooves)
VRCM0812540MThread size: M8x1.25 | Chamfer length: 4P | Limits: GH7 | Overall length L (mm): 70 | Thread length ℓ (mm): 22 | Shank dia. d (mm): 6.2 | Square K (mm): 5 | Square length Kl (mm): 8 | Oil groove: M (4 grooves)
VRCM1012520SThread size: M10x1.25 | Chamfer length: 2P | Limits: GH7 | Overall length L (mm): 75 | Thread length ℓ (mm): 24 | Shank dia. d (mm): 7 | Square K (mm): 5.5 | Square length Kl (mm): 8 | Oil groove: S (1 groove)
VRCM1012520MThread size: M10x1.25 | Chamfer length: 2P | Limits: GH7 | Overall length L (mm): 75 | Thread length ℓ (mm): 24 | Shank dia. d (mm): 7 | Square K (mm): 5.5 | Square length Kl (mm): 8 | Oil groove: M (4 grooves)
VRCM1012540MThread size: M10x1.25 | Chamfer length: 4P | Limits: GH7 | Overall length L (mm): 75 | Thread length ℓ (mm): 24 | Shank dia. d (mm): 7 | Square K (mm): 5.5 | Square length Kl (mm): 8 | Oil groove: M (4 grooves)
VRCM1015020SThread size: M10x1.50 | Chamfer length: 2P | Limits: GH7 | Overall length L (mm): 75 | Thread length ℓ (mm): 24 | Shank dia. d (mm): 7 | Square K (mm): 5.5 | Square length Kl (mm): 8 | Oil groove: S (1 groove)
VRCM1015020MThread size: M10x1.50 | Chamfer length: 2P | Limits: GH7 | Overall length L (mm): 75 | Thread length ℓ (mm): 24 | Shank dia. d (mm): 7 | Square K (mm): 5.5 | Square length Kl (mm): 8 | Oil groove: M (4 grooves)
VRCM1015040MThread size: M10x1.50 | Chamfer length: 4P | Limits: GH7 | Overall length L (mm): 75 | Thread length ℓ (mm): 24 | Shank dia. d (mm): 7 | Square K (mm): 5.5 | Square length Kl (mm): 8 | Oil groove: M (4 grooves)
VRCM1210020SThread size: M12x1.0 | Chamfer length: 2P | Limits: GH7 | Overall length L (mm): 82 | Thread length ℓ (mm): 29 | Shank dia. d (mm): 8.5 | Square K (mm): 6.5 | Square length Kl (mm): 9 | Oil groove: S (1 groove)
VRCM1210020MThread size: M12x1.0 | Chamfer length: 2P | Limits: GH7 | Overall length L (mm): 82 | Thread length ℓ (mm): 29 | Shank dia. d (mm): 8.5 | Square K (mm): 6.5 | Square length Kl (mm): 9 | Oil groove: M (4 grooves)
VRCM1210040MThread size: M12x1.0 | Chamfer length: 4P | Limits: GH7 | Overall length L (mm): 82 | Thread length ℓ (mm): 29 | Shank dia. d (mm): 8.5 | Square K (mm): 6.5 | Square length Kl (mm): 9 | Oil groove: M (4 grooves)
VRCM1212520SThread size: M12x1.25 | Chamfer length: 2P | Limits: GH7 | Overall length L (mm): 82 | Thread length ℓ (mm): 29 | Shank dia. d (mm): 8.5 | Square K (mm): 6.5 | Square length Kl (mm): 9 | Oil groove: S (1 groove)
VRCM1212520MThread size: M12x1.25 | Chamfer length: 2P | Limits: GH7 | Overall length L (mm): 82 | Thread length ℓ (mm): 29 | Shank dia. d (mm): 8.5 | Square K (mm): 6.5 | Square length Kl (mm): 9 | Oil groove: M (4 grooves)
VRCM1212540MThread size: M12x1.25 | Chamfer length: 4P | Limits: GH7 | Overall length L (mm): 82 | Thread length ℓ (mm): 29 | Shank dia. d (mm): 8.5 | Square K (mm): 6.5 | Square length Kl (mm): 9 | Oil groove: M (4 grooves)
VRCM1215020SThread size: M12x1.5 | Chamfer length: 2P | Limits: GH7 | Overall length L (mm): 82 | Thread length ℓ (mm): 29 | Shank dia. d (mm): 8.5 | Square K (mm): 6.5 | Square length Kl (mm): 9 | Oil groove: S (1 groove)
VRCM1215020MThread size: M12x1.5 | Chamfer length: 2P | Limits: GH7 | Overall length L (mm): 82 | Thread length ℓ (mm): 29 | Shank dia. d (mm): 8.5 | Square K (mm): 6.5 | Square length Kl (mm): 9 | Oil groove: M (4 grooves)
VRCM1215040MThread size: M12x1.5 | Chamfer length: 4P | Limits: GH7 | Overall length L (mm): 82 | Thread length ℓ (mm): 29 | Shank dia. d (mm): 8.5 | Square K (mm): 6.5 | Square length Kl (mm): 9 | Oil groove: M (4 grooves)
VRCM1217520SThread size: M12x1.75 | Chamfer length: 2P | Limits: GH8 | Overall length L (mm): 82 | Thread length ℓ (mm): 29 | Shank dia. d (mm): 8.5 | Square K (mm): 6.5 | Square length Kl (mm): 9 | Oil groove: S (1 groove)
VRCM1217520MThread size: M12x1.75 | Chamfer length: 2P | Limits: GH8 | Overall length L (mm): 82 | Thread length ℓ (mm): 29 | Shank dia. d (mm): 8.5 | Square K (mm): 6.5 | Square length Kl (mm): 9 | Oil groove: M (4 grooves)
VRCM1217540MThread size: M12x1.75 | Chamfer length: 4P | Limits: GH8 | Overall length L (mm): 82 | Thread length ℓ (mm): 29 | Shank dia. d (mm): 8.5 | Square K (mm): 6.5 | Square length Kl (mm): 9 | Oil groove: M (4 grooves)
