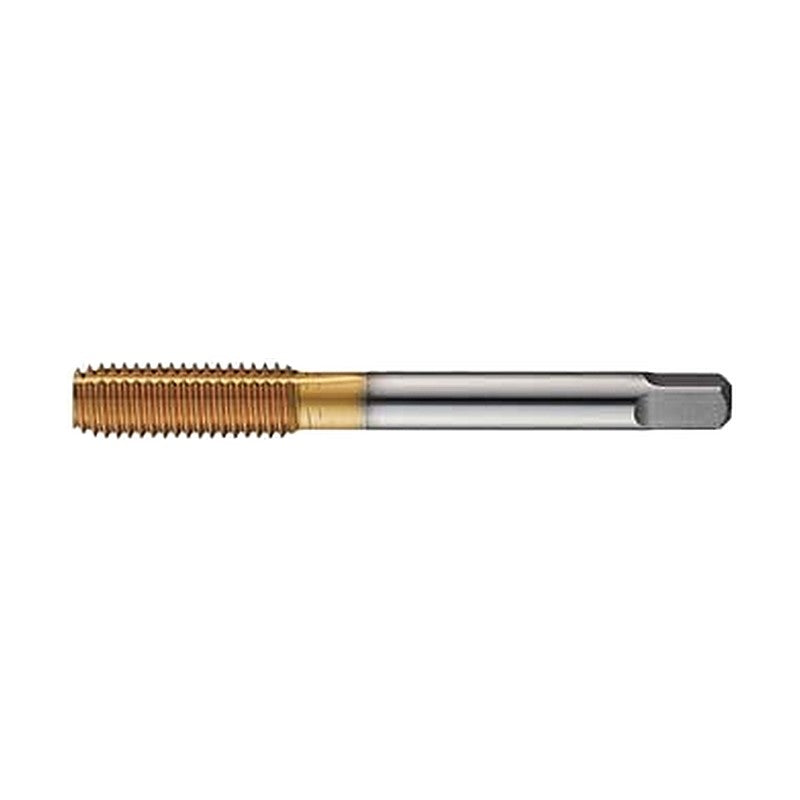

Korloy JIS Roll Tap VRTM HSSE TiN

Korloy JIS Roll Tap VRTM HSSE TiN

JIS roll tap in HSSE (TiN coated) for metric threads M3 to M12.

Key features

  • HSSE (cobalt high-speed steel)
  • Surface treatment: TiN
  • JIS dimensions
  • Chamfer length 2P, 4P
  • Oil groove versions S (1 groove) and M (4 grooves)

Specifications

Material HSSE
Surface treatment TiN
Standard JIS
Workpiece (excellent) Copper, Brass, Casting brass, Aluminium rolled material, Aluminium alloy castings, Zinc alloy castings
VRTM0305020S Thread size: M3x0.5 | Chamfer length: 2P | Limits: GH5 | Overall length L (mm): 46 | Thread length ℓ (mm): 11 | Shank dia. d (mm): 4 | Square K (mm): 3.2 | Square length Kl (mm): 6 | Oil groove: S (1 groove)
VRTM0305020M Thread size: M3x0.5 | Chamfer length: 2P | Limits: GH6 | Overall length L (mm): 46 | Thread length ℓ (mm): 11 | Shank dia. d (mm): 4 | Square K (mm): 3.2 | Square length Kl (mm): 6 | Oil groove: M (4 grooves)
VRTM0305040M Thread size: M3x0.5 | Chamfer length: 4P | Limits: GH6 | Overall length L (mm): 46 | Thread length ℓ (mm): 11 | Shank dia. d (mm): 4 | Square K (mm): 3.2 | Square length Kl (mm): 6 | Oil groove: M (4 grooves)
VRTM0407020S Thread size: M4x0.7 | Chamfer length: 2P | Limits: GH6 | Overall length L (mm): 52 | Thread length ℓ (mm): 13 | Shank dia. d (mm): 5 | Square K (mm): 4 | Square length Kl (mm): 7 | Oil groove: S (1 groove)
VRTM0407020M Thread size: M4x0.7 | Chamfer length: 2P | Limits: GH6 | Overall length L (mm): 52 | Thread length ℓ (mm): 13 | Shank dia. d (mm): 5 | Square K (mm): 4 | Square length Kl (mm): 7 | Oil groove: M (4 grooves)
VRTM0407040M Thread size: M4x0.7 | Chamfer length: 4P | Limits: GH6 | Overall length L (mm): 52 | Thread length ℓ (mm): 13 | Shank dia. d (mm): 5 | Square K (mm): 4 | Square length Kl (mm): 7 | Oil groove: M (4 grooves)
VRTM0508020S Thread size: M5x0.8 | Chamfer length: 2P | Limits: GH6 | Overall length L (mm): 60 | Thread length ℓ (mm): 16 | Shank dia. d (mm): 5.5 | Square K (mm): 4.5 | Square length Kl (mm): 7 | Oil groove: S (1 groove)
VRTM0508020M Thread size: M5x0.8 | Chamfer length: 2P | Limits: GH6 | Overall length L (mm): 60 | Thread length ℓ (mm): 16 | Shank dia. d (mm): 5.5 | Square K (mm): 4.5 | Square length Kl (mm): 7 | Oil groove: M (4 grooves)
VRTM0508040M Thread size: M5x0.8 | Chamfer length: 4P | Limits: GH6 | Overall length L (mm): 60 | Thread length ℓ (mm): 16 | Shank dia. d (mm): 5.5 | Square K (mm): 4.5 | Square length Kl (mm): 7 | Oil groove: M (4 grooves)
VRTM0610020S Thread size: M6x1.0 | Chamfer length: 2P | Limits: GH7 | Overall length L (mm): 62 | Thread length ℓ (mm): 19 | Shank dia. d (mm): 6 | Square K (mm): 4.5 | Square length Kl (mm): 7 | Oil groove: S (1 groove)
VRTM0610020M Thread size: M6x1.0 | Chamfer length: 2P | Limits: GH7 | Overall length L (mm): 62 | Thread length ℓ (mm): 19 | Shank dia. d (mm): 6 | Square K (mm): 4.5 | Square length Kl (mm): 7 | Oil groove: M (4 grooves)
VRTM0610040M Thread size: M6x1.0 | Chamfer length: 4P | Limits: GH7 | Overall length L (mm): 62 | Thread length ℓ (mm): 19 | Shank dia. d (mm): 6 | Square K (mm): 4.5 | Square length Kl (mm): 7 | Oil groove: M (4 grooves)
VRTM0812520S Thread size: M8x1.25 | Chamfer length: 2P | Limits: GH7 | Overall length L (mm): 70 | Thread length ℓ (mm): 22 | Shank dia. d (mm): 6.2 | Square K (mm): 5 | Square length Kl (mm): 8 | Oil groove: S (1 groove)
VRTM0812520M Thread size: M8x1.25 | Chamfer length: 2P | Limits: GH7 | Overall length L (mm): 70 | Thread length ℓ (mm): 22 | Shank dia. d (mm): 6.2 | Square K (mm): 5 | Square length Kl (mm): 8 | Oil groove: M (4 grooves)
VRTM0812540M Thread size: M8x1.25 | Chamfer length: 4P | Limits: GH7 | Overall length L (mm): 70 | Thread length ℓ (mm): 22 | Shank dia. d (mm): 6.2 | Square K (mm): 5 | Square length Kl (mm): 8 | Oil groove: M (4 grooves)
VRTM1012520S Thread size: M10x1.25 | Chamfer length: 2P | Limits: GH7 | Overall length L (mm): 75 | Thread length ℓ (mm): 24 | Shank dia. d (mm): 7 | Square K (mm): 5.5 | Square length Kl (mm): 8 | Oil groove: S (1 groove)
VRTM1012520M Thread size: M10x1.25 | Chamfer length: 2P | Limits: GH7 | Overall length L (mm): 75 | Thread length ℓ (mm): 24 | Shank dia. d (mm): 7 | Square K (mm): 5.5 | Square length Kl (mm): 8 | Oil groove: M (4 grooves)
VRTM1012540M Thread size: M10x1.25 | Chamfer length: 4P | Limits: GH7 | Overall length L (mm): 75 | Thread length ℓ (mm): 24 | Shank dia. d (mm): 7 | Square K (mm): 5.5 | Square length Kl (mm): 8 | Oil groove: M (4 grooves)
VRTM1015020S Thread size: M10x1.5 | Chamfer length: 2P | Limits: GH7 | Overall length L (mm): 75 | Thread length ℓ (mm): 24 | Shank dia. d (mm): 7 | Square K (mm): 5.5 | Square length Kl (mm): 8 | Oil groove: S (1 groove)
VRTM1015020M Thread size: M10x1.5 | Chamfer length: 2P | Limits: GH7 | Overall length L (mm): 75 | Thread length ℓ (mm): 24 | Shank dia. d (mm): 7 | Square K (mm): 5.5 | Square length Kl (mm): 8 | Oil groove: M (4 grooves)
VRTM1015040M Thread size: M10x1.5 | Chamfer length: 4P | Limits: GH7 | Overall length L (mm): 75 | Thread length ℓ (mm): 24 | Shank dia. d (mm): 7 | Square K (mm): 5.5 | Square length Kl (mm): 8 | Oil groove: M (4 grooves)
VRTM1210020S Thread size: M12x1.0 | Chamfer length: 2P | Limits: GH7 | Overall length L (mm): 82 | Thread length ℓ (mm): 29 | Shank dia. d (mm): 8.5 | Square K (mm): 6.5 | Square length Kl (mm): 9 | Oil groove: S (1 groove)
VRTM1210020M Thread size: M12x1.0 | Chamfer length: 2P | Limits: GH7 | Overall length L (mm): 82 | Thread length ℓ (mm): 29 | Shank dia. d (mm): 8.5 | Square K (mm): 6.5 | Square length Kl (mm): 9 | Oil groove: M (4 grooves)
VRTM1210040M Thread size: M12x1.0 | Chamfer length: 4P | Limits: GH7 | Overall length L (mm): 82 | Thread length ℓ (mm): 29 | Shank dia. d (mm): 8.5 | Square K (mm): 6.5 | Square length Kl (mm): 9 | Oil groove: M (4 grooves)
VRTM1212520S Thread size: M12x1.25 | Chamfer length: 2P | Limits: GH7 | Overall length L (mm): 82 | Thread length ℓ (mm): 29 | Shank dia. d (mm): 8.5 | Square K (mm): 6.5 | Square length Kl (mm): 9 | Oil groove: S (1 groove)
VRTM1212520M Thread size: M12x1.25 | Chamfer length: 2P | Limits: GH7 | Overall length L (mm): 82 | Thread length ℓ (mm): 29 | Shank dia. d (mm): 8.5 | Square K (mm): 6.5 | Square length Kl (mm): 9 | Oil groove: M (4 grooves)
VRTM1212540M Thread size: M12x1.25 | Chamfer length: 4P | Limits: GH7 | Overall length L (mm): 82 | Thread length ℓ (mm): 29 | Shank dia. d (mm): 8.5 | Square K (mm): 6.5 | Square length Kl (mm): 9 | Oil groove: M (4 grooves)
VRTM1215020S Thread size: M12x1.5 | Chamfer length: 2P | Limits: GH7 | Overall length L (mm): 82 | Thread length ℓ (mm): 29 | Shank dia. d (mm): 8.5 | Square K (mm): 6.5 | Square length Kl (mm): 9 | Oil groove: S (1 groove)
VRTM1215020M Thread size: M12x1.5 | Chamfer length: 2P | Limits: GH7 | Overall length L (mm): 82 | Thread length ℓ (mm): 29 | Shank dia. d (mm): 8.5 | Square K (mm): 6.5 | Square length Kl (mm): 9 | Oil groove: M (4 grooves)
VRTM1215040M Thread size: M12x1.5 | Chamfer length: 4P | Limits: GH7 | Overall length L (mm): 82 | Thread length ℓ (mm): 29 | Shank dia. d (mm): 8.5 | Square K (mm): 6.5 | Square length Kl (mm): 9 | Oil groove: M (4 grooves)
VRTM1217520S Thread size: M12x1.75 | Chamfer length: 2P | Limits: GH8 | Overall length L (mm): 82 | Thread length ℓ (mm): 29 | Shank dia. d (mm): 8.5 | Square K (mm): 6.5 | Square length Kl (mm): 9 | Oil groove: S (1 groove)
VRTM1217520M Thread size: M12x1.75 | Chamfer length: 2P | Limits: GH8 | Overall length L (mm): 82 | Thread length ℓ (mm): 29 | Shank dia. d (mm): 8.5 | Square K (mm): 6.5 | Square length Kl (mm): 9 | Oil groove: M (4 grooves)
VRTM1217540M Thread size: M12x1.75 | Chamfer length: 4P | Limits: GH8 | Overall length L (mm): 82 | Thread length ℓ (mm): 29 | Shank dia. d (mm): 8.5 | Square K (mm): 6.5 | Square length Kl (mm): 9 | Oil groove: M (4 grooves)
