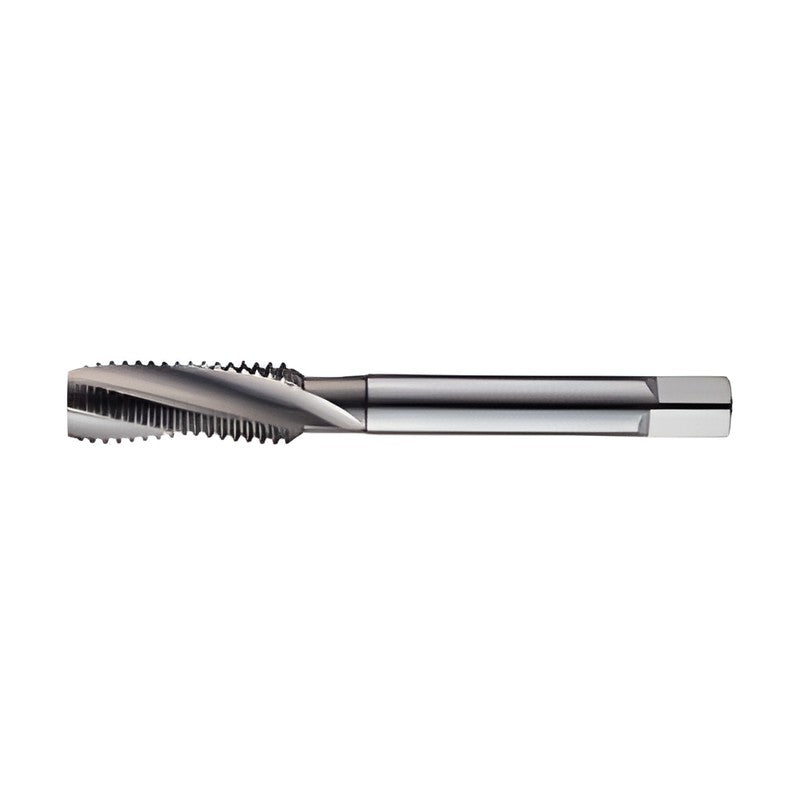

Korloy JIS Spiral Flute Tap VPCM HSSE TiCN

Korloy JIS Spiral Flute Tap VPCM HSSE TiCN

JIS spiral flute tap in HSSE (TiCN coated) for metric threads M3 to M24.

Key features

  • HSSE (cobalt high-speed steel)
  • Surface treatment: TiCN
  • 35 deg helix
  • JIS dimensions
  • Chamfer length 2.5P

Specifications

Material HSSE
Surface treatment TiCN
Standard JIS
Workpiece (excellent) Medium carbon steels, Alloy steels
Workpiece (good) High-strength steels, Copper, Brass, Casting brass, Bronze, Aluminium rolled material, Aluminium alloy castings, Magnesium alloy castings, Zinc alloy castings, Thermoplastics
VPCM0305025 Thread size: M3x0.5 | Chamfer length: 2.5P | Limits: WH2 | Overall length L (mm): 46 | Thread length ℓ (mm): 11 | Shank dia. d (mm): 4 | Square K (mm): 3.2 | Square length Kl (mm): 6 | No. of flutes: 3
VPCM0407025 Thread size: M4x0.7 | Chamfer length: 2.5P | Limits: WH2 | Overall length L (mm): 52 | Thread length ℓ (mm): 13 | Shank dia. d (mm): 5 | Square K (mm): 4 | Square length Kl (mm): 7 | No. of flutes: 3
VPCM04507525 Thread size: M4.5x0.75 | Chamfer length: 2.5P | Limits: WH2 | Overall length L (mm): 55 | Thread length ℓ (mm): 13 | Shank dia. d (mm): 5 | Square K (mm): 4 | Square length Kl (mm): 7 | No. of flutes: 3
VPCM0508025 Thread size: M5x0.8 | Chamfer length: 2.5P | Limits: WH2 | Overall length L (mm): 60 | Thread length ℓ (mm): 16 | Shank dia. d (mm): 5.5 | Square K (mm): 4.5 | Square length Kl (mm): 7 | No. of flutes: 3
VPCM0610025 Thread size: M6x1.0 | Chamfer length: 2.5P | Limits: WH2 | Overall length L (mm): 62 | Thread length ℓ (mm): 19 | Shank dia. d (mm): 6 | Square K (mm): 4.5 | Square length Kl (mm): 7 | No. of flutes: 3
VPCM0812525 Thread size: M8x1.25 | Chamfer length: 2.5P | Limits: WH2 | Overall length L (mm): 70 | Thread length ℓ (mm): 22 | Shank dia. d (mm): 6.2 | Square K (mm): 5 | Square length Kl (mm): 8 | No. of flutes: 3
VPCM1012525 Thread size: M10x1.25 | Chamfer length: 2.5P | Limits: WH2 | Overall length L (mm): 75 | Thread length ℓ (mm): 24 | Shank dia. d (mm): 7 | Square K (mm): 5.5 | Square length Kl (mm): 8 | No. of flutes: 3
VPCM1015025 Thread size: M10x1.5 | Chamfer length: 2.5P | Limits: WH2 | Overall length L (mm): 75 | Thread length ℓ (mm): 24 | Shank dia. d (mm): 7 | Square K (mm): 5.5 | Square length Kl (mm): 8 | No. of flutes: 3
VPCM1210025 Thread size: M12x1.0 | Chamfer length: 2.5P | Limits: WH2 | Overall length L (mm): 82 | Thread length ℓ (mm): 29 | Shank dia. d (mm): 8.5 | Square K (mm): 6.5 | Square length Kl (mm): 9 | No. of flutes: 3
VPCM1212525 Thread size: M12x1.25 | Chamfer length: 2.5P | Limits: WH2 | Overall length L (mm): 82 | Thread length ℓ (mm): 29 | Shank dia. d (mm): 8.5 | Square K (mm): 6.5 | Square length Kl (mm): 9 | No. of flutes: 3
VPCM1215025 Thread size: M12x1.5 | Chamfer length: 2.5P | Limits: WH2 | Overall length L (mm): 82 | Thread length ℓ (mm): 29 | Shank dia. d (mm): 8.5 | Square K (mm): 6.5 | Square length Kl (mm): 9 | No. of flutes: 3
VPCM1217525 Thread size: M12x1.75 | Chamfer length: 2.5P | Limits: WH2 | Overall length L (mm): 82 | Thread length ℓ (mm): 29 | Shank dia. d (mm): 8.5 | Square K (mm): 6.5 | Square length Kl (mm): 9 | No. of flutes: 3
VPCM1415025 Thread size: M14x1.5 | Chamfer length: 2.5P | Limits: WH2 | Overall length L (mm): 88 | Thread length ℓ (mm): 30 | Shank dia. d (mm): 10.5 | Square K (mm): 8 | Square length Kl (mm): 11 | No. of flutes: 3
VPCM1420025 Thread size: M14x2.0 | Chamfer length: 2.5P | Limits: WH2 | Overall length L (mm): 88 | Thread length ℓ (mm): 30 | Shank dia. d (mm): 10.5 | Square K (mm): 8 | Square length Kl (mm): 11 | No. of flutes: 3
VPCM1615025 Thread size: M16x1.5 | Chamfer length: 2.5P | Limits: WH2 | Overall length L (mm): 95 | Thread length ℓ (mm): 32 | Shank dia. d (mm): 12.5 | Square K (mm): 10 | Square length Kl (mm): 13 | No. of flutes: 3
VPCM1620025 Thread size: M16x2.0 | Chamfer length: 2.5P | Limits: WH2 | Overall length L (mm): 95 | Thread length ℓ (mm): 32 | Shank dia. d (mm): 12.5 | Square K (mm): 10 | Square length Kl (mm): 13 | No. of flutes: 3
VPCM1815025 Thread size: M18x1.5 | Chamfer length: 2.5P | Limits: WH2 | Overall length L (mm): 100 | Thread length ℓ (mm): 37 | Shank dia. d (mm): 14 | Square K (mm): 11 | Square length Kl (mm): 14 | No. of flutes: 4
VPCM1825025 Thread size: M18x2.5 | Chamfer length: 2.5P | Limits: WH3 | Overall length L (mm): 100 | Thread length ℓ (mm): 37 | Shank dia. d (mm): 14 | Square K (mm): 11 | Square length Kl (mm): 14 | No. of flutes: 4
VPCM2015025 Thread size: M20x1.5 | Chamfer length: 2.5P | Limits: WH3 | Overall length L (mm): 105 | Thread length ℓ (mm): 37 | Shank dia. d (mm): 15 | Square K (mm): 12 | Square length Kl (mm): 15 | No. of flutes: 4
VPCM2025025 Thread size: M20x2.5 | Chamfer length: 2.5P | Limits: WH3 | Overall length L (mm): 105 | Thread length ℓ (mm): 37 | Shank dia. d (mm): 15 | Square K (mm): 12 | Square length Kl (mm): 15 | No. of flutes: 4
VPCM2215025 Thread size: M22x1.5 | Chamfer length: 2.5P | Limits: WH3 | Overall length L (mm): 115 | Thread length ℓ (mm): 38 | Shank dia. d (mm): 17 | Square K (mm): 13 | Square length Kl (mm): 16 | No. of flutes: 4
VPCM2225025 Thread size: M22x2.5 | Chamfer length: 2.5P | Limits: WH3 | Overall length L (mm): 115 | Thread length ℓ (mm): 38 | Shank dia. d (mm): 17 | Square K (mm): 13 | Square length Kl (mm): 16 | No. of flutes: 4
VPCM2415025 Thread size: M24x1.5 | Chamfer length: 2.5P | Limits: WH3 | Overall length L (mm): 120 | Thread length ℓ (mm): 45 | Shank dia. d (mm): 19 | Square K (mm): 15 | Square length Kl (mm): 18 | No. of flutes: 4
VPCM2420025 Thread size: M24x2.0 | Chamfer length: 2.5P | Limits: WH3 | Overall length L (mm): 120 | Thread length ℓ (mm): 45 | Shank dia. d (mm): 19 | Square K (mm): 15 | Square length Kl (mm): 18 | No. of flutes: 4
VPCM2430025 Thread size: M24x3.0 | Chamfer length: 2.5P | Limits: WH4 | Overall length L (mm): 120 | Thread length ℓ (mm): 45 | Shank dia. d (mm): 19 | Square K (mm): 15 | Square length Kl (mm): 18 | No. of flutes: 4
