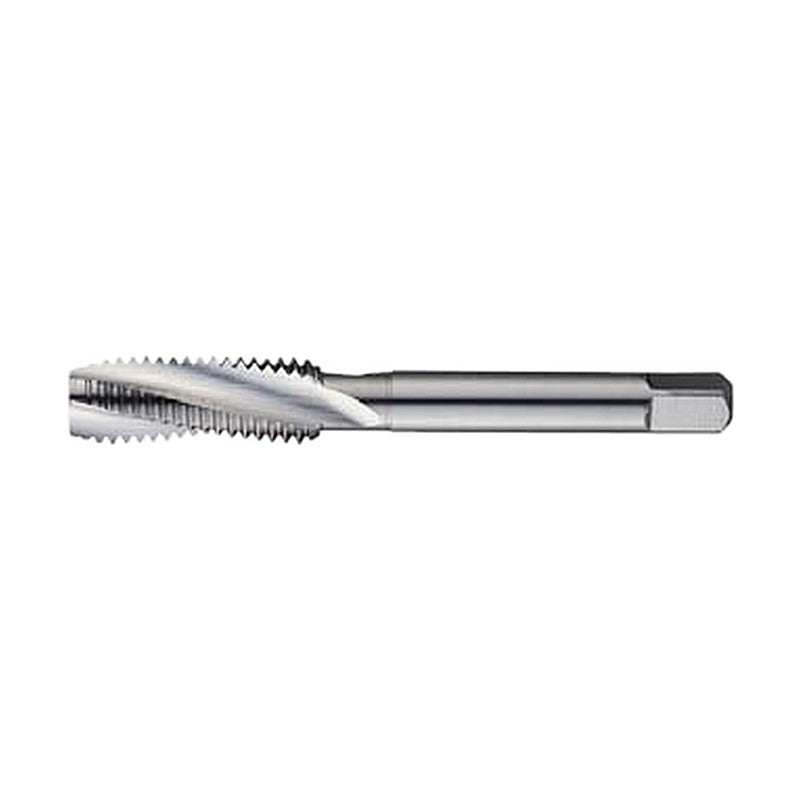

Korloy JIS Spiral Flute Tap VPOM HSSE Uncoated

Korloy JIS Spiral Flute Tap VPOM HSSE Uncoated

JIS spiral flute tap in HSSE (uncoated) for metric threads M3 to M24.

Key features

  • HSSE (cobalt high-speed steel)
  • Surface treatment: Uncoated
  • 35 deg helix
  • JIS dimensions
  • Chamfer length 2.5P

Specifications

Material HSSE
Surface treatment Uncoated
Standard JIS
Workpiece (excellent) Medium carbon steels, Alloy steels
Workpiece (good) High-strength steels, Copper, Brass, Casting brass, Bronze, Aluminium rolled material, Aluminium alloy castings, Magnesium alloy castings, Zinc alloy castings, Thermoplastics
VPOM0305025 Thread size: M3x0.5 | Chamfer length: 2.5P | Limits: WH2 | Overall length L (mm): 46 | Thread length ℓ (mm): 11 | Shank dia. d (mm): 4 | Square K (mm): 3.2 | Square length Kl (mm): 6 | No. of flutes: 3
VPOM0407025 Thread size: M4x0.7 | Chamfer length: 2.5P | Limits: WH2 | Overall length L (mm): 52 | Thread length ℓ (mm): 13 | Shank dia. d (mm): 5 | Square K (mm): 4 | Square length Kl (mm): 7 | No. of flutes: 3
VPOM04507525 Thread size: M4.5x0.75 | Chamfer length: 2.5P | Limits: WH2 | Overall length L (mm): 55 | Thread length ℓ (mm): 13 | Shank dia. d (mm): 5 | Square K (mm): 4 | Square length Kl (mm): 7 | No. of flutes: 3
VPOM0508025 Thread size: M5x0.8 | Chamfer length: 2.5P | Limits: WH2 | Overall length L (mm): 60 | Thread length ℓ (mm): 16 | Shank dia. d (mm): 5.5 | Square K (mm): 4.5 | Square length Kl (mm): 7 | No. of flutes: 3
VPOM0610025 Thread size: M6x1.0 | Chamfer length: 2.5P | Limits: WH2 | Overall length L (mm): 62 | Thread length ℓ (mm): 19 | Shank dia. d (mm): 6 | Square K (mm): 4.5 | Square length Kl (mm): 7 | No. of flutes: 3
VPOM0812525 Thread size: M8x1.25 | Chamfer length: 2.5P | Limits: WH2 | Overall length L (mm): 70 | Thread length ℓ (mm): 22 | Shank dia. d (mm): 6.2 | Square K (mm): 5 | Square length Kl (mm): 8 | No. of flutes: 3
VPOM1012525 Thread size: M10x1.25 | Chamfer length: 2.5P | Limits: WH2 | Overall length L (mm): 75 | Thread length ℓ (mm): 24 | Shank dia. d (mm): 7 | Square K (mm): 5.5 | Square length Kl (mm): 8 | No. of flutes: 3
VPOM1015025 Thread size: M10x1.5 | Chamfer length: 2.5P | Limits: WH2 | Overall length L (mm): 75 | Thread length ℓ (mm): 24 | Shank dia. d (mm): 7 | Square K (mm): 5.5 | Square length Kl (mm): 8 | No. of flutes: 3
VPOM1210025 Thread size: M12x1.0 | Chamfer length: 2.5P | Limits: WH2 | Overall length L (mm): 82 | Thread length ℓ (mm): 29 | Shank dia. d (mm): 8.5 | Square K (mm): 6.5 | Square length Kl (mm): 9 | No. of flutes: 3
VPOM1212525 Thread size: M12x1.25 | Chamfer length: 2.5P | Limits: WH2 | Overall length L (mm): 82 | Thread length ℓ (mm): 29 | Shank dia. d (mm): 8.5 | Square K (mm): 6.5 | Square length Kl (mm): 9 | No. of flutes: 3
VPOM1215025 Thread size: M12x1.5 | Chamfer length: 2.5P | Limits: WH2 | Overall length L (mm): 82 | Thread length ℓ (mm): 29 | Shank dia. d (mm): 8.5 | Square K (mm): 6.5 | Square length Kl (mm): 9 | No. of flutes: 3
VPOM1217525 Thread size: M12x1.75 | Chamfer length: 2.5P | Limits: WH2 | Overall length L (mm): 82 | Thread length ℓ (mm): 29 | Shank dia. d (mm): 8.5 | Square K (mm): 6.5 | Square length Kl (mm): 9 | No. of flutes: 3
VPOM1415025 Thread size: M14x1.5 | Chamfer length: 2.5P | Limits: WH2 | Overall length L (mm): 88 | Thread length ℓ (mm): 30 | Shank dia. d (mm): 10.5 | Square K (mm): 8 | Square length Kl (mm): 11 | No. of flutes: 3
VPOM1420025 Thread size: M14x2.0 | Chamfer length: 2.5P | Limits: WH2 | Overall length L (mm): 88 | Thread length ℓ (mm): 30 | Shank dia. d (mm): 10.5 | Square K (mm): 8 | Square length Kl (mm): 11 | No. of flutes: 3
VPOM1615025 Thread size: M16x1.5 | Chamfer length: 2.5P | Limits: WH2 | Overall length L (mm): 95 | Thread length ℓ (mm): 32 | Shank dia. d (mm): 12.5 | Square K (mm): 10 | Square length Kl (mm): 13 | No. of flutes: 3
VPOM1620025 Thread size: M16x2.0 | Chamfer length: 2.5P | Limits: WH2 | Overall length L (mm): 95 | Thread length ℓ (mm): 32 | Shank dia. d (mm): 12.5 | Square K (mm): 10 | Square length Kl (mm): 13 | No. of flutes: 3
VPOM1815025 Thread size: M18x1.5 | Chamfer length: 2.5P | Limits: WH2 | Overall length L (mm): 100 | Thread length ℓ (mm): 37 | Shank dia. d (mm): 14 | Square K (mm): 11 | Square length Kl (mm): 14 | No. of flutes: 4
VPOM1825025 Thread size: M18x2.5 | Chamfer length: 2.5P | Limits: WH3 | Overall length L (mm): 100 | Thread length ℓ (mm): 37 | Shank dia. d (mm): 14 | Square K (mm): 11 | Square length Kl (mm): 14 | No. of flutes: 4
VPOM2015025 Thread size: M20x1.5 | Chamfer length: 2.5P | Limits: WH3 | Overall length L (mm): 105 | Thread length ℓ (mm): 37 | Shank dia. d (mm): 15 | Square K (mm): 12 | Square length Kl (mm): 15 | No. of flutes: 4
VPOM2025025 Thread size: M20x2.5 | Chamfer length: 2.5P | Limits: WH3 | Overall length L (mm): 105 | Thread length ℓ (mm): 37 | Shank dia. d (mm): 15 | Square K (mm): 12 | Square length Kl (mm): 15 | No. of flutes: 4
VPOM2215025 Thread size: M22x1.5 | Chamfer length: 2.5P | Limits: WH3 | Overall length L (mm): 115 | Thread length ℓ (mm): 38 | Shank dia. d (mm): 17 | Square K (mm): 13 | Square length Kl (mm): 16 | No. of flutes: 4
VPOM2225025 Thread size: M22x2.5 | Chamfer length: 2.5P | Limits: WH3 | Overall length L (mm): 115 | Thread length ℓ (mm): 38 | Shank dia. d (mm): 17 | Square K (mm): 13 | Square length Kl (mm): 16 | No. of flutes: 4
VPOM2415025 Thread size: M24x1.5 | Chamfer length: 2.5P | Limits: WH3 | Overall length L (mm): 120 | Thread length ℓ (mm): 45 | Shank dia. d (mm): 19 | Square K (mm): 15 | Square length Kl (mm): 18 | No. of flutes: 4
VPOM2420025 Thread size: M24x2.0 | Chamfer length: 2.5P | Limits: WH3 | Overall length L (mm): 120 | Thread length ℓ (mm): 45 | Shank dia. d (mm): 19 | Square K (mm): 15 | Square length Kl (mm): 18 | No. of flutes: 4
VPOM2430025 Thread size: M24x3.0 | Chamfer length: 2.5P | Limits: WH4 | Overall length L (mm): 120 | Thread length ℓ (mm): 45 | Shank dia. d (mm): 19 | Square K (mm): 15 | Square length Kl (mm): 18 | No. of flutes: 4
TapsKorloy
25 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy JIS Spiral Flute Tap VPOM HSSE Uncoated

Brand Korloy·Taps

Available part numbers (25)

VPOM0305025, VPOM0407025, VPOM04507525, VPOM0508025, VPOM0610025, VPOM0812525, VPOM1012525, VPOM1015025, VPOM1210025, VPOM1212525 + 15 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
VPOM0305025Thread size: M3x0.5 | Chamfer length: 2.5P | Limits: WH2 | Overall length L (mm): 46 | Thread length ℓ (mm): 11 | Shank dia. d (mm): 4 | Square K (mm): 3.2 | Square length Kl (mm): 6 | No. of flutes: 3
VPOM0407025Thread size: M4x0.7 | Chamfer length: 2.5P | Limits: WH2 | Overall length L (mm): 52 | Thread length ℓ (mm): 13 | Shank dia. d (mm): 5 | Square K (mm): 4 | Square length Kl (mm): 7 | No. of flutes: 3
VPOM04507525Thread size: M4.5x0.75 | Chamfer length: 2.5P | Limits: WH2 | Overall length L (mm): 55 | Thread length ℓ (mm): 13 | Shank dia. d (mm): 5 | Square K (mm): 4 | Square length Kl (mm): 7 | No. of flutes: 3
VPOM0508025Thread size: M5x0.8 | Chamfer length: 2.5P | Limits: WH2 | Overall length L (mm): 60 | Thread length ℓ (mm): 16 | Shank dia. d (mm): 5.5 | Square K (mm): 4.5 | Square length Kl (mm): 7 | No. of flutes: 3
VPOM0610025Thread size: M6x1.0 | Chamfer length: 2.5P | Limits: WH2 | Overall length L (mm): 62 | Thread length ℓ (mm): 19 | Shank dia. d (mm): 6 | Square K (mm): 4.5 | Square length Kl (mm): 7 | No. of flutes: 3
VPOM0812525Thread size: M8x1.25 | Chamfer length: 2.5P | Limits: WH2 | Overall length L (mm): 70 | Thread length ℓ (mm): 22 | Shank dia. d (mm): 6.2 | Square K (mm): 5 | Square length Kl (mm): 8 | No. of flutes: 3
VPOM1012525Thread size: M10x1.25 | Chamfer length: 2.5P | Limits: WH2 | Overall length L (mm): 75 | Thread length ℓ (mm): 24 | Shank dia. d (mm): 7 | Square K (mm): 5.5 | Square length Kl (mm): 8 | No. of flutes: 3
VPOM1015025Thread size: M10x1.5 | Chamfer length: 2.5P | Limits: WH2 | Overall length L (mm): 75 | Thread length ℓ (mm): 24 | Shank dia. d (mm): 7 | Square K (mm): 5.5 | Square length Kl (mm): 8 | No. of flutes: 3
VPOM1210025Thread size: M12x1.0 | Chamfer length: 2.5P | Limits: WH2 | Overall length L (mm): 82 | Thread length ℓ (mm): 29 | Shank dia. d (mm): 8.5 | Square K (mm): 6.5 | Square length Kl (mm): 9 | No. of flutes: 3
VPOM1212525Thread size: M12x1.25 | Chamfer length: 2.5P | Limits: WH2 | Overall length L (mm): 82 | Thread length ℓ (mm): 29 | Shank dia. d (mm): 8.5 | Square K (mm): 6.5 | Square length Kl (mm): 9 | No. of flutes: 3
VPOM1215025Thread size: M12x1.5 | Chamfer length: 2.5P | Limits: WH2 | Overall length L (mm): 82 | Thread length ℓ (mm): 29 | Shank dia. d (mm): 8.5 | Square K (mm): 6.5 | Square length Kl (mm): 9 | No. of flutes: 3
VPOM1217525Thread size: M12x1.75 | Chamfer length: 2.5P | Limits: WH2 | Overall length L (mm): 82 | Thread length ℓ (mm): 29 | Shank dia. d (mm): 8.5 | Square K (mm): 6.5 | Square length Kl (mm): 9 | No. of flutes: 3
VPOM1415025Thread size: M14x1.5 | Chamfer length: 2.5P | Limits: WH2 | Overall length L (mm): 88 | Thread length ℓ (mm): 30 | Shank dia. d (mm): 10.5 | Square K (mm): 8 | Square length Kl (mm): 11 | No. of flutes: 3
VPOM1420025Thread size: M14x2.0 | Chamfer length: 2.5P | Limits: WH2 | Overall length L (mm): 88 | Thread length ℓ (mm): 30 | Shank dia. d (mm): 10.5 | Square K (mm): 8 | Square length Kl (mm): 11 | No. of flutes: 3
VPOM1615025Thread size: M16x1.5 | Chamfer length: 2.5P | Limits: WH2 | Overall length L (mm): 95 | Thread length ℓ (mm): 32 | Shank dia. d (mm): 12.5 | Square K (mm): 10 | Square length Kl (mm): 13 | No. of flutes: 3
VPOM1620025Thread size: M16x2.0 | Chamfer length: 2.5P | Limits: WH2 | Overall length L (mm): 95 | Thread length ℓ (mm): 32 | Shank dia. d (mm): 12.5 | Square K (mm): 10 | Square length Kl (mm): 13 | No. of flutes: 3
VPOM1815025Thread size: M18x1.5 | Chamfer length: 2.5P | Limits: WH2 | Overall length L (mm): 100 | Thread length ℓ (mm): 37 | Shank dia. d (mm): 14 | Square K (mm): 11 | Square length Kl (mm): 14 | No. of flutes: 4
VPOM1825025Thread size: M18x2.5 | Chamfer length: 2.5P | Limits: WH3 | Overall length L (mm): 100 | Thread length ℓ (mm): 37 | Shank dia. d (mm): 14 | Square K (mm): 11 | Square length Kl (mm): 14 | No. of flutes: 4
VPOM2015025Thread size: M20x1.5 | Chamfer length: 2.5P | Limits: WH3 | Overall length L (mm): 105 | Thread length ℓ (mm): 37 | Shank dia. d (mm): 15 | Square K (mm): 12 | Square length Kl (mm): 15 | No. of flutes: 4
VPOM2025025Thread size: M20x2.5 | Chamfer length: 2.5P | Limits: WH3 | Overall length L (mm): 105 | Thread length ℓ (mm): 37 | Shank dia. d (mm): 15 | Square K (mm): 12 | Square length Kl (mm): 15 | No. of flutes: 4
VPOM2215025Thread size: M22x1.5 | Chamfer length: 2.5P | Limits: WH3 | Overall length L (mm): 115 | Thread length ℓ (mm): 38 | Shank dia. d (mm): 17 | Square K (mm): 13 | Square length Kl (mm): 16 | No. of flutes: 4
VPOM2225025Thread size: M22x2.5 | Chamfer length: 2.5P | Limits: WH3 | Overall length L (mm): 115 | Thread length ℓ (mm): 38 | Shank dia. d (mm): 17 | Square K (mm): 13 | Square length Kl (mm): 16 | No. of flutes: 4
VPOM2415025Thread size: M24x1.5 | Chamfer length: 2.5P | Limits: WH3 | Overall length L (mm): 120 | Thread length ℓ (mm): 45 | Shank dia. d (mm): 19 | Square K (mm): 15 | Square length Kl (mm): 18 | No. of flutes: 4
VPOM2420025Thread size: M24x2.0 | Chamfer length: 2.5P | Limits: WH3 | Overall length L (mm): 120 | Thread length ℓ (mm): 45 | Shank dia. d (mm): 19 | Square K (mm): 15 | Square length Kl (mm): 18 | No. of flutes: 4
VPOM2430025Thread size: M24x3.0 | Chamfer length: 2.5P | Limits: WH4 | Overall length L (mm): 120 | Thread length ℓ (mm): 45 | Shank dia. d (mm): 19 | Square K (mm): 15 | Square length Kl (mm): 18 | No. of flutes: 4
