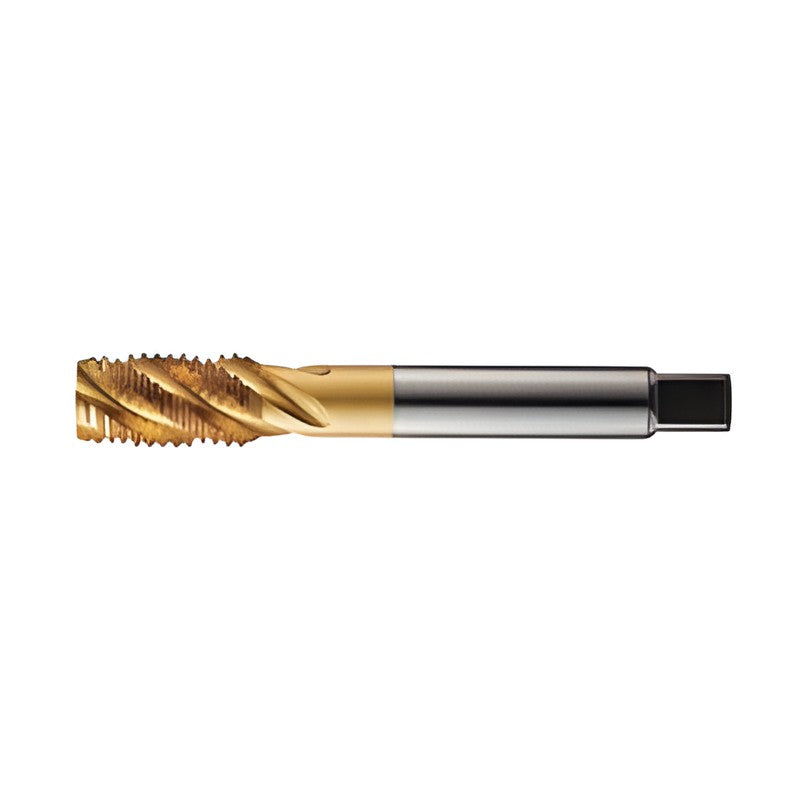

Korloy JIS Spiral Flute Tap VPTM HSSE TiN

Korloy JIS Spiral Flute Tap VPTM HSSE TiN

JIS spiral flute tap in HSSE (TiN coated) for metric threads M3 to M24.

Key features

  • HSSE (cobalt high-speed steel)
  • Surface treatment: TiN
  • 35 deg helix
  • JIS dimensions
  • Chamfer length 2.5P

Specifications

Material HSSE
Surface treatment TiN
Standard JIS
Workpiece (excellent) Medium carbon steels, Alloy steels
Workpiece (good) High-strength steels, Copper, Brass, Casting brass, Bronze, Aluminium rolled material, Aluminium alloy castings, Magnesium alloy castings, Zinc alloy castings, Thermoplastics
VPTM0305025 Thread size: M3x0.5 | Chamfer length: 2.5P | Limits: WH2 | Overall length L (mm): 46 | Thread length ℓ (mm): 11 | Shank dia. d (mm): 4 | Square K (mm): 3.2 | Square length Kl (mm): 6 | No. of flutes: 3
VPTM0407025 Thread size: M4x0.7 | Chamfer length: 2.5P | Limits: WH2 | Overall length L (mm): 52 | Thread length ℓ (mm): 13 | Shank dia. d (mm): 5 | Square K (mm): 4 | Square length Kl (mm): 7 | No. of flutes: 3
VPTM04507525 Thread size: M4.5x0.75 | Chamfer length: 2.5P | Limits: WH2 | Overall length L (mm): 55 | Thread length ℓ (mm): 13 | Shank dia. d (mm): 5 | Square K (mm): 4 | Square length Kl (mm): 7 | No. of flutes: 3
VPTM0508025 Thread size: M5x0.8 | Chamfer length: 2.5P | Limits: WH2 | Overall length L (mm): 60 | Thread length ℓ (mm): 16 | Shank dia. d (mm): 5.5 | Square K (mm): 4.5 | Square length Kl (mm): 7 | No. of flutes: 3
VPTM0610025 Thread size: M6x1.0 | Chamfer length: 2.5P | Limits: WH2 | Overall length L (mm): 62 | Thread length ℓ (mm): 19 | Shank dia. d (mm): 6 | Square K (mm): 4.5 | Square length Kl (mm): 7 | No. of flutes: 3
VPTM0812525 Thread size: M8x1.25 | Chamfer length: 2.5P | Limits: WH2 | Overall length L (mm): 70 | Thread length ℓ (mm): 22 | Shank dia. d (mm): 6.2 | Square K (mm): 5 | Square length Kl (mm): 8 | No. of flutes: 3
VPTM1012525 Thread size: M10x1.25 | Chamfer length: 2.5P | Limits: WH2 | Overall length L (mm): 75 | Thread length ℓ (mm): 24 | Shank dia. d (mm): 7 | Square K (mm): 5.5 | Square length Kl (mm): 8 | No. of flutes: 3
VPTM1015025 Thread size: M10x1.5 | Chamfer length: 2.5P | Limits: WH2 | Overall length L (mm): 75 | Thread length ℓ (mm): 24 | Shank dia. d (mm): 7 | Square K (mm): 5.5 | Square length Kl (mm): 8 | No. of flutes: 3
VPTM1210025 Thread size: M12x1.0 | Chamfer length: 2.5P | Limits: WH2 | Overall length L (mm): 82 | Thread length ℓ (mm): 29 | Shank dia. d (mm): 8.5 | Square K (mm): 6.5 | Square length Kl (mm): 9 | No. of flutes: 3
VPTM1212525 Thread size: M12x1.25 | Chamfer length: 2.5P | Limits: WH2 | Overall length L (mm): 82 | Thread length ℓ (mm): 29 | Shank dia. d (mm): 8.5 | Square K (mm): 6.5 | Square length Kl (mm): 9 | No. of flutes: 3
VPTM1215025 Thread size: M12x1.5 | Chamfer length: 2.5P | Limits: WH2 | Overall length L (mm): 82 | Thread length ℓ (mm): 29 | Shank dia. d (mm): 8.5 | Square K (mm): 6.5 | Square length Kl (mm): 9 | No. of flutes: 3
VPTM1217525 Thread size: M12x1.75 | Chamfer length: 2.5P | Limits: WH2 | Overall length L (mm): 82 | Thread length ℓ (mm): 29 | Shank dia. d (mm): 8.5 | Square K (mm): 6.5 | Square length Kl (mm): 9 | No. of flutes: 3
VPTM1415025 Thread size: M14x1.5 | Chamfer length: 2.5P | Limits: WH2 | Overall length L (mm): 88 | Thread length ℓ (mm): 30 | Shank dia. d (mm): 10.5 | Square K (mm): 8 | Square length Kl (mm): 11 | No. of flutes: 3
VPTM1420025 Thread size: M14x2.0 | Chamfer length: 2.5P | Limits: WH2 | Overall length L (mm): 88 | Thread length ℓ (mm): 30 | Shank dia. d (mm): 10.5 | Square K (mm): 8 | Square length Kl (mm): 11 | No. of flutes: 3
VPTM1615025 Thread size: M16x1.5 | Chamfer length: 2.5P | Limits: WH2 | Overall length L (mm): 95 | Thread length ℓ (mm): 32 | Shank dia. d (mm): 12.5 | Square K (mm): 10 | Square length Kl (mm): 13 | No. of flutes: 3
VPTM1620025 Thread size: M16x2.0 | Chamfer length: 2.5P | Limits: WH2 | Overall length L (mm): 95 | Thread length ℓ (mm): 32 | Shank dia. d (mm): 12.5 | Square K (mm): 10 | Square length Kl (mm): 13 | No. of flutes: 3
VPTM1815025 Thread size: M18x1.5 | Chamfer length: 2.5P | Limits: WH2 | Overall length L (mm): 100 | Thread length ℓ (mm): 37 | Shank dia. d (mm): 14 | Square K (mm): 11 | Square length Kl (mm): 14 | No. of flutes: 4
VPTM1825025 Thread size: M18x2.5 | Chamfer length: 2.5P | Limits: WH3 | Overall length L (mm): 100 | Thread length ℓ (mm): 37 | Shank dia. d (mm): 14 | Square K (mm): 11 | Square length Kl (mm): 14 | No. of flutes: 4
VPTM2015025 Thread size: M20x1.5 | Chamfer length: 2.5P | Limits: WH3 | Overall length L (mm): 105 | Thread length ℓ (mm): 37 | Shank dia. d (mm): 15 | Square K (mm): 12 | Square length Kl (mm): 15 | No. of flutes: 4
VPTM2025025 Thread size: M20x2.5 | Chamfer length: 2.5P | Limits: WH3 | Overall length L (mm): 105 | Thread length ℓ (mm): 37 | Shank dia. d (mm): 15 | Square K (mm): 12 | Square length Kl (mm): 15 | No. of flutes: 4
VPTM2215025 Thread size: M22x1.5 | Chamfer length: 2.5P | Limits: WH3 | Overall length L (mm): 115 | Thread length ℓ (mm): 38 | Shank dia. d (mm): 17 | Square K (mm): 13 | Square length Kl (mm): 16 | No. of flutes: 4
VPTM2225025 Thread size: M22x2.5 | Chamfer length: 2.5P | Limits: WH3 | Overall length L (mm): 115 | Thread length ℓ (mm): 38 | Shank dia. d (mm): 17 | Square K (mm): 13 | Square length Kl (mm): 16 | No. of flutes: 4
VPTM2415025 Thread size: M24x1.5 | Chamfer length: 2.5P | Limits: WH3 | Overall length L (mm): 120 | Thread length ℓ (mm): 45 | Shank dia. d (mm): 19 | Square K (mm): 15 | Square length Kl (mm): 18 | No. of flutes: 4
VPTM2420025 Thread size: M24x2.0 | Chamfer length: 2.5P | Limits: WH3 | Overall length L (mm): 120 | Thread length ℓ (mm): 45 | Shank dia. d (mm): 19 | Square K (mm): 15 | Square length Kl (mm): 18 | No. of flutes: 4
VPTM2430025 Thread size: M24x3.0 | Chamfer length: 2.5P | Limits: WH4 | Overall length L (mm): 120 | Thread length ℓ (mm): 45 | Shank dia. d (mm): 19 | Square K (mm): 15 | Square length Kl (mm): 18 | No. of flutes: 4
