Korloy JIS Spiral Point Tap VNCM HSSE TiCN

Korloy JIS Spiral Point Tap VNCM HSSE TiCN

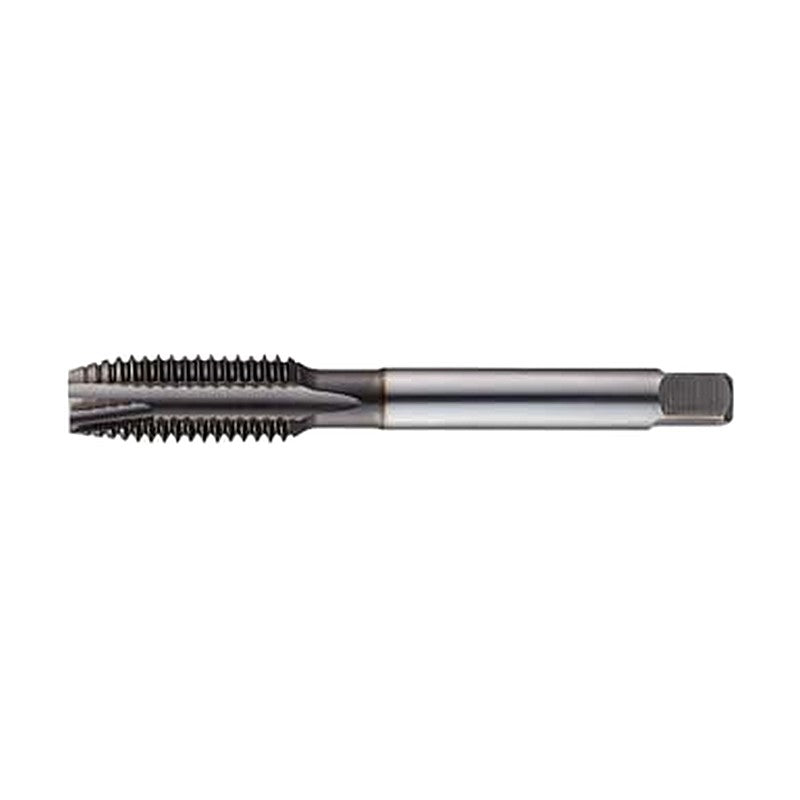

JIS spiral point tap in HSSE (TiCN coated) for metric threads M3 to M24.

Key features

  • HSSE (cobalt high-speed steel)
  • Surface treatment: TiCN
  • JIS dimensions
  • Chamfer length 5P

Specifications

Material HSSE
Surface treatment TiCN
Standard JIS
Workpiece (excellent) Low carbon steels, Medium carbon steels, High carbon steels
Workpiece (good) Alloy steels, Stainless steels, Tool steels, Cast steels, Cast iron, High-strength steels, Copper, Brass, Casting brass, Bronze, Aluminium rolled material, Aluminium alloy castings, Magnesium alloy castings, Zinc alloy castings, Thermoplastics
VNCM0305050 Thread size: M3x0.5 | Chamfer length: 5P | Limits: WH2 | Overall length L (mm): 46 | Thread length ℓ (mm): 11 | Shank dia. d (mm): 4 | Square K (mm): 3.2 | Square length Kl (mm): 6 | No. of flutes: 3
VNCM0407050 Thread size: M4x0.7 | Chamfer length: 5P | Limits: WH2 | Overall length L (mm): 52 | Thread length ℓ (mm): 13 | Shank dia. d (mm): 5 | Square K (mm): 4 | Square length Kl (mm): 7 | No. of flutes: 3
VNCM0508050 Thread size: M5x0.8 | Chamfer length: 5P | Limits: WH2 | Overall length L (mm): 60 | Thread length ℓ (mm): 16 | Shank dia. d (mm): 5.5 | Square K (mm): 4.5 | Square length Kl (mm): 7 | No. of flutes: 3
VNCM0610050 Thread size: M6x1.0 | Chamfer length: 5P | Limits: WH2 | Overall length L (mm): 62 | Thread length ℓ (mm): 19 | Shank dia. d (mm): 6 | Square K (mm): 4.5 | Square length Kl (mm): 7 | No. of flutes: 3
VNCM0812550 Thread size: M8x1.25 | Chamfer length: 5P | Limits: WH3 | Overall length L (mm): 70 | Thread length ℓ (mm): 22 | Shank dia. d (mm): 6.2 | Square K (mm): 5 | Square length Kl (mm): 8 | No. of flutes: 3
VNCM1012550 Thread size: M10x1.25 | Chamfer length: 5P | Limits: WH3 | Overall length L (mm): 75 | Thread length ℓ (mm): 24 | Shank dia. d (mm): 7 | Square K (mm): 5.5 | Square length Kl (mm): 8 | No. of flutes: 3
VNCM1015050 Thread size: M10x1.5 | Chamfer length: 5P | Limits: WH3 | Overall length L (mm): 75 | Thread length ℓ (mm): 24 | Shank dia. d (mm): 7 | Square K (mm): 5.5 | Square length Kl (mm): 8 | No. of flutes: 3
VNCM1210050 Thread size: M12x1.0 | Chamfer length: 5P | Limits: WH3 | Overall length L (mm): 82 | Thread length ℓ (mm): 29 | Shank dia. d (mm): 8.5 | Square K (mm): 6.5 | Square length Kl (mm): 9 | No. of flutes: 3
VNCM1212550 Thread size: M12x1.25 | Chamfer length: 5P | Limits: WH3 | Overall length L (mm): 82 | Thread length ℓ (mm): 29 | Shank dia. d (mm): 8.5 | Square K (mm): 6.5 | Square length Kl (mm): 9 | No. of flutes: 3
VNCM1215050 Thread size: M12x1.5 | Chamfer length: 5P | Limits: WH3 | Overall length L (mm): 82 | Thread length ℓ (mm): 29 | Shank dia. d (mm): 8.5 | Square K (mm): 6.5 | Square length Kl (mm): 9 | No. of flutes: 3
VNCM1217550 Thread size: M12x1.75 | Chamfer length: 5P | Limits: WH4 | Overall length L (mm): 82 | Thread length ℓ (mm): 29 | Shank dia. d (mm): 8.5 | Square K (mm): 6.5 | Square length Kl (mm): 9 | No. of flutes: 3
VNCM1415050 Thread size: M14x1.5 | Chamfer length: 5P | Limits: WH3 | Overall length L (mm): 88 | Thread length ℓ (mm): 30 | Shank dia. d (mm): 10.5 | Square K (mm): 8 | Square length Kl (mm): 11 | No. of flutes: 3
VNCM1420050 Thread size: M14x2.0 | Chamfer length: 5P | Limits: WH4 | Overall length L (mm): 88 | Thread length ℓ (mm): 30 | Shank dia. d (mm): 10.5 | Square K (mm): 8 | Square length Kl (mm): 11 | No. of flutes: 3
VNCM1615050 Thread size: M16x1.5 | Chamfer length: 5P | Limits: WH3 | Overall length L (mm): 95 | Thread length ℓ (mm): 32 | Shank dia. d (mm): 12.5 | Square K (mm): 10 | Square length Kl (mm): 13 | No. of flutes: 3
VNCM1620050 Thread size: M16x2.0 | Chamfer length: 5P | Limits: WH4 | Overall length L (mm): 95 | Thread length ℓ (mm): 32 | Shank dia. d (mm): 12.5 | Square K (mm): 10 | Square length Kl (mm): 13 | No. of flutes: 3
VNCM1815050 Thread size: M18x1.5 | Chamfer length: 5P | Limits: WH4 | Overall length L (mm): 100 | Thread length ℓ (mm): 37 | Shank dia. d (mm): 14 | Square K (mm): 11 | Square length Kl (mm): 14 | No. of flutes: 3
VNCM1825050 Thread size: M18x2.5 | Chamfer length: 5P | Limits: WH4 | Overall length L (mm): 100 | Thread length ℓ (mm): 37 | Shank dia. d (mm): 14 | Square K (mm): 11 | Square length Kl (mm): 14 | No. of flutes: 3
VNCM2015050 Thread size: M20x1.5 | Chamfer length: 5P | Limits: WH4 | Overall length L (mm): 105 | Thread length ℓ (mm): 37 | Shank dia. d (mm): 15 | Square K (mm): 12 | Square length Kl (mm): 15 | No. of flutes: 3
VNCM2025050 Thread size: M20x2.5 | Chamfer length: 5P | Limits: WH4 | Overall length L (mm): 105 | Thread length ℓ (mm): 37 | Shank dia. d (mm): 15 | Square K (mm): 12 | Square length Kl (mm): 15 | No. of flutes: 3
VNCM2215050 Thread size: M22x1.5 | Chamfer length: 5P | Limits: WH4 | Overall length L (mm): 115 | Thread length ℓ (mm): 38 | Shank dia. d (mm): 17 | Square K (mm): 13 | Square length Kl (mm): 16 | No. of flutes: 3
VNCM2225050 Thread size: M22x2.5 | Chamfer length: 5P | Limits: WH4 | Overall length L (mm): 115 | Thread length ℓ (mm): 38 | Shank dia. d (mm): 17 | Square K (mm): 13 | Square length Kl (mm): 16 | No. of flutes: 3
VNCM2415050 Thread size: M24x1.5 | Chamfer length: 5P | Limits: WH4 | Overall length L (mm): 120 | Thread length ℓ (mm): 45 | Shank dia. d (mm): 19 | Square K (mm): 15 | Square length Kl (mm): 18 | No. of flutes: 3
VNCM2420050 Thread size: M24x2.0 | Chamfer length: 5P | Limits: WH4 | Overall length L (mm): 120 | Thread length ℓ (mm): 45 | Shank dia. d (mm): 19 | Square K (mm): 15 | Square length Kl (mm): 18 | No. of flutes: 3
VNCM2430050 Thread size: M24x3.0 | Chamfer length: 5P | Limits: WH4 | Overall length L (mm): 120 | Thread length ℓ (mm): 45 | Shank dia. d (mm): 19 | Square K (mm): 15 | Square length Kl (mm): 18 | No. of flutes: 3
TapsKorloy
24 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy JIS Spiral Point Tap VNCM HSSE TiCN

Brand Korloy·Taps

Available part numbers (24)

VNCM0305050, VNCM0407050, VNCM0508050, VNCM0610050, VNCM0812550, VNCM1012550, VNCM1015050, VNCM1210050, VNCM1212550, VNCM1215050 + 14 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
VNCM0305050Thread size: M3x0.5 | Chamfer length: 5P | Limits: WH2 | Overall length L (mm): 46 | Thread length ℓ (mm): 11 | Shank dia. d (mm): 4 | Square K (mm): 3.2 | Square length Kl (mm): 6 | No. of flutes: 3
VNCM0407050Thread size: M4x0.7 | Chamfer length: 5P | Limits: WH2 | Overall length L (mm): 52 | Thread length ℓ (mm): 13 | Shank dia. d (mm): 5 | Square K (mm): 4 | Square length Kl (mm): 7 | No. of flutes: 3
VNCM0508050Thread size: M5x0.8 | Chamfer length: 5P | Limits: WH2 | Overall length L (mm): 60 | Thread length ℓ (mm): 16 | Shank dia. d (mm): 5.5 | Square K (mm): 4.5 | Square length Kl (mm): 7 | No. of flutes: 3
VNCM0610050Thread size: M6x1.0 | Chamfer length: 5P | Limits: WH2 | Overall length L (mm): 62 | Thread length ℓ (mm): 19 | Shank dia. d (mm): 6 | Square K (mm): 4.5 | Square length Kl (mm): 7 | No. of flutes: 3
VNCM0812550Thread size: M8x1.25 | Chamfer length: 5P | Limits: WH3 | Overall length L (mm): 70 | Thread length ℓ (mm): 22 | Shank dia. d (mm): 6.2 | Square K (mm): 5 | Square length Kl (mm): 8 | No. of flutes: 3
VNCM1012550Thread size: M10x1.25 | Chamfer length: 5P | Limits: WH3 | Overall length L (mm): 75 | Thread length ℓ (mm): 24 | Shank dia. d (mm): 7 | Square K (mm): 5.5 | Square length Kl (mm): 8 | No. of flutes: 3
VNCM1015050Thread size: M10x1.5 | Chamfer length: 5P | Limits: WH3 | Overall length L (mm): 75 | Thread length ℓ (mm): 24 | Shank dia. d (mm): 7 | Square K (mm): 5.5 | Square length Kl (mm): 8 | No. of flutes: 3
VNCM1210050Thread size: M12x1.0 | Chamfer length: 5P | Limits: WH3 | Overall length L (mm): 82 | Thread length ℓ (mm): 29 | Shank dia. d (mm): 8.5 | Square K (mm): 6.5 | Square length Kl (mm): 9 | No. of flutes: 3
VNCM1212550Thread size: M12x1.25 | Chamfer length: 5P | Limits: WH3 | Overall length L (mm): 82 | Thread length ℓ (mm): 29 | Shank dia. d (mm): 8.5 | Square K (mm): 6.5 | Square length Kl (mm): 9 | No. of flutes: 3
VNCM1215050Thread size: M12x1.5 | Chamfer length: 5P | Limits: WH3 | Overall length L (mm): 82 | Thread length ℓ (mm): 29 | Shank dia. d (mm): 8.5 | Square K (mm): 6.5 | Square length Kl (mm): 9 | No. of flutes: 3
VNCM1217550Thread size: M12x1.75 | Chamfer length: 5P | Limits: WH4 | Overall length L (mm): 82 | Thread length ℓ (mm): 29 | Shank dia. d (mm): 8.5 | Square K (mm): 6.5 | Square length Kl (mm): 9 | No. of flutes: 3
VNCM1415050Thread size: M14x1.5 | Chamfer length: 5P | Limits: WH3 | Overall length L (mm): 88 | Thread length ℓ (mm): 30 | Shank dia. d (mm): 10.5 | Square K (mm): 8 | Square length Kl (mm): 11 | No. of flutes: 3
VNCM1420050Thread size: M14x2.0 | Chamfer length: 5P | Limits: WH4 | Overall length L (mm): 88 | Thread length ℓ (mm): 30 | Shank dia. d (mm): 10.5 | Square K (mm): 8 | Square length Kl (mm): 11 | No. of flutes: 3
VNCM1615050Thread size: M16x1.5 | Chamfer length: 5P | Limits: WH3 | Overall length L (mm): 95 | Thread length ℓ (mm): 32 | Shank dia. d (mm): 12.5 | Square K (mm): 10 | Square length Kl (mm): 13 | No. of flutes: 3
VNCM1620050Thread size: M16x2.0 | Chamfer length: 5P | Limits: WH4 | Overall length L (mm): 95 | Thread length ℓ (mm): 32 | Shank dia. d (mm): 12.5 | Square K (mm): 10 | Square length Kl (mm): 13 | No. of flutes: 3
VNCM1815050Thread size: M18x1.5 | Chamfer length: 5P | Limits: WH4 | Overall length L (mm): 100 | Thread length ℓ (mm): 37 | Shank dia. d (mm): 14 | Square K (mm): 11 | Square length Kl (mm): 14 | No. of flutes: 3
VNCM1825050Thread size: M18x2.5 | Chamfer length: 5P | Limits: WH4 | Overall length L (mm): 100 | Thread length ℓ (mm): 37 | Shank dia. d (mm): 14 | Square K (mm): 11 | Square length Kl (mm): 14 | No. of flutes: 3
VNCM2015050Thread size: M20x1.5 | Chamfer length: 5P | Limits: WH4 | Overall length L (mm): 105 | Thread length ℓ (mm): 37 | Shank dia. d (mm): 15 | Square K (mm): 12 | Square length Kl (mm): 15 | No. of flutes: 3
VNCM2025050Thread size: M20x2.5 | Chamfer length: 5P | Limits: WH4 | Overall length L (mm): 105 | Thread length ℓ (mm): 37 | Shank dia. d (mm): 15 | Square K (mm): 12 | Square length Kl (mm): 15 | No. of flutes: 3
VNCM2215050Thread size: M22x1.5 | Chamfer length: 5P | Limits: WH4 | Overall length L (mm): 115 | Thread length ℓ (mm): 38 | Shank dia. d (mm): 17 | Square K (mm): 13 | Square length Kl (mm): 16 | No. of flutes: 3
VNCM2225050Thread size: M22x2.5 | Chamfer length: 5P | Limits: WH4 | Overall length L (mm): 115 | Thread length ℓ (mm): 38 | Shank dia. d (mm): 17 | Square K (mm): 13 | Square length Kl (mm): 16 | No. of flutes: 3
VNCM2415050Thread size: M24x1.5 | Chamfer length: 5P | Limits: WH4 | Overall length L (mm): 120 | Thread length ℓ (mm): 45 | Shank dia. d (mm): 19 | Square K (mm): 15 | Square length Kl (mm): 18 | No. of flutes: 3
VNCM2420050Thread size: M24x2.0 | Chamfer length: 5P | Limits: WH4 | Overall length L (mm): 120 | Thread length ℓ (mm): 45 | Shank dia. d (mm): 19 | Square K (mm): 15 | Square length Kl (mm): 18 | No. of flutes: 3
VNCM2430050Thread size: M24x3.0 | Chamfer length: 5P | Limits: WH4 | Overall length L (mm): 120 | Thread length ℓ (mm): 45 | Shank dia. d (mm): 19 | Square K (mm): 15 | Square length Kl (mm): 18 | No. of flutes: 3
