Korloy JIS Spiral Point Tap VNHM HSSE HOMO

Korloy JIS Spiral Point Tap VNHM HSSE HOMO

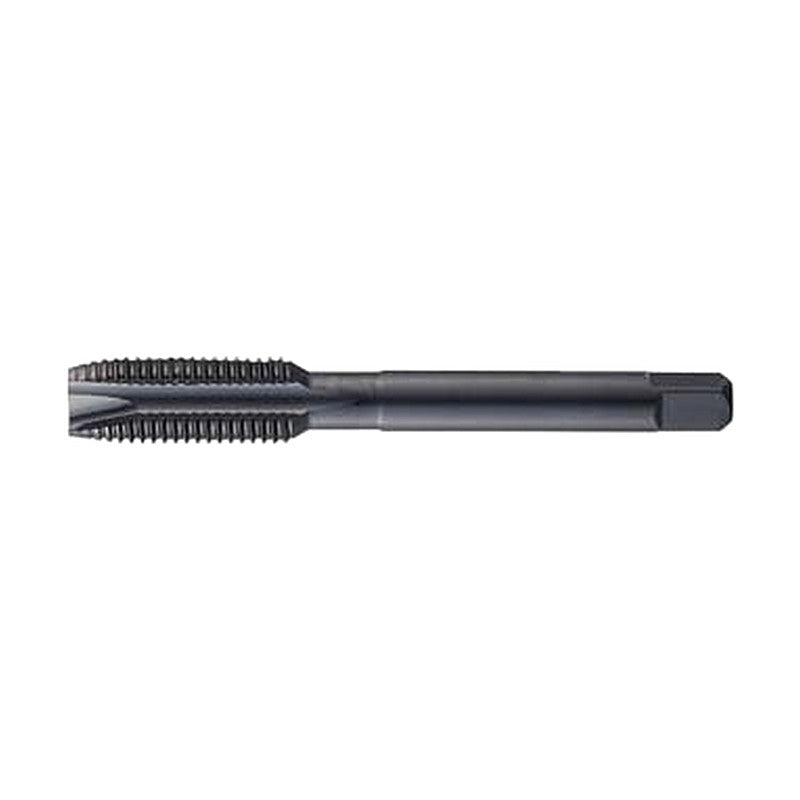

JIS spiral point tap in HSSE (HOMO treated) for metric threads M3 to M24.

Key features

  • HSSE (cobalt high-speed steel)
  • Surface treatment: HOMO (steam oxide)
  • JIS dimensions
  • Chamfer length 5P

Specifications

Material HSSE
Surface treatment HOMO (steam oxide)
Standard JIS
Workpiece (excellent) Low carbon steels, Medium carbon steels
Workpiece (good) Alloy steels, Cast steels, Thermoplastics
VNHM0305050 Thread size: M3x0.5 | Chamfer length: 5P | Limits: WH2 | Overall length L (mm): 46 | Thread length ℓ (mm): 11 | Shank dia. d (mm): 4 | Square K (mm): 3.2 | Square length Kl (mm): 6 | No. of flutes: 3
VNHM0407050 Thread size: M4x0.7 | Chamfer length: 5P | Limits: WH2 | Overall length L (mm): 52 | Thread length ℓ (mm): 13 | Shank dia. d (mm): 5 | Square K (mm): 4 | Square length Kl (mm): 7 | No. of flutes: 3
VNHM0508050 Thread size: M5x0.8 | Chamfer length: 5P | Limits: WH2 | Overall length L (mm): 60 | Thread length ℓ (mm): 16 | Shank dia. d (mm): 5.5 | Square K (mm): 4.5 | Square length Kl (mm): 7 | No. of flutes: 3
VNHM0610050 Thread size: M6x1.0 | Chamfer length: 5P | Limits: WH2 | Overall length L (mm): 62 | Thread length ℓ (mm): 19 | Shank dia. d (mm): 6 | Square K (mm): 4.5 | Square length Kl (mm): 7 | No. of flutes: 3
VNHM0812550 Thread size: M8x1.25 | Chamfer length: 5P | Limits: WH3 | Overall length L (mm): 70 | Thread length ℓ (mm): 22 | Shank dia. d (mm): 6.2 | Square K (mm): 5 | Square length Kl (mm): 8 | No. of flutes: 3
VNHM1012550 Thread size: M10x1.25 | Chamfer length: 5P | Limits: WH3 | Overall length L (mm): 75 | Thread length ℓ (mm): 24 | Shank dia. d (mm): 7 | Square K (mm): 5.5 | Square length Kl (mm): 8 | No. of flutes: 3
VNHM1015050 Thread size: M10x1.5 | Chamfer length: 5P | Limits: WH3 | Overall length L (mm): 75 | Thread length ℓ (mm): 24 | Shank dia. d (mm): 7 | Square K (mm): 5.5 | Square length Kl (mm): 8 | No. of flutes: 3
VNHM1210050 Thread size: M12x1.0 | Chamfer length: 5P | Limits: WH3 | Overall length L (mm): 82 | Thread length ℓ (mm): 29 | Shank dia. d (mm): 8.5 | Square K (mm): 6.5 | Square length Kl (mm): 9 | No. of flutes: 3
VNHM1212550 Thread size: M12x1.25 | Chamfer length: 5P | Limits: WH3 | Overall length L (mm): 82 | Thread length ℓ (mm): 29 | Shank dia. d (mm): 8.5 | Square K (mm): 6.5 | Square length Kl (mm): 9 | No. of flutes: 3
VNHM1215050 Thread size: M12x1.5 | Chamfer length: 5P | Limits: WH3 | Overall length L (mm): 82 | Thread length ℓ (mm): 29 | Shank dia. d (mm): 8.5 | Square K (mm): 6.5 | Square length Kl (mm): 9 | No. of flutes: 3
VNHM1217550 Thread size: M12x1.75 | Chamfer length: 5P | Limits: WH4 | Overall length L (mm): 82 | Thread length ℓ (mm): 29 | Shank dia. d (mm): 8.5 | Square K (mm): 6.5 | Square length Kl (mm): 9 | No. of flutes: 3
VNHM1415050 Thread size: M14x1.5 | Chamfer length: 5P | Limits: WH3 | Overall length L (mm): 88 | Thread length ℓ (mm): 30 | Shank dia. d (mm): 10.5 | Square K (mm): 8 | Square length Kl (mm): 11 | No. of flutes: 3
VNHM1420050 Thread size: M14x2.0 | Chamfer length: 5P | Limits: WH4 | Overall length L (mm): 88 | Thread length ℓ (mm): 30 | Shank dia. d (mm): 10.5 | Square K (mm): 8 | Square length Kl (mm): 11 | No. of flutes: 3
VNHM1615050 Thread size: M16x1.5 | Chamfer length: 5P | Limits: WH3 | Overall length L (mm): 95 | Thread length ℓ (mm): 32 | Shank dia. d (mm): 12.5 | Square K (mm): 10 | Square length Kl (mm): 13 | No. of flutes: 3
VNHM1620050 Thread size: M16x2.0 | Chamfer length: 5P | Limits: WH4 | Overall length L (mm): 95 | Thread length ℓ (mm): 32 | Shank dia. d (mm): 12.5 | Square K (mm): 10 | Square length Kl (mm): 13 | No. of flutes: 3
VNHM1815050 Thread size: M18x1.5 | Chamfer length: 5P | Limits: WH4 | Overall length L (mm): 100 | Thread length ℓ (mm): 37 | Shank dia. d (mm): 14 | Square K (mm): 11 | Square length Kl (mm): 14 | No. of flutes: 3
VNHM1825050 Thread size: M18x2.5 | Chamfer length: 5P | Limits: WH4 | Overall length L (mm): 100 | Thread length ℓ (mm): 37 | Shank dia. d (mm): 14 | Square K (mm): 11 | Square length Kl (mm): 14 | No. of flutes: 3
VNHM2015050 Thread size: M20x1.5 | Chamfer length: 5P | Limits: WH4 | Overall length L (mm): 105 | Thread length ℓ (mm): 37 | Shank dia. d (mm): 15 | Square K (mm): 12 | Square length Kl (mm): 15 | No. of flutes: 3
VNHM2025050 Thread size: M20x2.5 | Chamfer length: 5P | Limits: WH4 | Overall length L (mm): 105 | Thread length ℓ (mm): 37 | Shank dia. d (mm): 15 | Square K (mm): 12 | Square length Kl (mm): 15 | No. of flutes: 3
VNHM2215050 Thread size: M22x1.5 | Chamfer length: 5P | Limits: WH4 | Overall length L (mm): 115 | Thread length ℓ (mm): 38 | Shank dia. d (mm): 17 | Square K (mm): 13 | Square length Kl (mm): 16 | No. of flutes: 3
VNHM2225050 Thread size: M22x2.5 | Chamfer length: 5P | Limits: WH4 | Overall length L (mm): 115 | Thread length ℓ (mm): 38 | Shank dia. d (mm): 17 | Square K (mm): 13 | Square length Kl (mm): 16 | No. of flutes: 3
VNHM2415050 Thread size: M24x1.5 | Chamfer length: 5P | Limits: WH4 | Overall length L (mm): 120 | Thread length ℓ (mm): 45 | Shank dia. d (mm): 19 | Square K (mm): 15 | Square length Kl (mm): 18 | No. of flutes: 3
VNHM2420050 Thread size: M24x2.0 | Chamfer length: 5P | Limits: WH4 | Overall length L (mm): 120 | Thread length ℓ (mm): 45 | Shank dia. d (mm): 19 | Square K (mm): 15 | Square length Kl (mm): 18 | No. of flutes: 3
VNHM2430050 Thread size: M24x3.0 | Chamfer length: 5P | Limits: WH4 | Overall length L (mm): 120 | Thread length ℓ (mm): 45 | Shank dia. d (mm): 19 | Square K (mm): 15 | Square length Kl (mm): 18 | No. of flutes: 3
TapsKorloy
24 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy JIS Spiral Point Tap VNHM HSSE HOMO

Brand Korloy·Taps

Available part numbers (24)

VNHM0305050, VNHM0407050, VNHM0508050, VNHM0610050, VNHM0812550, VNHM1012550, VNHM1015050, VNHM1210050, VNHM1212550, VNHM1215050 + 14 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
VNHM0305050Thread size: M3x0.5 | Chamfer length: 5P | Limits: WH2 | Overall length L (mm): 46 | Thread length ℓ (mm): 11 | Shank dia. d (mm): 4 | Square K (mm): 3.2 | Square length Kl (mm): 6 | No. of flutes: 3
VNHM0407050Thread size: M4x0.7 | Chamfer length: 5P | Limits: WH2 | Overall length L (mm): 52 | Thread length ℓ (mm): 13 | Shank dia. d (mm): 5 | Square K (mm): 4 | Square length Kl (mm): 7 | No. of flutes: 3
VNHM0508050Thread size: M5x0.8 | Chamfer length: 5P | Limits: WH2 | Overall length L (mm): 60 | Thread length ℓ (mm): 16 | Shank dia. d (mm): 5.5 | Square K (mm): 4.5 | Square length Kl (mm): 7 | No. of flutes: 3
VNHM0610050Thread size: M6x1.0 | Chamfer length: 5P | Limits: WH2 | Overall length L (mm): 62 | Thread length ℓ (mm): 19 | Shank dia. d (mm): 6 | Square K (mm): 4.5 | Square length Kl (mm): 7 | No. of flutes: 3
VNHM0812550Thread size: M8x1.25 | Chamfer length: 5P | Limits: WH3 | Overall length L (mm): 70 | Thread length ℓ (mm): 22 | Shank dia. d (mm): 6.2 | Square K (mm): 5 | Square length Kl (mm): 8 | No. of flutes: 3
VNHM1012550Thread size: M10x1.25 | Chamfer length: 5P | Limits: WH3 | Overall length L (mm): 75 | Thread length ℓ (mm): 24 | Shank dia. d (mm): 7 | Square K (mm): 5.5 | Square length Kl (mm): 8 | No. of flutes: 3
VNHM1015050Thread size: M10x1.5 | Chamfer length: 5P | Limits: WH3 | Overall length L (mm): 75 | Thread length ℓ (mm): 24 | Shank dia. d (mm): 7 | Square K (mm): 5.5 | Square length Kl (mm): 8 | No. of flutes: 3
VNHM1210050Thread size: M12x1.0 | Chamfer length: 5P | Limits: WH3 | Overall length L (mm): 82 | Thread length ℓ (mm): 29 | Shank dia. d (mm): 8.5 | Square K (mm): 6.5 | Square length Kl (mm): 9 | No. of flutes: 3
VNHM1212550Thread size: M12x1.25 | Chamfer length: 5P | Limits: WH3 | Overall length L (mm): 82 | Thread length ℓ (mm): 29 | Shank dia. d (mm): 8.5 | Square K (mm): 6.5 | Square length Kl (mm): 9 | No. of flutes: 3
VNHM1215050Thread size: M12x1.5 | Chamfer length: 5P | Limits: WH3 | Overall length L (mm): 82 | Thread length ℓ (mm): 29 | Shank dia. d (mm): 8.5 | Square K (mm): 6.5 | Square length Kl (mm): 9 | No. of flutes: 3
VNHM1217550Thread size: M12x1.75 | Chamfer length: 5P | Limits: WH4 | Overall length L (mm): 82 | Thread length ℓ (mm): 29 | Shank dia. d (mm): 8.5 | Square K (mm): 6.5 | Square length Kl (mm): 9 | No. of flutes: 3
VNHM1415050Thread size: M14x1.5 | Chamfer length: 5P | Limits: WH3 | Overall length L (mm): 88 | Thread length ℓ (mm): 30 | Shank dia. d (mm): 10.5 | Square K (mm): 8 | Square length Kl (mm): 11 | No. of flutes: 3
VNHM1420050Thread size: M14x2.0 | Chamfer length: 5P | Limits: WH4 | Overall length L (mm): 88 | Thread length ℓ (mm): 30 | Shank dia. d (mm): 10.5 | Square K (mm): 8 | Square length Kl (mm): 11 | No. of flutes: 3
VNHM1615050Thread size: M16x1.5 | Chamfer length: 5P | Limits: WH3 | Overall length L (mm): 95 | Thread length ℓ (mm): 32 | Shank dia. d (mm): 12.5 | Square K (mm): 10 | Square length Kl (mm): 13 | No. of flutes: 3
VNHM1620050Thread size: M16x2.0 | Chamfer length: 5P | Limits: WH4 | Overall length L (mm): 95 | Thread length ℓ (mm): 32 | Shank dia. d (mm): 12.5 | Square K (mm): 10 | Square length Kl (mm): 13 | No. of flutes: 3
VNHM1815050Thread size: M18x1.5 | Chamfer length: 5P | Limits: WH4 | Overall length L (mm): 100 | Thread length ℓ (mm): 37 | Shank dia. d (mm): 14 | Square K (mm): 11 | Square length Kl (mm): 14 | No. of flutes: 3
VNHM1825050Thread size: M18x2.5 | Chamfer length: 5P | Limits: WH4 | Overall length L (mm): 100 | Thread length ℓ (mm): 37 | Shank dia. d (mm): 14 | Square K (mm): 11 | Square length Kl (mm): 14 | No. of flutes: 3
VNHM2015050Thread size: M20x1.5 | Chamfer length: 5P | Limits: WH4 | Overall length L (mm): 105 | Thread length ℓ (mm): 37 | Shank dia. d (mm): 15 | Square K (mm): 12 | Square length Kl (mm): 15 | No. of flutes: 3
VNHM2025050Thread size: M20x2.5 | Chamfer length: 5P | Limits: WH4 | Overall length L (mm): 105 | Thread length ℓ (mm): 37 | Shank dia. d (mm): 15 | Square K (mm): 12 | Square length Kl (mm): 15 | No. of flutes: 3
VNHM2215050Thread size: M22x1.5 | Chamfer length: 5P | Limits: WH4 | Overall length L (mm): 115 | Thread length ℓ (mm): 38 | Shank dia. d (mm): 17 | Square K (mm): 13 | Square length Kl (mm): 16 | No. of flutes: 3
VNHM2225050Thread size: M22x2.5 | Chamfer length: 5P | Limits: WH4 | Overall length L (mm): 115 | Thread length ℓ (mm): 38 | Shank dia. d (mm): 17 | Square K (mm): 13 | Square length Kl (mm): 16 | No. of flutes: 3
VNHM2415050Thread size: M24x1.5 | Chamfer length: 5P | Limits: WH4 | Overall length L (mm): 120 | Thread length ℓ (mm): 45 | Shank dia. d (mm): 19 | Square K (mm): 15 | Square length Kl (mm): 18 | No. of flutes: 3
VNHM2420050Thread size: M24x2.0 | Chamfer length: 5P | Limits: WH4 | Overall length L (mm): 120 | Thread length ℓ (mm): 45 | Shank dia. d (mm): 19 | Square K (mm): 15 | Square length Kl (mm): 18 | No. of flutes: 3
VNHM2430050Thread size: M24x3.0 | Chamfer length: 5P | Limits: WH4 | Overall length L (mm): 120 | Thread length ℓ (mm): 45 | Shank dia. d (mm): 19 | Square K (mm): 15 | Square length Kl (mm): 18 | No. of flutes: 3
