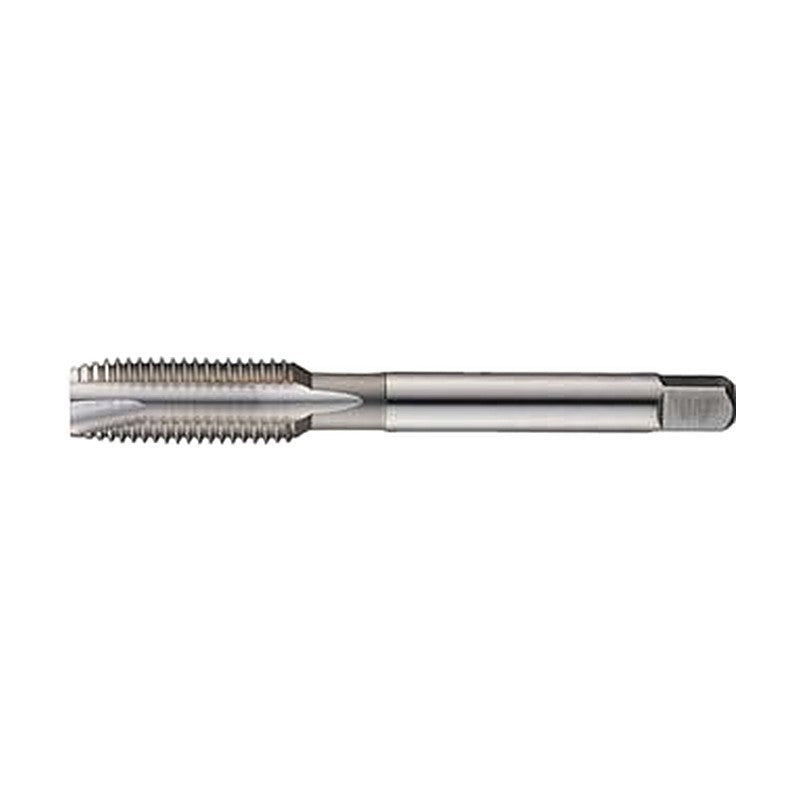

Korloy JIS Spiral Point Tap VNOM HSSE Uncoated

Korloy JIS Spiral Point Tap VNOM HSSE Uncoated

JIS spiral point tap in HSSE (uncoated) for metric threads M3 to M24.

Key features

  • HSSE (cobalt high-speed steel)
  • Surface treatment: Uncoated
  • JIS dimensions
  • Chamfer length 5P

Specifications

Material HSSE
Surface treatment Uncoated
Standard JIS
Workpiece (excellent) Alloy steels, Aluminium rolled material
Workpiece (good) Medium carbon steels, High carbon steels, Cast iron, High-strength steels, Copper, Brass, Casting brass, Bronze, Aluminium alloy castings, Magnesium alloy castings, Zinc alloy castings, Thermoplastics
VNOM0305050 Thread size: M3x0.5 | Chamfer length: 5P | Limits: WH2 | Overall length L (mm): 46 | Thread length ℓ (mm): 11 | Shank dia. d (mm): 4 | Square K (mm): 3.2 | Square length Kl (mm): 6 | No. of flutes: 3
VNOM0407050 Thread size: M4x0.7 | Chamfer length: 5P | Limits: WH2 | Overall length L (mm): 52 | Thread length ℓ (mm): 13 | Shank dia. d (mm): 5 | Square K (mm): 4 | Square length Kl (mm): 7 | No. of flutes: 3
VNOM0508050 Thread size: M5x0.8 | Chamfer length: 5P | Limits: WH2 | Overall length L (mm): 60 | Thread length ℓ (mm): 16 | Shank dia. d (mm): 5.5 | Square K (mm): 4.5 | Square length Kl (mm): 7 | No. of flutes: 3
VNOM0610050 Thread size: M6x1.0 | Chamfer length: 5P | Limits: WH2 | Overall length L (mm): 62 | Thread length ℓ (mm): 19 | Shank dia. d (mm): 6 | Square K (mm): 4.5 | Square length Kl (mm): 7 | No. of flutes: 3
VNOM0812550 Thread size: M8x1.25 | Chamfer length: 5P | Limits: WH3 | Overall length L (mm): 70 | Thread length ℓ (mm): 22 | Shank dia. d (mm): 6.2 | Square K (mm): 5 | Square length Kl (mm): 8 | No. of flutes: 3
VNOM1012550 Thread size: M10x1.25 | Chamfer length: 5P | Limits: WH3 | Overall length L (mm): 75 | Thread length ℓ (mm): 24 | Shank dia. d (mm): 7 | Square K (mm): 5.5 | Square length Kl (mm): 8 | No. of flutes: 3
VNOM1015050 Thread size: M10x1.5 | Chamfer length: 5P | Limits: WH3 | Overall length L (mm): 75 | Thread length ℓ (mm): 24 | Shank dia. d (mm): 7 | Square K (mm): 5.5 | Square length Kl (mm): 8 | No. of flutes: 3
VNOM1210050 Thread size: M12x1.0 | Chamfer length: 5P | Limits: WH3 | Overall length L (mm): 82 | Thread length ℓ (mm): 29 | Shank dia. d (mm): 8.5 | Square K (mm): 6.5 | Square length Kl (mm): 9 | No. of flutes: 3
VNOM1212550 Thread size: M12x1.25 | Chamfer length: 5P | Limits: WH3 | Overall length L (mm): 82 | Thread length ℓ (mm): 29 | Shank dia. d (mm): 8.5 | Square K (mm): 6.5 | Square length Kl (mm): 9 | No. of flutes: 3
VNOM1215050 Thread size: M12x1.5 | Chamfer length: 5P | Limits: WH3 | Overall length L (mm): 82 | Thread length ℓ (mm): 29 | Shank dia. d (mm): 8.5 | Square K (mm): 6.5 | Square length Kl (mm): 9 | No. of flutes: 3
VNOM1217550 Thread size: M12x1.75 | Chamfer length: 5P | Limits: WH4 | Overall length L (mm): 82 | Thread length ℓ (mm): 29 | Shank dia. d (mm): 8.5 | Square K (mm): 6.5 | Square length Kl (mm): 9 | No. of flutes: 3
VNOM1415050 Thread size: M14x1.5 | Chamfer length: 5P | Limits: WH3 | Overall length L (mm): 88 | Thread length ℓ (mm): 30 | Shank dia. d (mm): 10.5 | Square K (mm): 8 | Square length Kl (mm): 11 | No. of flutes: 3
VNOM1420050 Thread size: M14x2.0 | Chamfer length: 5P | Limits: WH4 | Overall length L (mm): 88 | Thread length ℓ (mm): 30 | Shank dia. d (mm): 10.5 | Square K (mm): 8 | Square length Kl (mm): 11 | No. of flutes: 3
VNOM1615050 Thread size: M16x1.5 | Chamfer length: 5P | Limits: WH3 | Overall length L (mm): 95 | Thread length ℓ (mm): 32 | Shank dia. d (mm): 12.5 | Square K (mm): 10 | Square length Kl (mm): 13 | No. of flutes: 3
VNOM1620050 Thread size: M16x2.0 | Chamfer length: 5P | Limits: WH4 | Overall length L (mm): 95 | Thread length ℓ (mm): 32 | Shank dia. d (mm): 12.5 | Square K (mm): 10 | Square length Kl (mm): 13 | No. of flutes: 3
VNOM1815050 Thread size: M18x1.5 | Chamfer length: 5P | Limits: WH4 | Overall length L (mm): 100 | Thread length ℓ (mm): 37 | Shank dia. d (mm): 14 | Square K (mm): 11 | Square length Kl (mm): 14 | No. of flutes: 3
VNOM1825050 Thread size: M18x2.5 | Chamfer length: 5P | Limits: WH4 | Overall length L (mm): 100 | Thread length ℓ (mm): 37 | Shank dia. d (mm): 14 | Square K (mm): 11 | Square length Kl (mm): 14 | No. of flutes: 3
VNOM2015050 Thread size: M20x1.5 | Chamfer length: 5P | Limits: WH4 | Overall length L (mm): 105 | Thread length ℓ (mm): 37 | Shank dia. d (mm): 15 | Square K (mm): 12 | Square length Kl (mm): 15 | No. of flutes: 3
VNOM2025050 Thread size: M20x2.5 | Chamfer length: 5P | Limits: WH4 | Overall length L (mm): 105 | Thread length ℓ (mm): 37 | Shank dia. d (mm): 15 | Square K (mm): 12 | Square length Kl (mm): 15 | No. of flutes: 3
VNOM2215050 Thread size: M22x1.5 | Chamfer length: 5P | Limits: WH4 | Overall length L (mm): 115 | Thread length ℓ (mm): 38 | Shank dia. d (mm): 17 | Square K (mm): 13 | Square length Kl (mm): 16 | No. of flutes: 3
VNOM2225050 Thread size: M22x2.5 | Chamfer length: 5P | Limits: WH4 | Overall length L (mm): 115 | Thread length ℓ (mm): 38 | Shank dia. d (mm): 17 | Square K (mm): 13 | Square length Kl (mm): 16 | No. of flutes: 3
VNOM2415050 Thread size: M24x1.5 | Chamfer length: 5P | Limits: WH4 | Overall length L (mm): 120 | Thread length ℓ (mm): 45 | Shank dia. d (mm): 19 | Square K (mm): 15 | Square length Kl (mm): 18 | No. of flutes: 3
VNOM2420050 Thread size: M24x2.0 | Chamfer length: 5P | Limits: WH4 | Overall length L (mm): 120 | Thread length ℓ (mm): 45 | Shank dia. d (mm): 19 | Square K (mm): 15 | Square length Kl (mm): 18 | No. of flutes: 3
VNOM2430050 Thread size: M24x3.0 | Chamfer length: 5P | Limits: WH4 | Overall length L (mm): 120 | Thread length ℓ (mm): 45 | Shank dia. d (mm): 19 | Square K (mm): 15 | Square length Kl (mm): 18 | No. of flutes: 3
TapsKorloy
24 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy JIS Spiral Point Tap VNOM HSSE Uncoated

Brand Korloy·Taps

Available part numbers (24)

VNOM0305050, VNOM0407050, VNOM0508050, VNOM0610050, VNOM0812550, VNOM1012550, VNOM1015050, VNOM1210050, VNOM1212550, VNOM1215050 + 14 more — see full table ↓
