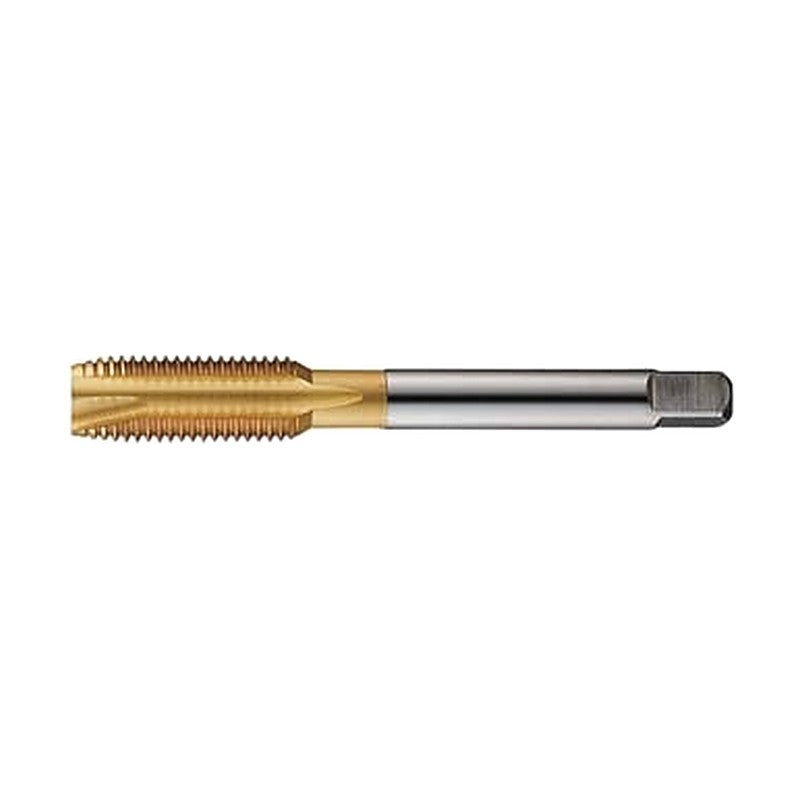

Korloy JIS Spiral Point Tap VNTM HSSE TiN

Korloy JIS Spiral Point Tap VNTM HSSE TiN

JIS spiral point tap in HSSE (TiN coated) for metric threads M3 to M24.

Key features

  • HSSE (cobalt high-speed steel)
  • Surface treatment: TiN
  • JIS dimensions
  • Chamfer length 5P

Specifications

Material HSSE
Surface treatment TiN
Standard JIS
Workpiece (excellent) Stainless steels
Workpiece (good) Low carbon steels, Medium carbon steels, High carbon steels, Alloy steels, Tool steels, Cast steels, Cast iron, High-strength steels, Copper, Brass, Casting brass, Bronze, Aluminium rolled material, Aluminium alloy castings, Magnesium alloy castings, Zinc alloy castings, Titanium alloys, Nickel alloys, Thermoplastics
VNTM0305050 Thread size: M3x0.5 | Chamfer length: 5P | Limits: WH2 | Overall length L (mm): 46 | Thread length ℓ (mm): 11 | Shank dia. d (mm): 4 | Square K (mm): 3.2 | Square length Kl (mm): 6 | No. of flutes: 3
VNTM0407050 Thread size: M4x0.7 | Chamfer length: 5P | Limits: WH2 | Overall length L (mm): 52 | Thread length ℓ (mm): 13 | Shank dia. d (mm): 5 | Square K (mm): 4 | Square length Kl (mm): 7 | No. of flutes: 3
VNTM0508050 Thread size: M5x0.8 | Chamfer length: 5P | Limits: WH2 | Overall length L (mm): 60 | Thread length ℓ (mm): 16 | Shank dia. d (mm): 5.5 | Square K (mm): 4.5 | Square length Kl (mm): 7 | No. of flutes: 3
VNTM0610050 Thread size: M6x1.0 | Chamfer length: 5P | Limits: WH2 | Overall length L (mm): 62 | Thread length ℓ (mm): 19 | Shank dia. d (mm): 6 | Square K (mm): 4.5 | Square length Kl (mm): 7 | No. of flutes: 3
VNTM0812550 Thread size: M8x1.25 | Chamfer length: 5P | Limits: WH3 | Overall length L (mm): 70 | Thread length ℓ (mm): 22 | Shank dia. d (mm): 6.2 | Square K (mm): 5 | Square length Kl (mm): 8 | No. of flutes: 3
VNTM1012550 Thread size: M10x1.25 | Chamfer length: 5P | Limits: WH3 | Overall length L (mm): 75 | Thread length ℓ (mm): 24 | Shank dia. d (mm): 7 | Square K (mm): 5.5 | Square length Kl (mm): 8 | No. of flutes: 3
VNTM1015050 Thread size: M10x1.5 | Chamfer length: 5P | Limits: WH3 | Overall length L (mm): 75 | Thread length ℓ (mm): 24 | Shank dia. d (mm): 7 | Square K (mm): 5.5 | Square length Kl (mm): 8 | No. of flutes: 3
VNTM1210050 Thread size: M12x1.0 | Chamfer length: 5P | Limits: WH3 | Overall length L (mm): 82 | Thread length ℓ (mm): 29 | Shank dia. d (mm): 8.5 | Square K (mm): 6.5 | Square length Kl (mm): 9 | No. of flutes: 3
VNTM1212550 Thread size: M12x1.25 | Chamfer length: 5P | Limits: WH3 | Overall length L (mm): 82 | Thread length ℓ (mm): 29 | Shank dia. d (mm): 8.5 | Square K (mm): 6.5 | Square length Kl (mm): 9 | No. of flutes: 3
VNTM1215050 Thread size: M12x1.5 | Chamfer length: 5P | Limits: WH3 | Overall length L (mm): 82 | Thread length ℓ (mm): 29 | Shank dia. d (mm): 8.5 | Square K (mm): 6.5 | Square length Kl (mm): 9 | No. of flutes: 3
VNTM1217550 Thread size: M12x1.75 | Chamfer length: 5P | Limits: WH4 | Overall length L (mm): 82 | Thread length ℓ (mm): 29 | Shank dia. d (mm): 8.5 | Square K (mm): 6.5 | Square length Kl (mm): 9 | No. of flutes: 3
VNTM1415050 Thread size: M14x1.5 | Chamfer length: 5P | Limits: WH3 | Overall length L (mm): 88 | Thread length ℓ (mm): 30 | Shank dia. d (mm): 10.5 | Square K (mm): 8 | Square length Kl (mm): 11 | No. of flutes: 3
VNTM1420050 Thread size: M14x2.0 | Chamfer length: 5P | Limits: WH4 | Overall length L (mm): 88 | Thread length ℓ (mm): 30 | Shank dia. d (mm): 10.5 | Square K (mm): 8 | Square length Kl (mm): 11 | No. of flutes: 3
VNTM1615050 Thread size: M16x1.5 | Chamfer length: 5P | Limits: WH3 | Overall length L (mm): 95 | Thread length ℓ (mm): 32 | Shank dia. d (mm): 12.5 | Square K (mm): 10 | Square length Kl (mm): 13 | No. of flutes: 3
VNTM1620050 Thread size: M16x2.0 | Chamfer length: 5P | Limits: WH4 | Overall length L (mm): 95 | Thread length ℓ (mm): 32 | Shank dia. d (mm): 12.5 | Square K (mm): 10 | Square length Kl (mm): 13 | No. of flutes: 3
VNTM1815050 Thread size: M18x1.5 | Chamfer length: 5P | Limits: WH4 | Overall length L (mm): 100 | Thread length ℓ (mm): 37 | Shank dia. d (mm): 14 | Square K (mm): 11 | Square length Kl (mm): 14 | No. of flutes: 3
VNTM1825050 Thread size: M18x2.5 | Chamfer length: 5P | Limits: WH4 | Overall length L (mm): 100 | Thread length ℓ (mm): 37 | Shank dia. d (mm): 14 | Square K (mm): 11 | Square length Kl (mm): 14 | No. of flutes: 3
VNTM2015050 Thread size: M20x1.5 | Chamfer length: 5P | Limits: WH4 | Overall length L (mm): 105 | Thread length ℓ (mm): 37 | Shank dia. d (mm): 15 | Square K (mm): 12 | Square length Kl (mm): 15 | No. of flutes: 3
VNTM2025050 Thread size: M20x2.5 | Chamfer length: 5P | Limits: WH4 | Overall length L (mm): 105 | Thread length ℓ (mm): 37 | Shank dia. d (mm): 15 | Square K (mm): 12 | Square length Kl (mm): 15 | No. of flutes: 3
VNTM2215050 Thread size: M22x1.5 | Chamfer length: 5P | Limits: WH4 | Overall length L (mm): 115 | Thread length ℓ (mm): 38 | Shank dia. d (mm): 17 | Square K (mm): 13 | Square length Kl (mm): 16 | No. of flutes: 3
VNTM2225050 Thread size: M22x2.5 | Chamfer length: 5P | Limits: WH4 | Overall length L (mm): 115 | Thread length ℓ (mm): 38 | Shank dia. d (mm): 17 | Square K (mm): 13 | Square length Kl (mm): 16 | No. of flutes: 3
VNTM2415050 Thread size: M24x1.5 | Chamfer length: 5P | Limits: WH4 | Overall length L (mm): 120 | Thread length ℓ (mm): 45 | Shank dia. d (mm): 19 | Square K (mm): 15 | Square length Kl (mm): 18 | No. of flutes: 3
VNTM2420050 Thread size: M24x2.0 | Chamfer length: 5P | Limits: WH4 | Overall length L (mm): 120 | Thread length ℓ (mm): 45 | Shank dia. d (mm): 19 | Square K (mm): 15 | Square length Kl (mm): 18 | No. of flutes: 3
VNTM2430050 Thread size: M24x3.0 | Chamfer length: 5P | Limits: WH4 | Overall length L (mm): 120 | Thread length ℓ (mm): 45 | Shank dia. d (mm): 19 | Square K (mm): 15 | Square length Kl (mm): 18 | No. of flutes: 3
TapsKorloy
24 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy JIS Spiral Point Tap VNTM HSSE TiN

Brand Korloy·Taps

Available part numbers (24)

VNTM0305050, VNTM0407050, VNTM0508050, VNTM0610050, VNTM0812550, VNTM1012550, VNTM1015050, VNTM1210050, VNTM1212550, VNTM1215050 + 14 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
VNTM0305050Thread size: M3x0.5 | Chamfer length: 5P | Limits: WH2 | Overall length L (mm): 46 | Thread length ℓ (mm): 11 | Shank dia. d (mm): 4 | Square K (mm): 3.2 | Square length Kl (mm): 6 | No. of flutes: 3
VNTM0407050Thread size: M4x0.7 | Chamfer length: 5P | Limits: WH2 | Overall length L (mm): 52 | Thread length ℓ (mm): 13 | Shank dia. d (mm): 5 | Square K (mm): 4 | Square length Kl (mm): 7 | No. of flutes: 3
VNTM0508050Thread size: M5x0.8 | Chamfer length: 5P | Limits: WH2 | Overall length L (mm): 60 | Thread length ℓ (mm): 16 | Shank dia. d (mm): 5.5 | Square K (mm): 4.5 | Square length Kl (mm): 7 | No. of flutes: 3
VNTM0610050Thread size: M6x1.0 | Chamfer length: 5P | Limits: WH2 | Overall length L (mm): 62 | Thread length ℓ (mm): 19 | Shank dia. d (mm): 6 | Square K (mm): 4.5 | Square length Kl (mm): 7 | No. of flutes: 3
VNTM0812550Thread size: M8x1.25 | Chamfer length: 5P | Limits: WH3 | Overall length L (mm): 70 | Thread length ℓ (mm): 22 | Shank dia. d (mm): 6.2 | Square K (mm): 5 | Square length Kl (mm): 8 | No. of flutes: 3
VNTM1012550Thread size: M10x1.25 | Chamfer length: 5P | Limits: WH3 | Overall length L (mm): 75 | Thread length ℓ (mm): 24 | Shank dia. d (mm): 7 | Square K (mm): 5.5 | Square length Kl (mm): 8 | No. of flutes: 3
VNTM1015050Thread size: M10x1.5 | Chamfer length: 5P | Limits: WH3 | Overall length L (mm): 75 | Thread length ℓ (mm): 24 | Shank dia. d (mm): 7 | Square K (mm): 5.5 | Square length Kl (mm): 8 | No. of flutes: 3
VNTM1210050Thread size: M12x1.0 | Chamfer length: 5P | Limits: WH3 | Overall length L (mm): 82 | Thread length ℓ (mm): 29 | Shank dia. d (mm): 8.5 | Square K (mm): 6.5 | Square length Kl (mm): 9 | No. of flutes: 3
VNTM1212550Thread size: M12x1.25 | Chamfer length: 5P | Limits: WH3 | Overall length L (mm): 82 | Thread length ℓ (mm): 29 | Shank dia. d (mm): 8.5 | Square K (mm): 6.5 | Square length Kl (mm): 9 | No. of flutes: 3
VNTM1215050Thread size: M12x1.5 | Chamfer length: 5P | Limits: WH3 | Overall length L (mm): 82 | Thread length ℓ (mm): 29 | Shank dia. d (mm): 8.5 | Square K (mm): 6.5 | Square length Kl (mm): 9 | No. of flutes: 3
VNTM1217550Thread size: M12x1.75 | Chamfer length: 5P | Limits: WH4 | Overall length L (mm): 82 | Thread length ℓ (mm): 29 | Shank dia. d (mm): 8.5 | Square K (mm): 6.5 | Square length Kl (mm): 9 | No. of flutes: 3
VNTM1415050Thread size: M14x1.5 | Chamfer length: 5P | Limits: WH3 | Overall length L (mm): 88 | Thread length ℓ (mm): 30 | Shank dia. d (mm): 10.5 | Square K (mm): 8 | Square length Kl (mm): 11 | No. of flutes: 3
VNTM1420050Thread size: M14x2.0 | Chamfer length: 5P | Limits: WH4 | Overall length L (mm): 88 | Thread length ℓ (mm): 30 | Shank dia. d (mm): 10.5 | Square K (mm): 8 | Square length Kl (mm): 11 | No. of flutes: 3
VNTM1615050Thread size: M16x1.5 | Chamfer length: 5P | Limits: WH3 | Overall length L (mm): 95 | Thread length ℓ (mm): 32 | Shank dia. d (mm): 12.5 | Square K (mm): 10 | Square length Kl (mm): 13 | No. of flutes: 3
VNTM1620050Thread size: M16x2.0 | Chamfer length: 5P | Limits: WH4 | Overall length L (mm): 95 | Thread length ℓ (mm): 32 | Shank dia. d (mm): 12.5 | Square K (mm): 10 | Square length Kl (mm): 13 | No. of flutes: 3
VNTM1815050Thread size: M18x1.5 | Chamfer length: 5P | Limits: WH4 | Overall length L (mm): 100 | Thread length ℓ (mm): 37 | Shank dia. d (mm): 14 | Square K (mm): 11 | Square length Kl (mm): 14 | No. of flutes: 3
VNTM1825050Thread size: M18x2.5 | Chamfer length: 5P | Limits: WH4 | Overall length L (mm): 100 | Thread length ℓ (mm): 37 | Shank dia. d (mm): 14 | Square K (mm): 11 | Square length Kl (mm): 14 | No. of flutes: 3
VNTM2015050Thread size: M20x1.5 | Chamfer length: 5P | Limits: WH4 | Overall length L (mm): 105 | Thread length ℓ (mm): 37 | Shank dia. d (mm): 15 | Square K (mm): 12 | Square length Kl (mm): 15 | No. of flutes: 3
VNTM2025050Thread size: M20x2.5 | Chamfer length: 5P | Limits: WH4 | Overall length L (mm): 105 | Thread length ℓ (mm): 37 | Shank dia. d (mm): 15 | Square K (mm): 12 | Square length Kl (mm): 15 | No. of flutes: 3
VNTM2215050Thread size: M22x1.5 | Chamfer length: 5P | Limits: WH4 | Overall length L (mm): 115 | Thread length ℓ (mm): 38 | Shank dia. d (mm): 17 | Square K (mm): 13 | Square length Kl (mm): 16 | No. of flutes: 3
VNTM2225050Thread size: M22x2.5 | Chamfer length: 5P | Limits: WH4 | Overall length L (mm): 115 | Thread length ℓ (mm): 38 | Shank dia. d (mm): 17 | Square K (mm): 13 | Square length Kl (mm): 16 | No. of flutes: 3
VNTM2415050Thread size: M24x1.5 | Chamfer length: 5P | Limits: WH4 | Overall length L (mm): 120 | Thread length ℓ (mm): 45 | Shank dia. d (mm): 19 | Square K (mm): 15 | Square length Kl (mm): 18 | No. of flutes: 3
VNTM2420050Thread size: M24x2.0 | Chamfer length: 5P | Limits: WH4 | Overall length L (mm): 120 | Thread length ℓ (mm): 45 | Shank dia. d (mm): 19 | Square K (mm): 15 | Square length Kl (mm): 18 | No. of flutes: 3
VNTM2430050Thread size: M24x3.0 | Chamfer length: 5P | Limits: WH4 | Overall length L (mm): 120 | Thread length ℓ (mm): 45 | Shank dia. d (mm): 19 | Square K (mm): 15 | Square length Kl (mm): 18 | No. of flutes: 3
