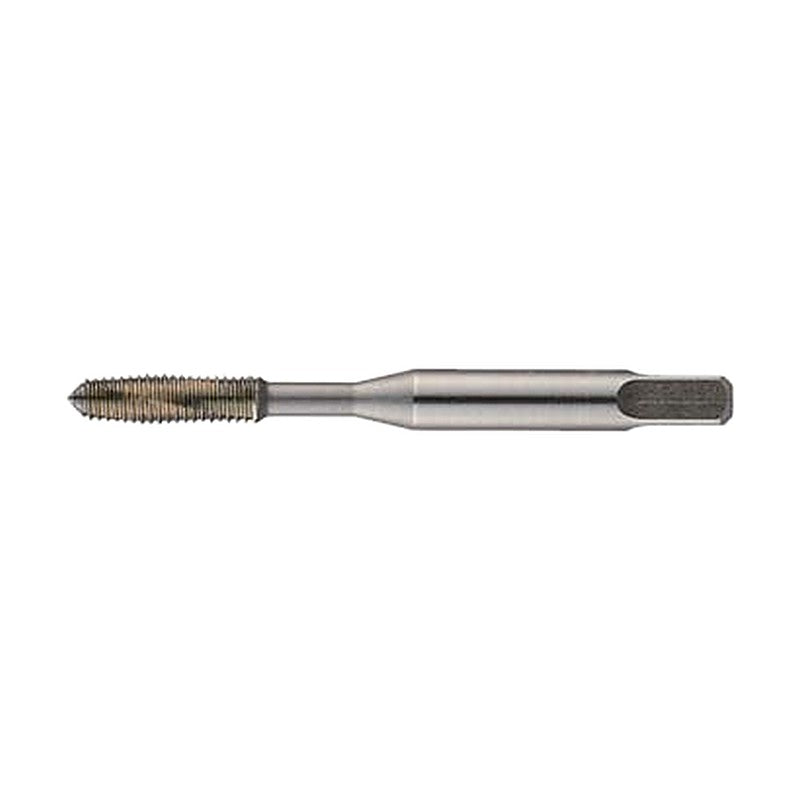

Korloy JIS Spiral Roll Tap VFOM HSSE Uncoated

Korloy JIS Spiral Roll Tap VFOM HSSE Uncoated

JIS spiral roll tap in HSSE (uncoated) for metric threads M3 to M6.

Key features

  • HSSE (cobalt high-speed steel)
  • Surface treatment: Uncoated
  • JIS dimensions
  • Chamfer length 2P, 4P

Specifications

Material HSSE
Surface treatment Uncoated
Standard JIS
Workpiece (good) Copper, Brass, Casting brass, Aluminium rolled material, Aluminium alloy castings, Zinc alloy castings
VFOM0305020 Thread size: M3x0.5 | Chamfer length: 2P | Limits: GH6 | Overall length L (mm): 46 | Thread length ℓ (mm): 18 | Shank dia. d (mm): 4 | Square K (mm): 3.2 | Square length Kl (mm): 6
VFOM0305040 Thread size: M3x0.5 | Chamfer length: 4P | Limits: GH6 | Overall length L (mm): 46 | Thread length ℓ (mm): 18 | Shank dia. d (mm): 4 | Square K (mm): 3.2 | Square length Kl (mm): 6
VFOM03506020 Thread size: M3.5x0.6 | Chamfer length: 2P | Limits: GH6 | Overall length L (mm): 46 | Thread length ℓ (mm): 18 | Shank dia. d (mm): 4 | Square K (mm): 3.2 | Square length Kl (mm): 6
VFOM03506040 Thread size: M3.5x0.6 | Chamfer length: 4P | Limits: GH6 | Overall length L (mm): 46 | Thread length ℓ (mm): 18 | Shank dia. d (mm): 4 | Square K (mm): 3.2 | Square length Kl (mm): 6
VFOM0407020 Thread size: M4x0.7 | Chamfer length: 2P | Limits: GH7 | Overall length L (mm): 52 | Thread length ℓ (mm): 20 | Shank dia. d (mm): 5 | Square K (mm): 4 | Square length Kl (mm): 7
VFOM0407040 Thread size: M4x0.7 | Chamfer length: 4P | Limits: GH7 | Overall length L (mm): 52 | Thread length ℓ (mm): 20 | Shank dia. d (mm): 5 | Square K (mm): 4 | Square length Kl (mm): 7
VFOM0508020 Thread size: M5x0.8 | Chamfer length: 2P | Limits: GH7 | Overall length L (mm): 60 | Thread length ℓ (mm): 22 | Shank dia. d (mm): 5.5 | Square K (mm): 4.5 | Square length Kl (mm): 7
VFOM0508040 Thread size: M5x0.8 | Chamfer length: 4P | Limits: GH7 | Overall length L (mm): 60 | Thread length ℓ (mm): 22 | Shank dia. d (mm): 5.5 | Square K (mm): 4.5 | Square length Kl (mm): 7
VFOM0610020 Thread size: M6x1.0 | Chamfer length: 2P | Limits: GH7 | Overall length L (mm): 62 | Thread length ℓ (mm): 24 | Shank dia. d (mm): 6 | Square K (mm): 4.5 | Square length Kl (mm): 7
VFOM0610040 Thread size: M6x1.0 | Chamfer length: 4P | Limits: GH7 | Overall length L (mm): 62 | Thread length ℓ (mm): 24 | Shank dia. d (mm): 6 | Square K (mm): 4.5 | Square length Kl (mm): 7
TapsKorloy
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy JIS Spiral Roll Tap VFOM HSSE Uncoated

Brand Korloy·Taps

Available part numbers (10)

VFOM0305020, VFOM0305040, VFOM03506020, VFOM03506040, VFOM0407020, VFOM0407040, VFOM0508020, VFOM0508040, VFOM0610020, VFOM0610040

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
VFOM0305020Thread size: M3x0.5 | Chamfer length: 2P | Limits: GH6 | Overall length L (mm): 46 | Thread length ℓ (mm): 18 | Shank dia. d (mm): 4 | Square K (mm): 3.2 | Square length Kl (mm): 6
VFOM0305040Thread size: M3x0.5 | Chamfer length: 4P | Limits: GH6 | Overall length L (mm): 46 | Thread length ℓ (mm): 18 | Shank dia. d (mm): 4 | Square K (mm): 3.2 | Square length Kl (mm): 6
VFOM03506020Thread size: M3.5x0.6 | Chamfer length: 2P | Limits: GH6 | Overall length L (mm): 46 | Thread length ℓ (mm): 18 | Shank dia. d (mm): 4 | Square K (mm): 3.2 | Square length Kl (mm): 6
VFOM03506040Thread size: M3.5x0.6 | Chamfer length: 4P | Limits: GH6 | Overall length L (mm): 46 | Thread length ℓ (mm): 18 | Shank dia. d (mm): 4 | Square K (mm): 3.2 | Square length Kl (mm): 6
VFOM0407020Thread size: M4x0.7 | Chamfer length: 2P | Limits: GH7 | Overall length L (mm): 52 | Thread length ℓ (mm): 20 | Shank dia. d (mm): 5 | Square K (mm): 4 | Square length Kl (mm): 7
VFOM0407040Thread size: M4x0.7 | Chamfer length: 4P | Limits: GH7 | Overall length L (mm): 52 | Thread length ℓ (mm): 20 | Shank dia. d (mm): 5 | Square K (mm): 4 | Square length Kl (mm): 7
VFOM0508020Thread size: M5x0.8 | Chamfer length: 2P | Limits: GH7 | Overall length L (mm): 60 | Thread length ℓ (mm): 22 | Shank dia. d (mm): 5.5 | Square K (mm): 4.5 | Square length Kl (mm): 7
VFOM0508040Thread size: M5x0.8 | Chamfer length: 4P | Limits: GH7 | Overall length L (mm): 60 | Thread length ℓ (mm): 22 | Shank dia. d (mm): 5.5 | Square K (mm): 4.5 | Square length Kl (mm): 7
VFOM0610020Thread size: M6x1.0 | Chamfer length: 2P | Limits: GH7 | Overall length L (mm): 62 | Thread length ℓ (mm): 24 | Shank dia. d (mm): 6 | Square K (mm): 4.5 | Square length Kl (mm): 7
VFOM0610040Thread size: M6x1.0 | Chamfer length: 4P | Limits: GH7 | Overall length L (mm): 62 | Thread length ℓ (mm): 24 | Shank dia. d (mm): 6 | Square K (mm): 4.5 | Square length Kl (mm): 7
