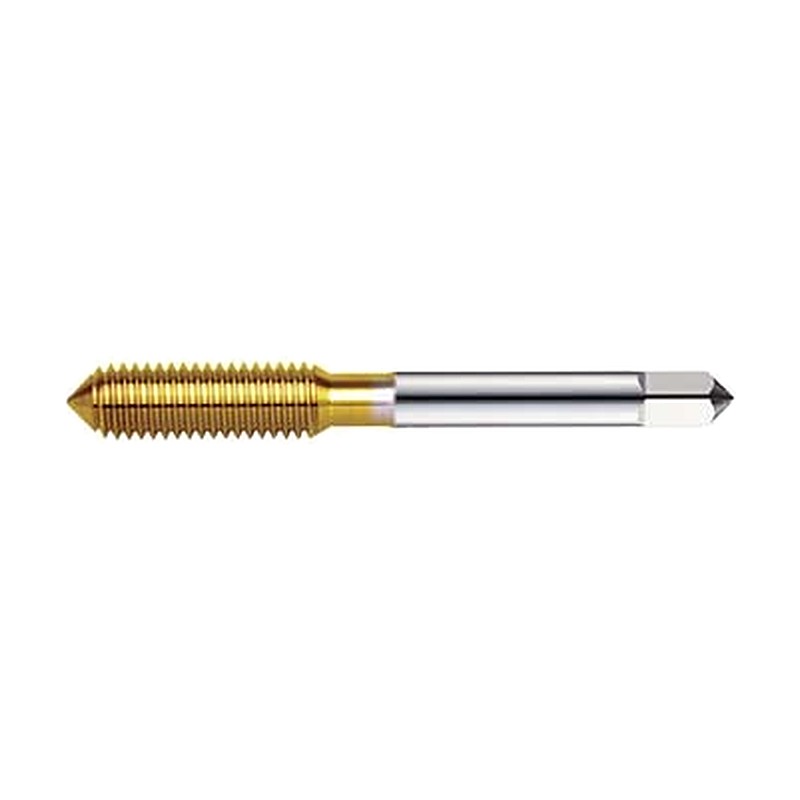

Korloy JIS Spiral Roll Tap VFTM HSSE TiN

Korloy JIS Spiral Roll Tap VFTM HSSE TiN

JIS spiral roll tap in HSSE (TiN coated) for metric threads M3 to M6.

Key features

  • HSSE (cobalt high-speed steel)
  • Surface treatment: TiN
  • JIS dimensions
  • Chamfer length 2P, 4P

Specifications

Material HSSE
Surface treatment TiN
Standard JIS
Workpiece (good) Copper, Brass, Casting brass, Aluminium rolled material, Aluminium alloy castings, Zinc alloy castings
VFTM0305020 Thread size: M3x0.5 | Chamfer length: 2P | Limits: GH6 | Overall length L (mm): 46 | Thread length ℓ (mm): 18 | Shank dia. d (mm): 4 | Square K (mm): 3.2 | Square length Kl (mm): 6
VFTM0305040 Thread size: M3x0.5 | Chamfer length: 4P | Limits: GH6 | Overall length L (mm): 46 | Thread length ℓ (mm): 18 | Shank dia. d (mm): 4 | Square K (mm): 3.2 | Square length Kl (mm): 6
VFTM03506020 Thread size: M3.5x0.6 | Chamfer length: 2P | Limits: GH6 | Overall length L (mm): 46 | Thread length ℓ (mm): 18 | Shank dia. d (mm): 4 | Square K (mm): 3.2 | Square length Kl (mm): 6
VFTM03506040 Thread size: M3.5x0.6 | Chamfer length: 4P | Limits: GH6 | Overall length L (mm): 46 | Thread length ℓ (mm): 18 | Shank dia. d (mm): 4 | Square K (mm): 3.2 | Square length Kl (mm): 6
VFTM0407020 Thread size: M4x0.7 | Chamfer length: 2P | Limits: GH7 | Overall length L (mm): 52 | Thread length ℓ (mm): 20 | Shank dia. d (mm): 5 | Square K (mm): 4 | Square length Kl (mm): 7
VFTM0407040 Thread size: M4x0.7 | Chamfer length: 4P | Limits: GH7 | Overall length L (mm): 52 | Thread length ℓ (mm): 20 | Shank dia. d (mm): 5 | Square K (mm): 4 | Square length Kl (mm): 7
VFTM0508020 Thread size: M5x0.8 | Chamfer length: 2P | Limits: GH7 | Overall length L (mm): 60 | Thread length ℓ (mm): 22 | Shank dia. d (mm): 5.5 | Square K (mm): 4.5 | Square length Kl (mm): 7
VFTM0508040 Thread size: M5x0.8 | Chamfer length: 4P | Limits: GH7 | Overall length L (mm): 60 | Thread length ℓ (mm): 22 | Shank dia. d (mm): 5.5 | Square K (mm): 4.5 | Square length Kl (mm): 7
VFTM0610020 Thread size: M6x1.0 | Chamfer length: 2P | Limits: GH7 | Overall length L (mm): 62 | Thread length ℓ (mm): 24 | Shank dia. d (mm): 6 | Square K (mm): 4.5 | Square length Kl (mm): 7
VFTM0610040 Thread size: M6x1.0 | Chamfer length: 4P | Limits: GH7 | Overall length L (mm): 62 | Thread length ℓ (mm): 24 | Shank dia. d (mm): 6 | Square K (mm): 4.5 | Square length Kl (mm): 7
TapsKorloy
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy JIS Spiral Roll Tap VFTM HSSE TiN

Brand Korloy·Taps

Available part numbers (10)

VFTM0305020, VFTM0305040, VFTM03506020, VFTM03506040, VFTM0407020, VFTM0407040, VFTM0508020, VFTM0508040, VFTM0610020, VFTM0610040

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
VFTM0305020Thread size: M3x0.5 | Chamfer length: 2P | Limits: GH6 | Overall length L (mm): 46 | Thread length ℓ (mm): 18 | Shank dia. d (mm): 4 | Square K (mm): 3.2 | Square length Kl (mm): 6
VFTM0305040Thread size: M3x0.5 | Chamfer length: 4P | Limits: GH6 | Overall length L (mm): 46 | Thread length ℓ (mm): 18 | Shank dia. d (mm): 4 | Square K (mm): 3.2 | Square length Kl (mm): 6
VFTM03506020Thread size: M3.5x0.6 | Chamfer length: 2P | Limits: GH6 | Overall length L (mm): 46 | Thread length ℓ (mm): 18 | Shank dia. d (mm): 4 | Square K (mm): 3.2 | Square length Kl (mm): 6
VFTM03506040Thread size: M3.5x0.6 | Chamfer length: 4P | Limits: GH6 | Overall length L (mm): 46 | Thread length ℓ (mm): 18 | Shank dia. d (mm): 4 | Square K (mm): 3.2 | Square length Kl (mm): 6
VFTM0407020Thread size: M4x0.7 | Chamfer length: 2P | Limits: GH7 | Overall length L (mm): 52 | Thread length ℓ (mm): 20 | Shank dia. d (mm): 5 | Square K (mm): 4 | Square length Kl (mm): 7
VFTM0407040Thread size: M4x0.7 | Chamfer length: 4P | Limits: GH7 | Overall length L (mm): 52 | Thread length ℓ (mm): 20 | Shank dia. d (mm): 5 | Square K (mm): 4 | Square length Kl (mm): 7
VFTM0508020Thread size: M5x0.8 | Chamfer length: 2P | Limits: GH7 | Overall length L (mm): 60 | Thread length ℓ (mm): 22 | Shank dia. d (mm): 5.5 | Square K (mm): 4.5 | Square length Kl (mm): 7
VFTM0508040Thread size: M5x0.8 | Chamfer length: 4P | Limits: GH7 | Overall length L (mm): 60 | Thread length ℓ (mm): 22 | Shank dia. d (mm): 5.5 | Square K (mm): 4.5 | Square length Kl (mm): 7
VFTM0610020Thread size: M6x1.0 | Chamfer length: 2P | Limits: GH7 | Overall length L (mm): 62 | Thread length ℓ (mm): 24 | Shank dia. d (mm): 6 | Square K (mm): 4.5 | Square length Kl (mm): 7
VFTM0610040Thread size: M6x1.0 | Chamfer length: 4P | Limits: GH7 | Overall length L (mm): 62 | Thread length ℓ (mm): 24 | Shank dia. d (mm): 6 | Square K (mm): 4.5 | Square length Kl (mm): 7

Need a different model, or a part not listed here? Send us your parts list →
