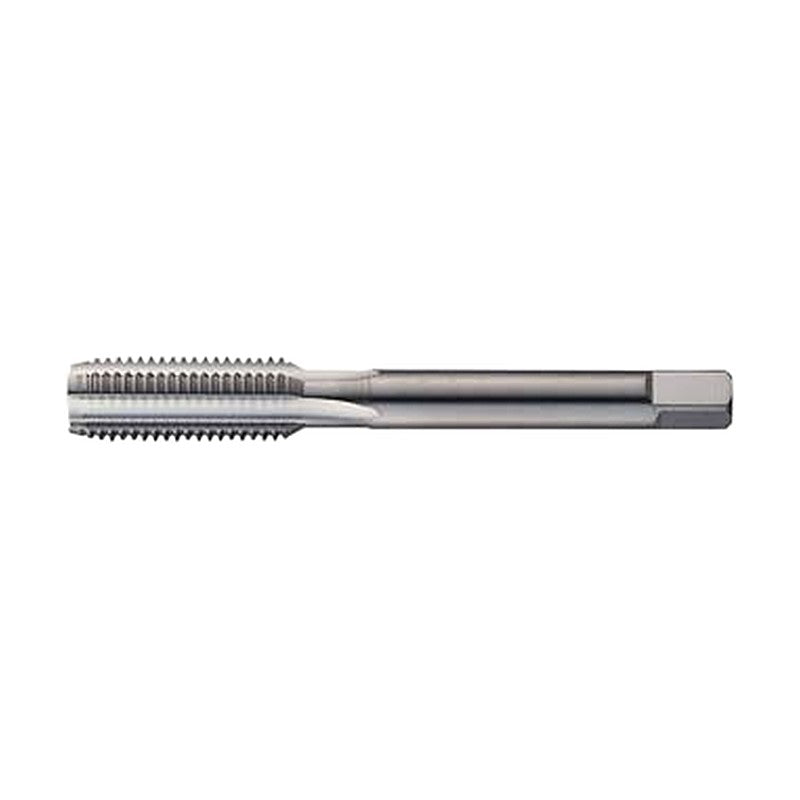

Korloy JIS Straight Flute Tap VSOM HSSE Uncoated

Korloy JIS Straight Flute Tap VSOM HSSE Uncoated

JIS straight flute tap in HSSE (uncoated) for metric threads M3 to M24.

Key features

  • HSSE (cobalt high-speed steel)
  • Surface treatment: Uncoated
  • JIS dimensions
  • Chamfer length 1.5P, 5P

Specifications

Material HSSE
Surface treatment Uncoated
Standard JIS
Workpiece (good) Low carbon steels, Medium carbon steels, High carbon steels, Alloy steels, Hardened steels 25-45 HRC, Brass, Casting brass, Bronze, Aluminium alloy castings, Magnesium alloy castings, Zinc alloy castings
VSOM0305015 Thread size: M3x0.5 | Chamfer length: 1.5P | Limits: WH2 | Overall length L (mm): 46 | Thread length ℓ (mm): 11 | Shank dia. d (mm): 4 | Square K (mm): 3.2 | Square length Kl (mm): 6 | No. of flutes: 3
VSOM0305050 Thread size: M3x0.5 | Chamfer length: 5P | Limits: WH2 | Overall length L (mm): 46 | Thread length ℓ (mm): 11 | Shank dia. d (mm): 4 | Square K (mm): 3.2 | Square length Kl (mm): 6 | No. of flutes: 3
VSOM0407015 Thread size: M4x0.7 | Chamfer length: 1.5P | Limits: WH2 | Overall length L (mm): 52 | Thread length ℓ (mm): 13 | Shank dia. d (mm): 5 | Square K (mm): 4 | Square length Kl (mm): 7 | No. of flutes: 3
VSOM0407050 Thread size: M4x0.7 | Chamfer length: 5P | Limits: WH2 | Overall length L (mm): 52 | Thread length ℓ (mm): 13 | Shank dia. d (mm): 5 | Square K (mm): 4 | Square length Kl (mm): 7 | No. of flutes: 3
VSOM0508015 Thread size: M5x0.8 | Chamfer length: 1.5P | Limits: WH2 | Overall length L (mm): 60 | Thread length ℓ (mm): 16 | Shank dia. d (mm): 5.5 | Square K (mm): 4.5 | Square length Kl (mm): 7 | No. of flutes: 3
VSOM0508050 Thread size: M5x0.8 | Chamfer length: 5P | Limits: WH2 | Overall length L (mm): 60 | Thread length ℓ (mm): 16 | Shank dia. d (mm): 5.5 | Square K (mm): 4.5 | Square length Kl (mm): 7 | No. of flutes: 3
VSOM0610015 Thread size: M6x1.0 | Chamfer length: 1.5P | Limits: WH2 | Overall length L (mm): 62 | Thread length ℓ (mm): 19 | Shank dia. d (mm): 6 | Square K (mm): 4.5 | Square length Kl (mm): 7 | No. of flutes: 3
VSOM0610050 Thread size: M6x1.0 | Chamfer length: 5P | Limits: WH2 | Overall length L (mm): 62 | Thread length ℓ (mm): 19 | Shank dia. d (mm): 6 | Square K (mm): 4.5 | Square length Kl (mm): 7 | No. of flutes: 3
VSOM0812515 Thread size: M8x1.25 | Chamfer length: 1.5P | Limits: WH2 | Overall length L (mm): 70 | Thread length ℓ (mm): 22 | Shank dia. d (mm): 6.2 | Square K (mm): 5 | Square length Kl (mm): 8 | No. of flutes: 4
VSOM0812550 Thread size: M8x1.25 | Chamfer length: 5P | Limits: WH2 | Overall length L (mm): 70 | Thread length ℓ (mm): 22 | Shank dia. d (mm): 6.2 | Square K (mm): 5 | Square length Kl (mm): 8 | No. of flutes: 4
VSOM1012515 Thread size: M10x1.25 | Chamfer length: 1.5P | Limits: WH2 | Overall length L (mm): 75 | Thread length ℓ (mm): 24 | Shank dia. d (mm): 7 | Square K (mm): 5.5 | Square length Kl (mm): 8 | No. of flutes: 4
VSOM1012550 Thread size: M10x1.25 | Chamfer length: 5P | Limits: WH2 | Overall length L (mm): 75 | Thread length ℓ (mm): 24 | Shank dia. d (mm): 7 | Square K (mm): 5.5 | Square length Kl (mm): 8 | No. of flutes: 4
VSOM1015015 Thread size: M10x1.5 | Chamfer length: 1.5P | Limits: WH3 | Overall length L (mm): 75 | Thread length ℓ (mm): 24 | Shank dia. d (mm): 7 | Square K (mm): 5.5 | Square length Kl (mm): 8 | No. of flutes: 4
VSOM1015050 Thread size: M10x1.5 | Chamfer length: 5P | Limits: WH3 | Overall length L (mm): 75 | Thread length ℓ (mm): 24 | Shank dia. d (mm): 7 | Square K (mm): 5.5 | Square length Kl (mm): 8 | No. of flutes: 4
VSOM1210015 Thread size: M12x1.0 | Chamfer length: 1.5P | Limits: WH2 | Overall length L (mm): 82 | Thread length ℓ (mm): 29 | Shank dia. d (mm): 8.5 | Square K (mm): 6.5 | Square length Kl (mm): 9 | No. of flutes: 4
VSOM1210050 Thread size: M12x1.0 | Chamfer length: 5P | Limits: WH2 | Overall length L (mm): 82 | Thread length ℓ (mm): 29 | Shank dia. d (mm): 8.5 | Square K (mm): 6.5 | Square length Kl (mm): 9 | No. of flutes: 4
VSOM1212515 Thread size: M12x1.25 | Chamfer length: 1.5P | Limits: WH2 | Overall length L (mm): 82 | Thread length ℓ (mm): 29 | Shank dia. d (mm): 8.5 | Square K (mm): 6.5 | Square length Kl (mm): 9 | No. of flutes: 4
VSOM1212550 Thread size: M12x1.25 | Chamfer length: 5P | Limits: WH2 | Overall length L (mm): 82 | Thread length ℓ (mm): 29 | Shank dia. d (mm): 8.5 | Square K (mm): 6.5 | Square length Kl (mm): 9 | No. of flutes: 4
VSOM1215015 Thread size: M12x1.5 | Chamfer length: 1.5P | Limits: WH3 | Overall length L (mm): 82 | Thread length ℓ (mm): 29 | Shank dia. d (mm): 8.5 | Square K (mm): 6.5 | Square length Kl (mm): 9 | No. of flutes: 4
VSOM1215050 Thread size: M12x1.5 | Chamfer length: 5P | Limits: WH3 | Overall length L (mm): 82 | Thread length ℓ (mm): 29 | Shank dia. d (mm): 8.5 | Square K (mm): 6.5 | Square length Kl (mm): 9 | No. of flutes: 4
VSOM1217515 Thread size: M12x1.75 | Chamfer length: 1.5P | Limits: WH3 | Overall length L (mm): 82 | Thread length ℓ (mm): 29 | Shank dia. d (mm): 8.5 | Square K (mm): 6.5 | Square length Kl (mm): 9 | No. of flutes: 4
VSOM1217550 Thread size: M12x1.75 | Chamfer length: 5P | Limits: WH3 | Overall length L (mm): 82 | Thread length ℓ (mm): 29 | Shank dia. d (mm): 8.5 | Square K (mm): 6.5 | Square length Kl (mm): 9 | No. of flutes: 4
VSOM1415015 Thread size: M14x1.5 | Chamfer length: 1.5P | Limits: WH3 | Overall length L (mm): 88 | Thread length ℓ (mm): 30 | Shank dia. d (mm): 10.5 | Square K (mm): 8 | Square length Kl (mm): 11 | No. of flutes: 4
VSOM1415050 Thread size: M14x1.5 | Chamfer length: 5P | Limits: WH3 | Overall length L (mm): 88 | Thread length ℓ (mm): 30 | Shank dia. d (mm): 10.5 | Square K (mm): 8 | Square length Kl (mm): 11 | No. of flutes: 4
VSOM1420015 Thread size: M14x2.0 | Chamfer length: 1.5P | Limits: WH3 | Overall length L (mm): 88 | Thread length ℓ (mm): 30 | Shank dia. d (mm): 10.5 | Square K (mm): 8 | Square length Kl (mm): 11 | No. of flutes: 4
VSOM1420050 Thread size: M14x2.0 | Chamfer length: 5P | Limits: WH3 | Overall length L (mm): 88 | Thread length ℓ (mm): 30 | Shank dia. d (mm): 10.5 | Square K (mm): 8 | Square length Kl (mm): 11 | No. of flutes: 4
VSOM1615015 Thread size: M16x1.5 | Chamfer length: 1.5P | Limits: WH3 | Overall length L (mm): 95 | Thread length ℓ (mm): 32 | Shank dia. d (mm): 12.5 | Square K (mm): 10 | Square length Kl (mm): 13 | No. of flutes: 4
VSOM1615050 Thread size: M16x1.5 | Chamfer length: 5P | Limits: WH3 | Overall length L (mm): 95 | Thread length ℓ (mm): 32 | Shank dia. d (mm): 12.5 | Square K (mm): 10 | Square length Kl (mm): 13 | No. of flutes: 4
VSOM1620015 Thread size: M16x2.0 | Chamfer length: 1.5P | Limits: WH3 | Overall length L (mm): 95 | Thread length ℓ (mm): 32 | Shank dia. d (mm): 12.5 | Square K (mm): 10 | Square length Kl (mm): 13 | No. of flutes: 4
VSOM1620050 Thread size: M16x2.0 | Chamfer length: 5P | Limits: WH3 | Overall length L (mm): 95 | Thread length ℓ (mm): 32 | Shank dia. d (mm): 12.5 | Square K (mm): 10 | Square length Kl (mm): 13 | No. of flutes: 4
VSOM1815015 Thread size: M18x1.5 | Chamfer length: 1.5P | Limits: WH3 | Overall length L (mm): 100 | Thread length ℓ (mm): 37 | Shank dia. d (mm): 14 | Square K (mm): 11 | Square length Kl (mm): 14 | No. of flutes: 4
VSOM1815050 Thread size: M18x1.5 | Chamfer length: 5P | Limits: WH3 | Overall length L (mm): 100 | Thread length ℓ (mm): 37 | Shank dia. d (mm): 14 | Square K (mm): 11 | Square length Kl (mm): 14 | No. of flutes: 4
VSOM1825015 Thread size: M18x2.5 | Chamfer length: 1.5P | Limits: WH3 | Overall length L (mm): 100 | Thread length ℓ (mm): 37 | Shank dia. d (mm): 14 | Square K (mm): 11 | Square length Kl (mm): 14 | No. of flutes: 4
VSOM1825050 Thread size: M18x2.5 | Chamfer length: 5P | Limits: WH3 | Overall length L (mm): 100 | Thread length ℓ (mm): 37 | Shank dia. d (mm): 14 | Square K (mm): 11 | Square length Kl (mm): 14 | No. of flutes: 4
VSOM2015015 Thread size: M20x1.5 | Chamfer length: 1.5P | Limits: WH3 | Overall length L (mm): 105 | Thread length ℓ (mm): 37 | Shank dia. d (mm): 15 | Square K (mm): 12 | Square length Kl (mm): 15 | No. of flutes: 4
VSOM2015050 Thread size: M20x1.5 | Chamfer length: 5P | Limits: WH3 | Overall length L (mm): 105 | Thread length ℓ (mm): 37 | Shank dia. d (mm): 15 | Square K (mm): 12 | Square length Kl (mm): 15 | No. of flutes: 4
VSOM2025015 Thread size: M20x2.5 | Chamfer length: 1.5P | Limits: WH3 | Overall length L (mm): 105 | Thread length ℓ (mm): 37 | Shank dia. d (mm): 15 | Square K (mm): 12 | Square length Kl (mm): 15 | No. of flutes: 4
VSOM2025050 Thread size: M20x2.5 | Chamfer length: 5P | Limits: WH3 | Overall length L (mm): 105 | Thread length ℓ (mm): 37 | Shank dia. d (mm): 15 | Square K (mm): 12 | Square length Kl (mm): 15 | No. of flutes: 4
VSOM2215015 Thread size: M22x1.5 | Chamfer length: 1.5P | Limits: WH3 | Overall length L (mm): 115 | Thread length ℓ (mm): 38 | Shank dia. d (mm): 17 | Square K (mm): 13 | Square length Kl (mm): 16 | No. of flutes: 4
VSOM2215050 Thread size: M22x1.5 | Chamfer length: 5P | Limits: WH3 | Overall length L (mm): 115 | Thread length ℓ (mm): 38 | Shank dia. d (mm): 17 | Square K (mm): 13 | Square length Kl (mm): 16 | No. of flutes: 4
VSOM2225015 Thread size: M22x2.5 | Chamfer length: 1.5P | Limits: WH3 | Overall length L (mm): 115 | Thread length ℓ (mm): 38 | Shank dia. d (mm): 17 | Square K (mm): 13 | Square length Kl (mm): 16 | No. of flutes: 4
VSOM2225050 Thread size: M22x2.5 | Chamfer length: 5P | Limits: WH3 | Overall length L (mm): 115 | Thread length ℓ (mm): 38 | Shank dia. d (mm): 17 | Square K (mm): 13 | Square length Kl (mm): 16 | No. of flutes: 4
VSOM2415015 Thread size: M24x1.5 | Chamfer length: 1.5P | Limits: WH3 | Overall length L (mm): 120 | Thread length ℓ (mm): 45 | Shank dia. d (mm): 19 | Square K (mm): 15 | Square length Kl (mm): 18 | No. of flutes: 4
VSOM2415050 Thread size: M24x1.5 | Chamfer length: 5P | Limits: WH3 | Overall length L (mm): 120 | Thread length ℓ (mm): 45 | Shank dia. d (mm): 19 | Square K (mm): 15 | Square length Kl (mm): 18 | No. of flutes: 4
VSOM2420015 Thread size: M24x2.0 | Chamfer length: 1.5P | Limits: WH3 | Overall length L (mm): 120 | Thread length ℓ (mm): 45 | Shank dia. d (mm): 19 | Square K (mm): 15 | Square length Kl (mm): 18 | No. of flutes: 4
VSOM2420050 Thread size: M24x2.0 | Chamfer length: 5P | Limits: WH3 | Overall length L (mm): 120 | Thread length ℓ (mm): 45 | Shank dia. d (mm): 19 | Square K (mm): 15 | Square length Kl (mm): 18 | No. of flutes: 4
VSOM2430015 Thread size: M24x3.0 | Chamfer length: 1.5P | Limits: WH3 | Overall length L (mm): 120 | Thread length ℓ (mm): 45 | Shank dia. d (mm): 19 | Square K (mm): 15 | Square length Kl (mm): 18 | No. of flutes: 4
VSOM2430050 Thread size: M24x3.0 | Chamfer length: 5P | Limits: WH3 | Overall length L (mm): 120 | Thread length ℓ (mm): 45 | Shank dia. d (mm): 19 | Square K (mm): 15 | Square length Kl (mm): 18 | No. of flutes: 4
