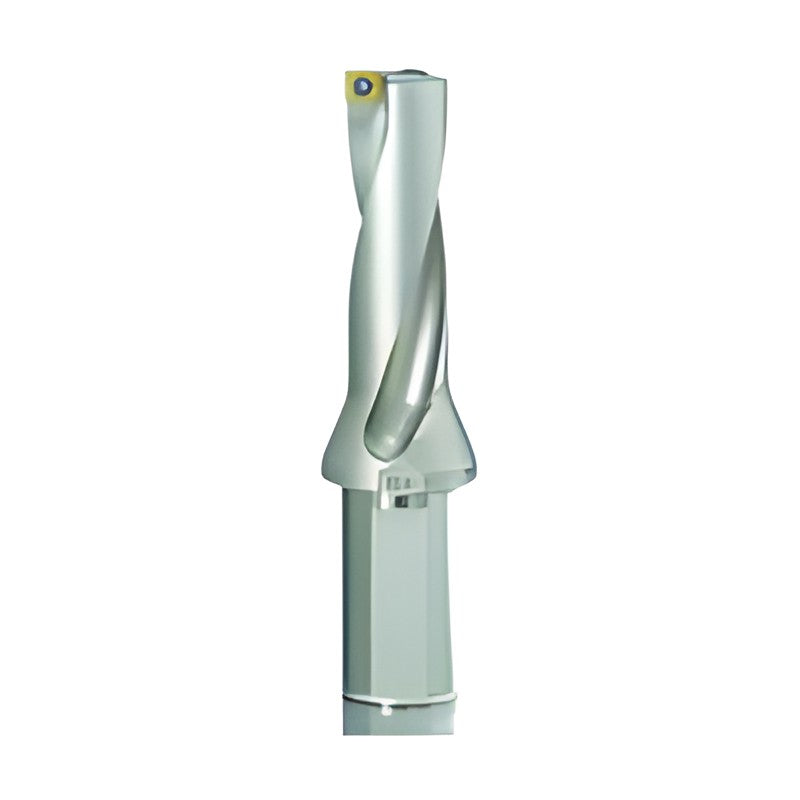

Korloy King Drill 2D Indexable Drill K2D

Korloy King Drill 2D Indexable Drill K2D

Indexable drill with optimized central and peripheral inserts for efficient drilling and chip control, with 2 coolant holes.

Key features

  • Separate central and peripheral inserts optimized for each position
  • Optimized flute shape increases body rigidity and chip evacuation
  • Through coolant with 2 coolant holes
  • Drilling diameter adjustable on lathes via X-axis offset
  • Insert screw and wrench listed per size

Specifications

Coolant Through coolant
Drill tolerance 0 ~ -0.15 mm
K2D12020-04 D (mm): 12.0 | Shank d1 (mm): 20 | d2 (mm): 25 | l1 (mm): 27 | l2 (mm): 50 | L (mm): 91 | Aspect ratio: 2D | Peripheral insert: SP□T040204-□□ | Central insert: XO□T040204-□□ | Screw: FTNA0204 | Wrench: TW06P
K2D12520-04 D (mm): 12.5 | Shank d1 (mm): 20 | d2 (mm): 25 | l1 (mm): 27 | l2 (mm): 50 | L (mm): 91 | Aspect ratio: 2D | Peripheral insert: SP□T040204-□□ | Central insert: XO□T040204-□□ | Screw: FTNA0204 | Wrench: TW06P
K2D13020-04 D (mm): 13.0 | Shank d1 (mm): 20 | d2 (mm): 25 | l1 (mm): 29 | l2 (mm): 50 | L (mm): 93 | Aspect ratio: 2D | Peripheral insert: SP□T040204-□□ | Central insert: XO□T040204-□□ | Screw: FTNA0204 | Wrench: TW06P
K2D13520-04 D (mm): 13.5 | Shank d1 (mm): 20 | d2 (mm): 25 | l1 (mm): 29 | l2 (mm): 50 | L (mm): 93 | Aspect ratio: 2D | Peripheral insert: SP□T040204-□□ | Central insert: XO□T040204-□□ | Screw: FTNA0204 | Wrench: TW06P
K2D14020-05 D (mm): 14.0 | Shank d1 (mm): 20 | d2 (mm): 25 | l1 (mm): 31 | l2 (mm): 50 | L (mm): 96 | Aspect ratio: 2D | Peripheral insert: SP□T050204-□□ | Central insert: XO□T050204-□□ | Screw: FTNA0204 | Wrench: TW06P
K2D14520-05 D (mm): 14.5 | Shank d1 (mm): 20 | d2 (mm): 25 | l1 (mm): 31 | l2 (mm): 50 | L (mm): 96 | Aspect ratio: 2D | Peripheral insert: SP□T050204-□□ | Central insert: XO□T050204-□□ | Screw: FTNA0204 | Wrench: TW06P
K2D15020-05 D (mm): 15.0 | Shank d1 (mm): 20 | d2 (mm): 25 | l1 (mm): 33 | l2 (mm): 50 | L (mm): 99 | Aspect ratio: 2D | Peripheral insert: SP□T050204-□□ | Central insert: XO□T050204-□□ | Screw: FTNA0204 | Wrench: TW06P
K2D15520-05 D (mm): 15.5 | Shank d1 (mm): 20 | d2 (mm): 25 | l1 (mm): 33 | l2 (mm): 50 | L (mm): 99 | Aspect ratio: 2D | Peripheral insert: SP□T050204-□□ | Central insert: XO□T050204-□□ | Screw: FTNA0204 | Wrench: TW06P
K2D16020-05 D (mm): 16.0 | Shank d1 (mm): 20 | d2 (mm): 25 | l1 (mm): 35 | l2 (mm): 50 | L (mm): 101 | Aspect ratio: 2D | Peripheral insert: SP□T050204-□□ | Central insert: XO□T050204-□□ | Screw: FTNA0204 | Wrench: TW06P
K2D16525-06 D (mm): 16.5 | Shank d1 (mm): 25 | d2 (mm): 34 | l1 (mm): 35 | l2 (mm): 56 | L (mm): 107 | Aspect ratio: 2D | Peripheral insert: SP□T060205-□□ | Central insert: XO□T060204-□□ | Screw: FTKA02206S | Wrench: TW07P
K2D17025-06 D (mm): 17.0 | Shank d1 (mm): 25 | d2 (mm): 34 | l1 (mm): 37 | l2 (mm): 56 | L (mm): 109 | Aspect ratio: 2D | Peripheral insert: SP□T060205-□□ | Central insert: XO□T060204-□□ | Screw: FTKA02206S | Wrench: TW07P
K2D17525-06 D (mm): 17.5 | Shank d1 (mm): 25 | d2 (mm): 34 | l1 (mm): 37 | l2 (mm): 56 | L (mm): 109 | Aspect ratio: 2D | Peripheral insert: SP□T060205-□□ | Central insert: XO□T060204-□□ | Screw: FTKA02206S | Wrench: TW07P
K2D18025-06 D (mm): 18.0 | Shank d1 (mm): 25 | d2 (mm): 34 | l1 (mm): 39 | l2 (mm): 56 | L (mm): 112 | Aspect ratio: 2D | Peripheral insert: SP□T060205-□□ | Central insert: XO□T060204-□□ | Screw: FTKA02206S | Wrench: TW07P
K2D18525-06 D (mm): 18.5 | Shank d1 (mm): 25 | d2 (mm): 34 | l1 (mm): 39 | l2 (mm): 56 | L (mm): 112 | Aspect ratio: 2D | Peripheral insert: SP□T060205-□□ | Central insert: XO□T060204-□□ | Screw: FTKA02206S | Wrench: TW07P
K2D19025-06 D (mm): 19.0 | Shank d1 (mm): 25 | d2 (mm): 34 | l1 (mm): 41 | l2 (mm): 56 | L (mm): 114 | Aspect ratio: 2D | Peripheral insert: SP□T060205-□□ | Central insert: XO□T060204-□□ | Screw: FTKA02206S | Wrench: TW07P
K2D19525-06 D (mm): 19.5 | Shank d1 (mm): 25 | d2 (mm): 34 | l1 (mm): 41 | l2 (mm): 56 | L (mm): 114 | Aspect ratio: 2D | Peripheral insert: SP□T060205-□□ | Central insert: XO□T060204-□□ | Screw: FTKA02206S | Wrench: TW07P
K2D20025-07 D (mm): 20.0 | Shank d1 (mm): 25 | d2 (mm): 34 | l1 (mm): 43 | l2 (mm): 56 | L (mm): 118 | Aspect ratio: 2D | Peripheral insert: SP□T07T208-□□ | Central insert: XO□T07T205-□□ | Screw: FTKA02565 | Wrench: TW07S
K2D20525-07 D (mm): 20.5 | Shank d1 (mm): 25 | d2 (mm): 34 | l1 (mm): 43 | l2 (mm): 56 | L (mm): 118 | Aspect ratio: 2D | Peripheral insert: SP□T07T208-□□ | Central insert: XO□T07T205-□□ | Screw: FTKA02565 | Wrench: TW07S
K2D21025-07 D (mm): 21.0 | Shank d1 (mm): 25 | d2 (mm): 34 | l1 (mm): 45 | l2 (mm): 56 | L (mm): 120 | Aspect ratio: 2D | Peripheral insert: SP□T07T208-□□ | Central insert: XO□T07T205-□□ | Screw: FTKA02565 | Wrench: TW07S
K2D21525-07 D (mm): 21.5 | Shank d1 (mm): 25 | d2 (mm): 34 | l1 (mm): 45 | l2 (mm): 56 | L (mm): 120 | Aspect ratio: 2D | Peripheral insert: SP□T07T208-□□ | Central insert: XO□T07T205-□□ | Screw: FTKA02565 | Wrench: TW07S
K2D22025-07 D (mm): 22.0 | Shank d1 (mm): 25 | d2 (mm): 34 | l1 (mm): 47 | l2 (mm): 56 | L (mm): 122 | Aspect ratio: 2D | Peripheral insert: SP□T07T208-□□ | Central insert: XO□T07T205-□□ | Screw: FTKA02565 | Wrench: TW07S
K2D22525-07 D (mm): 22.5 | Shank d1 (mm): 25 | d2 (mm): 34 | l1 (mm): 47 | l2 (mm): 56 | L (mm): 122 | Aspect ratio: 2D | Peripheral insert: SP□T07T208-□□ | Central insert: XO□T07T205-□□ | Screw: FTKA02565 | Wrench: TW07S
K2D23025-07 D (mm): 23.0 | Shank d1 (mm): 25 | d2 (mm): 34 | l1 (mm): 49 | l2 (mm): 56 | L (mm): 126 | Aspect ratio: 2D | Peripheral insert: SP□T07T208-□□ | Central insert: XO□T07T205-□□ | Screw: FTKA02565 | Wrench: TW07S
K2D23525-07 D (mm): 23.5 | Shank d1 (mm): 25 | d2 (mm): 34 | l1 (mm): 49 | l2 (mm): 56 | L (mm): 126 | Aspect ratio: 2D | Peripheral insert: SP□T07T208-□□ | Central insert: XO□T07T205-□□ | Screw: FTKA02565 | Wrench: TW07S
K2D24032-09 D (mm): 24.0 | Shank d1 (mm): 32 | d2 (mm): 44 | l1 (mm): 51 | l2 (mm): 60 | L (mm): 133 | Aspect ratio: 2D | Peripheral insert: SP□T090308-□□ | Central insert: XO□T090305-□□ | Screw: FTKA0307 | Wrench: TW09S
K2D24532-09 D (mm): 24.5 | Shank d1 (mm): 32 | d2 (mm): 44 | l1 (mm): 51 | l2 (mm): 60 | L (mm): 133 | Aspect ratio: 2D | Peripheral insert: SP□T090308-□□ | Central insert: XO□T090305-□□ | Screw: FTKA0307 | Wrench: TW09S
K2D25032-09 D (mm): 25.0 | Shank d1 (mm): 32 | d2 (mm): 44 | l1 (mm): 53 | l2 (mm): 60 | L (mm): 135 | Aspect ratio: 2D | Peripheral insert: SP□T090308-□□ | Central insert: XO□T090305-□□ | Screw: FTKA0307 | Wrench: TW09S
K2D25532-09 D (mm): 25.5 | Shank d1 (mm): 32 | d2 (mm): 44 | l1 (mm): 53 | l2 (mm): 60 | L (mm): 135 | Aspect ratio: 2D | Peripheral insert: SP□T090308-□□ | Central insert: XO□T090305-□□ | Screw: FTKA0307 | Wrench: TW09S
K2D26032-09 D (mm): 26.0 | Shank d1 (mm): 32 | d2 (mm): 44 | l1 (mm): 55 | l2 (mm): 60 | L (mm): 137 | Aspect ratio: 2D | Peripheral insert: SP□T090308-□□ | Central insert: XO□T090305-□□ | Screw: FTKA0307 | Wrench: TW09S
K2D26532-09 D (mm): 26.5 | Shank d1 (mm): 32 | d2 (mm): 44 | l1 (mm): 55 | l2 (mm): 60 | L (mm): 137 | Aspect ratio: 2D | Peripheral insert: SP□T090308-□□ | Central insert: XO□T090305-□□ | Screw: FTKA0307 | Wrench: TW09S
K2D27032-09 D (mm): 27.0 | Shank d1 (mm): 32 | d2 (mm): 44 | l1 (mm): 57 | l2 (mm): 60 | L (mm): 140 | Aspect ratio: 2D | Peripheral insert: SP□T090308-□□ | Central insert: XO□T090305-□□ | Screw: FTKA0307 | Wrench: TW09S
K2D27532-09 D (mm): 27.5 | Shank d1 (mm): 32 | d2 (mm): 44 | l1 (mm): 57 | l2 (mm): 60 | L (mm): 140 | Aspect ratio: 2D | Peripheral insert: SP□T090308-□□ | Central insert: XO□T090305-□□ | Screw: FTKA0307 | Wrench: TW09S
K2D28032-09 D (mm): 28.0 | Shank d1 (mm): 32 | d2 (mm): 44 | l1 (mm): 59 | l2 (mm): 60 | L (mm): 143 | Aspect ratio: 2D | Peripheral insert: SP□T090308-□□ | Central insert: XO□T090305-□□ | Screw: FTKA0307 | Wrench: TW09S
K2D28532-09 D (mm): 28.5 | Shank d1 (mm): 32 | d2 (mm): 44 | l1 (mm): 59 | l2 (mm): 60 | L (mm): 143 | Aspect ratio: 2D | Peripheral insert: SP□T090308-□□ | Central insert: XO□T090305-□□ | Screw: FTKA0307 | Wrench: TW09S
K2D29032-09 D (mm): 29.0 | Shank d1 (mm): 32 | d2 (mm): 44 | l1 (mm): 61 | l2 (mm): 60 | L (mm): 145 | Aspect ratio: 2D | Peripheral insert: SP□T090308-□□ | Central insert: XO□T090305-□□ | Screw: FTKA0307 | Wrench: TW09S
K2D29532-09 D (mm): 29.5 | Shank d1 (mm): 32 | d2 (mm): 44 | l1 (mm): 61 | l2 (mm): 60 | L (mm): 145 | Aspect ratio: 2D | Peripheral insert: SP□T090308-□□ | Central insert: XO□T090305-□□ | Screw: FTKA0307 | Wrench: TW09S
K2D30032-11 D (mm): 30.0 | Shank d1 (mm): 32 | d2 (mm): 44 | l1 (mm): 63 | l2 (mm): 60 | L (mm): 150 | Aspect ratio: 2D | Peripheral insert: SP□T11T308-□□ | Central insert: XO□T11T306-□□ | Screw: FTKA03508 | Wrench: TW15S
K2D30532-11 D (mm): 30.5 | Shank d1 (mm): 32 | d2 (mm): 44 | l1 (mm): 63 | l2 (mm): 60 | L (mm): 150 | Aspect ratio: 2D | Peripheral insert: SP□T11T308-□□ | Central insert: XO□T11T306-□□ | Screw: FTKA03508 | Wrench: TW15S
K2D31032-11 D (mm): 31.0 | Shank d1 (mm): 32 | d2 (mm): 44 | l1 (mm): 65 | l2 (mm): 60 | L (mm): 152 | Aspect ratio: 2D | Peripheral insert: SP□T11T308-□□ | Central insert: XO□T11T306-□□ | Screw: FTKA03508 | Wrench: TW15S
K2D31532-11 D (mm): 31.5 | Shank d1 (mm): 32 | d2 (mm): 44 | l1 (mm): 65 | l2 (mm): 60 | L (mm): 152 | Aspect ratio: 2D | Peripheral insert: SP□T11T308-□□ | Central insert: XO□T11T306-□□ | Screw: FTKA03508 | Wrench: TW15S
K2D32032-11 D (mm): 32.0 | Shank d1 (mm): 32 | d2 (mm): 44 | l1 (mm): 67 | l2 (mm): 60 | L (mm): 154 | Aspect ratio: 2D | Peripheral insert: SP□T11T308-□□ | Central insert: XO□T11T306-□□ | Screw: FTKA03508 | Wrench: TW15S
K2D32532-11 D (mm): 32.5 | Shank d1 (mm): 32 | d2 (mm): 44 | l1 (mm): 67 | l2 (mm): 60 | L (mm): 154 | Aspect ratio: 2D | Peripheral insert: SP□T11T308-□□ | Central insert: XO□T11T306-□□ | Screw: FTKA03508 | Wrench: TW15S
K2D33032-11 D (mm): 33.0 | Shank d1 (mm): 32 | d2 (mm): 44 | l1 (mm): 69 | l2 (mm): 60 | L (mm): 157 | Aspect ratio: 2D | Peripheral insert: SP□T11T308-□□ | Central insert: XO□T11T306-□□ | Screw: FTKA03508 | Wrench: TW15S
K2D33532-11 D (mm): 33.5 | Shank d1 (mm): 32 | d2 (mm): 44 | l1 (mm): 69 | l2 (mm): 60 | L (mm): 157 | Aspect ratio: 2D | Peripheral insert: SP□T11T308-□□ | Central insert: XO□T11T306-□□ | Screw: FTKA03508 | Wrench: TW15S
K2D34032-11 D (mm): 34.0 | Shank d1 (mm): 32 | d2 (mm): 44 | l1 (mm): 71 | l2 (mm): 60 | L (mm): 159 | Aspect ratio: 2D | Peripheral insert: SP□T11T308-□□ | Central insert: XO□T11T306-□□ | Screw: FTKA03508 | Wrench: TW15S
K2D34532-11 D (mm): 34.5 | Shank d1 (mm): 32 | d2 (mm): 44 | l1 (mm): 71 | l2 (mm): 60 | L (mm): 159 | Aspect ratio: 2D | Peripheral insert: SP□T11T308-□□ | Central insert: XO□T11T306-□□ | Screw: FTKA03508 | Wrench: TW15S
K2D35032-11 D (mm): 35.0 | Shank d1 (mm): 32 | d2 (mm): 44 | l1 (mm): 73 | l2 (mm): 60 | L (mm): 161 | Aspect ratio: 2D | Peripheral insert: SP□T11T308-□□ | Central insert: XO□T11T306-□□ | Screw: FTKA03508 | Wrench: TW15S
K2D35532-11 D (mm): 35.5 | Shank d1 (mm): 32 | d2 (mm): 44 | l1 (mm): 73 | l2 (mm): 60 | L (mm): 161 | Aspect ratio: 2D | Peripheral insert: SP□T11T308-□□ | Central insert: XO□T11T306-□□ | Screw: FTKA03508 | Wrench: TW15S
K2D36040-13 D (mm): 36.0 | Shank d1 (mm): 40 | d2 (mm): 48 | l1 (mm): 76 | l2 (mm): 70 | L (mm): 176 | Aspect ratio: 2D | Peripheral insert: SP□T130410-□□ | Central insert: XO□T130406-□□ | Screw: FTKA0410 | Wrench: TW15S
K2D36540-13 D (mm): 36.5 | Shank d1 (mm): 40 | d2 (mm): 48 | l1 (mm): 76 | l2 (mm): 70 | L (mm): 176 | Aspect ratio: 2D | Peripheral insert: SP□T130410-□□ | Central insert: XO□T130406-□□ | Screw: FTKA0410 | Wrench: TW15S
K2D37040-13 D (mm): 37.0 | Shank d1 (mm): 40 | d2 (mm): 48 | l1 (mm): 78 | l2 (mm): 70 | L (mm): 178 | Aspect ratio: 2D | Peripheral insert: SP□T130410-□□ | Central insert: XO□T130406-□□ | Screw: FTKA0410 | Wrench: TW15S
K2D37540-13 D (mm): 37.5 | Shank d1 (mm): 40 | d2 (mm): 48 | l1 (mm): 78 | l2 (mm): 70 | L (mm): 178 | Aspect ratio: 2D | Peripheral insert: SP□T130410-□□ | Central insert: XO□T130406-□□ | Screw: FTKA0410 | Wrench: TW15S
K2D38040-13 D (mm): 38.0 | Shank d1 (mm): 40 | d2 (mm): 48 | l1 (mm): 80 | l2 (mm): 70 | L (mm): 181 | Aspect ratio: 2D | Peripheral insert: SP□T130410-□□ | Central insert: XO□T130406-□□ | Screw: FTKA0410 | Wrench: TW15S
K2D38540-13 D (mm): 38.5 | Shank d1 (mm): 40 | d2 (mm): 48 | l1 (mm): 80 | l2 (mm): 70 | L (mm): 181 | Aspect ratio: 2D | Peripheral insert: SP□T130410-□□ | Central insert: XO□T130406-□□ | Screw: FTKA0410 | Wrench: TW15S
K2D39040-13 D (mm): 39.0 | Shank d1 (mm): 40 | d2 (mm): 48 | l1 (mm): 82 | l2 (mm): 70 | L (mm): 183 | Aspect ratio: 2D | Peripheral insert: SP□T130410-□□ | Central insert: XO□T130406-□□ | Screw: FTKA0410 | Wrench: TW15S
K2D39540-13 D (mm): 39.5 | Shank d1 (mm): 40 | d2 (mm): 48 | l1 (mm): 82 | l2 (mm): 70 | L (mm): 183 | Aspect ratio: 2D | Peripheral insert: SP□T130410-□□ | Central insert: XO□T130406-□□ | Screw: FTKA0410 | Wrench: TW15S
K2D40040-13 D (mm): 40.0 | Shank d1 (mm): 40 | d2 (mm): 48 | l1 (mm): 84 | l2 (mm): 70 | L (mm): 186 | Aspect ratio: 2D | Peripheral insert: SP□T130410-□□ | Central insert: XO□T130406-□□ | Screw: FTKA0410 | Wrench: TW15S
K2D40540-13 D (mm): 40.5 | Shank d1 (mm): 40 | d2 (mm): 48 | l1 (mm): 84 | l2 (mm): 70 | L (mm): 186 | Aspect ratio: 2D | Peripheral insert: SP□T130410-□□ | Central insert: XO□T130406-□□ | Screw: FTKA0410 | Wrench: TW15S
K2D41040-13 D (mm): 41.0 | Shank d1 (mm): 40 | d2 (mm): 48 | l1 (mm): 86 | l2 (mm): 70 | L (mm): 188 | Aspect ratio: 2D | Peripheral insert: SP□T130410-□□ | Central insert: XO□T130406-□□ | Screw: FTKA0410 | Wrench: TW15S
K2D41540-13 D (mm): 41.5 | Shank d1 (mm): 40 | d2 (mm): 48 | l1 (mm): 86 | l2 (mm): 70 | L (mm): 188 | Aspect ratio: 2D | Peripheral insert: SP□T130410-□□ | Central insert: XO□T130406-□□ | Screw: FTKA0410 | Wrench: TW15S
K2D42040-13 D (mm): 42.0 | Shank d1 (mm): 40 | d2 (mm): 48 | l1 (mm): 88 | l2 (mm): 70 | L (mm): 191 | Aspect ratio: 2D | Peripheral insert: SP□T130410-□□ | Central insert: XO□T130406-□□ | Screw: FTKA0410 | Wrench: TW15S
K2D42540-13 D (mm): 42.5 | Shank d1 (mm): 40 | d2 (mm): 48 | l1 (mm): 88 | l2 (mm): 70 | L (mm): 191 | Aspect ratio: 2D | Peripheral insert: SP□T130410-□□ | Central insert: XO□T130406-□□ | Screw: FTKA0410 | Wrench: TW15S
K2D43040-15 D (mm): 43.0 | Shank d1 (mm): 40 | d2 (mm): 58 | l1 (mm): 91 | l2 (mm): 70 | L (mm): 196 | Aspect ratio: 2D | Peripheral insert: SP□T15M510-□□ | Central insert: XO□T15M508-□□ | Screw: FTNC04511 | Wrench: TW20S
K2D43540-15 D (mm): 43.5 | Shank d1 (mm): 40 | d2 (mm): 58 | l1 (mm): 91 | l2 (mm): 70 | L (mm): 196 | Aspect ratio: 2D | Peripheral insert: SP□T15M510-□□ | Central insert: XO□T15M508-□□ | Screw: FTNC04511 | Wrench: TW20S
K2D44040-15 D (mm): 44.0 | Shank d1 (mm): 40 | d2 (mm): 58 | l1 (mm): 93 | l2 (mm): 70 | L (mm): 198 | Aspect ratio: 2D | Peripheral insert: SP□T15M510-□□ | Central insert: XO□T15M508-□□ | Screw: FTNC04511 | Wrench: TW20S
K2D44540-15 D (mm): 44.5 | Shank d1 (mm): 40 | d2 (mm): 58 | l1 (mm): 93 | l2 (mm): 70 | L (mm): 198 | Aspect ratio: 2D | Peripheral insert: SP□T15M510-□□ | Central insert: XO□T15M508-□□ | Screw: FTNC04511 | Wrench: TW20S
K2D45040-15 D (mm): 45.0 | Shank d1 (mm): 40 | d2 (mm): 58 | l1 (mm): 95 | l2 (mm): 70 | L (mm): 201 | Aspect ratio: 2D | Peripheral insert: SP□T15M510-□□ | Central insert: XO□T15M508-□□ | Screw: FTNC04511 | Wrench: TW20S
K2D45540-15 D (mm): 45.5 | Shank d1 (mm): 40 | d2 (mm): 58 | l1 (mm): 95 | l2 (mm): 70 | L (mm): 201 | Aspect ratio: 2D | Peripheral insert: SP□T15M510-□□ | Central insert: XO□T15M508-□□ | Screw: FTNC04511 | Wrench: TW20S
K2D46040-15 D (mm): 46.0 | Shank d1 (mm): 40 | d2 (mm): 58 | l1 (mm): 97 | l2 (mm): 70 | L (mm): 203 | Aspect ratio: 2D | Peripheral insert: SP□T15M510-□□ | Central insert: XO□T15M508-□□ | Screw: FTNC04511 | Wrench: TW20S
K2D46540-15 D (mm): 46.5 | Shank d1 (mm): 40 | d2 (mm): 58 | l1 (mm): 97 | l2 (mm): 70 | L (mm): 203 | Aspect ratio: 2D | Peripheral insert: SP□T15M510-□□ | Central insert: XO□T15M508-□□ | Screw: FTNC04511 | Wrench: TW20S
K2D47040-15 D (mm): 47.0 | Shank d1 (mm): 40 | d2 (mm): 58 | l1 (mm): 99 | l2 (mm): 70 | L (mm): 206 | Aspect ratio: 2D | Peripheral insert: SP□T15M510-□□ | Central insert: XO□T15M508-□□ | Screw: FTNC04511 | Wrench: TW20S
K2D47540-15 D (mm): 47.5 | Shank d1 (mm): 40 | d2 (mm): 58 | l1 (mm): 99 | l2 (mm): 70 | L (mm): 206 | Aspect ratio: 2D | Peripheral insert: SP□T15M510-□□ | Central insert: XO□T15M508-□□ | Screw: FTNC04511 | Wrench: TW20S
K2D48040-15 D (mm): 48.0 | Shank d1 (mm): 40 | d2 (mm): 58 | l1 (mm): 101 | l2 (mm): 70 | L (mm): 208 | Aspect ratio: 2D | Peripheral insert: SP□T15M510-□□ | Central insert: XO□T15M508-□□ | Screw: FTNC04511 | Wrench: TW20S
K2D48540-15 D (mm): 48.5 | Shank d1 (mm): 40 | d2 (mm): 58 | l1 (mm): 101 | l2 (mm): 70 | L (mm): 208 | Aspect ratio: 2D | Peripheral insert: SP□T15M510-□□ | Central insert: XO□T15M508-□□ | Screw: FTNC04511 | Wrench: TW20S
K2D49040-15 D (mm): 49.0 | Shank d1 (mm): 40 | d2 (mm): 58 | l1 (mm): 103 | l2 (mm): 70 | L (mm): 210 | Aspect ratio: 2D | Peripheral insert: SP□T15M510-□□ | Central insert: XO□T15M508-□□ | Screw: FTNC04511 | Wrench: TW20S
K2D49540-15 D (mm): 49.5 | Shank d1 (mm): 40 | d2 (mm): 58 | l1 (mm): 103 | l2 (mm): 70 | L (mm): 210 | Aspect ratio: 2D | Peripheral insert: SP□T15M510-□□ | Central insert: XO□T15M508-□□ | Screw: FTNC04511 | Wrench: TW20S
K2D50040-15 D (mm): 50.0 | Shank d1 (mm): 40 | d2 (mm): 58 | l1 (mm): 105 | l2 (mm): 70 | L (mm): 212 | Aspect ratio: 2D | Peripheral insert: SP□T15M510-□□ | Central insert: XO□T15M508-□□ | Screw: FTNC04511 | Wrench: TW20S
K2D50540-15 D (mm): 50.5 | Shank d1 (mm): 40 | d2 (mm): 58 | l1 (mm): 105 | l2 (mm): 70 | L (mm): 212 | Aspect ratio: 2D | Peripheral insert: SP□T15M510-□□ | Central insert: XO□T15M508-□□ | Screw: FTNC04511 | Wrench: TW20S
K2D51040-18 D (mm): 51.0 | Shank d1 (mm): 40 | d2 (mm): 68 | l1 (mm): 108 | l2 (mm): 70 | L (mm): 218 | Aspect ratio: 2D | Peripheral insert: SP□T180510-□□ | Central insert: XO□T180508-□□ | Screw: FTNA0511 | Wrench: TW20-100
K2D51540-18 D (mm): 51.5 | Shank d1 (mm): 40 | d2 (mm): 68 | l1 (mm): 108 | l2 (mm): 70 | L (mm): 218 | Aspect ratio: 2D | Peripheral insert: SP□T180510-□□ | Central insert: XO□T180508-□□ | Screw: FTNA0511 | Wrench: TW20-100
K2D52040-18 D (mm): 52.0 | Shank d1 (mm): 40 | d2 (mm): 68 | l1 (mm): 110 | l2 (mm): 70 | L (mm): 220 | Aspect ratio: 2D | Peripheral insert: SP□T180510-□□ | Central insert: XO□T180508-□□ | Screw: FTNA0511 | Wrench: TW20-100
K2D52540-18 D (mm): 52.5 | Shank d1 (mm): 40 | d2 (mm): 68 | l1 (mm): 110 | l2 (mm): 70 | L (mm): 220 | Aspect ratio: 2D | Peripheral insert: SP□T180510-□□ | Central insert: XO□T180508-□□ | Screw: FTNA0511 | Wrench: TW20-100
K2D53040-18 D (mm): 53.0 | Shank d1 (mm): 40 | d2 (mm): 68 | l1 (mm): 112 | l2 (mm): 70 | L (mm): 222 | Aspect ratio: 2D | Peripheral insert: SP□T180510-□□ | Central insert: XO□T180508-□□ | Screw: FTNA0511 | Wrench: TW20-100
K2D53540-18 D (mm): 53.5 | Shank d1 (mm): 40 | d2 (mm): 68 | l1 (mm): 112 | l2 (mm): 70 | L (mm): 222 | Aspect ratio: 2D | Peripheral insert: SP□T180510-□□ | Central insert: XO□T180508-□□ | Screw: FTNA0511 | Wrench: TW20-100
K2D54040-18 D (mm): 54.0 | Shank d1 (mm): 40 | d2 (mm): 68 | l1 (mm): 114 | l2 (mm): 70 | L (mm): 224 | Aspect ratio: 2D | Peripheral insert: SP□T180510-□□ | Central insert: XO□T180508-□□ | Screw: FTNA0511 | Wrench: TW20-100
K2D54540-18 D (mm): 54.5 | Shank d1 (mm): 40 | d2 (mm): 68 | l1 (mm): 114 | l2 (mm): 70 | L (mm): 224 | Aspect ratio: 2D | Peripheral insert: SP□T180510-□□ | Central insert: XO□T180508-□□ | Screw: FTNA0511 | Wrench: TW20-100
K2D55040-18 D (mm): 55.0 | Shank d1 (mm): 40 | d2 (mm): 68 | l1 (mm): 116 | l2 (mm): 70 | L (mm): 226 | Aspect ratio: 2D | Peripheral insert: SP□T180510-□□ | Central insert: XO□T180508-□□ | Screw: FTNA0511 | Wrench: TW20-100
K2D55540-18 D (mm): 55.5 | Shank d1 (mm): 40 | d2 (mm): 68 | l1 (mm): 116 | l2 (mm): 70 | L (mm): 226 | Aspect ratio: 2D | Peripheral insert: SP□T180510-□□ | Central insert: XO□T180508-□□ | Screw: FTNA0511 | Wrench: TW20-100
K2D56040-18 D (mm): 56.0 | Shank d1 (mm): 40 | d2 (mm): 68 | l1 (mm): 118 | l2 (mm): 70 | L (mm): 230 | Aspect ratio: 2D | Peripheral insert: SP□T180510-□□ | Central insert: XO□T180508-□□ | Screw: FTNA0511 | Wrench: TW20-100
K2D56540-18 D (mm): 56.5 | Shank d1 (mm): 40 | d2 (mm): 68 | l1 (mm): 118 | l2 (mm): 70 | L (mm): 230 | Aspect ratio: 2D | Peripheral insert: SP□T180510-□□ | Central insert: XO□T180508-□□ | Screw: FTNA0511 | Wrench: TW20-100
K2D57040-18 D (mm): 57.0 | Shank d1 (mm): 40 | d2 (mm): 68 | l1 (mm): 121 | l2 (mm): 70 | L (mm): 233 | Aspect ratio: 2D | Peripheral insert: SP□T180510-□□ | Central insert: XO□T180508-□□ | Screw: FTNA0511 | Wrench: TW20-100
K2D57540-18 D (mm): 57.5 | Shank d1 (mm): 40 | d2 (mm): 68 | l1 (mm): 121 | l2 (mm): 70 | L (mm): 233 | Aspect ratio: 2D | Peripheral insert: SP□T180510-□□ | Central insert: XO□T180508-□□ | Screw: FTNA0511 | Wrench: TW20-100
K2D58040-18 D (mm): 58.0 | Shank d1 (mm): 40 | d2 (mm): 68 | l1 (mm): 124 | l2 (mm): 70 | L (mm): 236 | Aspect ratio: 2D | Peripheral insert: SP□T180510-□□ | Central insert: XO□T180508-□□ | Screw: FTNA0511 | Wrench: TW20-100
K2D58540-18 D (mm): 58.5 | Shank d1 (mm): 40 | d2 (mm): 68 | l1 (mm): 124 | l2 (mm): 70 | L (mm): 236 | Aspect ratio: 2D | Peripheral insert: SP□T180510-□□ | Central insert: XO□T180508-□□ | Screw: FTNA0511 | Wrench: TW20-100
K2D59040-18 D (mm): 59.0 | Shank d1 (mm): 40 | d2 (mm): 68 | l1 (mm): 127 | l2 (mm): 70 | L (mm): 239 | Aspect ratio: 2D | Peripheral insert: SP□T180510-□□ | Central insert: XO□T180508-□□ | Screw: FTNA0511 | Wrench: TW20-100
K2D59540-18 D (mm): 59.5 | Shank d1 (mm): 40 | d2 (mm): 68 | l1 (mm): 127 | l2 (mm): 70 | L (mm): 239 | Aspect ratio: 2D | Peripheral insert: SP□T180510-□□ | Central insert: XO□T180508-□□ | Screw: FTNA0511 | Wrench: TW20-100
K2D60040-18 D (mm): 60.0 | Shank d1 (mm): 40 | d2 (mm): 68 | l1 (mm): 130 | l2 (mm): 70 | L (mm): 242 | Aspect ratio: 2D | Peripheral insert: SP□T180510-□□ | Central insert: XO□T180508-□□ | Screw: FTNA0511 | Wrench: TW20-100
K2D60540-18 D (mm): 60.5 | Shank d1 (mm): 40 | d2 (mm): 68 | l1 (mm): 130 | l2 (mm): 70 | L (mm): 242 | Aspect ratio: 2D | Peripheral insert: SP□T180510-□□ | Central insert: XO□T180508-□□ | Screw: FTNA0511 | Wrench: TW20-100
