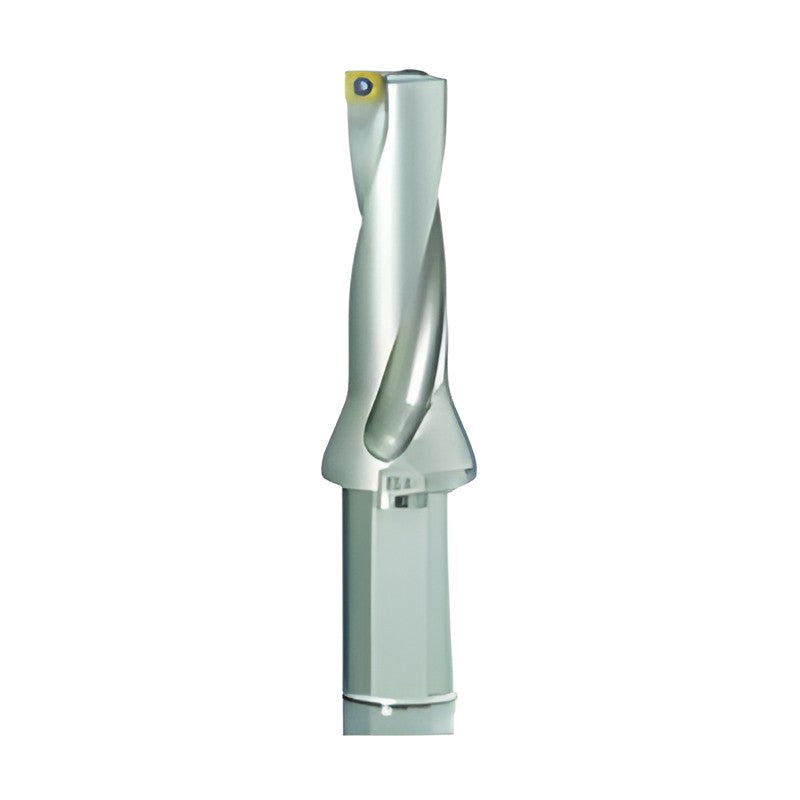

Korloy King Drill 3D Indexable Drill K3D

Korloy King Drill 3D Indexable Drill K3D

Indexable drill with optimized central and peripheral inserts for efficient drilling and chip control, with 2 coolant holes.

Key features

  • Separate central and peripheral inserts optimized for each position
  • Optimized flute shape increases body rigidity and chip evacuation
  • Through coolant with 2 coolant holes
  • Drilling diameter adjustable on lathes via X-axis offset
  • Insert screw and wrench listed per size

Specifications

Coolant Through coolant
Drill tolerance 0 ~ -0.15 mm
K3D12020-04 D (mm): 12.0 | Shank d1 (mm): 20 | d2 (mm): 25 | l1 (mm): 39 | l2 (mm): 50 | L (mm): 103 | Aspect ratio: 3D | Peripheral insert: SP□T040204-□□ | Central insert: XO□T040204-□□ | Screw: FTNA0204 | Wrench: TW06P | Tap drill for: M14 x 2.0
K3D12220-04 D (mm): 12.2 | Shank d1 (mm): 20 | d2 (mm): 25 | l1 (mm): 39 | l2 (mm): 50 | L (mm): 103 | Aspect ratio: 3D | Peripheral insert: SP□T040204-□□ | Central insert: XO□T040204-□□ | Screw: FTNA0204 | Wrench: TW06P | Tap drill for: 9/16-12 UNC
K3D12520-04 D (mm): 12.5 | Shank d1 (mm): 20 | d2 (mm): 25 | l1 (mm): 39 | l2 (mm): 50 | L (mm): 103 | Aspect ratio: 3D | Peripheral insert: SP□T040204-□□ | Central insert: XO□T040204-□□ | Screw: FTNA0204 | Wrench: TW06P
K3D12920-04 D (mm): 12.9 | Shank d1 (mm): 20 | d2 (mm): 25 | l1 (mm): 42 | l2 (mm): 50 | L (mm): 106 | Aspect ratio: 3D | Peripheral insert: SP□T040204-□□ | Central insert: XO□T040204-□□ | Screw: FTNA0204 | Wrench: TW06P | Tap drill for: 9/16-18 UNF
K3D13020-04 D (mm): 13.0 | Shank d1 (mm): 20 | d2 (mm): 25 | l1 (mm): 42 | l2 (mm): 50 | L (mm): 106 | Aspect ratio: 3D | Peripheral insert: SP□T040204-□□ | Central insert: XO□T040204-□□ | Screw: FTNA0204 | Wrench: TW06P
K3D13520-04 D (mm): 13.5 | Shank d1 (mm): 20 | d2 (mm): 25 | l1 (mm): 42 | l2 (mm): 50 | L (mm): 106 | Aspect ratio: 3D | Peripheral insert: SP□T040204-□□ | Central insert: XO□T040204-□□ | Screw: FTNA0204 | Wrench: TW06P | Tap drill for: 5/8-11 UNC
K3D14020-05 D (mm): 14.0 | Shank d1 (mm): 20 | d2 (mm): 25 | l1 (mm): 45 | l2 (mm): 50 | L (mm): 110 | Aspect ratio: 3D | Peripheral insert: SP□T050204-□□ | Central insert: XO□T050204-□□ | Screw: FTNA0204 | Wrench: TW06P | Tap drill for: M16 x 2.0
K3D14520-05 D (mm): 14.5 | Shank d1 (mm): 20 | d2 (mm): 25 | l1 (mm): 45 | l2 (mm): 50 | L (mm): 110 | Aspect ratio: 3D | Peripheral insert: SP□T050204-□□ | Central insert: XO□T050204-□□ | Screw: FTNA0204 | Wrench: TW06P | Tap drill for: 5/8-18 UNF
K3D15020-05 D (mm): 15.0 | Shank d1 (mm): 20 | d2 (mm): 25 | l1 (mm): 48 | l2 (mm): 50 | L (mm): 114 | Aspect ratio: 3D | Peripheral insert: SP□T050204-□□ | Central insert: XO□T050204-□□ | Screw: FTNA0204 | Wrench: TW06P
K3D15520-05 D (mm): 15.5 | Shank d1 (mm): 20 | d2 (mm): 25 | l1 (mm): 48 | l2 (mm): 50 | L (mm): 114 | Aspect ratio: 3D | Peripheral insert: SP□T050204-□□ | Central insert: XO□T050204-□□ | Screw: FTNA0204 | Wrench: TW06P | Tap drill for: M18 x 2.5
K3D16020-05 D (mm): 16.0 | Shank d1 (mm): 20 | d2 (mm): 25 | l1 (mm): 51 | l2 (mm): 50 | L (mm): 117 | Aspect ratio: 3D | Peripheral insert: SP□T050204-□□ | Central insert: XO□T050204-□□ | Screw: FTNA0204 | Wrench: TW06P
K3D16525-06 D (mm): 16.5 | Shank d1 (mm): 25 | d2 (mm): 34 | l1 (mm): 51 | l2 (mm): 56 | L (mm): 123 | Aspect ratio: 3D | Peripheral insert: SP□T060205-□□ | Central insert: XO□T060204-□□ | Screw: FTKA02206S | Wrench: TW07P | Tap drill for: 3/4-10 UNC
K3D17025-06 D (mm): 17.0 | Shank d1 (mm): 25 | d2 (mm): 34 | l1 (mm): 54 | l2 (mm): 56 | L (mm): 126 | Aspect ratio: 3D | Peripheral insert: SP□T060205-□□ | Central insert: XO□T060204-□□ | Screw: FTKA02206S | Wrench: TW07P
K3D17525-06 D (mm): 17.5 | Shank d1 (mm): 25 | d2 (mm): 34 | l1 (mm): 54 | l2 (mm): 56 | L (mm): 126 | Aspect ratio: 3D | Peripheral insert: SP□T060205-□□ | Central insert: XO□T060204-□□ | Screw: FTKA02206S | Wrench: TW07P | Tap drill for: 3/4-16 UNF
K3D18025-06 D (mm): 18.0 | Shank d1 (mm): 25 | d2 (mm): 34 | l1 (mm): 57 | l2 (mm): 56 | L (mm): 130 | Aspect ratio: 3D | Peripheral insert: SP□T060205-□□ | Central insert: XO□T060204-□□ | Screw: FTKA02206S | Wrench: TW07P
K3D18525-06 D (mm): 18.5 | Shank d1 (mm): 25 | d2 (mm): 34 | l1 (mm): 57 | l2 (mm): 56 | L (mm): 130 | Aspect ratio: 3D | Peripheral insert: SP□T060205-□□ | Central insert: XO□T060204-□□ | Screw: FTKA02206S | Wrench: TW07P
K3D19025-06 D (mm): 19.0 | Shank d1 (mm): 25 | d2 (mm): 34 | l1 (mm): 60 | l2 (mm): 56 | L (mm): 133 | Aspect ratio: 3D | Peripheral insert: SP□T060205-□□ | Central insert: XO□T060204-□□ | Screw: FTKA02206S | Wrench: TW07P
K3D19525-06 D (mm): 19.5 | Shank d1 (mm): 25 | d2 (mm): 34 | l1 (mm): 60 | l2 (mm): 56 | L (mm): 133 | Aspect ratio: 3D | Peripheral insert: SP□T060205-□□ | Central insert: XO□T060204-□□ | Screw: FTKA02206S | Wrench: TW07P | Tap drill for: 7/8-9 UNC
K3D20025-07 D (mm): 20.0 | Shank d1 (mm): 25 | d2 (mm): 34 | l1 (mm): 63 | l2 (mm): 56 | L (mm): 138 | Aspect ratio: 3D | Peripheral insert: SP□T07T208-□□ | Central insert: XO□T07T205-□□ | Screw: FTKA02565 | Wrench: TW07S
K3D20525-07 D (mm): 20.5 | Shank d1 (mm): 25 | d2 (mm): 34 | l1 (mm): 63 | l2 (mm): 56 | L (mm): 138 | Aspect ratio: 3D | Peripheral insert: SP□T07T208-□□ | Central insert: XO□T07T205-□□ | Screw: FTKA02565 | Wrench: TW07S
K3D21025-07 D (mm): 21.0 | Shank d1 (mm): 25 | d2 (mm): 34 | l1 (mm): 66 | l2 (mm): 56 | L (mm): 141 | Aspect ratio: 3D | Peripheral insert: SP□T07T208-□□ | Central insert: XO□T07T205-□□ | Screw: FTKA02565 | Wrench: TW07S | Tap drill for: M24 x 3.0
K3D21525-07 D (mm): 21.5 | Shank d1 (mm): 25 | d2 (mm): 34 | l1 (mm): 66 | l2 (mm): 56 | L (mm): 141 | Aspect ratio: 3D | Peripheral insert: SP□T07T208-□□ | Central insert: XO□T07T205-□□ | Screw: FTKA02565 | Wrench: TW07S
K3D22025-07 D (mm): 22.0 | Shank d1 (mm): 25 | d2 (mm): 34 | l1 (mm): 69 | l2 (mm): 56 | L (mm): 144 | Aspect ratio: 3D | Peripheral insert: SP□T07T208-□□ | Central insert: XO□T07T205-□□ | Screw: FTKA02565 | Wrench: TW07S
K3D22525-07 D (mm): 22.5 | Shank d1 (mm): 25 | d2 (mm): 34 | l1 (mm): 69 | l2 (mm): 56 | L (mm): 144 | Aspect ratio: 3D | Peripheral insert: SP□T07T208-□□ | Central insert: XO□T07T205-□□ | Screw: FTKA02565 | Wrench: TW07S
K3D23025-07 D (mm): 23 | Shank d1 (mm): 25 | d2 (mm): 34 | l1 (mm): 72 | l2 (mm): 56 | L (mm): 149 | Aspect ratio: 3D | Peripheral insert: SP□T07T208-□□ | Central insert: XO□T07T205-□□ | Screw: FTKA02565 | Wrench: TW07S
K3D23525-07 D (mm): 23.5 | Shank d1 (mm): 25 | d2 (mm): 34 | l1 (mm): 72 | l2 (mm): 56 | L (mm): 149 | Aspect ratio: 3D | Peripheral insert: SP□T07T208-□□ | Central insert: XO□T07T205-□□ | Screw: FTKA02565 | Wrench: TW07S
K3D24032-09 D (mm): 24.0 | Shank d1 (mm): 32 | d2 (mm): 44 | l1 (mm): 75 | l2 (mm): 60 | L (mm): 157 | Aspect ratio: 3D | Peripheral insert: SP□T090308-□□ | Central insert: XO□T090305-□□ | Screw: FTKA0307 | Wrench: TW09S | Tap drill for: M27 x 3.0
K3D24532-09 D (mm): 24.5 | Shank d1 (mm): 32 | d2 (mm): 44 | l1 (mm): 75 | l2 (mm): 60 | L (mm): 157 | Aspect ratio: 3D | Peripheral insert: SP□T090308-□□ | Central insert: XO□T090305-□□ | Screw: FTKA0307 | Wrench: TW09S
K3D25032-09 D (mm): 25.0 | Shank d1 (mm): 32 | d2 (mm): 44 | l1 (mm): 78 | l2 (mm): 60 | L (mm): 160 | Aspect ratio: 3D | Peripheral insert: SP□T090308-□□ | Central insert: XO□T090305-□□ | Screw: FTKA0307 | Wrench: TW09S
K3D25532-09 D (mm): 25.5 | Shank d1 (mm): 32 | d2 (mm): 44 | l1 (mm): 78 | l2 (mm): 60 | L (mm): 160 | Aspect ratio: 3D | Peripheral insert: SP□T090308-□□ | Central insert: XO□T090305-□□ | Screw: FTKA0307 | Wrench: TW09S
K3D26032-09 D (mm): 26.0 | Shank d1 (mm): 32 | d2 (mm): 44 | l1 (mm): 81 | l2 (mm): 60 | L (mm): 163 | Aspect ratio: 3D | Peripheral insert: SP□T090308-□□ | Central insert: XO□T090305-□□ | Screw: FTKA0307 | Wrench: TW09S
K3D26532-09 D (mm): 26.5 | Shank d1 (mm): 32 | d2 (mm): 44 | l1 (mm): 81 | l2 (mm): 60 | L (mm): 163 | Aspect ratio: 3D | Peripheral insert: SP□T090308-□□ | Central insert: XO□T090305-□□ | Screw: FTKA0307 | Wrench: TW09S | Tap drill for: M30 x 3.5
K3D27032-09 D (mm): 27.0 | Shank d1 (mm): 32 | d2 (mm): 44 | l1 (mm): 84 | l2 (mm): 60 | L (mm): 167 | Aspect ratio: 3D | Peripheral insert: SP□T090308-□□ | Central insert: XO□T090305-□□ | Screw: FTKA0307 | Wrench: TW09S
K3D27532-09 D (mm): 27.5 | Shank d1 (mm): 32 | d2 (mm): 44 | l1 (mm): 84 | l2 (mm): 60 | L (mm): 167 | Aspect ratio: 3D | Peripheral insert: SP□T090308-□□ | Central insert: XO□T090305-□□ | Screw: FTKA0307 | Wrench: TW09S
K3D28032-09 D (mm): 28.0 | Shank d1 (mm): 32 | d2 (mm): 44 | l1 (mm): 87 | l2 (mm): 60 | L (mm): 171 | Aspect ratio: 3D | Peripheral insert: SP□T090308-□□ | Central insert: XO□T090305-□□ | Screw: FTKA0307 | Wrench: TW09S
K3D28532-09 D (mm): 28.5 | Shank d1 (mm): 32 | d2 (mm): 44 | l1 (mm): 87 | l2 (mm): 60 | L (mm): 171 | Aspect ratio: 3D | Peripheral insert: SP□T090308-□□ | Central insert: XO□T090305-□□ | Screw: FTKA0307 | Wrench: TW09S
K3D29032-09 D (mm): 29.0 | Shank d1 (mm): 32 | d2 (mm): 44 | l1 (mm): 90 | l2 (mm): 60 | L (mm): 174 | Aspect ratio: 3D | Peripheral insert: SP□T090308-□□ | Central insert: XO□T090305-□□ | Screw: FTKA0307 | Wrench: TW09S | Tap drill for: M33 x 4.0
K3D29532-09 D (mm): 29.5 | Shank d1 (mm): 32 | d2 (mm): 44 | l1 (mm): 90 | l2 (mm): 60 | L (mm): 174 | Aspect ratio: 3D | Peripheral insert: SP□T090308-□□ | Central insert: XO□T090305-□□ | Screw: FTKA0307 | Wrench: TW09S
K3D30032-11 D (mm): 30.0 | Shank d1 (mm): 32 | d2 (mm): 44 | l1 (mm): 93 | l2 (mm): 60 | L (mm): 180 | Aspect ratio: 3D | Peripheral insert: SP□T11T308-□□ | Central insert: XO□T11T306-□□ | Screw: FTKA03508 | Wrench: TW15S | Tap drill size: Yes
K3D30532-11 D (mm): 30.5 | Shank d1 (mm): 32 | d2 (mm): 44 | l1 (mm): 93 | l2 (mm): 60 | L (mm): 180 | Aspect ratio: 3D | Peripheral insert: SP□T11T308-□□ | Central insert: XO□T11T306-□□ | Screw: FTKA03508 | Wrench: TW15S
K3D31032-11 D (mm): 31.0 | Shank d1 (mm): 32 | d2 (mm): 44 | l1 (mm): 96 | l2 (mm): 60 | L (mm): 183 | Aspect ratio: 3D | Peripheral insert: SP□T11T308-□□ | Central insert: XO□T11T306-□□ | Screw: FTKA03508 | Wrench: TW15S
K3D31532-11 D (mm): 31.5 | Shank d1 (mm): 32 | d2 (mm): 44 | l1 (mm): 96 | l2 (mm): 60 | L (mm): 183 | Aspect ratio: 3D | Peripheral insert: SP□T11T308-□□ | Central insert: XO□T11T306-□□ | Screw: FTKA03508 | Wrench: TW15S
K3D32032-11 D (mm): 32.0 | Shank d1 (mm): 32 | d2 (mm): 44 | l1 (mm): 99 | l2 (mm): 60 | L (mm): 186 | Aspect ratio: 3D | Peripheral insert: SP□T11T308-□□ | Central insert: XO□T11T306-□□ | Screw: FTKA03508 | Wrench: TW15S | Tap drill for: M36 x 4.0
K3D32532-11 D (mm): 32.5 | Shank d1 (mm): 32 | d2 (mm): 44 | l1 (mm): 99 | l2 (mm): 60 | L (mm): 186 | Aspect ratio: 3D | Peripheral insert: SP□T11T308-□□ | Central insert: XO□T11T306-□□ | Screw: FTKA03508 | Wrench: TW15S
K3D33032-11 D (mm): 33.0 | Shank d1 (mm): 32 | d2 (mm): 44 | l1 (mm): 102 | l2 (mm): 60 | L (mm): 190 | Aspect ratio: 3D | Peripheral insert: SP□T11T308-□□ | Central insert: XO□T11T306-□□ | Screw: FTKA03508 | Wrench: TW15S
K3D33532-11 D (mm): 33.5 | Shank d1 (mm): 32 | d2 (mm): 44 | l1 (mm): 102 | l2 (mm): 60 | L (mm): 190 | Aspect ratio: 3D | Peripheral insert: SP□T11T308-□□ | Central insert: XO□T11T306-□□ | Screw: FTKA03508 | Wrench: TW15S
K3D34032-11 D (mm): 34.0 | Shank d1 (mm): 32 | d2 (mm): 44 | l1 (mm): 105 | l2 (mm): 60 | L (mm): 193 | Aspect ratio: 3D | Peripheral insert: SP□T11T308-□□ | Central insert: XO□T11T306-□□ | Screw: FTKA03508 | Wrench: TW15S
K3D34532-11 D (mm): 34.5 | Shank d1 (mm): 32 | d2 (mm): 44 | l1 (mm): 105 | l2 (mm): 60 | L (mm): 193 | Aspect ratio: 3D | Peripheral insert: SP□T11T308-□□ | Central insert: XO□T11T306-□□ | Screw: FTKA03508 | Wrench: TW15S
K3D35032-11 D (mm): 35.0 | Shank d1 (mm): 32 | d2 (mm): 44 | l1 (mm): 108 | l2 (mm): 60 | L (mm): 196 | Aspect ratio: 3D | Peripheral insert: SP□T11T308-□□ | Central insert: XO□T11T306-□□ | Screw: FTKA03508 | Wrench: TW15S | Tap drill for: M39 x 4.0
K3D35532-11 D (mm): 35.5 | Shank d1 (mm): 32 | d2 (mm): 44 | l1 (mm): 108 | l2 (mm): 60 | L (mm): 196 | Aspect ratio: 3D | Peripheral insert: SP□T11T308-□□ | Central insert: XO□T11T306-□□ | Screw: FTKA03508 | Wrench: TW15S
K3D36040-13 D (mm): 36.0 | Shank d1 (mm): 40 | d2 (mm): 48 | l1 (mm): 112 | l2 (mm): 70 | L (mm): 212 | Aspect ratio: 3D | Peripheral insert: SP□T130410-□□ | Central insert: XO□T130406-□□ | Screw: FTKA0410 | Wrench: TW15S
K3D36540-13 D (mm): 36.5 | Shank d1 (mm): 40 | d2 (mm): 48 | l1 (mm): 112 | l2 (mm): 70 | L (mm): 212 | Aspect ratio: 3D | Peripheral insert: SP□T130410-□□ | Central insert: XO□T130406-□□ | Screw: FTKA0410 | Wrench: TW15S
K3D37040-13 D (mm): 37.0 | Shank d1 (mm): 40 | d2 (mm): 48 | l1 (mm): 115 | l2 (mm): 70 | L (mm): 215 | Aspect ratio: 3D | Peripheral insert: SP□T130410-□□ | Central insert: XO□T130406-□□ | Screw: FTKA0410 | Wrench: TW15S
K3D37540-13 D (mm): 37.5 | Shank d1 (mm): 40 | d2 (mm): 48 | l1 (mm): 115 | l2 (mm): 70 | L (mm): 215 | Aspect ratio: 3D | Peripheral insert: SP□T130410-□□ | Central insert: XO□T130406-□□ | Screw: FTKA0410 | Wrench: TW15S | Tap drill for: M42 x 4.5
K3D38040-13 D (mm): 38.0 | Shank d1 (mm): 40 | d2 (mm): 48 | l1 (mm): 118 | l2 (mm): 70 | L (mm): 219 | Aspect ratio: 3D | Peripheral insert: SP□T130410-□□ | Central insert: XO□T130406-□□ | Screw: FTKA0410 | Wrench: TW15S
K3D38540-13 D (mm): 38.5 | Shank d1 (mm): 40 | d2 (mm): 48 | l1 (mm): 118 | l2 (mm): 70 | L (mm): 219 | Aspect ratio: 3D | Peripheral insert: SP□T130410-□□ | Central insert: XO□T130406-□□ | Screw: FTKA0410 | Wrench: TW15S
K3D39040-13 D (mm): 39.0 | Shank d1 (mm): 40 | d2 (mm): 48 | l1 (mm): 121 | l2 (mm): 70 | L (mm): 222 | Aspect ratio: 3D | Peripheral insert: SP□T130410-□□ | Central insert: XO□T130406-□□ | Screw: FTKA0410 | Wrench: TW15S
K3D39540-13 D (mm): 39.5 | Shank d1 (mm): 40 | d2 (mm): 48 | l1 (mm): 121 | l2 (mm): 70 | L (mm): 222 | Aspect ratio: 3D | Peripheral insert: SP□T130410-□□ | Central insert: XO□T130406-□□ | Screw: FTKA0410 | Wrench: TW15S
K3D40040-13 D (mm): 40.0 | Shank d1 (mm): 40 | d2 (mm): 48 | l1 (mm): 124 | l2 (mm): 70 | L (mm): 226 | Aspect ratio: 3D | Peripheral insert: SP□T130410-□□ | Central insert: XO□T130406-□□ | Screw: FTKA0410 | Wrench: TW15S
K3D40540-13 D (mm): 40.5 | Shank d1 (mm): 40 | d2 (mm): 48 | l1 (mm): 124 | l2 (mm): 70 | L (mm): 226 | Aspect ratio: 3D | Peripheral insert: SP□T130410-□□ | Central insert: XO□T130406-□□ | Screw: FTKA0410 | Wrench: TW15S
K3D41040-13 D (mm): 41.0 | Shank d1 (mm): 40 | d2 (mm): 48 | l1 (mm): 127 | l2 (mm): 70 | L (mm): 229 | Aspect ratio: 3D | Peripheral insert: SP□T130410-□□ | Central insert: XO□T130406-□□ | Screw: FTKA0410 | Wrench: TW15S
K3D41540-13 D (mm): 41.5 | Shank d1 (mm): 40 | d2 (mm): 48 | l1 (mm): 127 | l2 (mm): 70 | L (mm): 229 | Aspect ratio: 3D | Peripheral insert: SP□T130410-□□ | Central insert: XO□T130406-□□ | Screw: FTKA0410 | Wrench: TW15S
K3D42040-13 D (mm): 42.0 | Shank d1 (mm): 40 | d2 (mm): 48 | l1 (mm): 130 | l2 (mm): 70 | L (mm): 233 | Aspect ratio: 3D | Peripheral insert: SP□T130410-□□ | Central insert: XO□T130406-□□ | Screw: FTKA0410 | Wrench: TW15S
K3D42540-13 D (mm): 42.5 | Shank d1 (mm): 40 | d2 (mm): 48 | l1 (mm): 130 | l2 (mm): 70 | L (mm): 233 | Aspect ratio: 3D | Peripheral insert: SP□T130410-□□ | Central insert: XO□T130406-□□ | Screw: FTKA0410 | Wrench: TW15S
K3D43040-15 D (mm): 43.0 | Shank d1 (mm): 40 | d2 (mm): 58 | l1 (mm): 134 | l2 (mm): 70 | L (mm): 239 | Aspect ratio: 3D | Peripheral insert: SP□T15M510-□□ | Central insert: XO□T15M508-□□ | Screw: FTNC04511 | Wrench: TW20S
K3D43540-15 D (mm): 43.5 | Shank d1 (mm): 40 | d2 (mm): 58 | l1 (mm): 134 | l2 (mm): 70 | L (mm): 239 | Aspect ratio: 3D | Peripheral insert: SP□T15M510-□□ | Central insert: XO□T15M508-□□ | Screw: FTNC04511 | Wrench: TW20S
K3D44040-15 D (mm): 44.0 | Shank d1 (mm): 40 | d2 (mm): 58 | l1 (mm): 137 | l2 (mm): 70 | L (mm): 242 | Aspect ratio: 3D | Peripheral insert: SP□T15M510-□□ | Central insert: XO□T15M508-□□ | Screw: FTNC04511 | Wrench: TW20S
K3D44540-15 D (mm): 44.5 | Shank d1 (mm): 40 | d2 (mm): 58 | l1 (mm): 137 | l2 (mm): 70 | L (mm): 242 | Aspect ratio: 3D | Peripheral insert: SP□T15M510-□□ | Central insert: XO□T15M508-□□ | Screw: FTNC04511 | Wrench: TW20S
K3D45040-15 D (mm): 45.0 | Shank d1 (mm): 40 | d2 (mm): 58 | l1 (mm): 140 | l2 (mm): 70 | L (mm): 246 | Aspect ratio: 3D | Peripheral insert: SP□T15M510-□□ | Central insert: XO□T15M508-□□ | Screw: FTNC04511 | Wrench: TW20S
K3D45540-15 D (mm): 45.5 | Shank d1 (mm): 40 | d2 (mm): 58 | l1 (mm): 140 | l2 (mm): 70 | L (mm): 246 | Aspect ratio: 3D | Peripheral insert: SP□T15M510-□□ | Central insert: XO□T15M508-□□ | Screw: FTNC04511 | Wrench: TW20S
K3D46040-15 D (mm): 46.0 | Shank d1 (mm): 40 | d2 (mm): 58 | l1 (mm): 143 | l2 (mm): 70 | L (mm): 249 | Aspect ratio: 3D | Peripheral insert: SP□T15M510-□□ | Central insert: XO□T15M508-□□ | Screw: FTNC04511 | Wrench: TW20S
K3D46540-15 D (mm): 46.5 | Shank d1 (mm): 40 | d2 (mm): 58 | l1 (mm): 143 | l2 (mm): 70 | L (mm): 249 | Aspect ratio: 3D | Peripheral insert: SP□T15M510-□□ | Central insert: XO□T15M508-□□ | Screw: FTNC04511 | Wrench: TW20S
K3D47040-15 D (mm): 47.0 | Shank d1 (mm): 40 | d2 (mm): 58 | l1 (mm): 146 | l2 (mm): 70 | L (mm): 253 | Aspect ratio: 3D | Peripheral insert: SP□T15M510-□□ | Central insert: XO□T15M508-□□ | Screw: FTNC04511 | Wrench: TW20S
K3D47540-15 D (mm): 47.5 | Shank d1 (mm): 40 | d2 (mm): 58 | l1 (mm): 146 | l2 (mm): 70 | L (mm): 253 | Aspect ratio: 3D | Peripheral insert: SP□T15M510-□□ | Central insert: XO□T15M508-□□ | Screw: FTNC04511 | Wrench: TW20S
K3D48040-15 D (mm): 48.0 | Shank d1 (mm): 40 | d2 (mm): 58 | l1 (mm): 149 | l2 (mm): 70 | L (mm): 256 | Aspect ratio: 3D | Peripheral insert: SP□T15M510-□□ | Central insert: XO□T15M508-□□ | Screw: FTNC04511 | Wrench: TW20S
K3D48540-15 D (mm): 48.5 | Shank d1 (mm): 40 | d2 (mm): 58 | l1 (mm): 149 | l2 (mm): 70 | L (mm): 256 | Aspect ratio: 3D | Peripheral insert: SP□T15M510-□□ | Central insert: XO□T15M508-□□ | Screw: FTNC04511 | Wrench: TW20S
K3D49040-15 D (mm): 49.0 | Shank d1 (mm): 40 | d2 (mm): 58 | l1 (mm): 152 | l2 (mm): 70 | L (mm): 259 | Aspect ratio: 3D | Peripheral insert: SP□T15M510-□□ | Central insert: XO□T15M508-□□ | Screw: FTNC04511 | Wrench: TW20S
K3D49540-15 D (mm): 49.5 | Shank d1 (mm): 40 | d2 (mm): 58 | l1 (mm): 152 | l2 (mm): 70 | L (mm): 259 | Aspect ratio: 3D | Peripheral insert: SP□T15M510-□□ | Central insert: XO□T15M508-□□ | Screw: FTNC04511 | Wrench: TW20S
K3D50040-15 D (mm): 50.0 | Shank d1 (mm): 40 | d2 (mm): 58 | l1 (mm): 155 | l2 (mm): 70 | L (mm): 262 | Aspect ratio: 3D | Peripheral insert: SP□T15M510-□□ | Central insert: XO□T15M508-□□ | Screw: FTNC04511 | Wrench: TW20S
K3D50540-15 D (mm): 50.5 | Shank d1 (mm): 40 | d2 (mm): 58 | l1 (mm): 155 | l2 (mm): 70 | L (mm): 262 | Aspect ratio: 3D | Peripheral insert: SP□T15M510-□□ | Central insert: XO□T15M508-□□ | Screw: FTNC04511 | Wrench: TW20S
K3D51040-18 D (mm): 51.0 | Shank d1 (mm): 40 | d2 (mm): 68 | l1 (mm): 159 | l2 (mm): 70 | L (mm): 269 | Aspect ratio: 3D | Peripheral insert: SP□T180510-□□ | Central insert: XO□T180508-□□ | Screw: FTNA0511 | Wrench: TW20-100
K3D51540-18 D (mm): 51.5 | Shank d1 (mm): 40 | d2 (mm): 68 | l1 (mm): 159 | l2 (mm): 70 | L (mm): 269 | Aspect ratio: 3D | Peripheral insert: SP□T180510-□□ | Central insert: XO□T180508-□□ | Screw: FTNA0511 | Wrench: TW20-100
K3D52040-18 D (mm): 52.0 | Shank d1 (mm): 40 | d2 (mm): 68 | l1 (mm): 162 | l2 (mm): 70 | L (mm): 272 | Aspect ratio: 3D | Peripheral insert: SP□T180510-□□ | Central insert: XO□T180508-□□ | Screw: FTNA0511 | Wrench: TW20-100
K3D52540-18 D (mm): 52.5 | Shank d1 (mm): 40 | d2 (mm): 68 | l1 (mm): 162 | l2 (mm): 70 | L (mm): 272 | Aspect ratio: 3D | Peripheral insert: SP□T180510-□□ | Central insert: XO□T180508-□□ | Screw: FTNA0511 | Wrench: TW20-100
K3D53040-18 D (mm): 53.0 | Shank d1 (mm): 40 | d2 (mm): 68 | l1 (mm): 165 | l2 (mm): 70 | L (mm): 275 | Aspect ratio: 3D | Peripheral insert: SP□T180510-□□ | Central insert: XO□T180508-□□ | Screw: FTNA0511 | Wrench: TW20-100
K3D53540-18 D (mm): 53.5 | Shank d1 (mm): 40 | d2 (mm): 68 | l1 (mm): 165 | l2 (mm): 70 | L (mm): 275 | Aspect ratio: 3D | Peripheral insert: SP□T180510-□□ | Central insert: XO□T180508-□□ | Screw: FTNA0511 | Wrench: TW20-100
K3D54040-18 D (mm): 54.0 | Shank d1 (mm): 40 | d2 (mm): 68 | l1 (mm): 168 | l2 (mm): 70 | L (mm): 278 | Aspect ratio: 3D | Peripheral insert: SP□T180510-□□ | Central insert: XO□T180508-□□ | Screw: FTNA0511 | Wrench: TW20-100
K3D54540-18 D (mm): 54.5 | Shank d1 (mm): 40 | d2 (mm): 68 | l1 (mm): 168 | l2 (mm): 70 | L (mm): 278 | Aspect ratio: 3D | Peripheral insert: SP□T180510-□□ | Central insert: XO□T180508-□□ | Screw: FTNA0511 | Wrench: TW20-100
K3D55040-18 D (mm): 55.0 | Shank d1 (mm): 40 | d2 (mm): 68 | l1 (mm): 171 | l2 (mm): 70 | L (mm): 281 | Aspect ratio: 3D | Peripheral insert: SP□T180510-□□ | Central insert: XO□T180508-□□ | Screw: FTNA0511 | Wrench: TW20-100
K3D55540-18 D (mm): 55.5 | Shank d1 (mm): 40 | d2 (mm): 68 | l1 (mm): 171 | l2 (mm): 70 | L (mm): 281 | Aspect ratio: 3D | Peripheral insert: SP□T180510-□□ | Central insert: XO□T180508-□□ | Screw: FTNA0511 | Wrench: TW20-100
K3D56040-18 D (mm): 56.0 | Shank d1 (mm): 40 | d2 (mm): 68 | l1 (mm): 174 | l2 (mm): 70 | L (mm): 286 | Aspect ratio: 3D | Peripheral insert: SP□T180510-□□ | Central insert: XO□T180508-□□ | Screw: FTNA0511 | Wrench: TW20-100
K3D56540-18 D (mm): 56.5 | Shank d1 (mm): 40 | d2 (mm): 68 | l1 (mm): 174 | l2 (mm): 70 | L (mm): 286 | Aspect ratio: 3D | Peripheral insert: SP□T180510-□□ | Central insert: XO□T180508-□□ | Screw: FTNA0511 | Wrench: TW20-100
K3D57040-18 D (mm): 57.0 | Shank d1 (mm): 40 | d2 (mm): 68 | l1 (mm): 178 | l2 (mm): 70 | L (mm): 290 | Aspect ratio: 3D | Peripheral insert: SP□T180510-□□ | Central insert: XO□T180508-□□ | Screw: FTNA0511 | Wrench: TW20-100
K3D57540-18 D (mm): 57.5 | Shank d1 (mm): 40 | d2 (mm): 68 | l1 (mm): 178 | l2 (mm): 70 | L (mm): 290 | Aspect ratio: 3D | Peripheral insert: SP□T180510-□□ | Central insert: XO□T180508-□□ | Screw: FTNA0511 | Wrench: TW20-100
K3D58040-18 D (mm): 58.0 | Shank d1 (mm): 40 | d2 (mm): 68 | l1 (mm): 182 | l2 (mm): 70 | L (mm): 294 | Aspect ratio: 3D | Peripheral insert: SP□T180510-□□ | Central insert: XO□T180508-□□ | Screw: FTNA0511 | Wrench: TW20-100
K3D58540-18 D (mm): 58.5 | Shank d1 (mm): 40 | d2 (mm): 68 | l1 (mm): 182 | l2 (mm): 70 | L (mm): 294 | Aspect ratio: 3D | Peripheral insert: SP□T180510-□□ | Central insert: XO□T180508-□□ | Screw: FTNA0511 | Wrench: TW20-100
K3D59040-18 D (mm): 59.0 | Shank d1 (mm): 40 | d2 (mm): 68 | l1 (mm): 186 | l2 (mm): 70 | L (mm): 298 | Aspect ratio: 3D | Peripheral insert: SP□T180510-□□ | Central insert: XO□T180508-□□ | Screw: FTNA0511 | Wrench: TW20-100
K3D59540-18 D (mm): 59.5 | Shank d1 (mm): 40 | d2 (mm): 68 | l1 (mm): 186 | l2 (mm): 70 | L (mm): 298 | Aspect ratio: 3D | Peripheral insert: SP□T180510-□□ | Central insert: XO□T180508-□□ | Screw: FTNA0511 | Wrench: TW20-100
K3D60040-18 D (mm): 60.0 | Shank d1 (mm): 40 | d2 (mm): 68 | l1 (mm): 190 | l2 (mm): 70 | L (mm): 302 | Aspect ratio: 3D | Peripheral insert: SP□T180510-□□ | Central insert: XO□T180508-□□ | Screw: FTNA0511 | Wrench: TW20-100
K3D60540-18 D (mm): 60.5 | Shank d1 (mm): 40 | d2 (mm): 68 | l1 (mm): 190 | l2 (mm): 70 | L (mm): 302 | Aspect ratio: 3D | Peripheral insert: SP□T180510-□□ | Central insert: XO□T180508-□□ | Screw: FTNA0511 | Wrench: TW20-100
