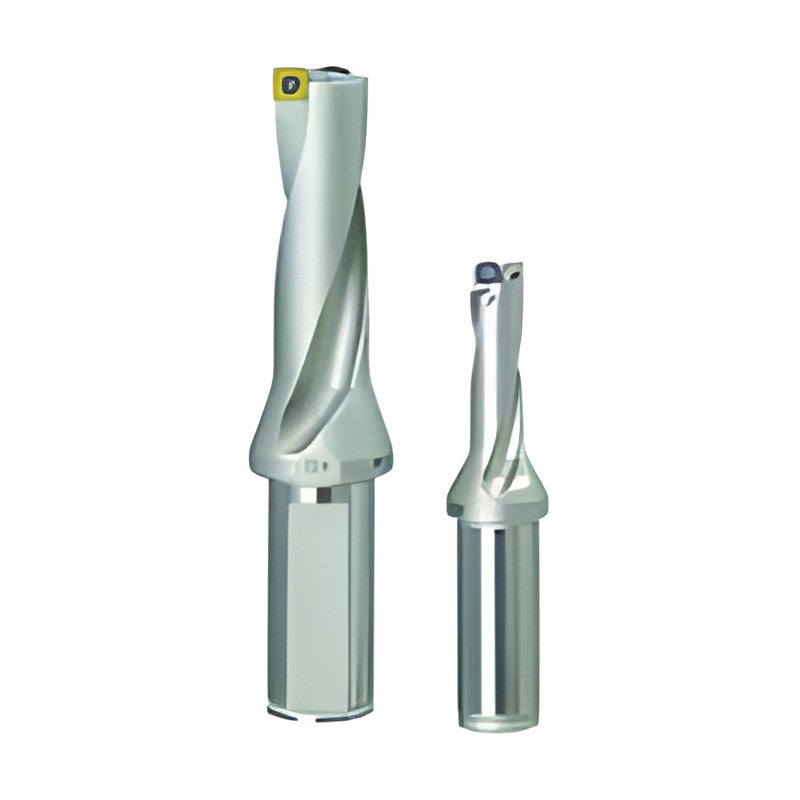

Korloy King Drill 4D Indexable Drill K4D

Korloy King Drill 4D Indexable Drill K4D

Indexable drill with optimized central and peripheral inserts for efficient drilling and chip control, with 2 coolant holes.

Key features

  • Separate central and peripheral inserts optimized for each position
  • Optimized flute shape increases body rigidity and chip evacuation
  • Through coolant with 2 coolant holes
  • Drilling diameter adjustable on lathes via X-axis offset
  • Insert screw and wrench listed per size

Specifications

Coolant Through coolant
Drill tolerance 0 ~ -0.15 mm
K4D12020-04 D (mm): 12.0 | Shank d1 (mm): 20 | d2 (mm): 25 | l1 (mm): 51 | l2 (mm): 50 | L (mm): 115 | Aspect ratio: 4D | Peripheral insert: SP□T040204-□□ | Central insert: XO□T040204-□□ | Screw: FTNA0204 | Wrench: TW06P
K4D12520-04 D (mm): 12.5 | Shank d1 (mm): 20 | d2 (mm): 25 | l1 (mm): 51 | l2 (mm): 50 | L (mm): 115 | Aspect ratio: 4D | Peripheral insert: SP□T040204-□□ | Central insert: XO□T040204-□□ | Screw: FTNA0204 | Wrench: TW06P
K4D13020-04 D (mm): 13.0 | Shank d1 (mm): 20 | d2 (mm): 25 | l1 (mm): 55 | l2 (mm): 50 | L (mm): 119 | Aspect ratio: 4D | Peripheral insert: SP□T040204-□□ | Central insert: XO□T040204-□□ | Screw: FTNA0204 | Wrench: TW06P
K4D13520-04 D (mm): 13.5 | Shank d1 (mm): 20 | d2 (mm): 25 | l1 (mm): 55 | l2 (mm): 50 | L (mm): 119 | Aspect ratio: 4D | Peripheral insert: SP□T040204-□□ | Central insert: XO□T040204-□□ | Screw: FTNA0204 | Wrench: TW06P
K4D14020-05 D (mm): 14.0 | Shank d1 (mm): 20 | d2 (mm): 25 | l1 (mm): 59 | l2 (mm): 50 | L (mm): 124 | Aspect ratio: 4D | Peripheral insert: SP□T050204-□□ | Central insert: XO□T050204-□□ | Screw: FTNA0204 | Wrench: TW06P
K4D14520-05 D (mm): 14.5 | Shank d1 (mm): 20 | d2 (mm): 25 | l1 (mm): 59 | l2 (mm): 50 | L (mm): 124 | Aspect ratio: 4D | Peripheral insert: SP□T050204-□□ | Central insert: XO□T050204-□□ | Screw: FTNA0204 | Wrench: TW06P
K4D15020-05 D (mm): 15.0 | Shank d1 (mm): 20 | d2 (mm): 25 | l1 (mm): 63 | l2 (mm): 50 | L (mm): 129 | Aspect ratio: 4D | Peripheral insert: SP□T050204-□□ | Central insert: XO□T050204-□□ | Screw: FTNA0204 | Wrench: TW06P
K4D15520-05 D (mm): 15.5 | Shank d1 (mm): 20 | d2 (mm): 25 | l1 (mm): 63 | l2 (mm): 50 | L (mm): 129 | Aspect ratio: 4D | Peripheral insert: SP□T050204-□□ | Central insert: XO□T050204-□□ | Screw: FTNA0204 | Wrench: TW06P
K4D16020-05 D (mm): 16.0 | Shank d1 (mm): 20 | d2 (mm): 25 | l1 (mm): 67 | l2 (mm): 50 | L (mm): 133 | Aspect ratio: 4D | Peripheral insert: SP□T050204-□□ | Central insert: XO□T050204-□□ | Screw: FTNA0204 | Wrench: TW06P
K4D16525-06 D (mm): 16.5 | Shank d1 (mm): 25 | d2 (mm): 34 | l1 (mm): 67 | l2 (mm): 56 | L (mm): 139 | Aspect ratio: 4D | Peripheral insert: SP□T060205-□□ | Central insert: XO□T060204-□□ | Screw: FTKA02206S | Wrench: TW07P
K4D17025-06 D (mm): 17.0 | Shank d1 (mm): 25 | d2 (mm): 34 | l1 (mm): 71 | l2 (mm): 56 | L (mm): 143 | Aspect ratio: 4D | Peripheral insert: SP□T060205-□□ | Central insert: XO□T060204-□□ | Screw: FTKA02206S | Wrench: TW07P
K4D17525-06 D (mm): 17.5 | Shank d1 (mm): 25 | d2 (mm): 34 | l1 (mm): 71 | l2 (mm): 56 | L (mm): 143 | Aspect ratio: 4D | Peripheral insert: SP□T060205-□□ | Central insert: XO□T060204-□□ | Screw: FTKA02206S | Wrench: TW07P
K4D18025-06 D (mm): 18.0 | Shank d1 (mm): 25 | d2 (mm): 34 | l1 (mm): 75 | l2 (mm): 56 | L (mm): 148 | Aspect ratio: 4D | Peripheral insert: SP□T060205-□□ | Central insert: XO□T060204-□□ | Screw: FTKA02206S | Wrench: TW07P
K4D18525-06 D (mm): 18.5 | Shank d1 (mm): 25 | d2 (mm): 34 | l1 (mm): 75 | l2 (mm): 56 | L (mm): 148 | Aspect ratio: 4D | Peripheral insert: SP□T060205-□□ | Central insert: XO□T060204-□□ | Screw: FTKA02206S | Wrench: TW07P
K4D19025-06 D (mm): 19.0 | Shank d1 (mm): 25 | d2 (mm): 34 | l1 (mm): 79 | l2 (mm): 56 | L (mm): 152 | Aspect ratio: 4D | Peripheral insert: SP□T060205-□□ | Central insert: XO□T060204-□□ | Screw: FTKA02206S | Wrench: TW07P
K4D19525-06 D (mm): 19.5 | Shank d1 (mm): 25 | d2 (mm): 34 | l1 (mm): 79 | l2 (mm): 56 | L (mm): 152 | Aspect ratio: 4D | Peripheral insert: SP□T060205-□□ | Central insert: XO□T060204-□□ | Screw: FTKA02206S | Wrench: TW07P
K4D20025-07 D (mm): 20.0 | Shank d1 (mm): 25 | d2 (mm): 34 | l1 (mm): 83 | l2 (mm): 56 | L (mm): 158 | Aspect ratio: 4D | Peripheral insert: SP□T07T208-□□ | Central insert: XO□T07T205-□□ | Screw: FTKA02565 | Wrench: TW07S
K4D20525-07 D (mm): 20.5 | Shank d1 (mm): 25 | d2 (mm): 34 | l1 (mm): 83 | l2 (mm): 56 | L (mm): 158 | Aspect ratio: 4D | Peripheral insert: SP□T07T208-□□ | Central insert: XO□T07T205-□□ | Screw: FTKA02565 | Wrench: TW07S
K4D21025-07 D (mm): 21.0 | Shank d1 (mm): 25 | d2 (mm): 34 | l1 (mm): 87 | l2 (mm): 56 | L (mm): 162 | Aspect ratio: 4D | Peripheral insert: SP□T07T208-□□ | Central insert: XO□T07T205-□□ | Screw: FTKA02565 | Wrench: TW07S
K4D21525-07 D (mm): 21.5 | Shank d1 (mm): 25 | d2 (mm): 34 | l1 (mm): 87 | l2 (mm): 56 | L (mm): 162 | Aspect ratio: 4D | Peripheral insert: SP□T07T208-□□ | Central insert: XO□T07T205-□□ | Screw: FTKA02565 | Wrench: TW07S
K4D22025-07 D (mm): 22.0 | Shank d1 (mm): 25 | d2 (mm): 34 | l1 (mm): 91 | l2 (mm): 56 | L (mm): 166 | Aspect ratio: 4D | Peripheral insert: SP□T07T208-□□ | Central insert: XO□T07T205-□□ | Screw: FTKA02565 | Wrench: TW07S
K4D22525-07 D (mm): 22.5 | Shank d1 (mm): 25 | d2 (mm): 34 | l1 (mm): 91 | l2 (mm): 56 | L (mm): 166 | Aspect ratio: 4D | Peripheral insert: SP□T07T208-□□ | Central insert: XO□T07T205-□□ | Screw: FTKA02565 | Wrench: TW07S
K4D23025-07 D (mm): 23.0 | Shank d1 (mm): 25 | d2 (mm): 34 | l1 (mm): 95 | l2 (mm): 56 | L (mm): 172 | Aspect ratio: 4D | Peripheral insert: SP□T07T208-□□ | Central insert: XO□T07T205-□□ | Screw: FTKA02565 | Wrench: TW07S
K4D23525-07 D (mm): 23.5 | Shank d1 (mm): 25 | d2 (mm): 34 | l1 (mm): 95 | l2 (mm): 56 | L (mm): 172 | Aspect ratio: 4D | Peripheral insert: SP□T07T208-□□ | Central insert: XO□T07T205-□□ | Screw: FTKA02565 | Wrench: TW07S
K4D24032-09 D (mm): 24.0 | Shank d1 (mm): 32 | d2 (mm): 44 | l1 (mm): 99 | l2 (mm): 60 | L (mm): 181 | Aspect ratio: 4D | Peripheral insert: SP□T090308-□□ | Central insert: XO□T090305-□□ | Screw: FTKA0307 | Wrench: TW09S
K4D24532-09 D (mm): 24.5 | Shank d1 (mm): 32 | d2 (mm): 44 | l1 (mm): 99 | l2 (mm): 60 | L (mm): 181 | Aspect ratio: 4D | Peripheral insert: SP□T090308-□□ | Central insert: XO□T090305-□□ | Screw: FTKA0307 | Wrench: TW09S
K4D25032-09 D (mm): 25.0 | Shank d1 (mm): 32 | d2 (mm): 44 | l1 (mm): 103 | l2 (mm): 60 | L (mm): 185 | Aspect ratio: 4D | Peripheral insert: SP□T090308-□□ | Central insert: XO□T090305-□□ | Screw: FTKA0307 | Wrench: TW09S
K4D25532-09 D (mm): 25.5 | Shank d1 (mm): 32 | d2 (mm): 44 | l1 (mm): 103 | l2 (mm): 60 | L (mm): 185 | Aspect ratio: 4D | Peripheral insert: SP□T090308-□□ | Central insert: XO□T090305-□□ | Screw: FTKA0307 | Wrench: TW09S
K4D26032-09 D (mm): 26.0 | Shank d1 (mm): 32 | d2 (mm): 44 | l1 (mm): 107 | l2 (mm): 60 | L (mm): 189 | Aspect ratio: 4D | Peripheral insert: SP□T090308-□□ | Central insert: XO□T090305-□□ | Screw: FTKA0307 | Wrench: TW09S
K4D26532-09 D (mm): 26.5 | Shank d1 (mm): 32 | d2 (mm): 44 | l1 (mm): 107 | l2 (mm): 60 | L (mm): 189 | Aspect ratio: 4D | Peripheral insert: SP□T090308-□□ | Central insert: XO□T090305-□□ | Screw: FTKA0307 | Wrench: TW09S
K4D27032-09 D (mm): 27.0 | Shank d1 (mm): 32 | d2 (mm): 44 | l1 (mm): 111 | l2 (mm): 60 | L (mm): 194 | Aspect ratio: 4D | Peripheral insert: SP□T090308-□□ | Central insert: XO□T090305-□□ | Screw: FTKA0307 | Wrench: TW09S
K4D27532-09 D (mm): 27.5 | Shank d1 (mm): 32 | d2 (mm): 44 | l1 (mm): 111 | l2 (mm): 60 | L (mm): 194 | Aspect ratio: 4D | Peripheral insert: SP□T090308-□□ | Central insert: XO□T090305-□□ | Screw: FTKA0307 | Wrench: TW09S
K4D28032-09 D (mm): 28.0 | Shank d1 (mm): 32 | d2 (mm): 44 | l1 (mm): 115 | l2 (mm): 60 | L (mm): 199 | Aspect ratio: 4D | Peripheral insert: SP□T090308-□□ | Central insert: XO□T090305-□□ | Screw: FTKA0307 | Wrench: TW09S
K4D28532-09 D (mm): 28.5 | Shank d1 (mm): 32 | d2 (mm): 44 | l1 (mm): 115 | l2 (mm): 60 | L (mm): 199 | Aspect ratio: 4D | Peripheral insert: SP□T090308-□□ | Central insert: XO□T090305-□□ | Screw: FTKA0307 | Wrench: TW09S
K4D29032-09 D (mm): 29.0 | Shank d1 (mm): 32 | d2 (mm): 44 | l1 (mm): 119 | l2 (mm): 60 | L (mm): 203 | Aspect ratio: 4D | Peripheral insert: SP□T090308-□□ | Central insert: XO□T090305-□□ | Screw: FTKA0307 | Wrench: TW09S
K4D29532-09 D (mm): 29.5 | Shank d1 (mm): 32 | d2 (mm): 44 | l1 (mm): 119 | l2 (mm): 60 | L (mm): 203 | Aspect ratio: 4D | Peripheral insert: SP□T090308-□□ | Central insert: XO□T090305-□□ | Screw: FTKA0307 | Wrench: TW09S
K4D30032-11 D (mm): 30.0 | Shank d1 (mm): 32 | d2 (mm): 44 | l1 (mm): 123 | l2 (mm): 60 | L (mm): 210 | Aspect ratio: 4D | Peripheral insert: SP□T11T308-□□ | Central insert: XO□T11T306-□□ | Screw: FTKA03508 | Wrench: TW15S
K4D30532-11 D (mm): 30.5 | Shank d1 (mm): 32 | d2 (mm): 44 | l1 (mm): 123 | l2 (mm): 60 | L (mm): 210 | Aspect ratio: 4D | Peripheral insert: SP□T11T308-□□ | Central insert: XO□T11T306-□□ | Screw: FTKA03508 | Wrench: TW15S
K4D31032-11 D (mm): 31.0 | Shank d1 (mm): 32 | d2 (mm): 44 | l1 (mm): 127 | l2 (mm): 60 | L (mm): 214 | Aspect ratio: 4D | Peripheral insert: SP□T11T308-□□ | Central insert: XO□T11T306-□□ | Screw: FTKA03508 | Wrench: TW15S
K4D31532-11 D (mm): 31.5 | Shank d1 (mm): 32 | d2 (mm): 44 | l1 (mm): 127 | l2 (mm): 60 | L (mm): 214 | Aspect ratio: 4D | Peripheral insert: SP□T11T308-□□ | Central insert: XO□T11T306-□□ | Screw: FTKA03508 | Wrench: TW15S
K4D32032-11 D (mm): 32.0 | Shank d1 (mm): 32 | d2 (mm): 44 | l1 (mm): 131 | l2 (mm): 60 | L (mm): 218 | Aspect ratio: 4D | Peripheral insert: SP□T11T308-□□ | Central insert: XO□T11T306-□□ | Screw: FTKA03508 | Wrench: TW15S
K4D32532-11 D (mm): 32.5 | Shank d1 (mm): 32 | d2 (mm): 44 | l1 (mm): 131 | l2 (mm): 60 | L (mm): 218 | Aspect ratio: 4D | Peripheral insert: SP□T11T308-□□ | Central insert: XO□T11T306-□□ | Screw: FTKA03508 | Wrench: TW15S
K4D33032-11 D (mm): 33.0 | Shank d1 (mm): 32 | d2 (mm): 44 | l1 (mm): 135 | l2 (mm): 60 | L (mm): 223 | Aspect ratio: 4D | Peripheral insert: SP□T11T308-□□ | Central insert: XO□T11T306-□□ | Screw: FTKA03508 | Wrench: TW15S
K4D33532-11 D (mm): 33.5 | Shank d1 (mm): 32 | d2 (mm): 44 | l1 (mm): 135 | l2 (mm): 60 | L (mm): 223 | Aspect ratio: 4D | Peripheral insert: SP□T11T308-□□ | Central insert: XO□T11T306-□□ | Screw: FTKA03508 | Wrench: TW15S
K4D34032-11 D (mm): 34.0 | Shank d1 (mm): 32 | d2 (mm): 44 | l1 (mm): 139 | l2 (mm): 60 | L (mm): 227 | Aspect ratio: 4D | Peripheral insert: SP□T11T308-□□ | Central insert: XO□T11T306-□□ | Screw: FTKA03508 | Wrench: TW15S
K4D34532-11 D (mm): 34.5 | Shank d1 (mm): 32 | d2 (mm): 44 | l1 (mm): 139 | l2 (mm): 60 | L (mm): 227 | Aspect ratio: 4D | Peripheral insert: SP□T11T308-□□ | Central insert: XO□T11T306-□□ | Screw: FTKA03508 | Wrench: TW15S
K4D35032-11 D (mm): 35.0 | Shank d1 (mm): 32 | d2 (mm): 44 | l1 (mm): 143 | l2 (mm): 60 | L (mm): 231 | Aspect ratio: 4D | Peripheral insert: SP□T11T308-□□ | Central insert: XO□T11T306-□□ | Screw: FTKA03508 | Wrench: TW15S
K4D35532-11 D (mm): 35.5 | Shank d1 (mm): 32 | d2 (mm): 44 | l1 (mm): 143 | l2 (mm): 60 | L (mm): 231 | Aspect ratio: 4D | Peripheral insert: SP□T11T308-□□ | Central insert: XO□T11T306-□□ | Screw: FTKA03508 | Wrench: TW15S
K4D36040-13 D (mm): 36.0 | Shank d1 (mm): 40 | d2 (mm): 48 | l1 (mm): 148 | l2 (mm): 70 | L (mm): 248 | Aspect ratio: 4D | Peripheral insert: SP□T130410-□□ | Central insert: XO□T130406-□□ | Screw: FTKA0410 | Wrench: TW15S
K4D36540-13 D (mm): 36.5 | Shank d1 (mm): 40 | d2 (mm): 48 | l1 (mm): 148 | l2 (mm): 70 | L (mm): 248 | Aspect ratio: 4D | Peripheral insert: SP□T130410-□□ | Central insert: XO□T130406-□□ | Screw: FTKA0410 | Wrench: TW15S
K4D37040-13 D (mm): 37.0 | Shank d1 (mm): 40 | d2 (mm): 48 | l1 (mm): 152 | l2 (mm): 70 | L (mm): 252 | Aspect ratio: 4D | Peripheral insert: SP□T130410-□□ | Central insert: XO□T130406-□□ | Screw: FTKA0410 | Wrench: TW15S
K4D37540-13 D (mm): 37.5 | Shank d1 (mm): 40 | d2 (mm): 48 | l1 (mm): 152 | l2 (mm): 70 | L (mm): 252 | Aspect ratio: 4D | Peripheral insert: SP□T130410-□□ | Central insert: XO□T130406-□□ | Screw: FTKA0410 | Wrench: TW15S
K4D38040-13 D (mm): 38.0 | Shank d1 (mm): 40 | d2 (mm): 48 | l1 (mm): 156 | l2 (mm): 70 | L (mm): 257 | Aspect ratio: 4D | Peripheral insert: SP□T130410-□□ | Central insert: XO□T130406-□□ | Screw: FTKA0410 | Wrench: TW15S
K4D38540-13 D (mm): 38.5 | Shank d1 (mm): 40 | d2 (mm): 48 | l1 (mm): 156 | l2 (mm): 70 | L (mm): 257 | Aspect ratio: 4D | Peripheral insert: SP□T130410-□□ | Central insert: XO□T130406-□□ | Screw: FTKA0410 | Wrench: TW15S
K4D39040-13 D (mm): 39.0 | Shank d1 (mm): 40 | d2 (mm): 48 | l1 (mm): 160 | l2 (mm): 70 | L (mm): 261 | Aspect ratio: 4D | Peripheral insert: SP□T130410-□□ | Central insert: XO□T130406-□□ | Screw: FTKA0410 | Wrench: TW15S
K4D39540-13 D (mm): 39.5 | Shank d1 (mm): 40 | d2 (mm): 48 | l1 (mm): 160 | l2 (mm): 70 | L (mm): 261 | Aspect ratio: 4D | Peripheral insert: SP□T130410-□□ | Central insert: XO□T130406-□□ | Screw: FTKA0410 | Wrench: TW15S
K4D40040-13 D (mm): 40.0 | Shank d1 (mm): 40 | d2 (mm): 48 | l1 (mm): 164 | l2 (mm): 70 | L (mm): 266 | Aspect ratio: 4D | Peripheral insert: SP□T130410-□□ | Central insert: XO□T130406-□□ | Screw: FTKA0410 | Wrench: TW15S
K4D40540-13 D (mm): 40.5 | Shank d1 (mm): 40 | d2 (mm): 48 | l1 (mm): 164 | l2 (mm): 70 | L (mm): 266 | Aspect ratio: 4D | Peripheral insert: SP□T130410-□□ | Central insert: XO□T130406-□□ | Screw: FTKA0410 | Wrench: TW15S
K4D41040-13 D (mm): 41.0 | Shank d1 (mm): 40 | d2 (mm): 48 | l1 (mm): 168 | l2 (mm): 70 | L (mm): 270 | Aspect ratio: 4D | Peripheral insert: SP□T130410-□□ | Central insert: XO□T130406-□□ | Screw: FTKA0410 | Wrench: TW15S
K4D41540-13 D (mm): 41.5 | Shank d1 (mm): 40 | d2 (mm): 48 | l1 (mm): 168 | l2 (mm): 70 | L (mm): 270 | Aspect ratio: 4D | Peripheral insert: SP□T130410-□□ | Central insert: XO□T130406-□□ | Screw: FTKA0410 | Wrench: TW15S
K4D42040-13 D (mm): 42.0 | Shank d1 (mm): 40 | d2 (mm): 48 | l1 (mm): 172 | l2 (mm): 70 | L (mm): 275 | Aspect ratio: 4D | Peripheral insert: SP□T130410-□□ | Central insert: XO□T130406-□□ | Screw: FTKA0410 | Wrench: TW15S
K4D42540-13 D (mm): 42.5 | Shank d1 (mm): 40 | d2 (mm): 48 | l1 (mm): 172 | l2 (mm): 70 | L (mm): 275 | Aspect ratio: 4D | Peripheral insert: SP□T130410-□□ | Central insert: XO□T130406-□□ | Screw: FTKA0410 | Wrench: TW15S
K4D43040-15 D (mm): 43.0 | Shank d1 (mm): 40 | d2 (mm): 58 | l1 (mm): 177 | l2 (mm): 70 | L (mm): 282 | Aspect ratio: 4D | Peripheral insert: SP□T15M510-□□ | Central insert: XO□T15M508-□□ | Screw: FTNC04511 | Wrench: TW20S
K4D43540-15 D (mm): 43.5 | Shank d1 (mm): 40 | d2 (mm): 58 | l1 (mm): 177 | l2 (mm): 70 | L (mm): 282 | Aspect ratio: 4D | Peripheral insert: SP□T15M510-□□ | Central insert: XO□T15M508-□□ | Screw: FTNC04511 | Wrench: TW20S
K4D44040-15 D (mm): 44.0 | Shank d1 (mm): 40 | d2 (mm): 58 | l1 (mm): 181 | l2 (mm): 70 | L (mm): 286 | Aspect ratio: 4D | Peripheral insert: SP□T15M510-□□ | Central insert: XO□T15M508-□□ | Screw: FTNC04511 | Wrench: TW20S
K4D44540-15 D (mm): 44.5 | Shank d1 (mm): 40 | d2 (mm): 58 | l1 (mm): 181 | l2 (mm): 70 | L (mm): 286 | Aspect ratio: 4D | Peripheral insert: SP□T15M510-□□ | Central insert: XO□T15M508-□□ | Screw: FTNC04511 | Wrench: TW20S
K4D45040-15 D (mm): 45.0 | Shank d1 (mm): 40 | d2 (mm): 58 | l1 (mm): 185 | l2 (mm): 70 | L (mm): 291 | Aspect ratio: 4D | Peripheral insert: SP□T15M510-□□ | Central insert: XO□T15M508-□□ | Screw: FTNC04511 | Wrench: TW20S
K4D45540-15 D (mm): 45.5 | Shank d1 (mm): 40 | d2 (mm): 58 | l1 (mm): 185 | l2 (mm): 70 | L (mm): 291 | Aspect ratio: 4D | Peripheral insert: SP□T15M510-□□ | Central insert: XO□T15M508-□□ | Screw: FTNC04511 | Wrench: TW20S
K4D46040-15 D (mm): 46.0 | Shank d1 (mm): 40 | d2 (mm): 58 | l1 (mm): 189 | l2 (mm): 70 | L (mm): 295 | Aspect ratio: 4D | Peripheral insert: SP□T15M510-□□ | Central insert: XO□T15M508-□□ | Screw: FTNC04511 | Wrench: TW20S
K4D46540-15 D (mm): 46.5 | Shank d1 (mm): 40 | d2 (mm): 58 | l1 (mm): 189 | l2 (mm): 70 | L (mm): 295 | Aspect ratio: 4D | Peripheral insert: SP□T15M510-□□ | Central insert: XO□T15M508-□□ | Screw: FTNC04511 | Wrench: TW20S
K4D47040-15 D (mm): 47.0 | Shank d1 (mm): 40 | d2 (mm): 58 | l1 (mm): 193 | l2 (mm): 70 | L (mm): 300 | Aspect ratio: 4D | Peripheral insert: SP□T15M510-□□ | Central insert: XO□T15M508-□□ | Screw: FTNC04511 | Wrench: TW20S
K4D47540-15 D (mm): 47.5 | Shank d1 (mm): 40 | d2 (mm): 58 | l1 (mm): 193 | l2 (mm): 70 | L (mm): 300 | Aspect ratio: 4D | Peripheral insert: SP□T15M510-□□ | Central insert: XO□T15M508-□□ | Screw: FTNC04511 | Wrench: TW20S
K4D48040-15 D (mm): 48.0 | Shank d1 (mm): 40 | d2 (mm): 58 | l1 (mm): 197 | l2 (mm): 70 | L (mm): 304 | Aspect ratio: 4D | Peripheral insert: SP□T15M510-□□ | Central insert: XO□T15M508-□□ | Screw: FTNC04511 | Wrench: TW20S
K4D48540-15 D (mm): 48.5 | Shank d1 (mm): 40 | d2 (mm): 58 | l1 (mm): 197 | l2 (mm): 70 | L (mm): 304 | Aspect ratio: 4D | Peripheral insert: SP□T15M510-□□ | Central insert: XO□T15M508-□□ | Screw: FTNC04511 | Wrench: TW20S
K4D49040-15 D (mm): 49.0 | Shank d1 (mm): 40 | d2 (mm): 58 | l1 (mm): 201 | l2 (mm): 70 | L (mm): 308 | Aspect ratio: 4D | Peripheral insert: SP□T15M510-□□ | Central insert: XO□T15M508-□□ | Screw: FTNC04511 | Wrench: TW20S
K4D49540-15 D (mm): 49.5 | Shank d1 (mm): 40 | d2 (mm): 58 | l1 (mm): 201 | l2 (mm): 70 | L (mm): 308 | Aspect ratio: 4D | Peripheral insert: SP□T15M510-□□ | Central insert: XO□T15M508-□□ | Screw: FTNC04511 | Wrench: TW20S
K4D50040-15 D (mm): 50.0 | Shank d1 (mm): 40 | d2 (mm): 58 | l1 (mm): 205 | l2 (mm): 70 | L (mm): 312 | Aspect ratio: 4D | Peripheral insert: SP□T15M510-□□ | Central insert: XO□T15M508-□□ | Screw: FTNC04511 | Wrench: TW20S
K4D50540-15 D (mm): 50.5 | Shank d1 (mm): 40 | d2 (mm): 58 | l1 (mm): 205 | l2 (mm): 70 | L (mm): 312 | Aspect ratio: 4D | Peripheral insert: SP□T15M510-□□ | Central insert: XO□T15M508-□□ | Screw: FTNC04511 | Wrench: TW20S
K4D51040-18 D (mm): 51.0 | Shank d1 (mm): 40 | d2 (mm): 68 | l1 (mm): 210 | l2 (mm): 70 | L (mm): 320 | Aspect ratio: 4D | Peripheral insert: SP□T180510-□□ | Central insert: XO□T180508-□□ | Screw: FTNA0511 | Wrench: TW20-100
K4D51540-18 D (mm): 51.5 | Shank d1 (mm): 40 | d2 (mm): 68 | l1 (mm): 210 | l2 (mm): 70 | L (mm): 320 | Aspect ratio: 4D | Peripheral insert: SP□T180510-□□ | Central insert: XO□T180508-□□ | Screw: FTNA0511 | Wrench: TW20-100
K4D52040-18 D (mm): 52.0 | Shank d1 (mm): 40 | d2 (mm): 68 | l1 (mm): 214 | l2 (mm): 70 | L (mm): 324 | Aspect ratio: 4D | Peripheral insert: SP□T180510-□□ | Central insert: XO□T180508-□□ | Screw: FTNA0511 | Wrench: TW20-100
K4D52540-18 D (mm): 52.5 | Shank d1 (mm): 40 | d2 (mm): 68 | l1 (mm): 214 | l2 (mm): 70 | L (mm): 324 | Aspect ratio: 4D | Peripheral insert: SP□T180510-□□ | Central insert: XO□T180508-□□ | Screw: FTNA0511 | Wrench: TW20-100
K4D53040-18 D (mm): 53.0 | Shank d1 (mm): 40 | d2 (mm): 68 | l1 (mm): 218 | l2 (mm): 70 | L (mm): 328 | Aspect ratio: 4D | Peripheral insert: SP□T180510-□□ | Central insert: XO□T180508-□□ | Screw: FTNA0511 | Wrench: TW20-100
K4D53540-18 D (mm): 53.5 | Shank d1 (mm): 40 | d2 (mm): 68 | l1 (mm): 218 | l2 (mm): 70 | L (mm): 328 | Aspect ratio: 4D | Peripheral insert: SP□T180510-□□ | Central insert: XO□T180508-□□ | Screw: FTNA0511 | Wrench: TW20-100
K4D54040-18 D (mm): 54.0 | Shank d1 (mm): 40 | d2 (mm): 68 | l1 (mm): 222 | l2 (mm): 70 | L (mm): 332 | Aspect ratio: 4D | Peripheral insert: SP□T180510-□□ | Central insert: XO□T180508-□□ | Screw: FTNA0511 | Wrench: TW20-100
K4D54540-18 D (mm): 54.5 | Shank d1 (mm): 40 | d2 (mm): 68 | l1 (mm): 222 | l2 (mm): 70 | L (mm): 332 | Aspect ratio: 4D | Peripheral insert: SP□T180510-□□ | Central insert: XO□T180508-□□ | Screw: FTNA0511 | Wrench: TW20-100
K4D55040-18 D (mm): 55.0 | Shank d1 (mm): 40 | d2 (mm): 68 | l1 (mm): 226 | l2 (mm): 70 | L (mm): 336 | Aspect ratio: 4D | Peripheral insert: SP□T180510-□□ | Central insert: XO□T180508-□□ | Screw: FTNA0511 | Wrench: TW20-100
K4D55540-18 D (mm): 55.5 | Shank d1 (mm): 40 | d2 (mm): 68 | l1 (mm): 226 | l2 (mm): 70 | L (mm): 336 | Aspect ratio: 4D | Peripheral insert: SP□T180510-□□ | Central insert: XO□T180508-□□ | Screw: FTNA0511 | Wrench: TW20-100
K4D56040-18 D (mm): 56.0 | Shank d1 (mm): 40 | d2 (mm): 68 | l1 (mm): 230 | l2 (mm): 70 | L (mm): 342 | Aspect ratio: 4D | Peripheral insert: SP□T180510-□□ | Central insert: XO□T180508-□□ | Screw: FTNA0511 | Wrench: TW20-100
K4D56540-18 D (mm): 56.5 | Shank d1 (mm): 40 | d2 (mm): 68 | l1 (mm): 230 | l2 (mm): 70 | L (mm): 342 | Aspect ratio: 4D | Peripheral insert: SP□T180510-□□ | Central insert: XO□T180508-□□ | Screw: FTNA0511 | Wrench: TW20-100
K4D57040-18 D (mm): 57.0 | Shank d1 (mm): 40 | d2 (mm): 68 | l1 (mm): 235 | l2 (mm): 70 | L (mm): 347 | Aspect ratio: 4D | Peripheral insert: SP□T180510-□□ | Central insert: XO□T180508-□□ | Screw: FTNA0511 | Wrench: TW20-100
K4D57540-18 D (mm): 57.5 | Shank d1 (mm): 40 | d2 (mm): 68 | l1 (mm): 235 | l2 (mm): 70 | L (mm): 347 | Aspect ratio: 4D | Peripheral insert: SP□T180510-□□ | Central insert: XO□T180508-□□ | Screw: FTNA0511 | Wrench: TW20-100
K4D58040-18 D (mm): 58.0 | Shank d1 (mm): 40 | d2 (mm): 68 | l1 (mm): 240 | l2 (mm): 70 | L (mm): 352 | Aspect ratio: 4D | Peripheral insert: SP□T180510-□□ | Central insert: XO□T180508-□□ | Screw: FTNA0511 | Wrench: TW20-100
K4D58540-18 D (mm): 58.5 | Shank d1 (mm): 40 | d2 (mm): 68 | l1 (mm): 240 | l2 (mm): 70 | L (mm): 352 | Aspect ratio: 4D | Peripheral insert: SP□T180510-□□ | Central insert: XO□T180508-□□ | Screw: FTNA0511 | Wrench: TW20-100
K4D59040-18 D (mm): 59.0 | Shank d1 (mm): 40 | d2 (mm): 68 | l1 (mm): 245 | l2 (mm): 70 | L (mm): 357 | Aspect ratio: 4D | Peripheral insert: SP□T180510-□□ | Central insert: XO□T180508-□□ | Screw: FTNA0511 | Wrench: TW20-100
K4D59540-18 D (mm): 59.5 | Shank d1 (mm): 40 | d2 (mm): 68 | l1 (mm): 245 | l2 (mm): 70 | L (mm): 357 | Aspect ratio: 4D | Peripheral insert: SP□T180510-□□ | Central insert: XO□T180508-□□ | Screw: FTNA0511 | Wrench: TW20-100
K4D60040-18 D (mm): 60.0 | Shank d1 (mm): 40 | d2 (mm): 68 | l1 (mm): 250 | l2 (mm): 70 | L (mm): 362 | Aspect ratio: 4D | Peripheral insert: SP□T180510-□□ | Central insert: XO□T180508-□□ | Screw: FTNA0511 | Wrench: TW20-100
K4D60540-18 D (mm): 60.5 | Shank d1 (mm): 40 | d2 (mm): 68 | l1 (mm): 250 | l2 (mm): 70 | L (mm): 362 | Aspect ratio: 4D | Peripheral insert: SP□T180510-□□ | Central insert: XO□T180508-□□ | Screw: FTNA0511 | Wrench: TW20-100
