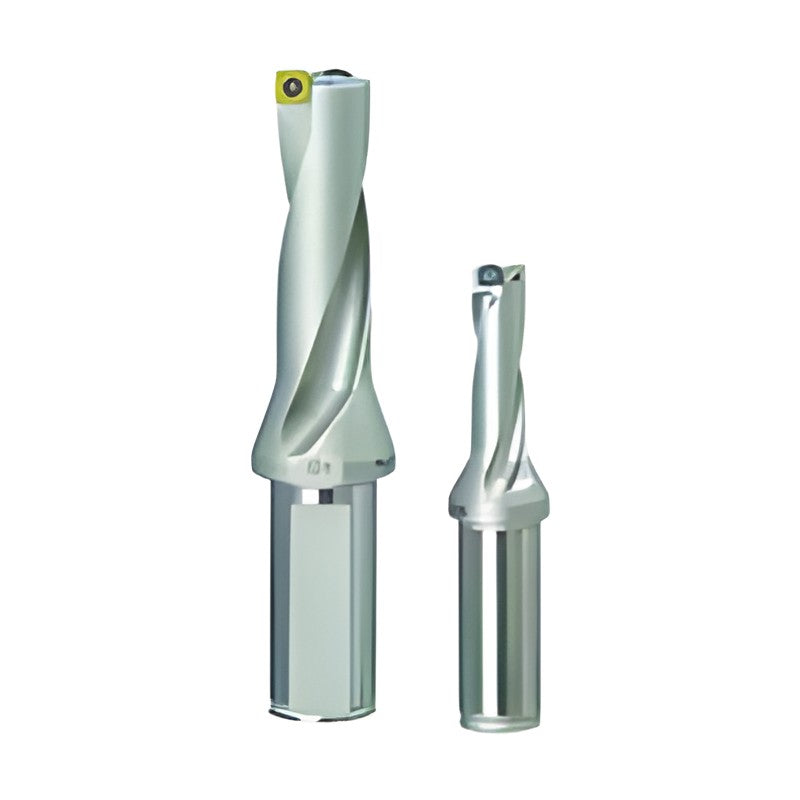

Korloy King Drill 5D Indexable Drill K5D

Korloy King Drill 5D Indexable Drill K5D

Indexable drill with optimized central and peripheral inserts for efficient drilling and chip control, with 2 coolant holes.

Key features

  • Separate central and peripheral inserts optimized for each position
  • Optimized flute shape increases body rigidity and chip evacuation
  • Through coolant with 2 coolant holes
  • Drilling diameter adjustable on lathes via X-axis offset
  • Insert screw and wrench listed per size

Specifications

Coolant Through coolant
Drill tolerance 0 ~ -0.15 mm
K5D12020-04 D (mm): 12.0 | Shank d1 (mm): 20 | d2 (mm): 25 | l1 (mm): 63 | l2 (mm): 50 | L (mm): 127 | Aspect ratio: 5D | Peripheral insert: SP□T040204-□□ | Central insert: XO□T040204-□□ | Screw: FTNA0204 | Wrench: TW06P
K5D12520-04 D (mm): 12.5 | Shank d1 (mm): 20 | d2 (mm): 25 | l1 (mm): 63 | l2 (mm): 50 | L (mm): 127 | Aspect ratio: 5D | Peripheral insert: SP□T040204-□□ | Central insert: XO□T040204-□□ | Screw: FTNA0204 | Wrench: TW06P
K5D13020-04 D (mm): 13.0 | Shank d1 (mm): 20 | d2 (mm): 25 | l1 (mm): 68 | l2 (mm): 50 | L (mm): 132 | Aspect ratio: 5D | Peripheral insert: SP□T040204-□□ | Central insert: XO□T040204-□□ | Screw: FTNA0204 | Wrench: TW06P
K5D13520-04 D (mm): 13.5 | Shank d1 (mm): 20 | d2 (mm): 25 | l1 (mm): 68 | l2 (mm): 50 | L (mm): 132 | Aspect ratio: 5D | Peripheral insert: SP□T040204-□□ | Central insert: XO□T040204-□□ | Screw: FTNA0204 | Wrench: TW06P
K5D14020-05 D (mm): 14.0 | Shank d1 (mm): 20 | d2 (mm): 25 | l1 (mm): 73 | l2 (mm): 50 | L (mm): 138 | Aspect ratio: 5D | Peripheral insert: SP□T050204-□□ | Central insert: XO□T050204-□□ | Screw: FTNA0204 | Wrench: TW06P
K5D14520-05 D (mm): 14.5 | Shank d1 (mm): 20 | d2 (mm): 25 | l1 (mm): 73 | l2 (mm): 50 | L (mm): 138 | Aspect ratio: 5D | Peripheral insert: SP□T050204-□□ | Central insert: XO□T050204-□□ | Screw: FTNA0204 | Wrench: TW06P
K5D15020-05 D (mm): 15.0 | Shank d1 (mm): 20 | d2 (mm): 25 | l1 (mm): 78 | l2 (mm): 50 | L (mm): 144 | Aspect ratio: 5D | Peripheral insert: SP□T050204-□□ | Central insert: XO□T050204-□□ | Screw: FTNA0204 | Wrench: TW06P
K5D15520-05 D (mm): 15.5 | Shank d1 (mm): 20 | d2 (mm): 25 | l1 (mm): 78 | l2 (mm): 50 | L (mm): 144 | Aspect ratio: 5D | Peripheral insert: SP□T050204-□□ | Central insert: XO□T050204-□□ | Screw: FTNA0204 | Wrench: TW06P
K5D16020-05 D (mm): 16.0 | Shank d1 (mm): 20 | d2 (mm): 25 | l1 (mm): 83 | l2 (mm): 50 | L (mm): 149 | Aspect ratio: 5D | Peripheral insert: SP□T050204-□□ | Central insert: XO□T050204-□□ | Screw: FTNA0204 | Wrench: TW06P
K5D16525-06 D (mm): 16.5 | Shank d1 (mm): 25 | d2 (mm): 34 | l1 (mm): 83 | l2 (mm): 56 | L (mm): 155 | Aspect ratio: 5D | Peripheral insert: SP□T060205-□□ | Central insert: XO□T060204-□□ | Screw: FTKA02206S | Wrench: TW07P
K5D17025-06 D (mm): 17.0 | Shank d1 (mm): 25 | d2 (mm): 34 | l1 (mm): 88 | l2 (mm): 56 | L (mm): 160 | Aspect ratio: 5D | Peripheral insert: SP□T060205-□□ | Central insert: XO□T060204-□□ | Screw: FTKA02206S | Wrench: TW07P
K5D17525-06 D (mm): 17.5 | Shank d1 (mm): 25 | d2 (mm): 34 | l1 (mm): 88 | l2 (mm): 56 | L (mm): 160 | Aspect ratio: 5D | Peripheral insert: SP□T060205-□□ | Central insert: XO□T060204-□□ | Screw: FTKA02206S | Wrench: TW07P
K5D18025-06 D (mm): 18.0 | Shank d1 (mm): 25 | d2 (mm): 34 | l1 (mm): 93 | l2 (mm): 56 | L (mm): 166 | Aspect ratio: 5D | Peripheral insert: SP□T060205-□□ | Central insert: XO□T060204-□□ | Screw: FTKA02206S | Wrench: TW07P
K5D18525-06 D (mm): 18.5 | Shank d1 (mm): 25 | d2 (mm): 34 | l1 (mm): 93 | l2 (mm): 56 | L (mm): 166 | Aspect ratio: 5D | Peripheral insert: SP□T060205-□□ | Central insert: XO□T060204-□□ | Screw: FTKA02206S | Wrench: TW07P
K5D19025-06 D (mm): 19.0 | Shank d1 (mm): 25 | d2 (mm): 34 | l1 (mm): 98 | l2 (mm): 56 | L (mm): 171 | Aspect ratio: 5D | Peripheral insert: SP□T060205-□□ | Central insert: XO□T060204-□□ | Screw: FTKA02206S | Wrench: TW07P
K5D19525-06 D (mm): 19.5 | Shank d1 (mm): 25 | d2 (mm): 34 | l1 (mm): 98 | l2 (mm): 56 | L (mm): 171 | Aspect ratio: 5D | Peripheral insert: SP□T060205-□□ | Central insert: XO□T060204-□□ | Screw: FTKA02206S | Wrench: TW07P
K5D20025-07 D (mm): 20.0 | Shank d1 (mm): 25 | d2 (mm): 34 | l1 (mm): 103 | l2 (mm): 56 | L (mm): 178 | Aspect ratio: 5D | Peripheral insert: SP□T07T208-□□ | Central insert: XO□T07T205-□□ | Screw: FTKA02565 | Wrench: TW07S
K5D20525-07 D (mm): 20.5 | Shank d1 (mm): 25 | d2 (mm): 34 | l1 (mm): 103 | l2 (mm): 56 | L (mm): 178 | Aspect ratio: 5D | Peripheral insert: SP□T07T208-□□ | Central insert: XO□T07T205-□□ | Screw: FTKA02565 | Wrench: TW07S
K5D21025-07 D (mm): 21.0 | Shank d1 (mm): 25 | d2 (mm): 34 | l1 (mm): 108 | l2 (mm): 56 | L (mm): 183 | Aspect ratio: 5D | Peripheral insert: SP□T07T208-□□ | Central insert: XO□T07T205-□□ | Screw: FTKA02565 | Wrench: TW07S
K5D21525-07 D (mm): 21.5 | Shank d1 (mm): 25 | d2 (mm): 34 | l1 (mm): 108 | l2 (mm): 56 | L (mm): 183 | Aspect ratio: 5D | Peripheral insert: SP□T07T208-□□ | Central insert: XO□T07T205-□□ | Screw: FTKA02565 | Wrench: TW07S
K5D22025-07 D (mm): 22.0 | Shank d1 (mm): 25 | d2 (mm): 34 | l1 (mm): 113 | l2 (mm): 56 | L (mm): 188 | Aspect ratio: 5D | Peripheral insert: SP□T07T208-□□ | Central insert: XO□T07T205-□□ | Screw: FTKA02565 | Wrench: TW07S
K5D22525-07 D (mm): 22.5 | Shank d1 (mm): 25 | d2 (mm): 34 | l1 (mm): 113 | l2 (mm): 56 | L (mm): 188 | Aspect ratio: 5D | Peripheral insert: SP□T07T208-□□ | Central insert: XO□T07T205-□□ | Screw: FTKA02565 | Wrench: TW07S
K5D23025-07 D (mm): 23.0 | Shank d1 (mm): 25 | d2 (mm): 34 | l1 (mm): 118 | l2 (mm): 56 | L (mm): 195 | Aspect ratio: 5D | Peripheral insert: SP□T07T208-□□ | Central insert: XO□T07T205-□□ | Screw: FTKA02565 | Wrench: TW07S
K5D23525-07 D (mm): 23.5 | Shank d1 (mm): 25 | d2 (mm): 34 | l1 (mm): 118 | l2 (mm): 56 | L (mm): 195 | Aspect ratio: 5D | Peripheral insert: SP□T07T208-□□ | Central insert: XO□T07T205-□□ | Screw: FTKA02565 | Wrench: TW07S
K5D24032-09 D (mm): 24.0 | Shank d1 (mm): 32 | d2 (mm): 44 | l1 (mm): 123 | l2 (mm): 60 | L (mm): 205 | Aspect ratio: 5D | Peripheral insert: SP□T090308-□□ | Central insert: XO□T090305-□□ | Screw: FTKA0307 | Wrench: TW09S
K5D24532-09 D (mm): 24.5 | Shank d1 (mm): 32 | d2 (mm): 44 | l1 (mm): 123 | l2 (mm): 60 | L (mm): 205 | Aspect ratio: 5D | Peripheral insert: SP□T090308-□□ | Central insert: XO□T090305-□□ | Screw: FTKA0307 | Wrench: TW09S
K5D25032-09 D (mm): 25.0 | Shank d1 (mm): 32 | d2 (mm): 44 | l1 (mm): 128 | l2 (mm): 60 | L (mm): 210 | Aspect ratio: 5D | Peripheral insert: SP□T090308-□□ | Central insert: XO□T090305-□□ | Screw: FTKA0307 | Wrench: TW09S
K5D25532-09 D (mm): 25.5 | Shank d1 (mm): 32 | d2 (mm): 44 | l1 (mm): 128 | l2 (mm): 60 | L (mm): 210 | Aspect ratio: 5D | Peripheral insert: SP□T090308-□□ | Central insert: XO□T090305-□□ | Screw: FTKA0307 | Wrench: TW09S
K5D26032-09 D (mm): 26.0 | Shank d1 (mm): 32 | d2 (mm): 44 | l1 (mm): 133 | l2 (mm): 60 | L (mm): 215 | Aspect ratio: 5D | Peripheral insert: SP□T090308-□□ | Central insert: XO□T090305-□□ | Screw: FTKA0307 | Wrench: TW09S
K5D26532-09 D (mm): 26.5 | Shank d1 (mm): 32 | d2 (mm): 44 | l1 (mm): 133 | l2 (mm): 60 | L (mm): 215 | Aspect ratio: 5D | Peripheral insert: SP□T090308-□□ | Central insert: XO□T090305-□□ | Screw: FTKA0307 | Wrench: TW09S
K5D27032-09 D (mm): 27.0 | Shank d1 (mm): 32 | d2 (mm): 44 | l1 (mm): 138 | l2 (mm): 60 | L (mm): 221 | Aspect ratio: 5D | Peripheral insert: SP□T090308-□□ | Central insert: XO□T090305-□□ | Screw: FTKA0307 | Wrench: TW09S
K5D27532-09 D (mm): 27.5 | Shank d1 (mm): 32 | d2 (mm): 44 | l1 (mm): 138 | l2 (mm): 60 | L (mm): 221 | Aspect ratio: 5D | Peripheral insert: SP□T090308-□□ | Central insert: XO□T090305-□□ | Screw: FTKA0307 | Wrench: TW09S
K5D28032-09 D (mm): 28.0 | Shank d1 (mm): 32 | d2 (mm): 44 | l1 (mm): 143 | l2 (mm): 60 | L (mm): 227 | Aspect ratio: 5D | Peripheral insert: SP□T090308-□□ | Central insert: XO□T090305-□□ | Screw: FTKA0307 | Wrench: TW09S
K5D28532-09 D (mm): 28.5 | Shank d1 (mm): 32 | d2 (mm): 44 | l1 (mm): 143 | l2 (mm): 60 | L (mm): 227 | Aspect ratio: 5D | Peripheral insert: SP□T090308-□□ | Central insert: XO□T090305-□□ | Screw: FTKA0307 | Wrench: TW09S
K5D29032-09 D (mm): 29.0 | Shank d1 (mm): 32 | d2 (mm): 44 | l1 (mm): 148 | l2 (mm): 60 | L (mm): 232 | Aspect ratio: 5D | Peripheral insert: SP□T090308-□□ | Central insert: XO□T090305-□□ | Screw: FTKA0307 | Wrench: TW09S
K5D29532-09 D (mm): 29.5 | Shank d1 (mm): 32 | d2 (mm): 44 | l1 (mm): 148 | l2 (mm): 60 | L (mm): 232 | Aspect ratio: 5D | Peripheral insert: SP□T090308-□□ | Central insert: XO□T090305-□□ | Screw: FTKA0307 | Wrench: TW09S
K5D30032-11 D (mm): 30.0 | Shank d1 (mm): 32 | d2 (mm): 44 | l1 (mm): 153 | l2 (mm): 60 | L (mm): 240 | Aspect ratio: 5D | Peripheral insert: SP□T11T308-□□ | Central insert: XO□T11T306-□□ | Screw: FTKA03508 | Wrench: TW15S
K5D30532-11 D (mm): 30.5 | Shank d1 (mm): 32 | d2 (mm): 44 | l1 (mm): 153 | l2 (mm): 60 | L (mm): 240 | Aspect ratio: 5D | Peripheral insert: SP□T11T308-□□ | Central insert: XO□T11T306-□□ | Screw: FTKA03508 | Wrench: TW15S
K5D31032-11 D (mm): 31.0 | Shank d1 (mm): 32 | d2 (mm): 44 | l1 (mm): 158 | l2 (mm): 60 | L (mm): 245 | Aspect ratio: 5D | Peripheral insert: SP□T11T308-□□ | Central insert: XO□T11T306-□□ | Screw: FTKA03508 | Wrench: TW15S
K5D31532-11 D (mm): 31.5 | Shank d1 (mm): 32 | d2 (mm): 44 | l1 (mm): 158 | l2 (mm): 60 | L (mm): 245 | Aspect ratio: 5D | Peripheral insert: SP□T11T308-□□ | Central insert: XO□T11T306-□□ | Screw: FTKA03508 | Wrench: TW15S
K5D32032-11 D (mm): 32.0 | Shank d1 (mm): 32 | d2 (mm): 44 | l1 (mm): 163 | l2 (mm): 60 | L (mm): 250 | Aspect ratio: 5D | Peripheral insert: SP□T11T308-□□ | Central insert: XO□T11T306-□□ | Screw: FTKA03508 | Wrench: TW15S
K5D32532-11 D (mm): 32.5 | Shank d1 (mm): 32 | d2 (mm): 44 | l1 (mm): 163 | l2 (mm): 60 | L (mm): 250 | Aspect ratio: 5D | Peripheral insert: SP□T11T308-□□ | Central insert: XO□T11T306-□□ | Screw: FTKA03508 | Wrench: TW15S
K5D33032-11 D (mm): 33.0 | Shank d1 (mm): 32 | d2 (mm): 44 | l1 (mm): 168 | l2 (mm): 60 | L (mm): 256 | Aspect ratio: 5D | Peripheral insert: SP□T11T308-□□ | Central insert: XO□T11T306-□□ | Screw: FTKA03508 | Wrench: TW15S
K5D33532-11 D (mm): 33.5 | Shank d1 (mm): 32 | d2 (mm): 44 | l1 (mm): 168 | l2 (mm): 60 | L (mm): 256 | Aspect ratio: 5D | Peripheral insert: SP□T11T308-□□ | Central insert: XO□T11T306-□□ | Screw: FTKA03508 | Wrench: TW15S
K5D34032-11 D (mm): 34.0 | Shank d1 (mm): 32 | d2 (mm): 44 | l1 (mm): 173 | l2 (mm): 60 | L (mm): 261 | Aspect ratio: 5D | Peripheral insert: SP□T11T308-□□ | Central insert: XO□T11T306-□□ | Screw: FTKA03508 | Wrench: TW15S
K5D34532-11 D (mm): 34.5 | Shank d1 (mm): 32 | d2 (mm): 44 | l1 (mm): 173 | l2 (mm): 60 | L (mm): 261 | Aspect ratio: 5D | Peripheral insert: SP□T11T308-□□ | Central insert: XO□T11T306-□□ | Screw: FTKA03508 | Wrench: TW15S
K5D35032-11 D (mm): 35.0 | Shank d1 (mm): 32 | d2 (mm): 44 | l1 (mm): 178 | l2 (mm): 60 | L (mm): 266 | Aspect ratio: 5D | Peripheral insert: SP□T11T308-□□ | Central insert: XO□T11T306-□□ | Screw: FTKA03508 | Wrench: TW15S
K5D35532-11 D (mm): 35.5 | Shank d1 (mm): 32 | d2 (mm): 44 | l1 (mm): 178 | l2 (mm): 60 | L (mm): 266 | Aspect ratio: 5D | Peripheral insert: SP□T11T308-□□ | Central insert: XO□T11T306-□□ | Screw: FTKA03508 | Wrench: TW15S
K5D36040-13 D (mm): 36.0 | Shank d1 (mm): 40 | d2 (mm): 48 | l1 (mm): 184 | l2 (mm): 70 | L (mm): 284 | Aspect ratio: 5D | Peripheral insert: SP□T130410-□□ | Central insert: XO□T130406-□□ | Screw: FTKA0410 | Wrench: TW15S
K5D36540-13 D (mm): 36.5 | Shank d1 (mm): 40 | d2 (mm): 48 | l1 (mm): 184 | l2 (mm): 70 | L (mm): 284 | Aspect ratio: 5D | Peripheral insert: SP□T130410-□□ | Central insert: XO□T130406-□□ | Screw: FTKA0410 | Wrench: TW15S
K5D37040-13 D (mm): 37.0 | Shank d1 (mm): 40 | d2 (mm): 48 | l1 (mm): 189 | l2 (mm): 70 | L (mm): 289 | Aspect ratio: 5D | Peripheral insert: SP□T130410-□□ | Central insert: XO□T130406-□□ | Screw: FTKA0410 | Wrench: TW15S
K5D37540-13 D (mm): 37.5 | Shank d1 (mm): 40 | d2 (mm): 48 | l1 (mm): 189 | l2 (mm): 70 | L (mm): 289 | Aspect ratio: 5D | Peripheral insert: SP□T130410-□□ | Central insert: XO□T130406-□□ | Screw: FTKA0410 | Wrench: TW15S
K5D38040-13 D (mm): 38.0 | Shank d1 (mm): 40 | d2 (mm): 48 | l1 (mm): 194 | l2 (mm): 70 | L (mm): 295 | Aspect ratio: 5D | Peripheral insert: SP□T130410-□□ | Central insert: XO□T130406-□□ | Screw: FTKA0410 | Wrench: TW15S
K5D38540-13 D (mm): 38.5 | Shank d1 (mm): 40 | d2 (mm): 48 | l1 (mm): 194 | l2 (mm): 70 | L (mm): 295 | Aspect ratio: 5D | Peripheral insert: SP□T130410-□□ | Central insert: XO□T130406-□□ | Screw: FTKA0410 | Wrench: TW15S
K5D39040-13 D (mm): 39.0 | Shank d1 (mm): 40 | d2 (mm): 48 | l1 (mm): 199 | l2 (mm): 70 | L (mm): 300 | Aspect ratio: 5D | Peripheral insert: SP□T130410-□□ | Central insert: XO□T130406-□□ | Screw: FTKA0410 | Wrench: TW15S
K5D39540-13 D (mm): 39.5 | Shank d1 (mm): 40 | d2 (mm): 48 | l1 (mm): 199 | l2 (mm): 70 | L (mm): 300 | Aspect ratio: 5D | Peripheral insert: SP□T130410-□□ | Central insert: XO□T130406-□□ | Screw: FTKA0410 | Wrench: TW15S
K5D40040-13 D (mm): 40.0 | Shank d1 (mm): 40 | d2 (mm): 48 | l1 (mm): 204 | l2 (mm): 70 | L (mm): 306 | Aspect ratio: 5D | Peripheral insert: SP□T130410-□□ | Central insert: XO□T130406-□□ | Screw: FTKA0410 | Wrench: TW15S
K5D40540-13 D (mm): 40.5 | Shank d1 (mm): 40 | d2 (mm): 48 | l1 (mm): 204 | l2 (mm): 70 | L (mm): 306 | Aspect ratio: 5D | Peripheral insert: SP□T130410-□□ | Central insert: XO□T130406-□□ | Screw: FTKA0410 | Wrench: TW15S
K5D41040-13 D (mm): 41.0 | Shank d1 (mm): 40 | d2 (mm): 48 | l1 (mm): 209 | l2 (mm): 70 | L (mm): 311 | Aspect ratio: 5D | Peripheral insert: SP□T130410-□□ | Central insert: XO□T130406-□□ | Screw: FTKA0410 | Wrench: TW15S
K5D41540-13 D (mm): 41.5 | Shank d1 (mm): 40 | d2 (mm): 48 | l1 (mm): 209 | l2 (mm): 70 | L (mm): 311 | Aspect ratio: 5D | Peripheral insert: SP□T130410-□□ | Central insert: XO□T130406-□□ | Screw: FTKA0410 | Wrench: TW15S
K5D42040-13 D (mm): 42.0 | Shank d1 (mm): 40 | d2 (mm): 48 | l1 (mm): 214 | l2 (mm): 70 | L (mm): 317 | Aspect ratio: 5D | Peripheral insert: SP□T130410-□□ | Central insert: XO□T130406-□□ | Screw: FTKA0410 | Wrench: TW15S
K5D42540-13 D (mm): 42.5 | Shank d1 (mm): 40 | d2 (mm): 48 | l1 (mm): 214 | l2 (mm): 70 | L (mm): 317 | Aspect ratio: 5D | Peripheral insert: SP□T130410-□□ | Central insert: XO□T130406-□□ | Screw: FTKA0410 | Wrench: TW15S
K5D43040-15 D (mm): 43.0 | Shank d1 (mm): 40 | d2 (mm): 58 | l1 (mm): 220 | l2 (mm): 70 | L (mm): 325 | Aspect ratio: 5D | Peripheral insert: SP□T15M510-□□ | Central insert: XO□T15M508-□□ | Screw: FTNC04511 | Wrench: TW20S
K5D43540-15 D (mm): 43.5 | Shank d1 (mm): 40 | d2 (mm): 58 | l1 (mm): 221 | l2 (mm): 70 | L (mm): 326 | Aspect ratio: 5D | Peripheral insert: SP□T15M510-□□ | Central insert: XO□T15M508-□□ | Screw: FTNC04511 | Wrench: TW20S
K5D44040-15 D (mm): 44.0 | Shank d1 (mm): 40 | d2 (mm): 58 | l1 (mm): 225 | l2 (mm): 70 | L (mm): 330 | Aspect ratio: 5D | Peripheral insert: SP□T15M510-□□ | Central insert: XO□T15M508-□□ | Screw: FTNC04511 | Wrench: TW20S
K5D44540-15 D (mm): 44.5 | Shank d1 (mm): 40 | d2 (mm): 58 | l1 (mm): 225 | l2 (mm): 70 | L (mm): 330 | Aspect ratio: 5D | Peripheral insert: SP□T15M510-□□ | Central insert: XO□T15M508-□□ | Screw: FTNC04511 | Wrench: TW20S
K5D45040-15 D (mm): 45.0 | Shank d1 (mm): 40 | d2 (mm): 58 | l1 (mm): 230 | l2 (mm): 70 | L (mm): 336 | Aspect ratio: 5D | Peripheral insert: SP□T15M510-□□ | Central insert: XO□T15M508-□□ | Screw: FTNC04511 | Wrench: TW20S
K5D45540-15 D (mm): 45.5 | Shank d1 (mm): 40 | d2 (mm): 58 | l1 (mm): 230 | l2 (mm): 70 | L (mm): 336 | Aspect ratio: 5D | Peripheral insert: SP□T15M510-□□ | Central insert: XO□T15M508-□□ | Screw: FTNC04511 | Wrench: TW20S
K5D46040-15 D (mm): 46.0 | Shank d1 (mm): 40 | d2 (mm): 58 | l1 (mm): 235 | l2 (mm): 70 | L (mm): 341 | Aspect ratio: 5D | Peripheral insert: SP□T15M510-□□ | Central insert: XO□T15M508-□□ | Screw: FTNC04511 | Wrench: TW20S
K5D46540-15 D (mm): 46.5 | Shank d1 (mm): 40 | d2 (mm): 58 | l1 (mm): 235 | l2 (mm): 70 | L (mm): 341 | Aspect ratio: 5D | Peripheral insert: SP□T15M510-□□ | Central insert: XO□T15M508-□□ | Screw: FTNC04511 | Wrench: TW20S
K5D47040-15 D (mm): 47.0 | Shank d1 (mm): 40 | d2 (mm): 58 | l1 (mm): 240 | l2 (mm): 70 | L (mm): 347 | Aspect ratio: 5D | Peripheral insert: SP□T15M510-□□ | Central insert: XO□T15M508-□□ | Screw: FTNC04511 | Wrench: TW20S
K5D47540-15 D (mm): 47.5 | Shank d1 (mm): 40 | d2 (mm): 58 | l1 (mm): 240 | l2 (mm): 70 | L (mm): 347 | Aspect ratio: 5D | Peripheral insert: SP□T15M510-□□ | Central insert: XO□T15M508-□□ | Screw: FTNC04511 | Wrench: TW20S
K5D48040-15 D (mm): 48.0 | Shank d1 (mm): 40 | d2 (mm): 58 | l1 (mm): 245 | l2 (mm): 70 | L (mm): 352 | Aspect ratio: 5D | Peripheral insert: SP□T15M510-□□ | Central insert: XO□T15M508-□□ | Screw: FTNC04511 | Wrench: TW20S
K5D48540-15 D (mm): 48.5 | Shank d1 (mm): 40 | d2 (mm): 58 | l1 (mm): 245 | l2 (mm): 70 | L (mm): 352 | Aspect ratio: 5D | Peripheral insert: SP□T15M510-□□ | Central insert: XO□T15M508-□□ | Screw: FTNC04511 | Wrench: TW20S
K5D49040-15 D (mm): 49.0 | Shank d1 (mm): 40 | d2 (mm): 58 | l1 (mm): 250 | l2 (mm): 70 | L (mm): 357 | Aspect ratio: 5D | Peripheral insert: SP□T15M510-□□ | Central insert: XO□T15M508-□□ | Screw: FTNC04511 | Wrench: TW20S
K5D49540-15 D (mm): 49.5 | Shank d1 (mm): 40 | d2 (mm): 58 | l1 (mm): 250 | l2 (mm): 70 | L (mm): 357 | Aspect ratio: 5D | Peripheral insert: SP□T15M510-□□ | Central insert: XO□T15M508-□□ | Screw: FTNC04511 | Wrench: TW20S
K5D50040-15 D (mm): 50.0 | Shank d1 (mm): 40 | d2 (mm): 58 | l1 (mm): 255 | l2 (mm): 70 | L (mm): 362 | Aspect ratio: 5D | Peripheral insert: SP□T15M510-□□ | Central insert: XO□T15M508-□□ | Screw: FTNC04511 | Wrench: TW20S
K5D50540-15 D (mm): 50.5 | Shank d1 (mm): 40 | d2 (mm): 58 | l1 (mm): 255 | l2 (mm): 70 | L (mm): 362 | Aspect ratio: 5D | Peripheral insert: SP□T15M510-□□ | Central insert: XO□T15M508-□□ | Screw: FTNC04511 | Wrench: TW20S
K5D51040-18 D (mm): 51.0 | Shank d1 (mm): 40 | d2 (mm): 68 | l1 (mm): 261 | l2 (mm): 70 | L (mm): 371 | Aspect ratio: 5D | Peripheral insert: SP□T180510-□□ | Central insert: XO□T180508-□□ | Screw: FTNA0511 | Wrench: TW20-100
K5D51540-18 D (mm): 51.5 | Shank d1 (mm): 40 | d2 (mm): 68 | l1 (mm): 261 | l2 (mm): 70 | L (mm): 371 | Aspect ratio: 5D | Peripheral insert: SP□T180510-□□ | Central insert: XO□T180508-□□ | Screw: FTNA0511 | Wrench: TW20-100
K5D52040-18 D (mm): 52.0 | Shank d1 (mm): 40 | d2 (mm): 68 | l1 (mm): 266 | l2 (mm): 70 | L (mm): 376 | Aspect ratio: 5D | Peripheral insert: SP□T180510-□□ | Central insert: XO□T180508-□□ | Screw: FTNA0511 | Wrench: TW20-100
K5D52540-18 D (mm): 52.5 | Shank d1 (mm): 40 | d2 (mm): 68 | l1 (mm): 266 | l2 (mm): 70 | L (mm): 376 | Aspect ratio: 5D | Peripheral insert: SP□T180510-□□ | Central insert: XO□T180508-□□ | Screw: FTNA0511 | Wrench: TW20-100
K5D53040-18 D (mm): 53.0 | Shank d1 (mm): 40 | d2 (mm): 68 | l1 (mm): 271 | l2 (mm): 70 | L (mm): 381 | Aspect ratio: 5D | Peripheral insert: SP□T180510-□□ | Central insert: XO□T180508-□□ | Screw: FTNA0511 | Wrench: TW20-100
K5D53540-18 D (mm): 53.5 | Shank d1 (mm): 40 | d2 (mm): 68 | l1 (mm): 271 | l2 (mm): 70 | L (mm): 381 | Aspect ratio: 5D | Peripheral insert: SP□T180510-□□ | Central insert: XO□T180508-□□ | Screw: FTNA0511 | Wrench: TW20-100
K5D54040-18 D (mm): 54.0 | Shank d1 (mm): 40 | d2 (mm): 68 | l1 (mm): 276 | l2 (mm): 70 | L (mm): 386 | Aspect ratio: 5D | Peripheral insert: SP□T180510-□□ | Central insert: XO□T180508-□□ | Screw: FTNA0511 | Wrench: TW20-100
K5D54540-18 D (mm): 54.5 | Shank d1 (mm): 40 | d2 (mm): 68 | l1 (mm): 276 | l2 (mm): 70 | L (mm): 386 | Aspect ratio: 5D | Peripheral insert: SP□T180510-□□ | Central insert: XO□T180508-□□ | Screw: FTNA0511 | Wrench: TW20-100
K5D55040-18 D (mm): 55.0 | Shank d1 (mm): 40 | d2 (mm): 68 | l1 (mm): 281 | l2 (mm): 70 | L (mm): 391 | Aspect ratio: 5D | Peripheral insert: SP□T180510-□□ | Central insert: XO□T180508-□□ | Screw: FTNA0511 | Wrench: TW20-100
K5D55540-18 D (mm): 55.5 | Shank d1 (mm): 40 | d2 (mm): 68 | l1 (mm): 281 | l2 (mm): 70 | L (mm): 391 | Aspect ratio: 5D | Peripheral insert: SP□T180510-□□ | Central insert: XO□T180508-□□ | Screw: FTNA0511 | Wrench: TW20-100
K5D56040-18 D (mm): 56.0 | Shank d1 (mm): 40 | d2 (mm): 68 | l1 (mm): 286 | l2 (mm): 70 | L (mm): 398 | Aspect ratio: 5D | Peripheral insert: SP□T180510-□□ | Central insert: XO□T180508-□□ | Screw: FTNA0511 | Wrench: TW20-100
K5D56540-18 D (mm): 56.5 | Shank d1 (mm): 40 | d2 (mm): 68 | l1 (mm): 286 | l2 (mm): 70 | L (mm): 398 | Aspect ratio: 5D | Peripheral insert: SP□T180510-□□ | Central insert: XO□T180508-□□ | Screw: FTNA0511 | Wrench: TW20-100
K5D57040-18 D (mm): 57.0 | Shank d1 (mm): 40 | d2 (mm): 68 | l1 (mm): 292 | l2 (mm): 70 | L (mm): 404 | Aspect ratio: 5D | Peripheral insert: SP□T180510-□□ | Central insert: XO□T180508-□□ | Screw: FTNA0511 | Wrench: TW20-100
K5D57540-18 D (mm): 57.5 | Shank d1 (mm): 40 | d2 (mm): 68 | l1 (mm): 292 | l2 (mm): 70 | L (mm): 404 | Aspect ratio: 5D | Peripheral insert: SP□T180510-□□ | Central insert: XO□T180508-□□ | Screw: FTNA0511 | Wrench: TW20-100
K5D58040-18 D (mm): 58.0 | Shank d1 (mm): 40 | d2 (mm): 68 | l1 (mm): 298 | l2 (mm): 70 | L (mm): 410 | Aspect ratio: 5D | Peripheral insert: SP□T180510-□□ | Central insert: XO□T180508-□□ | Screw: FTNA0511 | Wrench: TW20-100
K5D58540-18 D (mm): 58.5 | Shank d1 (mm): 40 | d2 (mm): 68 | l1 (mm): 298 | l2 (mm): 70 | L (mm): 410 | Aspect ratio: 5D | Peripheral insert: SP□T180510-□□ | Central insert: XO□T180508-□□ | Screw: FTNA0511 | Wrench: TW20-100
K5D59040-18 D (mm): 59.0 | Shank d1 (mm): 40 | d2 (mm): 68 | l1 (mm): 304 | l2 (mm): 70 | L (mm): 416 | Aspect ratio: 5D | Peripheral insert: SP□T180510-□□ | Central insert: XO□T180508-□□ | Screw: FTNA0511 | Wrench: TW20-100
K5D59540-18 D (mm): 59.5 | Shank d1 (mm): 40 | d2 (mm): 68 | l1 (mm): 304 | l2 (mm): 70 | L (mm): 416 | Aspect ratio: 5D | Peripheral insert: SP□T180510-□□ | Central insert: XO□T180508-□□ | Screw: FTNA0511 | Wrench: TW20-100
K5D60040-18 D (mm): 60.0 | Shank d1 (mm): 40 | d2 (mm): 68 | l1 (mm): 310 | l2 (mm): 70 | L (mm): 422 | Aspect ratio: 5D | Peripheral insert: SP□T180510-□□ | Central insert: XO□T180508-□□ | Screw: FTNA0511 | Wrench: TW20-100
K5D60540-18 D (mm): 60.5 | Shank d1 (mm): 40 | d2 (mm): 68 | l1 (mm): 310 | l2 (mm): 70 | L (mm): 422 | Aspect ratio: 5D | Peripheral insert: SP□T180510-□□ | Central insert: XO□T180508-□□ | Screw: FTNA0511 | Wrench: TW20-100
