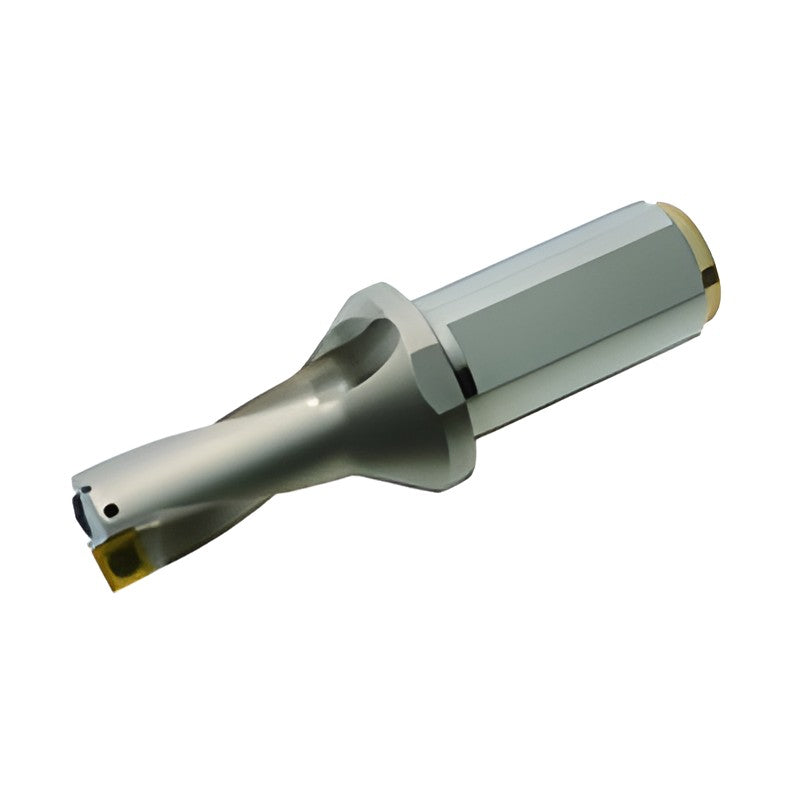

Korloy King Drill HP 2D Indexable Drill for Lathe Through Coolant

Korloy King Drill HP 2D Indexable Drill for Lathe Through Coolant

King Drill with PT-tap plug connection that enables through-coolant drilling on general and CNC lathes without a through-coolant system.

Key features

  • Through coolant via drill holder, plug, oil hose and oil pump
  • PT tap in plug connects to oil hose
  • Can be used without plug on milling machines
  • Flange shank with Weldon flat and PT tap

Specifications

Coolant Through coolant (plug type)
K2D13020HP-04 D (mm): 13.0 | Shank d1 (mm): 20 | d2 (mm): 25 | l1 (mm): 29 | l2 (mm): 50 | L (mm): 93 | Aspect ratio: 2D | Peripheral insert: SP□T040204-□□ | Central insert: XO□T040204-□□ | Screw: FTNA0204 | Wrench: TW06P
K2D13520HP-04 D (mm): 13.5 | Shank d1 (mm): 20 | d2 (mm): 25 | l1 (mm): 29 | l2 (mm): 50 | L (mm): 93 | Aspect ratio: 2D | Peripheral insert: SP□T040204-□□ | Central insert: XO□T040204-□□ | Screw: FTNA0204 | Wrench: TW06P
K2D14020HP-05 D (mm): 14.0 | Shank d1 (mm): 20 | d2 (mm): 25 | l1 (mm): 31 | l2 (mm): 50 | L (mm): 96 | Aspect ratio: 2D | Peripheral insert: SP□T050204-□□ | Central insert: XO□T050204-□□ | Screw: FTNA0204 | Wrench: TW06P
K2D15020HP-05 D (mm): 15.0 | Shank d1 (mm): 20 | d2 (mm): 25 | l1 (mm): 33 | l2 (mm): 50 | L (mm): 99 | Aspect ratio: 2D | Peripheral insert: SP□T050204-□□ | Central insert: XO□T050204-□□ | Screw: FTNA0204 | Wrench: TW06P
K2D16020HP-05 D (mm): 16.0 | Shank d1 (mm): 20 | d2 (mm): 25 | l1 (mm): 35 | l2 (mm): 50 | L (mm): 101 | Aspect ratio: 2D | Peripheral insert: SP□T050204-□□ | Central insert: XO□T050204-□□ | Screw: FTNA0204 | Wrench: TW06P
K2D17025HP-06 D (mm): 17.0 | Shank d1 (mm): 25 | d2 (mm): 34 | l1 (mm): 37 | l2 (mm): 56 | L (mm): 109 | Aspect ratio: 2D | Peripheral insert: SP□T060205-□□ | Central insert: XO□T060204-□□ | Screw: FTKA02206S | Wrench: TW07P
K2D18025HP-06 D (mm): 18.0 | Shank d1 (mm): 25 | d2 (mm): 34 | l1 (mm): 39 | l2 (mm): 56 | L (mm): 112 | Aspect ratio: 2D | Peripheral insert: SP□T060205-□□ | Central insert: XO□T060204-□□ | Screw: FTKA02206S | Wrench: TW07P
K2D19025HP-06 D (mm): 19.0 | Shank d1 (mm): 25 | d2 (mm): 34 | l1 (mm): 41 | l2 (mm): 56 | L (mm): 114 | Aspect ratio: 2D | Peripheral insert: SP□T060205-□□ | Central insert: XO□T060204-□□ | Screw: FTKA02206S | Wrench: TW07P
K2D20025HP-07 D (mm): 20.0 | Shank d1 (mm): 25 | d2 (mm): 34 | l1 (mm): 43 | l2 (mm): 56 | L (mm): 118 | Aspect ratio: 2D | Peripheral insert: SP□T07T208-□□ | Central insert: XO□T07T205-□□ | Screw: FTKA02565 | Wrench: TW07S
K2D21025HP-07 D (mm): 21.0 | Shank d1 (mm): 25 | d2 (mm): 34 | l1 (mm): 45 | l2 (mm): 56 | L (mm): 120 | Aspect ratio: 2D | Peripheral insert: SP□T07T208-□□ | Central insert: XO□T07T205-□□ | Screw: FTKA02565 | Wrench: TW07S
K2D22025HP-07 D (mm): 22.0 | Shank d1 (mm): 25 | d2 (mm): 34 | l1 (mm): 47 | l2 (mm): 56 | L (mm): 122 | Aspect ratio: 2D | Peripheral insert: SP□T07T208-□□ | Central insert: XO□T07T205-□□ | Screw: FTKA02565 | Wrench: TW07S
K2D23025HP-07 D (mm): 23.0 | Shank d1 (mm): 25 | d2 (mm): 34 | l1 (mm): 49 | l2 (mm): 56 | L (mm): 126 | Aspect ratio: 2D | Peripheral insert: SP□T07T208-□□ | Central insert: XO□T07T205-□□ | Screw: FTKA02565 | Wrench: TW07S
K2D24032HP-09 D (mm): 24.0 | Shank d1 (mm): 32 | d2 (mm): 44 | l1 (mm): 51 | l2 (mm): 60 | L (mm): 133 | Aspect ratio: 2D | Peripheral insert: SP□T090308-□□ | Central insert: XO□T090305-□□ | Screw: FTKA0307 | Wrench: TW09S
K2D25032HP-09 D (mm): 25.0 | Shank d1 (mm): 32 | d2 (mm): 44 | l1 (mm): 53 | l2 (mm): 60 | L (mm): 135 | Aspect ratio: 2D | Peripheral insert: SP□T090308-□□ | Central insert: XO□T090305-□□ | Screw: FTKA0307 | Wrench: TW09S
K2D26032HP-09 D (mm): 26.0 | Shank d1 (mm): 32 | d2 (mm): 44 | l1 (mm): 55 | l2 (mm): 60 | L (mm): 137 | Aspect ratio: 2D | Peripheral insert: SP□T090308-□□ | Central insert: XO□T090305-□□ | Screw: FTKA0307 | Wrench: TW09S
K2D27032HP-09 D (mm): 27.0 | Shank d1 (mm): 32 | d2 (mm): 44 | l1 (mm): 57 | l2 (mm): 60 | L (mm): 140 | Aspect ratio: 2D | Peripheral insert: SP□T090308-□□ | Central insert: XO□T090305-□□ | Screw: FTKA0307 | Wrench: TW09S
K2D28032HP-09 D (mm): 28.0 | Shank d1 (mm): 32 | d2 (mm): 44 | l1 (mm): 59 | l2 (mm): 60 | L (mm): 143 | Aspect ratio: 2D | Peripheral insert: SP□T090308-□□ | Central insert: XO□T090305-□□ | Screw: FTKA0307 | Wrench: TW09S
K2D29032HP-09 D (mm): 29.0 | Shank d1 (mm): 32 | d2 (mm): 44 | l1 (mm): 61 | l2 (mm): 60 | L (mm): 145 | Aspect ratio: 2D | Peripheral insert: SP□T090308-□□ | Central insert: XO□T090305-□□ | Screw: FTKA0307 | Wrench: TW09S
DrillsKorloy
18 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy King Drill HP 2D Indexable Drill for Lathe Through Coolant

Brand Korloy·Drills

Available part numbers (18)

K2D13020HP-04, K2D13520HP-04, K2D14020HP-05, K2D15020HP-05, K2D16020HP-05, K2D17025HP-06, K2D18025HP-06, K2D19025HP-06, K2D20025HP-07, K2D21025HP-07 + 8 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
K2D13020HP-04D (mm): 13.0 | Shank d1 (mm): 20 | d2 (mm): 25 | l1 (mm): 29 | l2 (mm): 50 | L (mm): 93 | Aspect ratio: 2D | Peripheral insert: SP□T040204-□□ | Central insert: XO□T040204-□□ | Screw: FTNA0204 | Wrench: TW06P
K2D13520HP-04D (mm): 13.5 | Shank d1 (mm): 20 | d2 (mm): 25 | l1 (mm): 29 | l2 (mm): 50 | L (mm): 93 | Aspect ratio: 2D | Peripheral insert: SP□T040204-□□ | Central insert: XO□T040204-□□ | Screw: FTNA0204 | Wrench: TW06P
K2D14020HP-05D (mm): 14.0 | Shank d1 (mm): 20 | d2 (mm): 25 | l1 (mm): 31 | l2 (mm): 50 | L (mm): 96 | Aspect ratio: 2D | Peripheral insert: SP□T050204-□□ | Central insert: XO□T050204-□□ | Screw: FTNA0204 | Wrench: TW06P
K2D15020HP-05D (mm): 15.0 | Shank d1 (mm): 20 | d2 (mm): 25 | l1 (mm): 33 | l2 (mm): 50 | L (mm): 99 | Aspect ratio: 2D | Peripheral insert: SP□T050204-□□ | Central insert: XO□T050204-□□ | Screw: FTNA0204 | Wrench: TW06P
K2D16020HP-05D (mm): 16.0 | Shank d1 (mm): 20 | d2 (mm): 25 | l1 (mm): 35 | l2 (mm): 50 | L (mm): 101 | Aspect ratio: 2D | Peripheral insert: SP□T050204-□□ | Central insert: XO□T050204-□□ | Screw: FTNA0204 | Wrench: TW06P
K2D17025HP-06D (mm): 17.0 | Shank d1 (mm): 25 | d2 (mm): 34 | l1 (mm): 37 | l2 (mm): 56 | L (mm): 109 | Aspect ratio: 2D | Peripheral insert: SP□T060205-□□ | Central insert: XO□T060204-□□ | Screw: FTKA02206S | Wrench: TW07P
K2D18025HP-06D (mm): 18.0 | Shank d1 (mm): 25 | d2 (mm): 34 | l1 (mm): 39 | l2 (mm): 56 | L (mm): 112 | Aspect ratio: 2D | Peripheral insert: SP□T060205-□□ | Central insert: XO□T060204-□□ | Screw: FTKA02206S | Wrench: TW07P
K2D19025HP-06D (mm): 19.0 | Shank d1 (mm): 25 | d2 (mm): 34 | l1 (mm): 41 | l2 (mm): 56 | L (mm): 114 | Aspect ratio: 2D | Peripheral insert: SP□T060205-□□ | Central insert: XO□T060204-□□ | Screw: FTKA02206S | Wrench: TW07P
K2D20025HP-07D (mm): 20.0 | Shank d1 (mm): 25 | d2 (mm): 34 | l1 (mm): 43 | l2 (mm): 56 | L (mm): 118 | Aspect ratio: 2D | Peripheral insert: SP□T07T208-□□ | Central insert: XO□T07T205-□□ | Screw: FTKA02565 | Wrench: TW07S
K2D21025HP-07D (mm): 21.0 | Shank d1 (mm): 25 | d2 (mm): 34 | l1 (mm): 45 | l2 (mm): 56 | L (mm): 120 | Aspect ratio: 2D | Peripheral insert: SP□T07T208-□□ | Central insert: XO□T07T205-□□ | Screw: FTKA02565 | Wrench: TW07S
K2D22025HP-07D (mm): 22.0 | Shank d1 (mm): 25 | d2 (mm): 34 | l1 (mm): 47 | l2 (mm): 56 | L (mm): 122 | Aspect ratio: 2D | Peripheral insert: SP□T07T208-□□ | Central insert: XO□T07T205-□□ | Screw: FTKA02565 | Wrench: TW07S
K2D23025HP-07D (mm): 23.0 | Shank d1 (mm): 25 | d2 (mm): 34 | l1 (mm): 49 | l2 (mm): 56 | L (mm): 126 | Aspect ratio: 2D | Peripheral insert: SP□T07T208-□□ | Central insert: XO□T07T205-□□ | Screw: FTKA02565 | Wrench: TW07S
K2D24032HP-09D (mm): 24.0 | Shank d1 (mm): 32 | d2 (mm): 44 | l1 (mm): 51 | l2 (mm): 60 | L (mm): 133 | Aspect ratio: 2D | Peripheral insert: SP□T090308-□□ | Central insert: XO□T090305-□□ | Screw: FTKA0307 | Wrench: TW09S
K2D25032HP-09D (mm): 25.0 | Shank d1 (mm): 32 | d2 (mm): 44 | l1 (mm): 53 | l2 (mm): 60 | L (mm): 135 | Aspect ratio: 2D | Peripheral insert: SP□T090308-□□ | Central insert: XO□T090305-□□ | Screw: FTKA0307 | Wrench: TW09S
K2D26032HP-09D (mm): 26.0 | Shank d1 (mm): 32 | d2 (mm): 44 | l1 (mm): 55 | l2 (mm): 60 | L (mm): 137 | Aspect ratio: 2D | Peripheral insert: SP□T090308-□□ | Central insert: XO□T090305-□□ | Screw: FTKA0307 | Wrench: TW09S
K2D27032HP-09D (mm): 27.0 | Shank d1 (mm): 32 | d2 (mm): 44 | l1 (mm): 57 | l2 (mm): 60 | L (mm): 140 | Aspect ratio: 2D | Peripheral insert: SP□T090308-□□ | Central insert: XO□T090305-□□ | Screw: FTKA0307 | Wrench: TW09S
K2D28032HP-09D (mm): 28.0 | Shank d1 (mm): 32 | d2 (mm): 44 | l1 (mm): 59 | l2 (mm): 60 | L (mm): 143 | Aspect ratio: 2D | Peripheral insert: SP□T090308-□□ | Central insert: XO□T090305-□□ | Screw: FTKA0307 | Wrench: TW09S
K2D29032HP-09D (mm): 29.0 | Shank d1 (mm): 32 | d2 (mm): 44 | l1 (mm): 61 | l2 (mm): 60 | L (mm): 145 | Aspect ratio: 2D | Peripheral insert: SP□T090308-□□ | Central insert: XO□T090305-□□ | Screw: FTKA0307 | Wrench: TW09S
