• Korloy King Drill HP 4D Indexable Drill for Lathe Through Coolant
1 1

Korloy King Drill HP 4D Indexable Drill for Lathe Through Coolant

Korloy King Drill HP 4D Indexable Drill for Lathe Through Coolant

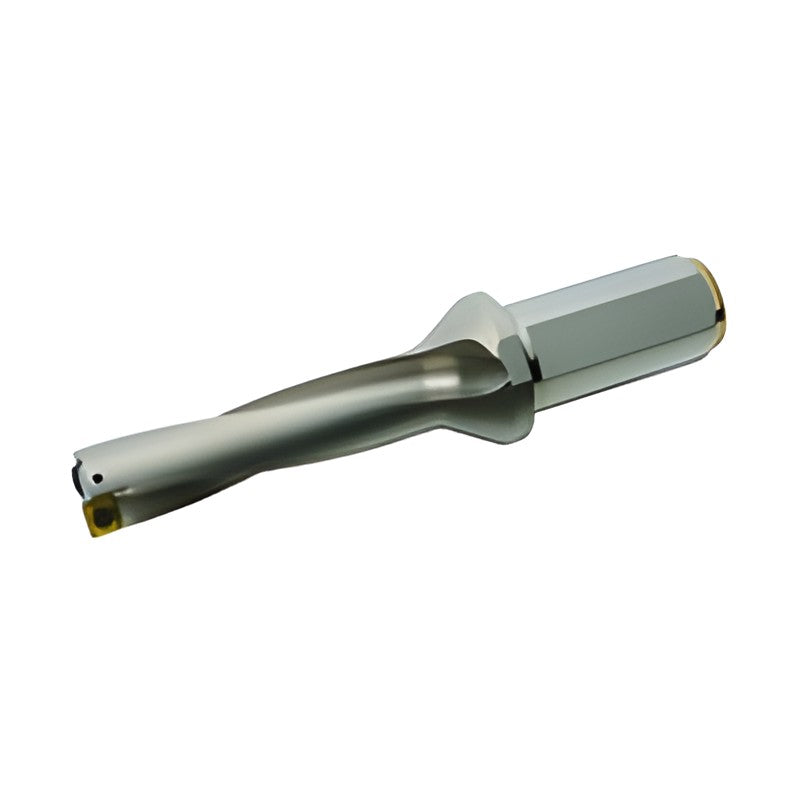

King Drill with PT-tap plug connection that enables through-coolant drilling on general and CNC lathes without a through-coolant system.

Key features

  • Through coolant via drill holder, plug, oil hose and oil pump
  • PT tap in plug connects to oil hose
  • Can be used without plug on milling machines
  • Flange shank with Weldon flat and PT tap

Specifications

Coolant Through coolant (plug type)
K4D13020HP-04 D (mm): 13.0 | Shank d1 (mm): 20 | d2 (mm): 25 | l1 (mm): 29 | l2 (mm): 50 | L (mm): 93 | Aspect ratio: 4D | Peripheral insert: SP□T040204-□□ | Central insert: XO□T040204-□□ | Screw: FTNA0204 | Wrench: TW06P
K4D13520HP-04 D (mm): 13.5 | Shank d1 (mm): 20 | d2 (mm): 25 | l1 (mm): 29 | l2 (mm): 50 | L (mm): 93 | Aspect ratio: 4D | Peripheral insert: SP□T040204-□□ | Central insert: XO□T040204-□□ | Screw: FTNA0204 | Wrench: TW06P
K4D14020HP-05 D (mm): 14.0 | Shank d1 (mm): 20 | d2 (mm): 25 | l1 (mm): 59 | l2 (mm): 50 | L (mm): 124 | Aspect ratio: 4D | Peripheral insert: SP□T050204-□□ | Central insert: XO□T050204-□□ | Screw: FTNA0204 | Wrench: TW06P
K4D15020HP-05 D (mm): 15.0 | Shank d1 (mm): 20 | d2 (mm): 25 | l1 (mm): 63 | l2 (mm): 50 | L (mm): 129 | Aspect ratio: 4D | Peripheral insert: SP□T050204-□□ | Central insert: XO□T050204-□□ | Screw: FTNA0204 | Wrench: TW06P
K4D16020HP-05 D (mm): 16.0 | Shank d1 (mm): 20 | d2 (mm): 25 | l1 (mm): 67 | l2 (mm): 50 | L (mm): 133 | Aspect ratio: 4D | Peripheral insert: SP□T050204-□□ | Central insert: XO□T050204-□□ | Screw: FTNA0204 | Wrench: TW06P
K4D17025HP-06 D (mm): 17.0 | Shank d1 (mm): 25 | d2 (mm): 34 | l1 (mm): 71 | l2 (mm): 56 | L (mm): 143 | Aspect ratio: 4D | Peripheral insert: SP□T060205-□□ | Central insert: XO□T060204-□□ | Screw: FTKA02206S | Wrench: TW07P
K4D18025HP-06 D (mm): 18.0 | Shank d1 (mm): 25 | d2 (mm): 34 | l1 (mm): 75 | l2 (mm): 56 | L (mm): 148 | Aspect ratio: 4D | Peripheral insert: SP□T060205-□□ | Central insert: XO□T060204-□□ | Screw: FTKA02206S | Wrench: TW07P
K4D19025HP-06 D (mm): 19.0 | Shank d1 (mm): 25 | d2 (mm): 34 | l1 (mm): 79 | l2 (mm): 56 | L (mm): 152 | Aspect ratio: 4D | Peripheral insert: SP□T060205-□□ | Central insert: XO□T060204-□□ | Screw: FTKA02206S | Wrench: TW07P
K4D20025HP-07 D (mm): 20.0 | Shank d1 (mm): 25 | d2 (mm): 34 | l1 (mm): 83 | l2 (mm): 56 | L (mm): 158 | Aspect ratio: 4D | Peripheral insert: SP□T07T208-□□ | Central insert: XO□T07T205-□□ | Screw: FTKA02565 | Wrench: TW07S
K4D21025HP-07 D (mm): 21.0 | Shank d1 (mm): 25 | d2 (mm): 34 | l1 (mm): 87 | l2 (mm): 56 | L (mm): 162 | Aspect ratio: 4D | Peripheral insert: SP□T07T208-□□ | Central insert: XO□T07T205-□□ | Screw: FTKA02565 | Wrench: TW07S
K4D22025HP-07 D (mm): 22.0 | Shank d1 (mm): 25 | d2 (mm): 34 | l1 (mm): 91 | l2 (mm): 56 | L (mm): 166 | Aspect ratio: 4D | Peripheral insert: SP□T07T208-□□ | Central insert: XO□T07T205-□□ | Screw: FTKA02565 | Wrench: TW07S
K4D23025HP-07 D (mm): 23.0 | Shank d1 (mm): 25 | d2 (mm): 34 | l1 (mm): 95 | l2 (mm): 56 | L (mm): 172 | Aspect ratio: 4D | Peripheral insert: SP□T07T208-□□ | Central insert: XO□T07T205-□□ | Screw: FTKA02565 | Wrench: TW07S
K4D24032HP-09 D (mm): 24.0 | Shank d1 (mm): 32 | d2 (mm): 44 | l1 (mm): 99 | l2 (mm): 60 | L (mm): 181 | Aspect ratio: 4D | Peripheral insert: SP□T090308-□□ | Central insert: XO□T090305-□□ | Screw: FTKA0307 | Wrench: TW09S
K4D25032HP-09 D (mm): 25.0 | Shank d1 (mm): 32 | d2 (mm): 44 | l1 (mm): 103 | l2 (mm): 60 | L (mm): 185 | Aspect ratio: 4D | Peripheral insert: SP□T090308-□□ | Central insert: XO□T090305-□□ | Screw: FTKA0307 | Wrench: TW09S
K4D26032HP-09 D (mm): 26.0 | Shank d1 (mm): 32 | d2 (mm): 44 | l1 (mm): 107 | l2 (mm): 60 | L (mm): 189 | Aspect ratio: 4D | Peripheral insert: SP□T090308-□□ | Central insert: XO□T090305-□□ | Screw: FTKA0307 | Wrench: TW09S
K4D27032HP-09 D (mm): 27.0 | Shank d1 (mm): 32 | d2 (mm): 44 | l1 (mm): 111 | l2 (mm): 60 | L (mm): 194 | Aspect ratio: 4D | Peripheral insert: SP□T090308-□□ | Central insert: XO□T090305-□□ | Screw: FTKA0307 | Wrench: TW09S
K4D28032HP-09 D (mm): 28.0 | Shank d1 (mm): 32 | d2 (mm): 44 | l1 (mm): 115 | l2 (mm): 60 | L (mm): 199 | Aspect ratio: 4D | Peripheral insert: SP□T090308-□□ | Central insert: XO□T090305-□□ | Screw: FTKA0307 | Wrench: TW09S
K4D29032HP-09 D (mm): 29.0 | Shank d1 (mm): 32 | d2 (mm): 44 | l1 (mm): 119 | l2 (mm): 60 | L (mm): 203 | Aspect ratio: 4D | Peripheral insert: SP□T090308-□□ | Central insert: XO□T090305-□□ | Screw: FTKA0307 | Wrench: TW09S
DrillsKorloy
18 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy King Drill HP 4D Indexable Drill for Lathe Through Coolant

Brand Korloy·Drills

Available part numbers (18)

K4D13020HP-04, K4D13520HP-04, K4D14020HP-05, K4D15020HP-05, K4D16020HP-05, K4D17025HP-06, K4D18025HP-06, K4D19025HP-06, K4D20025HP-07, K4D21025HP-07 + 8 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
K4D13020HP-04D (mm): 13.0 | Shank d1 (mm): 20 | d2 (mm): 25 | l1 (mm): 29 | l2 (mm): 50 | L (mm): 93 | Aspect ratio: 4D | Peripheral insert: SP□T040204-□□ | Central insert: XO□T040204-□□ | Screw: FTNA0204 | Wrench: TW06P
K4D13520HP-04D (mm): 13.5 | Shank d1 (mm): 20 | d2 (mm): 25 | l1 (mm): 29 | l2 (mm): 50 | L (mm): 93 | Aspect ratio: 4D | Peripheral insert: SP□T040204-□□ | Central insert: XO□T040204-□□ | Screw: FTNA0204 | Wrench: TW06P
K4D14020HP-05D (mm): 14.0 | Shank d1 (mm): 20 | d2 (mm): 25 | l1 (mm): 59 | l2 (mm): 50 | L (mm): 124 | Aspect ratio: 4D | Peripheral insert: SP□T050204-□□ | Central insert: XO□T050204-□□ | Screw: FTNA0204 | Wrench: TW06P
K4D15020HP-05D (mm): 15.0 | Shank d1 (mm): 20 | d2 (mm): 25 | l1 (mm): 63 | l2 (mm): 50 | L (mm): 129 | Aspect ratio: 4D | Peripheral insert: SP□T050204-□□ | Central insert: XO□T050204-□□ | Screw: FTNA0204 | Wrench: TW06P
K4D16020HP-05D (mm): 16.0 | Shank d1 (mm): 20 | d2 (mm): 25 | l1 (mm): 67 | l2 (mm): 50 | L (mm): 133 | Aspect ratio: 4D | Peripheral insert: SP□T050204-□□ | Central insert: XO□T050204-□□ | Screw: FTNA0204 | Wrench: TW06P
K4D17025HP-06D (mm): 17.0 | Shank d1 (mm): 25 | d2 (mm): 34 | l1 (mm): 71 | l2 (mm): 56 | L (mm): 143 | Aspect ratio: 4D | Peripheral insert: SP□T060205-□□ | Central insert: XO□T060204-□□ | Screw: FTKA02206S | Wrench: TW07P
K4D18025HP-06D (mm): 18.0 | Shank d1 (mm): 25 | d2 (mm): 34 | l1 (mm): 75 | l2 (mm): 56 | L (mm): 148 | Aspect ratio: 4D | Peripheral insert: SP□T060205-□□ | Central insert: XO□T060204-□□ | Screw: FTKA02206S | Wrench: TW07P
K4D19025HP-06D (mm): 19.0 | Shank d1 (mm): 25 | d2 (mm): 34 | l1 (mm): 79 | l2 (mm): 56 | L (mm): 152 | Aspect ratio: 4D | Peripheral insert: SP□T060205-□□ | Central insert: XO□T060204-□□ | Screw: FTKA02206S | Wrench: TW07P
K4D20025HP-07D (mm): 20.0 | Shank d1 (mm): 25 | d2 (mm): 34 | l1 (mm): 83 | l2 (mm): 56 | L (mm): 158 | Aspect ratio: 4D | Peripheral insert: SP□T07T208-□□ | Central insert: XO□T07T205-□□ | Screw: FTKA02565 | Wrench: TW07S
K4D21025HP-07D (mm): 21.0 | Shank d1 (mm): 25 | d2 (mm): 34 | l1 (mm): 87 | l2 (mm): 56 | L (mm): 162 | Aspect ratio: 4D | Peripheral insert: SP□T07T208-□□ | Central insert: XO□T07T205-□□ | Screw: FTKA02565 | Wrench: TW07S
K4D22025HP-07D (mm): 22.0 | Shank d1 (mm): 25 | d2 (mm): 34 | l1 (mm): 91 | l2 (mm): 56 | L (mm): 166 | Aspect ratio: 4D | Peripheral insert: SP□T07T208-□□ | Central insert: XO□T07T205-□□ | Screw: FTKA02565 | Wrench: TW07S
K4D23025HP-07D (mm): 23.0 | Shank d1 (mm): 25 | d2 (mm): 34 | l1 (mm): 95 | l2 (mm): 56 | L (mm): 172 | Aspect ratio: 4D | Peripheral insert: SP□T07T208-□□ | Central insert: XO□T07T205-□□ | Screw: FTKA02565 | Wrench: TW07S
K4D24032HP-09D (mm): 24.0 | Shank d1 (mm): 32 | d2 (mm): 44 | l1 (mm): 99 | l2 (mm): 60 | L (mm): 181 | Aspect ratio: 4D | Peripheral insert: SP□T090308-□□ | Central insert: XO□T090305-□□ | Screw: FTKA0307 | Wrench: TW09S
K4D25032HP-09D (mm): 25.0 | Shank d1 (mm): 32 | d2 (mm): 44 | l1 (mm): 103 | l2 (mm): 60 | L (mm): 185 | Aspect ratio: 4D | Peripheral insert: SP□T090308-□□ | Central insert: XO□T090305-□□ | Screw: FTKA0307 | Wrench: TW09S
K4D26032HP-09D (mm): 26.0 | Shank d1 (mm): 32 | d2 (mm): 44 | l1 (mm): 107 | l2 (mm): 60 | L (mm): 189 | Aspect ratio: 4D | Peripheral insert: SP□T090308-□□ | Central insert: XO□T090305-□□ | Screw: FTKA0307 | Wrench: TW09S
K4D27032HP-09D (mm): 27.0 | Shank d1 (mm): 32 | d2 (mm): 44 | l1 (mm): 111 | l2 (mm): 60 | L (mm): 194 | Aspect ratio: 4D | Peripheral insert: SP□T090308-□□ | Central insert: XO□T090305-□□ | Screw: FTKA0307 | Wrench: TW09S
K4D28032HP-09D (mm): 28.0 | Shank d1 (mm): 32 | d2 (mm): 44 | l1 (mm): 115 | l2 (mm): 60 | L (mm): 199 | Aspect ratio: 4D | Peripheral insert: SP□T090308-□□ | Central insert: XO□T090305-□□ | Screw: FTKA0307 | Wrench: TW09S
K4D29032HP-09D (mm): 29.0 | Shank d1 (mm): 32 | d2 (mm): 44 | l1 (mm): 119 | l2 (mm): 60 | L (mm): 203 | Aspect ratio: 4D | Peripheral insert: SP□T090308-□□ | Central insert: XO□T090305-□□ | Screw: FTKA0307 | Wrench: TW09S

Need a different model, or a part not listed here? Send us your parts list →
