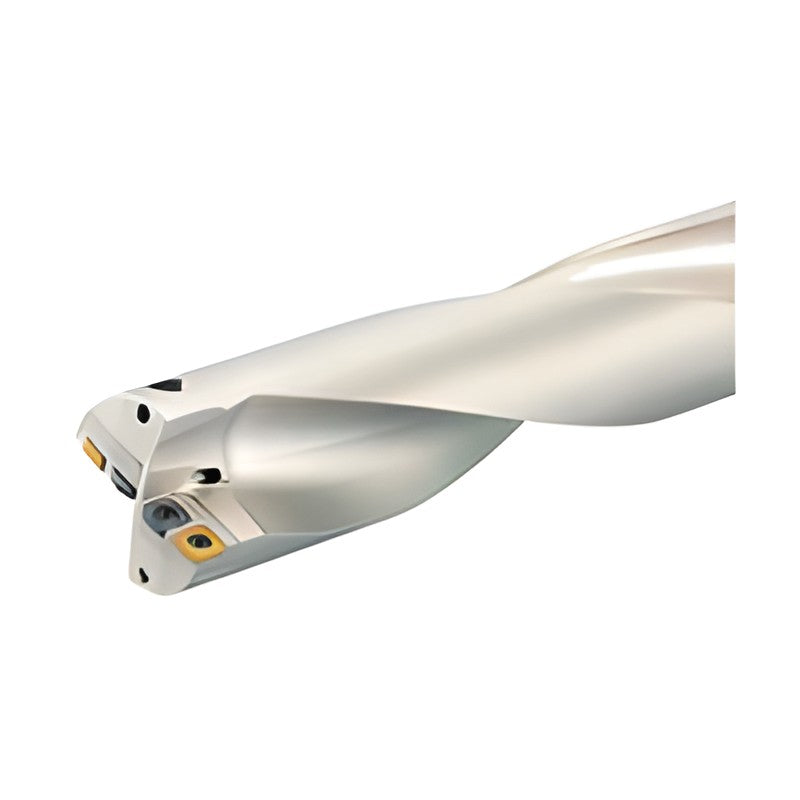

Korloy King Drill Indexable Drill for Large Diameter Drilling

Korloy King Drill Indexable Drill for Large Diameter Drilling

Cartridge-type King Drill for drilling diameters from 61 to 100 mm, with a peripheral cartridge adjustable within 5 mm.

Key features

  • Cartridge type for Ø61~Ø100 drilling
  • Peripheral cartridge adjusts drilling diameter within 5 mm
  • Easy diameter adjustment with adjusting bolt
  • Replaceable cartridges for cost efficiency
K2D616550-11 Drilling range D (mm): 61~65 | Shank d1 (mm): 50 | d2 (mm): 80 | l1 (mm): 130 | l2 (mm): 80 | L (mm): 255 | Aspect ratio: 2D | Internal cartridge: KDC6165C | External cartridge: KDC6165P | Screw: FTKA03508 | Wrench: TW15S
K2D657050-13 Drilling range D (mm): 65~70 | Shank d1 (mm): 50 | d2 (mm): 88 | l1 (mm): 140 | l2 (mm): 80 | L (mm): 265 | Aspect ratio: 2D | Internal cartridge: KDC6570C | External cartridge: KDC6570P | Screw: FTKA0410 | Wrench: TW15S
K2D707550-13 Drilling range D (mm): 70~75 | Shank d1 (mm): 50 | d2 (mm): 88 | l1 (mm): 150 | l2 (mm): 80 | L (mm): 275 | Aspect ratio: 2D | Internal cartridge: KDC7075C | External cartridge: KDC7075P | Screw: FTKA0410 | Wrench: TW15S
K2D758050-13 Drilling range D (mm): 75~80 | Shank d1 (mm): 50 | d2 (mm): 88 | l1 (mm): 160 | l2 (mm): 80 | L (mm): 285 | Aspect ratio: 2D | Internal cartridge: KDC7580C | External cartridge: KDC7580P | Screw: FTKA0410 | Wrench: TW15S
K2D808550-15 Drilling range D (mm): 80~85 | Shank d1 (mm): 50 | d2 (mm): 88 | l1 (mm): 170 | l2 (mm): 80 | L (mm): 295 | Aspect ratio: 2D | Internal cartridge: KDC8085C | External cartridge: KDC8085P | Screw: FTNC04511 | Wrench: TW20S
K2D859050-15 Drilling range D (mm): 85~90 | Shank d1 (mm): 50 | d2 (mm): 95 | l1 (mm): 180 | l2 (mm): 80 | L (mm): 305 | Aspect ratio: 2D | Internal cartridge: KDC8590C | External cartridge: KDC8590P | Screw: FTNC04511 | Wrench: TW20S
K2D909550-15 Drilling range D (mm): 90~95 | Shank d1 (mm): 50 | d2 (mm): 95 | l1 (mm): 190 | l2 (mm): 80 | L (mm): 315 | Aspect ratio: 2D | Internal cartridge: KDC9095C | External cartridge: KDC9095P | Screw: FTNC04511 | Wrench: TW20S
K2D9510050-18 Drilling range D (mm): 95~100 | Shank d1 (mm): 50 | d2 (mm): 95 | l1 (mm): 200 | l2 (mm): 80 | L (mm): 325 | Aspect ratio: 2D | Internal cartridge: KDC95100C | External cartridge: KDC95100P | Screw: FTNA0511 | Wrench: TW20-100
K3D616550-11 Drilling range D (mm): 61~65 | Shank d1 (mm): 50 | d2 (mm): 80 | l1 (mm): 195 | l2 (mm): 80 | L (mm): 320 | Aspect ratio: 3D | Internal cartridge: KDC6165C | External cartridge: KDC6165P | Screw: FTKA03508 | Wrench: TW15S
K3D657050-13 Drilling range D (mm): 65~70 | Shank d1 (mm): 50 | d2 (mm): 88 | l1 (mm): 210 | l2 (mm): 80 | L (mm): 335 | Aspect ratio: 3D | Internal cartridge: KDC6570C | External cartridge: KDC6570P | Screw: FTKA0410 | Wrench: TW15S
K3D707550-13 Drilling range D (mm): 70~75 | Shank d1 (mm): 50 | d2 (mm): 88 | l1 (mm): 225 | l2 (mm): 80 | L (mm): 350 | Aspect ratio: 3D | Internal cartridge: KDC7075C | External cartridge: KDC7075P | Screw: FTKA0410 | Wrench: TW15S
K3D758050-13 Drilling range D (mm): 75~80 | Shank d1 (mm): 50 | d2 (mm): 88 | l1 (mm): 240 | l2 (mm): 80 | L (mm): 365 | Aspect ratio: 3D | Internal cartridge: KDC7580C | External cartridge: KDC7580P | Screw: FTKA0410 | Wrench: TW15S
K3D808550-15 Drilling range D (mm): 80~85 | Shank d1 (mm): 50 | d2 (mm): 88 | l1 (mm): 255 | l2 (mm): 80 | L (mm): 380 | Aspect ratio: 3D | Internal cartridge: KDC8085C | External cartridge: KDC8085P | Screw: FTNC04511 | Wrench: TW20S
K3D859050-15 Drilling range D (mm): 85~90 | Shank d1 (mm): 50 | d2 (mm): 95 | l1 (mm): 270 | l2 (mm): 80 | L (mm): 395 | Aspect ratio: 3D | Internal cartridge: KDC8590C | External cartridge: KDC8590P | Screw: FTNC04511 | Wrench: TW20S
K3D909550-15 Drilling range D (mm): 90~95 | Shank d1 (mm): 50 | d2 (mm): 95 | l1 (mm): 285 | l2 (mm): 80 | L (mm): 410 | Aspect ratio: 3D | Internal cartridge: KDC9095C | External cartridge: KDC9095P | Screw: FTNC04511 | Wrench: TW20S
K3D9510050-18 Drilling range D (mm): 95~100 | Shank d1 (mm): 50 | d2 (mm): 95 | l1 (mm): 300 | l2 (mm): 80 | L (mm): 425 | Aspect ratio: 3D | Internal cartridge: KDC95100C | External cartridge: KDC95100P | Screw: FTNA0511 | Wrench: TW20-100
K4D616550-11 Drilling range D (mm): 61~65 | Shank d1 (mm): 50 | d2 (mm): 80 | l1 (mm): 260 | l2 (mm): 80 | L (mm): 385 | Aspect ratio: 4D | Internal cartridge: KDC6165C | External cartridge: KDC6165P | Screw: FTKA03508 | Wrench: TW15S
K4D657050-13 Drilling range D (mm): 65~70 | Shank d1 (mm): 50 | d2 (mm): 88 | l1 (mm): 280 | l2 (mm): 80 | L (mm): 405 | Aspect ratio: 4D | Internal cartridge: KDC6570C | External cartridge: KDC6570P | Screw: FTKA0410 | Wrench: TW15S
K4D707550-13 Drilling range D (mm): 70~75 | Shank d1 (mm): 50 | d2 (mm): 88 | l1 (mm): 300 | l2 (mm): 80 | L (mm): 425 | Aspect ratio: 4D | Internal cartridge: KDC7075C | External cartridge: KDC7075P | Screw: FTKA0410 | Wrench: TW15S
K4D758050-13 Drilling range D (mm): 75~80 | Shank d1 (mm): 50 | d2 (mm): 88 | l1 (mm): 320 | l2 (mm): 80 | L (mm): 445 | Aspect ratio: 4D | Internal cartridge: KDC7580C | External cartridge: KDC7580P | Screw: FTKA0410 | Wrench: TW15S
K4D808550-15 Drilling range D (mm): 80~85 | Shank d1 (mm): 50 | d2 (mm): 88 | l1 (mm): 340 | l2 (mm): 80 | L (mm): 465 | Aspect ratio: 4D | Internal cartridge: KDC8085C | External cartridge: KDC8085P | Screw: FTNC04511 | Wrench: TW20S
K4D859050-15 Drilling range D (mm): 85~90 | Shank d1 (mm): 50 | d2 (mm): 95 | l1 (mm): 360 | l2 (mm): 80 | L (mm): 485 | Aspect ratio: 4D | Internal cartridge: KDC8590C | External cartridge: KDC8590P | Screw: FTNC04511 | Wrench: TW20S
K4D909550-15 Drilling range D (mm): 90~95 | Shank d1 (mm): 50 | d2 (mm): 95 | l1 (mm): 380 | l2 (mm): 80 | L (mm): 505 | Aspect ratio: 4D | Internal cartridge: KDC9095C | External cartridge: KDC9095P | Screw: FTNC04511 | Wrench: TW20S
K4D9510050-18 Drilling range D (mm): 95~100 | Shank d1 (mm): 50 | d2 (mm): 95 | l1 (mm): 400 | l2 (mm): 80 | L (mm): 525 | Aspect ratio: 4D | Internal cartridge: KDC95100C | External cartridge: KDC95100P | Screw: FTNA0511 | Wrench: TW20-100
DrillsKorloy
24 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy King Drill Indexable Drill for Large Diameter Drilling

Brand Korloy·Drills

Available part numbers (24)

K2D616550-11, K2D657050-13, K2D707550-13, K2D758050-13, K2D808550-15, K2D859050-15, K2D909550-15, K2D9510050-18, K3D616550-11, K3D657050-13 + 14 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
K2D616550-11Drilling range D (mm): 61~65 | Shank d1 (mm): 50 | d2 (mm): 80 | l1 (mm): 130 | l2 (mm): 80 | L (mm): 255 | Aspect ratio: 2D | Internal cartridge: KDC6165C | External cartridge: KDC6165P | Screw: FTKA03508 | Wrench: TW15S
K2D657050-13Drilling range D (mm): 65~70 | Shank d1 (mm): 50 | d2 (mm): 88 | l1 (mm): 140 | l2 (mm): 80 | L (mm): 265 | Aspect ratio: 2D | Internal cartridge: KDC6570C | External cartridge: KDC6570P | Screw: FTKA0410 | Wrench: TW15S
K2D707550-13Drilling range D (mm): 70~75 | Shank d1 (mm): 50 | d2 (mm): 88 | l1 (mm): 150 | l2 (mm): 80 | L (mm): 275 | Aspect ratio: 2D | Internal cartridge: KDC7075C | External cartridge: KDC7075P | Screw: FTKA0410 | Wrench: TW15S
K2D758050-13Drilling range D (mm): 75~80 | Shank d1 (mm): 50 | d2 (mm): 88 | l1 (mm): 160 | l2 (mm): 80 | L (mm): 285 | Aspect ratio: 2D | Internal cartridge: KDC7580C | External cartridge: KDC7580P | Screw: FTKA0410 | Wrench: TW15S
K2D808550-15Drilling range D (mm): 80~85 | Shank d1 (mm): 50 | d2 (mm): 88 | l1 (mm): 170 | l2 (mm): 80 | L (mm): 295 | Aspect ratio: 2D | Internal cartridge: KDC8085C | External cartridge: KDC8085P | Screw: FTNC04511 | Wrench: TW20S
K2D859050-15Drilling range D (mm): 85~90 | Shank d1 (mm): 50 | d2 (mm): 95 | l1 (mm): 180 | l2 (mm): 80 | L (mm): 305 | Aspect ratio: 2D | Internal cartridge: KDC8590C | External cartridge: KDC8590P | Screw: FTNC04511 | Wrench: TW20S
K2D909550-15Drilling range D (mm): 90~95 | Shank d1 (mm): 50 | d2 (mm): 95 | l1 (mm): 190 | l2 (mm): 80 | L (mm): 315 | Aspect ratio: 2D | Internal cartridge: KDC9095C | External cartridge: KDC9095P | Screw: FTNC04511 | Wrench: TW20S
K2D9510050-18Drilling range D (mm): 95~100 | Shank d1 (mm): 50 | d2 (mm): 95 | l1 (mm): 200 | l2 (mm): 80 | L (mm): 325 | Aspect ratio: 2D | Internal cartridge: KDC95100C | External cartridge: KDC95100P | Screw: FTNA0511 | Wrench: TW20-100
K3D616550-11Drilling range D (mm): 61~65 | Shank d1 (mm): 50 | d2 (mm): 80 | l1 (mm): 195 | l2 (mm): 80 | L (mm): 320 | Aspect ratio: 3D | Internal cartridge: KDC6165C | External cartridge: KDC6165P | Screw: FTKA03508 | Wrench: TW15S
K3D657050-13Drilling range D (mm): 65~70 | Shank d1 (mm): 50 | d2 (mm): 88 | l1 (mm): 210 | l2 (mm): 80 | L (mm): 335 | Aspect ratio: 3D | Internal cartridge: KDC6570C | External cartridge: KDC6570P | Screw: FTKA0410 | Wrench: TW15S
K3D707550-13Drilling range D (mm): 70~75 | Shank d1 (mm): 50 | d2 (mm): 88 | l1 (mm): 225 | l2 (mm): 80 | L (mm): 350 | Aspect ratio: 3D | Internal cartridge: KDC7075C | External cartridge: KDC7075P | Screw: FTKA0410 | Wrench: TW15S
K3D758050-13Drilling range D (mm): 75~80 | Shank d1 (mm): 50 | d2 (mm): 88 | l1 (mm): 240 | l2 (mm): 80 | L (mm): 365 | Aspect ratio: 3D | Internal cartridge: KDC7580C | External cartridge: KDC7580P | Screw: FTKA0410 | Wrench: TW15S
K3D808550-15Drilling range D (mm): 80~85 | Shank d1 (mm): 50 | d2 (mm): 88 | l1 (mm): 255 | l2 (mm): 80 | L (mm): 380 | Aspect ratio: 3D | Internal cartridge: KDC8085C | External cartridge: KDC8085P | Screw: FTNC04511 | Wrench: TW20S
K3D859050-15Drilling range D (mm): 85~90 | Shank d1 (mm): 50 | d2 (mm): 95 | l1 (mm): 270 | l2 (mm): 80 | L (mm): 395 | Aspect ratio: 3D | Internal cartridge: KDC8590C | External cartridge: KDC8590P | Screw: FTNC04511 | Wrench: TW20S
K3D909550-15Drilling range D (mm): 90~95 | Shank d1 (mm): 50 | d2 (mm): 95 | l1 (mm): 285 | l2 (mm): 80 | L (mm): 410 | Aspect ratio: 3D | Internal cartridge: KDC9095C | External cartridge: KDC9095P | Screw: FTNC04511 | Wrench: TW20S
K3D9510050-18Drilling range D (mm): 95~100 | Shank d1 (mm): 50 | d2 (mm): 95 | l1 (mm): 300 | l2 (mm): 80 | L (mm): 425 | Aspect ratio: 3D | Internal cartridge: KDC95100C | External cartridge: KDC95100P | Screw: FTNA0511 | Wrench: TW20-100
K4D616550-11Drilling range D (mm): 61~65 | Shank d1 (mm): 50 | d2 (mm): 80 | l1 (mm): 260 | l2 (mm): 80 | L (mm): 385 | Aspect ratio: 4D | Internal cartridge: KDC6165C | External cartridge: KDC6165P | Screw: FTKA03508 | Wrench: TW15S
K4D657050-13Drilling range D (mm): 65~70 | Shank d1 (mm): 50 | d2 (mm): 88 | l1 (mm): 280 | l2 (mm): 80 | L (mm): 405 | Aspect ratio: 4D | Internal cartridge: KDC6570C | External cartridge: KDC6570P | Screw: FTKA0410 | Wrench: TW15S
K4D707550-13Drilling range D (mm): 70~75 | Shank d1 (mm): 50 | d2 (mm): 88 | l1 (mm): 300 | l2 (mm): 80 | L (mm): 425 | Aspect ratio: 4D | Internal cartridge: KDC7075C | External cartridge: KDC7075P | Screw: FTKA0410 | Wrench: TW15S
K4D758050-13Drilling range D (mm): 75~80 | Shank d1 (mm): 50 | d2 (mm): 88 | l1 (mm): 320 | l2 (mm): 80 | L (mm): 445 | Aspect ratio: 4D | Internal cartridge: KDC7580C | External cartridge: KDC7580P | Screw: FTKA0410 | Wrench: TW15S
K4D808550-15Drilling range D (mm): 80~85 | Shank d1 (mm): 50 | d2 (mm): 88 | l1 (mm): 340 | l2 (mm): 80 | L (mm): 465 | Aspect ratio: 4D | Internal cartridge: KDC8085C | External cartridge: KDC8085P | Screw: FTNC04511 | Wrench: TW20S
K4D859050-15Drilling range D (mm): 85~90 | Shank d1 (mm): 50 | d2 (mm): 95 | l1 (mm): 360 | l2 (mm): 80 | L (mm): 485 | Aspect ratio: 4D | Internal cartridge: KDC8590C | External cartridge: KDC8590P | Screw: FTNC04511 | Wrench: TW20S
K4D909550-15Drilling range D (mm): 90~95 | Shank d1 (mm): 50 | d2 (mm): 95 | l1 (mm): 380 | l2 (mm): 80 | L (mm): 505 | Aspect ratio: 4D | Internal cartridge: KDC9095C | External cartridge: KDC9095P | Screw: FTNC04511 | Wrench: TW20S
K4D9510050-18Drilling range D (mm): 95~100 | Shank d1 (mm): 50 | d2 (mm): 95 | l1 (mm): 400 | l2 (mm): 80 | L (mm): 525 | Aspect ratio: 4D | Internal cartridge: KDC95100C | External cartridge: KDC95100P | Screw: FTNA0511 | Wrench: TW20-100

Need a different model, or a part not listed here? Send us your parts list →
