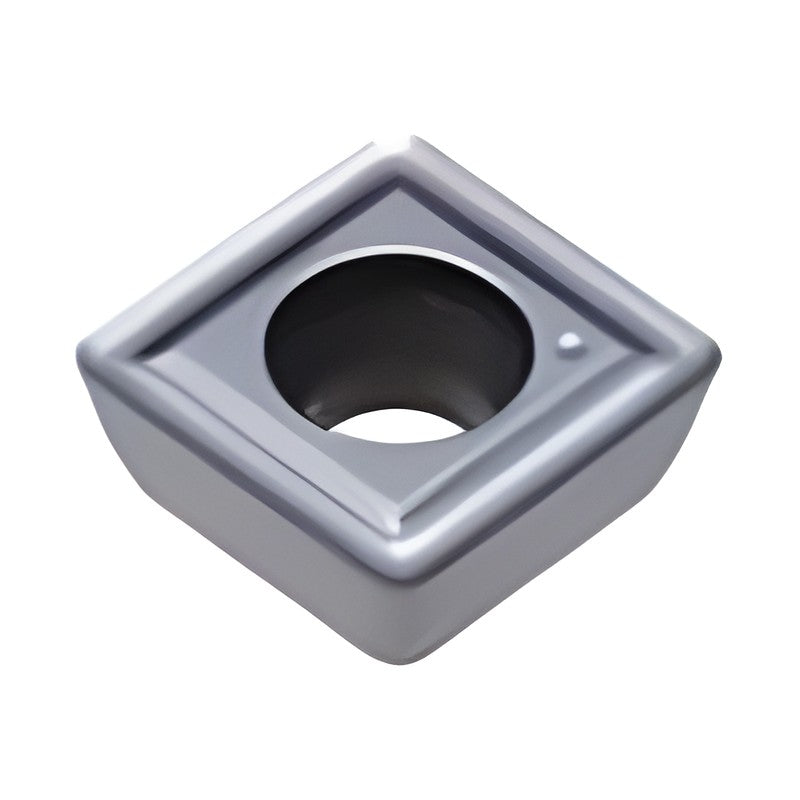

Korloy King Drill Inserts SPET/SPMT/XOMT

Korloy King Drill Inserts SPET/SPMT/XOMT

SPET/SPMT and XOMT indexable inserts (ND, LD, PD, RD chip breakers) for King Drill indexable insert drills.

Key features

  • ND, LD, PD and RD chip breakers
SPET040204-ND Edge length l (mm): 4.7 | Thickness t (mm): 2.4 | Corner radius r (mm): 0.4 | Hole dia. d1 (mm): 2.3 | Chip breaker: ND
SPET050204-ND Edge length l (mm): 5.1 | Thickness t (mm): 2.4 | Corner radius r (mm): 0.4 | Hole dia. d1 (mm): 2.3 | Chip breaker: ND
SPET060205-ND Edge length l (mm): 6.2 | Thickness t (mm): 2.5 | Corner radius r (mm): 0.5 | Hole dia. d1 (mm): 2.5 | Chip breaker: ND
SPET07T208-ND Edge length l (mm): 7.5 | Thickness t (mm): 2.8 | Corner radius r (mm): 0.7 | Hole dia. d1 (mm): 2.8 | Chip breaker: ND
SPET090308-ND Edge length l (mm): 9.2 | Thickness t (mm): 3.3 | Corner radius r (mm): 0.8 | Hole dia. d1 (mm): 3.4 | Chip breaker: ND
SPET11T308-ND Edge length l (mm): 11.0 | Thickness t (mm): 4.0 | Corner radius r (mm): 0.8 | Hole dia. d1 (mm): 4.0 | Chip breaker: ND
SPET130410-ND Edge length l (mm): 13.0 | Thickness t (mm): 4.5 | Corner radius r (mm): 1.0 | Hole dia. d1 (mm): 4.5 | Chip breaker: ND
SPET15M510-ND Edge length l (mm): 15.2 | Thickness t (mm): 5.0 | Corner radius r (mm): 1.0 | Hole dia. d1 (mm): 5.5 | Chip breaker: ND
SPET180510-ND Edge length l (mm): 18.2 | Thickness t (mm): 5.5 | Corner radius r (mm): 1.0 | Hole dia. d1 (mm): 6.0 | Chip breaker: ND
SPMT060205-LD Edge length l (mm): 6.2 | Thickness t (mm): 2.5 | Corner radius r (mm): 0.5 | Hole dia. d1 (mm): 2.5 | Chip breaker: LD
SPMT07T208-LD Edge length l (mm): 7.5 | Thickness t (mm): 2.8 | Corner radius r (mm): 0.7 | Hole dia. d1 (mm): 2.8 | Chip breaker: LD
SPMT090308-LD Edge length l (mm): 9.2 | Thickness t (mm): 3.3 | Corner radius r (mm): 0.8 | Hole dia. d1 (mm): 3.4 | Chip breaker: LD
SPMT11T308-LD Edge length l (mm): 11.0 | Thickness t (mm): 4.0 | Corner radius r (mm): 0.8 | Hole dia. d1 (mm): 4.0 | Chip breaker: LD
SPMT130410-LD Edge length l (mm): 13.0 | Thickness t (mm): 4.5 | Corner radius r (mm): 1.0 | Hole dia. d1 (mm): 4.5 | Chip breaker: LD
SPMT15M510-LD Edge length l (mm): 15.2 | Thickness t (mm): 5.0 | Corner radius r (mm): 1.0 | Hole dia. d1 (mm): 5.5 | Chip breaker: LD
SPMT180510-LD Edge length l (mm): 18.2 | Thickness t (mm): 5.5 | Corner radius r (mm): 1.0 | Hole dia. d1 (mm): 6.0 | Chip breaker: LD
SPMT040204-PD Edge length l (mm): 4.7 | Thickness t (mm): 2.4 | Corner radius r (mm): 0.4 | Hole dia. d1 (mm): 2.3 | Chip breaker: PD
SPMT050204-PD Edge length l (mm): 5.1 | Thickness t (mm): 2.4 | Corner radius r (mm): 0.4 | Hole dia. d1 (mm): 2.3 | Chip breaker: PD
SPMT060205-PD Edge length l (mm): 6.2 | Thickness t (mm): 2.5 | Corner radius r (mm): 0.5 | Hole dia. d1 (mm): 2.5 | Chip breaker: PD
SPMT07T208-PD Edge length l (mm): 7.5 | Thickness t (mm): 2.8 | Corner radius r (mm): 0.7 | Hole dia. d1 (mm): 2.8 | Chip breaker: PD
SPMT090308-PD Edge length l (mm): 9.2 | Thickness t (mm): 3.3 | Corner radius r (mm): 0.8 | Hole dia. d1 (mm): 3.4 | Chip breaker: PD
SPMT11T308-PD Edge length l (mm): 11.0 | Thickness t (mm): 4.0 | Corner radius r (mm): 0.8 | Hole dia. d1 (mm): 4.0 | Chip breaker: PD
SPMT130410-PD Edge length l (mm): 13.0 | Thickness t (mm): 4.5 | Corner radius r (mm): 1.0 | Hole dia. d1 (mm): 4.5 | Chip breaker: PD
SPMT15M510-PD Edge length l (mm): 15.2 | Thickness t (mm): 5.0 | Corner radius r (mm): 1.0 | Hole dia. d1 (mm): 5.5 | Chip breaker: PD
SPMT180510-PD Edge length l (mm): 18.2 | Thickness t (mm): 5.5 | Corner radius r (mm): 1.0 | Hole dia. d1 (mm): 6.0 | Chip breaker: PD
XOMT040204-ND Edge length l (mm): 4.3 | Inscribed circle d (mm): 4.9 | Thickness t (mm): 2.4 | Corner radius r (mm): 0.4 | Hole dia. d1 (mm): 2.3 | Chip breaker: ND
XOMT050204-ND Edge length l (mm): 4.8 | Inscribed circle d (mm): 5.4 | Thickness t (mm): 2.4 | Corner radius r (mm): 0.4 | Hole dia. d1 (mm): 2.3 | Chip breaker: ND
XOMT060204-ND Edge length l (mm): 5.8 | Inscribed circle d (mm): 6.6 | Thickness t (mm): 2.5 | Corner radius r (mm): 0.4 | Hole dia. d1 (mm): 2.5 | Chip breaker: ND
XOMT07T205-ND Edge length l (mm): 6.9 | Inscribed circle d (mm): 7.8 | Thickness t (mm): 2.8 | Corner radius r (mm): 0.5 | Hole dia. d1 (mm): 2.8 | Chip breaker: ND
XOMT090305-ND Edge length l (mm): 8.4 | Inscribed circle d (mm): 9.6 | Thickness t (mm): 3.3 | Corner radius r (mm): 0.5 | Hole dia. d1 (mm): 3.4 | Chip breaker: ND
XOMT11T306-ND Edge length l (mm): 10.0 | Inscribed circle d (mm): 11.4 | Thickness t (mm): 4.0 | Corner radius r (mm): 0.6 | Hole dia. d1 (mm): 4.0 | Chip breaker: ND
XOMT130406-ND Edge length l (mm): 11.9 | Inscribed circle d (mm): 13.6 | Thickness t (mm): 4.5 | Corner radius r (mm): 0.6 | Hole dia. d1 (mm): 4.5 | Chip breaker: ND
XOMT15M508-ND Edge length l (mm): 13.9 | Inscribed circle d (mm): 15.9 | Thickness t (mm): 5.0 | Corner radius r (mm): 0.8 | Hole dia. d1 (mm): 5.5 | Chip breaker: ND
XOMT180508-ND Edge length l (mm): 16.5 | Inscribed circle d (mm): 18.9 | Thickness t (mm): 5.5 | Corner radius r (mm): 0.8 | Hole dia. d1 (mm): 6.0 | Chip breaker: ND
XOMT060204-LD Edge length l (mm): 5.8 | Inscribed circle d (mm): 6.6 | Thickness t (mm): 2.5 | Corner radius r (mm): 0.4 | Hole dia. d1 (mm): 2.5 | Chip breaker: LD
XOMT07T205-LD Edge length l (mm): 6.9 | Inscribed circle d (mm): 7.8 | Thickness t (mm): 2.8 | Corner radius r (mm): 0.5 | Hole dia. d1 (mm): 2.8 | Chip breaker: LD
XOMT090305-LD Edge length l (mm): 8.4 | Inscribed circle d (mm): 9.6 | Thickness t (mm): 3.3 | Corner radius r (mm): 0.5 | Hole dia. d1 (mm): 3.4 | Chip breaker: LD
XOMT11T306-LD Edge length l (mm): 10.0 | Inscribed circle d (mm): 11.4 | Thickness t (mm): 4.0 | Corner radius r (mm): 0.6 | Hole dia. d1 (mm): 4.0 | Chip breaker: LD
XOMT130406-LD Edge length l (mm): 11.9 | Inscribed circle d (mm): 13.6 | Thickness t (mm): 4.5 | Corner radius r (mm): 0.6 | Hole dia. d1 (mm): 4.5 | Chip breaker: LD
XOMT15M508-LD Edge length l (mm): 13.9 | Inscribed circle d (mm): 15.9 | Thickness t (mm): 5.0 | Corner radius r (mm): 0.8 | Hole dia. d1 (mm): 5.5 | Chip breaker: LD
XOMT180508-LD Edge length l (mm): 16.5 | Inscribed circle d (mm): 18.9 | Thickness t (mm): 5.5 | Corner radius r (mm): 0.8 | Hole dia. d1 (mm): 6.0 | Chip breaker: LD
XOMT040204-PD Edge length l (mm): 4.3 | Inscribed circle d (mm): 4.9 | Thickness t (mm): 2.4 | Corner radius r (mm): 0.4 | Hole dia. d1 (mm): 2.3 | Chip breaker: PD
XOMT050204-PD Edge length l (mm): 4.8 | Inscribed circle d (mm): 5.4 | Thickness t (mm): 2.4 | Corner radius r (mm): 0.4 | Hole dia. d1 (mm): 2.3 | Chip breaker: PD
XOMT060204-PD Edge length l (mm): 5.8 | Inscribed circle d (mm): 6.6 | Thickness t (mm): 2.5 | Corner radius r (mm): 0.4 | Hole dia. d1 (mm): 2.5 | Chip breaker: PD
XOMT07T205-PD Edge length l (mm): 6.9 | Inscribed circle d (mm): 7.8 | Thickness t (mm): 2.8 | Corner radius r (mm): 0.5 | Hole dia. d1 (mm): 2.8 | Chip breaker: PD
XOMT090305-PD Edge length l (mm): 8.4 | Inscribed circle d (mm): 9.6 | Thickness t (mm): 3.3 | Corner radius r (mm): 0.5 | Hole dia. d1 (mm): 3.4 | Chip breaker: PD
XOMT11T306-PD Edge length l (mm): 10.0 | Inscribed circle d (mm): 11.4 | Thickness t (mm): 4.0 | Corner radius r (mm): 0.6 | Hole dia. d1 (mm): 4.0 | Chip breaker: PD
XOMT130406-PD Edge length l (mm): 11.9 | Inscribed circle d (mm): 13.6 | Thickness t (mm): 4.5 | Corner radius r (mm): 0.6 | Hole dia. d1 (mm): 4.5 | Chip breaker: PD
XOMT15M508-PD Edge length l (mm): 13.9 | Inscribed circle d (mm): 15.9 | Thickness t (mm): 5.0 | Corner radius r (mm): 0.8 | Hole dia. d1 (mm): 5.5 | Chip breaker: PD
XOMT180508-PD Edge length l (mm): 16.5 | Inscribed circle d (mm): 18.9 | Thickness t (mm): 5.5 | Corner radius r (mm): 0.8 | Hole dia. d1 (mm): 6.0 | Chip breaker: PD
XOMT07T207-RD Edge length l (mm): 6.9 | Inscribed circle d (mm): 7.8 | Thickness t (mm): 2.8 | Corner radius r (mm): 0.7 | Hole dia. d1 (mm): 2.8 | Chip breaker: RD
XOMT090308-RD Edge length l (mm): 8.4 | Inscribed circle d (mm): 9.6 | Thickness t (mm): 3.3 | Corner radius r (mm): 0.8 | Hole dia. d1 (mm): 3.4 | Chip breaker: RD
XOMT11T309-RD Edge length l (mm): 10.0 | Inscribed circle d (mm): 11.4 | Thickness t (mm): 4.0 | Corner radius r (mm): 0.9 | Hole dia. d1 (mm): 4.0 | Chip breaker: RD
XOMT130410-RD Edge length l (mm): 11.9 | Inscribed circle d (mm): 13.6 | Thickness t (mm): 4.5 | Corner radius r (mm): 1.0 | Hole dia. d1 (mm): 4.5 | Chip breaker: RD
XOMT15M511-RD Edge length l (mm): 13.9 | Inscribed circle d (mm): 15.9 | Thickness t (mm): 5.0 | Corner radius r (mm): 1.1 | Hole dia. d1 (mm): 5.5 | Chip breaker: RD
XOMT180512-RD Edge length l (mm): 16.5 | Inscribed circle d (mm): 18.9 | Thickness t (mm): 5.5 | Corner radius r (mm): 1.2 | Hole dia. d1 (mm): 6.0 | Chip breaker: RD
DrillsKorloy
56 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy King Drill Inserts SPET/SPMT/XOMT

Brand Korloy·Drills

Available part numbers (56)

SPET040204-ND, SPET050204-ND, SPET060205-ND, SPET07T208-ND, SPET090308-ND, SPET11T308-ND, SPET130410-ND, SPET15M510-ND, SPET180510-ND, SPMT060205-LD + 46 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SPET040204-NDEdge length l (mm): 4.7 | Thickness t (mm): 2.4 | Corner radius r (mm): 0.4 | Hole dia. d1 (mm): 2.3 | Chip breaker: ND
SPET050204-NDEdge length l (mm): 5.1 | Thickness t (mm): 2.4 | Corner radius r (mm): 0.4 | Hole dia. d1 (mm): 2.3 | Chip breaker: ND
SPET060205-NDEdge length l (mm): 6.2 | Thickness t (mm): 2.5 | Corner radius r (mm): 0.5 | Hole dia. d1 (mm): 2.5 | Chip breaker: ND
SPET07T208-NDEdge length l (mm): 7.5 | Thickness t (mm): 2.8 | Corner radius r (mm): 0.7 | Hole dia. d1 (mm): 2.8 | Chip breaker: ND
SPET090308-NDEdge length l (mm): 9.2 | Thickness t (mm): 3.3 | Corner radius r (mm): 0.8 | Hole dia. d1 (mm): 3.4 | Chip breaker: ND
SPET11T308-NDEdge length l (mm): 11.0 | Thickness t (mm): 4.0 | Corner radius r (mm): 0.8 | Hole dia. d1 (mm): 4.0 | Chip breaker: ND
SPET130410-NDEdge length l (mm): 13.0 | Thickness t (mm): 4.5 | Corner radius r (mm): 1.0 | Hole dia. d1 (mm): 4.5 | Chip breaker: ND
SPET15M510-NDEdge length l (mm): 15.2 | Thickness t (mm): 5.0 | Corner radius r (mm): 1.0 | Hole dia. d1 (mm): 5.5 | Chip breaker: ND
SPET180510-NDEdge length l (mm): 18.2 | Thickness t (mm): 5.5 | Corner radius r (mm): 1.0 | Hole dia. d1 (mm): 6.0 | Chip breaker: ND
SPMT060205-LDEdge length l (mm): 6.2 | Thickness t (mm): 2.5 | Corner radius r (mm): 0.5 | Hole dia. d1 (mm): 2.5 | Chip breaker: LD
SPMT07T208-LDEdge length l (mm): 7.5 | Thickness t (mm): 2.8 | Corner radius r (mm): 0.7 | Hole dia. d1 (mm): 2.8 | Chip breaker: LD
SPMT090308-LDEdge length l (mm): 9.2 | Thickness t (mm): 3.3 | Corner radius r (mm): 0.8 | Hole dia. d1 (mm): 3.4 | Chip breaker: LD
SPMT11T308-LDEdge length l (mm): 11.0 | Thickness t (mm): 4.0 | Corner radius r (mm): 0.8 | Hole dia. d1 (mm): 4.0 | Chip breaker: LD
SPMT130410-LDEdge length l (mm): 13.0 | Thickness t (mm): 4.5 | Corner radius r (mm): 1.0 | Hole dia. d1 (mm): 4.5 | Chip breaker: LD
SPMT15M510-LDEdge length l (mm): 15.2 | Thickness t (mm): 5.0 | Corner radius r (mm): 1.0 | Hole dia. d1 (mm): 5.5 | Chip breaker: LD
SPMT180510-LDEdge length l (mm): 18.2 | Thickness t (mm): 5.5 | Corner radius r (mm): 1.0 | Hole dia. d1 (mm): 6.0 | Chip breaker: LD
SPMT040204-PDEdge length l (mm): 4.7 | Thickness t (mm): 2.4 | Corner radius r (mm): 0.4 | Hole dia. d1 (mm): 2.3 | Chip breaker: PD
SPMT050204-PDEdge length l (mm): 5.1 | Thickness t (mm): 2.4 | Corner radius r (mm): 0.4 | Hole dia. d1 (mm): 2.3 | Chip breaker: PD
SPMT060205-PDEdge length l (mm): 6.2 | Thickness t (mm): 2.5 | Corner radius r (mm): 0.5 | Hole dia. d1 (mm): 2.5 | Chip breaker: PD
SPMT07T208-PDEdge length l (mm): 7.5 | Thickness t (mm): 2.8 | Corner radius r (mm): 0.7 | Hole dia. d1 (mm): 2.8 | Chip breaker: PD
SPMT090308-PDEdge length l (mm): 9.2 | Thickness t (mm): 3.3 | Corner radius r (mm): 0.8 | Hole dia. d1 (mm): 3.4 | Chip breaker: PD
SPMT11T308-PDEdge length l (mm): 11.0 | Thickness t (mm): 4.0 | Corner radius r (mm): 0.8 | Hole dia. d1 (mm): 4.0 | Chip breaker: PD
SPMT130410-PDEdge length l (mm): 13.0 | Thickness t (mm): 4.5 | Corner radius r (mm): 1.0 | Hole dia. d1 (mm): 4.5 | Chip breaker: PD
SPMT15M510-PDEdge length l (mm): 15.2 | Thickness t (mm): 5.0 | Corner radius r (mm): 1.0 | Hole dia. d1 (mm): 5.5 | Chip breaker: PD
SPMT180510-PDEdge length l (mm): 18.2 | Thickness t (mm): 5.5 | Corner radius r (mm): 1.0 | Hole dia. d1 (mm): 6.0 | Chip breaker: PD
XOMT040204-NDEdge length l (mm): 4.3 | Inscribed circle d (mm): 4.9 | Thickness t (mm): 2.4 | Corner radius r (mm): 0.4 | Hole dia. d1 (mm): 2.3 | Chip breaker: ND
XOMT050204-NDEdge length l (mm): 4.8 | Inscribed circle d (mm): 5.4 | Thickness t (mm): 2.4 | Corner radius r (mm): 0.4 | Hole dia. d1 (mm): 2.3 | Chip breaker: ND
XOMT060204-NDEdge length l (mm): 5.8 | Inscribed circle d (mm): 6.6 | Thickness t (mm): 2.5 | Corner radius r (mm): 0.4 | Hole dia. d1 (mm): 2.5 | Chip breaker: ND
XOMT07T205-NDEdge length l (mm): 6.9 | Inscribed circle d (mm): 7.8 | Thickness t (mm): 2.8 | Corner radius r (mm): 0.5 | Hole dia. d1 (mm): 2.8 | Chip breaker: ND
XOMT090305-NDEdge length l (mm): 8.4 | Inscribed circle d (mm): 9.6 | Thickness t (mm): 3.3 | Corner radius r (mm): 0.5 | Hole dia. d1 (mm): 3.4 | Chip breaker: ND
XOMT11T306-NDEdge length l (mm): 10.0 | Inscribed circle d (mm): 11.4 | Thickness t (mm): 4.0 | Corner radius r (mm): 0.6 | Hole dia. d1 (mm): 4.0 | Chip breaker: ND
XOMT130406-NDEdge length l (mm): 11.9 | Inscribed circle d (mm): 13.6 | Thickness t (mm): 4.5 | Corner radius r (mm): 0.6 | Hole dia. d1 (mm): 4.5 | Chip breaker: ND
XOMT15M508-NDEdge length l (mm): 13.9 | Inscribed circle d (mm): 15.9 | Thickness t (mm): 5.0 | Corner radius r (mm): 0.8 | Hole dia. d1 (mm): 5.5 | Chip breaker: ND
XOMT180508-NDEdge length l (mm): 16.5 | Inscribed circle d (mm): 18.9 | Thickness t (mm): 5.5 | Corner radius r (mm): 0.8 | Hole dia. d1 (mm): 6.0 | Chip breaker: ND
XOMT060204-LDEdge length l (mm): 5.8 | Inscribed circle d (mm): 6.6 | Thickness t (mm): 2.5 | Corner radius r (mm): 0.4 | Hole dia. d1 (mm): 2.5 | Chip breaker: LD
XOMT07T205-LDEdge length l (mm): 6.9 | Inscribed circle d (mm): 7.8 | Thickness t (mm): 2.8 | Corner radius r (mm): 0.5 | Hole dia. d1 (mm): 2.8 | Chip breaker: LD
XOMT090305-LDEdge length l (mm): 8.4 | Inscribed circle d (mm): 9.6 | Thickness t (mm): 3.3 | Corner radius r (mm): 0.5 | Hole dia. d1 (mm): 3.4 | Chip breaker: LD
XOMT11T306-LDEdge length l (mm): 10.0 | Inscribed circle d (mm): 11.4 | Thickness t (mm): 4.0 | Corner radius r (mm): 0.6 | Hole dia. d1 (mm): 4.0 | Chip breaker: LD
XOMT130406-LDEdge length l (mm): 11.9 | Inscribed circle d (mm): 13.6 | Thickness t (mm): 4.5 | Corner radius r (mm): 0.6 | Hole dia. d1 (mm): 4.5 | Chip breaker: LD
XOMT15M508-LDEdge length l (mm): 13.9 | Inscribed circle d (mm): 15.9 | Thickness t (mm): 5.0 | Corner radius r (mm): 0.8 | Hole dia. d1 (mm): 5.5 | Chip breaker: LD
XOMT180508-LDEdge length l (mm): 16.5 | Inscribed circle d (mm): 18.9 | Thickness t (mm): 5.5 | Corner radius r (mm): 0.8 | Hole dia. d1 (mm): 6.0 | Chip breaker: LD
XOMT040204-PDEdge length l (mm): 4.3 | Inscribed circle d (mm): 4.9 | Thickness t (mm): 2.4 | Corner radius r (mm): 0.4 | Hole dia. d1 (mm): 2.3 | Chip breaker: PD
XOMT050204-PDEdge length l (mm): 4.8 | Inscribed circle d (mm): 5.4 | Thickness t (mm): 2.4 | Corner radius r (mm): 0.4 | Hole dia. d1 (mm): 2.3 | Chip breaker: PD
XOMT060204-PDEdge length l (mm): 5.8 | Inscribed circle d (mm): 6.6 | Thickness t (mm): 2.5 | Corner radius r (mm): 0.4 | Hole dia. d1 (mm): 2.5 | Chip breaker: PD
XOMT07T205-PDEdge length l (mm): 6.9 | Inscribed circle d (mm): 7.8 | Thickness t (mm): 2.8 | Corner radius r (mm): 0.5 | Hole dia. d1 (mm): 2.8 | Chip breaker: PD
XOMT090305-PDEdge length l (mm): 8.4 | Inscribed circle d (mm): 9.6 | Thickness t (mm): 3.3 | Corner radius r (mm): 0.5 | Hole dia. d1 (mm): 3.4 | Chip breaker: PD
XOMT11T306-PDEdge length l (mm): 10.0 | Inscribed circle d (mm): 11.4 | Thickness t (mm): 4.0 | Corner radius r (mm): 0.6 | Hole dia. d1 (mm): 4.0 | Chip breaker: PD
XOMT130406-PDEdge length l (mm): 11.9 | Inscribed circle d (mm): 13.6 | Thickness t (mm): 4.5 | Corner radius r (mm): 0.6 | Hole dia. d1 (mm): 4.5 | Chip breaker: PD
XOMT15M508-PDEdge length l (mm): 13.9 | Inscribed circle d (mm): 15.9 | Thickness t (mm): 5.0 | Corner radius r (mm): 0.8 | Hole dia. d1 (mm): 5.5 | Chip breaker: PD
XOMT180508-PDEdge length l (mm): 16.5 | Inscribed circle d (mm): 18.9 | Thickness t (mm): 5.5 | Corner radius r (mm): 0.8 | Hole dia. d1 (mm): 6.0 | Chip breaker: PD
XOMT07T207-RDEdge length l (mm): 6.9 | Inscribed circle d (mm): 7.8 | Thickness t (mm): 2.8 | Corner radius r (mm): 0.7 | Hole dia. d1 (mm): 2.8 | Chip breaker: RD
XOMT090308-RDEdge length l (mm): 8.4 | Inscribed circle d (mm): 9.6 | Thickness t (mm): 3.3 | Corner radius r (mm): 0.8 | Hole dia. d1 (mm): 3.4 | Chip breaker: RD
XOMT11T309-RDEdge length l (mm): 10.0 | Inscribed circle d (mm): 11.4 | Thickness t (mm): 4.0 | Corner radius r (mm): 0.9 | Hole dia. d1 (mm): 4.0 | Chip breaker: RD
XOMT130410-RDEdge length l (mm): 11.9 | Inscribed circle d (mm): 13.6 | Thickness t (mm): 4.5 | Corner radius r (mm): 1.0 | Hole dia. d1 (mm): 4.5 | Chip breaker: RD
XOMT15M511-RDEdge length l (mm): 13.9 | Inscribed circle d (mm): 15.9 | Thickness t (mm): 5.0 | Corner radius r (mm): 1.1 | Hole dia. d1 (mm): 5.5 | Chip breaker: RD
XOMT180512-RDEdge length l (mm): 16.5 | Inscribed circle d (mm): 18.9 | Thickness t (mm): 5.5 | Corner radius r (mm): 1.2 | Hole dia. d1 (mm): 6.0 | Chip breaker: RD

Need a different model, or a part not listed here? Send us your parts list →
