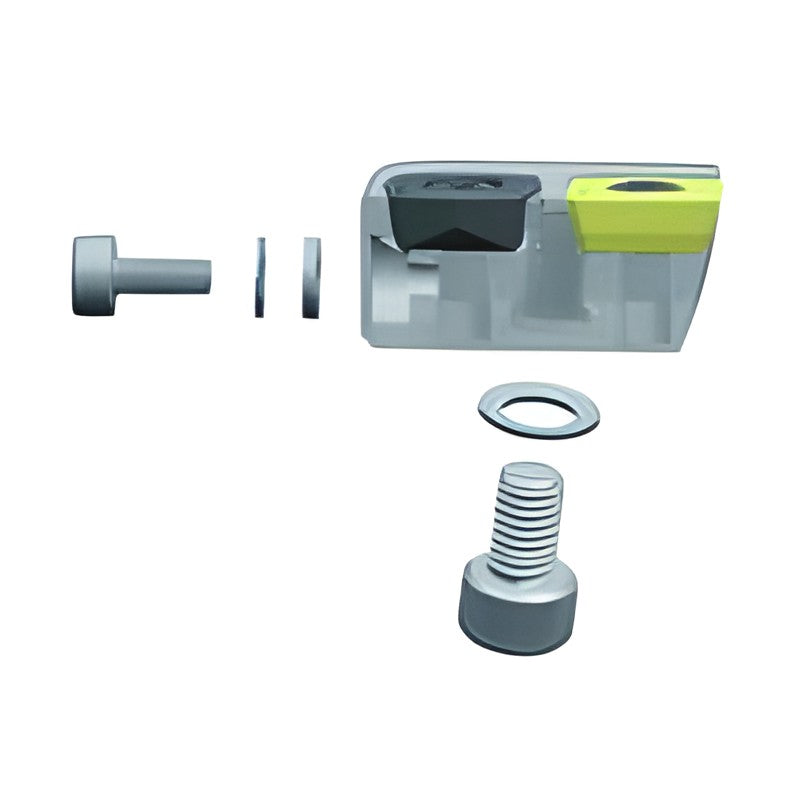

Korloy King Drill Large Diameter Replacement Cartridge KDC

Korloy King Drill Large Diameter Replacement Cartridge KDC

Replacement internal and external cartridges for the large diameter King Drill (Ø61~Ø100).

Key features

  • Internal (C) and external (P) cartridges per diameter range
  • Each cartridge holds 2 inserts
KDC6165C Cartridge position: Internal (central) | Drilling range (mm): 61~65 | Insert: XO□T11T306-□□ | Insert quantity: 2 | Screw: FTKA03508 | Wrench: TW15S | Mating cartridge: KDC6165P
KDC6165P Cartridge position: External (peripheral) | Drilling range (mm): 61~65 | Insert: SP□T11T308-□□ | Insert quantity: 2 | Screw: FTKA03508 | Wrench: TW15S | Mating cartridge: KDC6165C
KDC6570C Cartridge position: Internal (central) | Drilling range (mm): 65~70 | Insert: XO□T130406-□□ | Insert quantity: 2 | Screw: FTKA0410 | Wrench: TW15S | Mating cartridge: KDC6570P
KDC6570P Cartridge position: External (peripheral) | Drilling range (mm): 65~70 | Insert: SP□T130410-□□ | Insert quantity: 2 | Screw: FTKA0410 | Wrench: TW15S | Mating cartridge: KDC6570C
KDC7075C Cartridge position: Internal (central) | Drilling range (mm): 70~75 | Insert: XO□T130406-□□ | Insert quantity: 2 | Screw: FTKA0410 | Wrench: TW15S | Mating cartridge: KDC7075P
KDC7075P Cartridge position: External (peripheral) | Drilling range (mm): 70~75 | Insert: SP□T130410-□□ | Insert quantity: 2 | Screw: FTKA0410 | Wrench: TW15S | Mating cartridge: KDC7075C
KDC7580C Cartridge position: Internal (central) | Drilling range (mm): 75~80 | Insert: XO□T130406-□□ | Insert quantity: 2 | Screw: FTKA0410 | Wrench: TW15S | Mating cartridge: KDC7580P
KDC7580P Cartridge position: External (peripheral) | Drilling range (mm): 75~80 | Insert: SP□T130410-□□ | Insert quantity: 2 | Screw: FTKA0410 | Wrench: TW15S | Mating cartridge: KDC7580C
KDC8085C Cartridge position: Internal (central) | Drilling range (mm): 80~85 | Insert: XO□T15M508-□□ | Insert quantity: 2 | Screw: FTNC04511 | Wrench: TW20S | Mating cartridge: KDC8085P
KDC8085P Cartridge position: External (peripheral) | Drilling range (mm): 80~85 | Insert: SP□T15M510-□□ | Insert quantity: 2 | Screw: FTNC04511 | Wrench: TW20S | Mating cartridge: KDC8085C
KDC8590C Cartridge position: Internal (central) | Drilling range (mm): 85~90 | Insert: XO□T15M508-□□ | Insert quantity: 2 | Screw: FTNC04511 | Wrench: TW20S | Mating cartridge: KDC8590P
KDC8590P Cartridge position: External (peripheral) | Drilling range (mm): 85~90 | Insert: SP□T15M510-□□ | Insert quantity: 2 | Screw: FTNC04511 | Wrench: TW20S | Mating cartridge: KDC8590C
KDC9095C Cartridge position: Internal (central) | Drilling range (mm): 90~95 | Insert: XO□T15M508-□□ | Insert quantity: 2 | Screw: FTNC04511 | Wrench: TW20S | Mating cartridge: KDC9095P
KDC9095P Cartridge position: External (peripheral) | Drilling range (mm): 90~95 | Insert: SP□T15M510-□□ | Insert quantity: 2 | Screw: FTNC04511 | Wrench: TW20S | Mating cartridge: KDC9095C
KDC95100C Cartridge position: Internal (central) | Drilling range (mm): 95~100 | Insert: XO□T180508-□□ | Insert quantity: 2 | Screw: FTNA0511 | Wrench: TW20-100 | Mating cartridge: KDC95100P
KDC95100P Cartridge position: External (peripheral) | Drilling range (mm): 95~100 | Insert: SP□T180510-□□ | Insert quantity: 2 | Screw: FTNA0511 | Wrench: TW20-100 | Mating cartridge: KDC95100C
Tool Holder Spare PartsKorloy
16 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy King Drill Large Diameter Replacement Cartridge KDC

Brand Korloy·Tool Holder Spare Parts

Available part numbers (16)

KDC6165C, KDC6165P, KDC6570C, KDC6570P, KDC7075C, KDC7075P, KDC7580C, KDC7580P, KDC8085C, KDC8085P + 6 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
KDC6165CCartridge position: Internal (central) | Drilling range (mm): 61~65 | Insert: XO□T11T306-□□ | Insert quantity: 2 | Screw: FTKA03508 | Wrench: TW15S | Mating cartridge: KDC6165P
KDC6165PCartridge position: External (peripheral) | Drilling range (mm): 61~65 | Insert: SP□T11T308-□□ | Insert quantity: 2 | Screw: FTKA03508 | Wrench: TW15S | Mating cartridge: KDC6165C
KDC6570CCartridge position: Internal (central) | Drilling range (mm): 65~70 | Insert: XO□T130406-□□ | Insert quantity: 2 | Screw: FTKA0410 | Wrench: TW15S | Mating cartridge: KDC6570P
KDC6570PCartridge position: External (peripheral) | Drilling range (mm): 65~70 | Insert: SP□T130410-□□ | Insert quantity: 2 | Screw: FTKA0410 | Wrench: TW15S | Mating cartridge: KDC6570C
KDC7075CCartridge position: Internal (central) | Drilling range (mm): 70~75 | Insert: XO□T130406-□□ | Insert quantity: 2 | Screw: FTKA0410 | Wrench: TW15S | Mating cartridge: KDC7075P
KDC7075PCartridge position: External (peripheral) | Drilling range (mm): 70~75 | Insert: SP□T130410-□□ | Insert quantity: 2 | Screw: FTKA0410 | Wrench: TW15S | Mating cartridge: KDC7075C
KDC7580CCartridge position: Internal (central) | Drilling range (mm): 75~80 | Insert: XO□T130406-□□ | Insert quantity: 2 | Screw: FTKA0410 | Wrench: TW15S | Mating cartridge: KDC7580P
KDC7580PCartridge position: External (peripheral) | Drilling range (mm): 75~80 | Insert: SP□T130410-□□ | Insert quantity: 2 | Screw: FTKA0410 | Wrench: TW15S | Mating cartridge: KDC7580C
KDC8085CCartridge position: Internal (central) | Drilling range (mm): 80~85 | Insert: XO□T15M508-□□ | Insert quantity: 2 | Screw: FTNC04511 | Wrench: TW20S | Mating cartridge: KDC8085P
KDC8085PCartridge position: External (peripheral) | Drilling range (mm): 80~85 | Insert: SP□T15M510-□□ | Insert quantity: 2 | Screw: FTNC04511 | Wrench: TW20S | Mating cartridge: KDC8085C
KDC8590CCartridge position: Internal (central) | Drilling range (mm): 85~90 | Insert: XO□T15M508-□□ | Insert quantity: 2 | Screw: FTNC04511 | Wrench: TW20S | Mating cartridge: KDC8590P
KDC8590PCartridge position: External (peripheral) | Drilling range (mm): 85~90 | Insert: SP□T15M510-□□ | Insert quantity: 2 | Screw: FTNC04511 | Wrench: TW20S | Mating cartridge: KDC8590C
KDC9095CCartridge position: Internal (central) | Drilling range (mm): 90~95 | Insert: XO□T15M508-□□ | Insert quantity: 2 | Screw: FTNC04511 | Wrench: TW20S | Mating cartridge: KDC9095P
KDC9095PCartridge position: External (peripheral) | Drilling range (mm): 90~95 | Insert: SP□T15M510-□□ | Insert quantity: 2 | Screw: FTNC04511 | Wrench: TW20S | Mating cartridge: KDC9095C
KDC95100CCartridge position: Internal (central) | Drilling range (mm): 95~100 | Insert: XO□T180508-□□ | Insert quantity: 2 | Screw: FTNA0511 | Wrench: TW20-100 | Mating cartridge: KDC95100P
KDC95100PCartridge position: External (peripheral) | Drilling range (mm): 95~100 | Insert: SP□T180510-□□ | Insert quantity: 2 | Screw: FTNA0511 | Wrench: TW20-100 | Mating cartridge: KDC95100C
