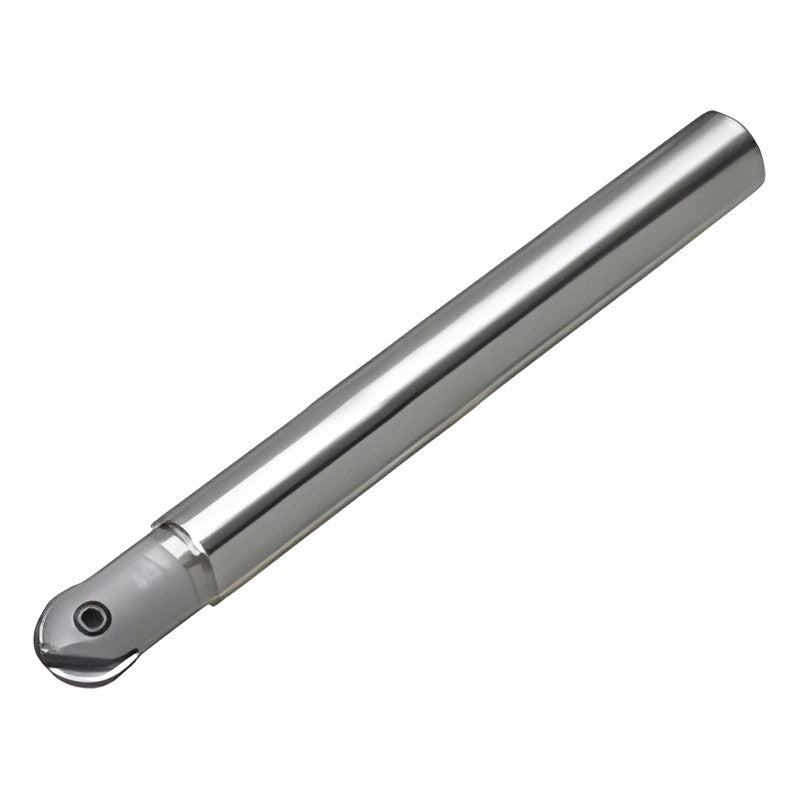

Korloy Laser Mill Ball Type Holder LBE, Carbide Shank

Korloy Laser Mill Ball Type Holder LBE, Carbide Shank

Laser Mill LBE carbide-shank holders (straight type) for screw-on ball type finishing inserts.

Key features

  • High precision ground internal diameter
  • Run-out 0.02 mm
  • Through coolant / MQL applicable
  • Single-screw insert clamping

Specifications

Shank material Carbide
LBE080080S-S08C Insert dia. D (mm): 8, 9 | Shank dia. d (mm): 8 | Neck dia. d1 (mm): 7.5 | l (mm): 80 | Overall length L (mm): 136 | Shank: Carbide, straight | Clamp screw: ETND02506F | Wrench: TWP07S | Stock: Yes
LBE080100S-S08C Insert dia. D (mm): 8, 9 | Shank dia. d (mm): 8 | Neck dia. d1 (mm): 7.5 | l (mm): 100 | Overall length L (mm): 156 | Shank: Carbide, straight | Clamp screw: ETND02506F | Wrench: TWP07S | Stock: Yes
LBE080020S-S08C-130 Insert dia. D (mm): 8, 9 | Shank dia. d (mm): 8 | Neck dia. d1 (mm): 7.5 | l (mm): 20 | Overall length L (mm): 130 | Shank: Carbide, straight | Clamp screw: ETND02506F | Wrench: TWP07S | Stock: Yes
LBE080020S-S08C-150 Insert dia. D (mm): 8, 9 | Shank dia. d (mm): 8 | Neck dia. d1 (mm): 7.5 | l (mm): 20 | Overall length L (mm): 150 | Shank: Carbide, straight | Clamp screw: ETND02506F | Wrench: TWP07S | Stock: Yes
LBE100080S-S10C Insert dia. D (mm): 10, 11 | Shank dia. d (mm): 10 | Neck dia. d1 (mm): 9.5 | l (mm): 80 | Overall length L (mm): 136 | Shank: Carbide, straight | Clamp screw: ETND0307F | Wrench: TWP08S | Stock: Yes
LBE100120S-S10C Insert dia. D (mm): 10, 11 | Shank dia. d (mm): 10 | Neck dia. d1 (mm): 9.5 | l (mm): 120 | Overall length L (mm): 176 | Shank: Carbide, straight | Clamp screw: ETND0307F | Wrench: TWP08S | Stock: Yes
LBE100023S-S10C-130 Insert dia. D (mm): 10, 11 | Shank dia. d (mm): 10 | Neck dia. d1 (mm): 9.5 | l (mm): 23 | Overall length L (mm): 130 | Shank: Carbide, straight | Clamp screw: ETND0307F | Wrench: TWP08S | Stock: Yes
LBE100023S-S10C-170 Insert dia. D (mm): 10, 11 | Shank dia. d (mm): 10 | Neck dia. d1 (mm): 9.5 | l (mm): 23 | Overall length L (mm): 170 | Shank: Carbide, straight | Clamp screw: ETND0307F | Wrench: TWP08S | Stock: Yes
LBE120100S-S12C Insert dia. D (mm): 12, 13 | Shank dia. d (mm): 12 | Neck dia. d1 (mm): 11.5 | l (mm): 100 | Overall length L (mm): 156 | Shank: Carbide, straight | Clamp screw: ETND03509 | Wrench: TWP10S | Stock: Yes
LBE120150S-S12C Insert dia. D (mm): 12, 13 | Shank dia. d (mm): 12 | Neck dia. d1 (mm): 11.5 | l (mm): 150 | Overall length L (mm): 206 | Shank: Carbide, straight | Clamp screw: ETND03509 | Wrench: TWP10S | Stock: Yes
LBE120025S-S12C-150 Insert dia. D (mm): 12, 13 | Shank dia. d (mm): 12 | Neck dia. d1 (mm): 11.5 | l (mm): 25 | Overall length L (mm): 150 | Shank: Carbide, straight | Clamp screw: ETND03509 | Wrench: TWP10S | Stock: Yes
LBE120025S-S12C-200 Insert dia. D (mm): 12, 13 | Shank dia. d (mm): 12 | Neck dia. d1 (mm): 11.5 | l (mm): 25 | Overall length L (mm): 200 | Shank: Carbide, straight | Clamp screw: ETND03509 | Wrench: TWP10S | Stock: Yes
LBE160100S-S16C Insert dia. D (mm): 16, 17 | Shank dia. d (mm): 16 | Neck dia. d1 (mm): 15.5 | l (mm): 100 | Overall length L (mm): 160 | Shank: Carbide, straight | Clamp screw: ETND0413 | Wrench: TWP15S | Stock: Yes
LBE160150S-S16C Insert dia. D (mm): 16, 17 | Shank dia. d (mm): 16 | Neck dia. d1 (mm): 15.5 | l (mm): 150 | Overall length L (mm): 210 | Shank: Carbide, straight | Clamp screw: ETND0413 | Wrench: TWP15S | Stock: Yes
LBE160030S-S16C-160 Insert dia. D (mm): 16, 17 | Shank dia. d (mm): 16 | Neck dia. d1 (mm): 15.5 | l (mm): 30 | Overall length L (mm): 160 | Shank: Carbide, straight | Clamp screw: ETND0413 | Wrench: TWP15S | Stock: Yes
LBE160030S-S16C-210 Insert dia. D (mm): 16, 17 | Shank dia. d (mm): 16 | Neck dia. d1 (mm): 15.5 | l (mm): 30 | Overall length L (mm): 210 | Shank: Carbide, straight | Clamp screw: ETND0413 | Wrench: TWP15S | Stock: Yes
LBE200120S-S20C Insert dia. D (mm): 20, 21 | Shank dia. d (mm): 20 | Neck dia. d1 (mm): 19.5 | l (mm): 120 | Overall length L (mm): 190 | Shank: Carbide, straight | Clamp screw: ETKD0516 | Wrench: TWP20 | Stock: Yes
LBE200170S-S20C Insert dia. D (mm): 20, 21 | Shank dia. d (mm): 20 | Neck dia. d1 (mm): 19.5 | l (mm): 170 | Overall length L (mm): 240 | Shank: Carbide, straight | Clamp screw: ETKD0516 | Wrench: TWP20 | Stock: Yes
LBE200035S-S20C-190 Insert dia. D (mm): 20, 21 | Shank dia. d (mm): 20 | Neck dia. d1 (mm): 19.5 | l (mm): 35 | Overall length L (mm): 190 | Shank: Carbide, straight | Clamp screw: ETKD0516 | Wrench: TWP20 | Stock: Yes
LBE200035S-S20C-240 Insert dia. D (mm): 20, 21 | Shank dia. d (mm): 20 | Neck dia. d1 (mm): 19.5 | l (mm): 35 | Overall length L (mm): 240 | Shank: Carbide, straight | Clamp screw: ETKD0516 | Wrench: TWP20 | Stock: Yes
LBE250140S-S25C Insert dia. D (mm): 25, 26 | Shank dia. d (mm): 25 | Neck dia. d1 (mm): 24.5 | l (mm): 140 | Overall length L (mm): 220 | Shank: Carbide, straight | Clamp screw: ETKD0620 | Wrench: TWP25
LBE250170S-S25C Insert dia. D (mm): 25, 26 | Shank dia. d (mm): 25 | Neck dia. d1 (mm): 24.5 | l (mm): 170 | Overall length L (mm): 250 | Shank: Carbide, straight | Clamp screw: ETKD0620 | Wrench: TWP25
LBE250040S-S25C-220 Insert dia. D (mm): 25, 26 | Shank dia. d (mm): 25 | Neck dia. d1 (mm): 24.5 | l (mm): 40 | Overall length L (mm): 220 | Shank: Carbide, straight | Clamp screw: ETKD0620 | Wrench: TWP25
LBE250040S-S25C-250 Insert dia. D (mm): 25, 26 | Shank dia. d (mm): 25 | Neck dia. d1 (mm): 24.5 | l (mm): 40 | Overall length L (mm): 250 | Shank: Carbide, straight | Clamp screw: ETKD0620 | Wrench: TWP25
LBE300140S-S32C Insert dia. D (mm): 30, 31 | Shank dia. d (mm): 32 | Neck dia. d1 (mm): 29.5 | l (mm): 140 | Overall length L (mm): 230 | Shank: Carbide, straight | Clamp screw: ETGD0825 | Wrench: TWP40
LBE300170S-S32C Insert dia. D (mm): 30, 31 | Shank dia. d (mm): 32 | Neck dia. d1 (mm): 29.5 | l (mm): 170 | Overall length L (mm): 260 | Shank: Carbide, straight | Clamp screw: ETGD0825 | Wrench: TWP40
LBE300050S-S32C-230 Insert dia. D (mm): 30, 31 | Shank dia. d (mm): 32 | Neck dia. d1 (mm): 29.5 | l (mm): 50 | Overall length L (mm): 230 | Shank: Carbide, straight | Clamp screw: ETGD0825 | Wrench: TWP40
LBE300050S-S32C-260 Insert dia. D (mm): 30, 31 | Shank dia. d (mm): 32 | Neck dia. d1 (mm): 29.5 | l (mm): 50 | Overall length L (mm): 260 | Shank: Carbide, straight | Clamp screw: ETGD0825 | Wrench: TWP40
LBE320140S-S32C Insert dia. D (mm): 32 | Shank dia. d (mm): 32 | Neck dia. d1 (mm): 31.5 | l (mm): 140 | Overall length L (mm): 230 | Shank: Carbide, straight | Clamp screw: ETGD0825 | Wrench: TWP40
LBE320170S-S32C Insert dia. D (mm): 32 | Shank dia. d (mm): 32 | Neck dia. d1 (mm): 31.5 | l (mm): 170 | Overall length L (mm): 260 | Shank: Carbide, straight | Clamp screw: ETGD0825 | Wrench: TWP40 | Stock: Yes
LBE320050S-S32C-230 Insert dia. D (mm): 32 | Shank dia. d (mm): 32 | Neck dia. d1 (mm): 31.5 | l (mm): 50 | Overall length L (mm): 230 | Shank: Carbide, straight | Clamp screw: ETGD0825 | Wrench: TWP40
LBE320050S-S32C-260 Insert dia. D (mm): 32 | Shank dia. d (mm): 32 | Neck dia. d1 (mm): 31.5 | l (mm): 50 | Overall length L (mm): 260 | Shank: Carbide, straight | Clamp screw: ETGD0825 | Wrench: TWP40
