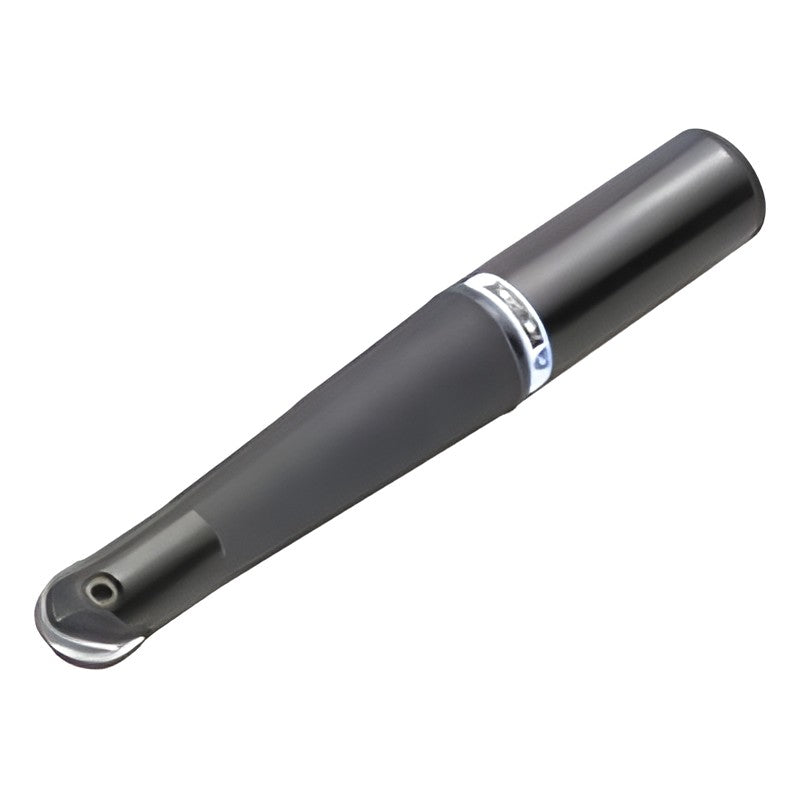

Korloy Laser Mill Ball Type Holder LBE, Steel Shank

Korloy Laser Mill Ball Type Holder LBE, Steel Shank

Laser Mill LBE steel-shank holders in taper and straight types for screw-on ball type finishing inserts.

Key features

  • Taper and straight neck types
  • Through coolant / MQL applicable
  • Single-screw insert clamping

Specifications

Shank material Steel
LBE080035T-S12 Insert dia. D (mm): 8, 9 | Shank dia. d (mm): 12 | Neck dia. d1 (mm): 7.5 | l (mm): 35 | Overall length L (mm): 91 | Shank: Steel, taper | Stock: Yes
LBE080055T-S12 Insert dia. D (mm): 8, 9 | Shank dia. d (mm): 12 | Neck dia. d1 (mm): 7.5 | l (mm): 55 | Overall length L (mm): 111 | Shank: Steel, taper | Clamp screw: ETND02506F | Wrench: TWP07S | Stock: Yes
LBE080075T-S12 Insert dia. D (mm): 8, 9 | Shank dia. d (mm): 12 | Neck dia. d1 (mm): 7.5 | l (mm): 75 | Overall length L (mm): 131 | Shank: Steel, taper | Stock: Yes
LBE100035T-S12 Insert dia. D (mm): 10, 11 | Shank dia. d (mm): 12 | Neck dia. d1 (mm): 9.5 | l (mm): 35 | Overall length L (mm): 91 | Shank: Steel, taper | Stock: Yes
LBE100055T-S12 Insert dia. D (mm): 10, 11 | Shank dia. d (mm): 12 | Neck dia. d1 (mm): 9.5 | l (mm): 55 | Overall length L (mm): 111 | Shank: Steel, taper | Clamp screw: ETND0307F | Wrench: TWP08S | Stock: Yes
LBE100075T-S12 Insert dia. D (mm): 10, 11 | Shank dia. d (mm): 12 | Neck dia. d1 (mm): 9.5 | l (mm): 75 | Overall length L (mm): 131 | Shank: Steel, taper | Stock: Yes
LBE120055T-S12 Insert dia. D (mm): 12, 13 | Shank dia. d (mm): 12 | Neck dia. d1 (mm): 10.4 | l (mm): 55 | Overall length L (mm): 111 | Shank: Steel, taper | Clamp screw: ETND03509 | Wrench: TWP10S | Stock: Yes
LBE120085T-S16 Insert dia. D (mm): 12, 13 | Shank dia. d (mm): 16 | Neck dia. d1 (mm): 11.5 | l (mm): 85 | Overall length L (mm): 145 | Shank: Steel, taper | Clamp screw: ETND03509 | Wrench: TWP10S | Stock: Yes
LBE160065T-S16 Insert dia. D (mm): 16, 17 | Shank dia. d (mm): 16 | Neck dia. d1 (mm): 14 | l (mm): 65 | Overall length L (mm): 125 | Shank: Steel, taper | Clamp screw: ETND0413 | Wrench: TWP15S | Stock: Yes
LBE160100T-S20 Insert dia. D (mm): 16, 17 | Shank dia. d (mm): 20 | Neck dia. d1 (mm): 15.5 | l (mm): 100 | Overall length L (mm): 170 | Shank: Steel, taper | Clamp screw: ETND0413 | Wrench: TWP15S | Stock: Yes
LBE200075T-S20 Insert dia. D (mm): 20, 21 | Shank dia. d (mm): 20 | Neck dia. d1 (mm): 17.5 | l (mm): 75 | Overall length L (mm): 145 | Shank: Steel, taper | Clamp screw: ETKD0516 | Wrench: TWP20 | Stock: Yes
LBE200115T-S25 Insert dia. D (mm): 20, 21 | Shank dia. d (mm): 25 | Neck dia. d1 (mm): 19.5 | l (mm): 115 | Overall length L (mm): 195 | Shank: Steel, taper | Clamp screw: ETKD0516 | Wrench: TWP20 | Stock: Yes
LBE250090T-S25 Insert dia. D (mm): 25, 26 | Shank dia. d (mm): 25 | Neck dia. d1 (mm): 22 | l (mm): 90 | Overall length L (mm): 170 | Shank: Steel, taper | Clamp screw: ETKD0620 | Wrench: TWP25 | Stock: Yes
LBE250135T-S32 Insert dia. D (mm): 25, 26 | Shank dia. d (mm): 32 | Neck dia. d1 (mm): 24.5 | l (mm): 135 | Overall length L (mm): 225 | Shank: Steel, taper | Clamp screw: ETKD0620 | Wrench: TWP25 | Stock: Yes
LBE300105T-S32 Insert dia. D (mm): 30, 31 | Shank dia. d (mm): 32 | Neck dia. d1 (mm): 29.5 | l (mm): 105 | Overall length L (mm): 195 | Shank: Steel, taper | Clamp screw: ETGD0825 | Wrench: TWP40 | Stock: Yes
LBE300160T-S32 Insert dia. D (mm): 30, 31 | Shank dia. d (mm): 32 | Neck dia. d1 (mm): 29.5 | l (mm): 160 | Overall length L (mm): 250 | Shank: Steel, taper | Clamp screw: ETGD0825 | Wrench: TWP40 | Stock: Yes
LBE320105T-S32 Insert dia. D (mm): 32 | Shank dia. d (mm): 32 | Neck dia. d1 (mm): 29 | l (mm): 105 | Overall length L (mm): 195 | Shank: Steel, taper | Clamp screw: ETGD0825 | Wrench: TWP40 | Stock: Yes
LBE320160T-S32 Insert dia. D (mm): 32 | Shank dia. d (mm): 32 | Neck dia. d1 (mm): 29 | l (mm): 160 | Overall length L (mm): 250 | Shank: Steel, taper | Clamp screw: ETGD0825 | Wrench: TWP40 | Stock: Yes
LBE120035S-S12 Insert dia. D (mm): 12, 13 | Shank dia. d (mm): 12 | Neck dia. d1 (mm): 11.5 | l (mm): 35 | Overall length L (mm): 91 | Shank: Steel, straight | Clamp screw: ETND03509 | Wrench: TWP10S | Stock: Yes
LBE160035S-S16 Insert dia. D (mm): 16, 17 | Shank dia. d (mm): 16 | Neck dia. d1 (mm): 15.5 | l (mm): 35 | Overall length L (mm): 95 | Shank: Steel, straight | Clamp screw: ETND0413 | Wrench: TWP15S | Stock: Yes
LBE200040S-S20 Insert dia. D (mm): 20, 21 | Shank dia. d (mm): 20 | Neck dia. d1 (mm): 19.5 | l (mm): 40 | Overall length L (mm): 110 | Shank: Steel, straight | Clamp screw: ETKD0516 | Wrench: TWP20 | Stock: Yes
LBE250045S-S25 Insert dia. D (mm): 25, 26 | Shank dia. d (mm): 25 | Neck dia. d1 (mm): 24.5 | l (mm): 40 | Overall length L (mm): 125 | Shank: Steel, straight | Clamp screw: ETKD0620 | Wrench: TWP25 | Stock: Yes
LBE300055S-S32 Insert dia. D (mm): 30, 31 | Shank dia. d (mm): 32 | Neck dia. d1 (mm): 29.5 | l (mm): 55 | Overall length L (mm): 145 | Shank: Steel, straight | Clamp screw: ETGD0825 | Wrench: TWP40 | Stock: Yes
LBE320055S-S32 Insert dia. D (mm): 32 | Shank dia. d (mm): 32 | Neck dia. d1 (mm): 31.5 | l (mm): 55 | Overall length L (mm): 145 | Shank: Steel, straight | Clamp screw: ETGD0825 | Wrench: TWP40 | Stock: Yes
Milling CuttersKorloy
24 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Laser Mill Ball Type Holder LBE, Steel Shank

Brand Korloy·Milling Cutters

Available part numbers (24)

LBE080035T-S12, LBE080055T-S12, LBE080075T-S12, LBE100035T-S12, LBE100055T-S12, LBE100075T-S12, LBE120055T-S12, LBE120085T-S16, LBE160065T-S16, LBE160100T-S20 + 14 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
