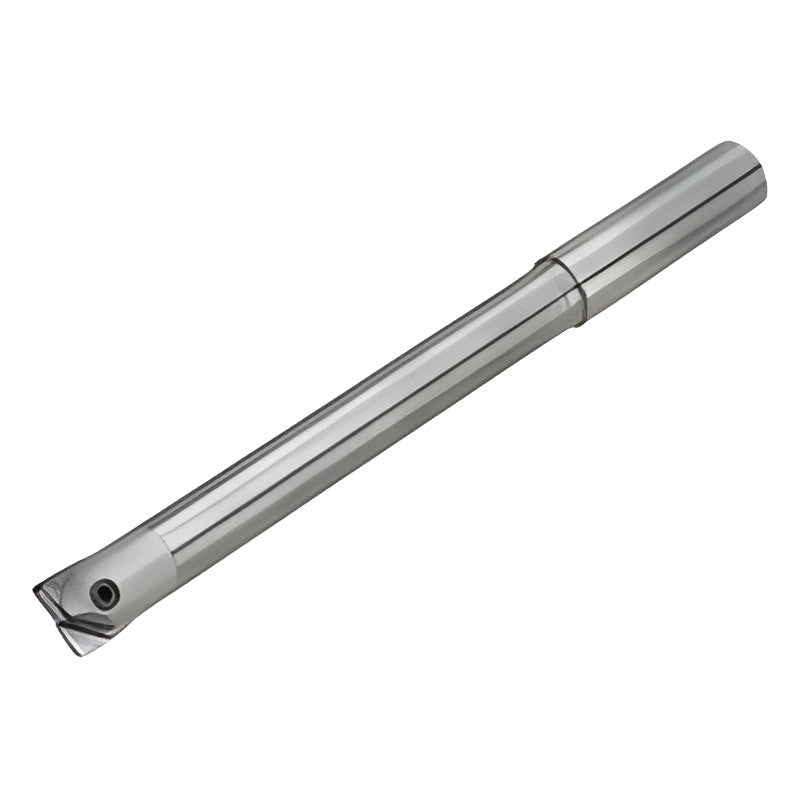

Korloy Laser Mill Corner Radius Holder LRE, Carbide Shank

Korloy Laser Mill Corner Radius Holder LRE, Carbide Shank

Laser Mill LRE carbide-shank holders (straight type) for screw-on corner radius, high feed and chamfer finishing inserts.

Key features

  • High precision ground internal diameter
  • Through coolant / MQL applicable
  • Single-screw insert clamping

Specifications

Shank material Carbide
LRE100080S-S10C Insert dia. D (mm): 10, 11 | Shank dia. d (mm): 10 | Neck dia. d1 (mm): 9.5 | l (mm): 80 | Overall length L (mm): 136 | Shank: Carbide, straight | Clamp screw: ETND0307F | Wrench: TWP08S
LRE100120S-S10C Insert dia. D (mm): 10, 11 | Shank dia. d (mm): 10 | Neck dia. d1 (mm): 9.5 | l (mm): 120 | Overall length L (mm): 176 | Shank: Carbide, straight | Clamp screw: ETND0307F | Wrench: TWP08S
LRE100023S-S10C-130 Insert dia. D (mm): 10, 11 | Shank dia. d (mm): 10 | Neck dia. d1 (mm): 9.5 | l (mm): 23 | Overall length L (mm): 130 | Shank: Carbide, straight | Clamp screw: ETND0307F | Wrench: TWP08S
LRE100023S-S10C-170 Insert dia. D (mm): 10, 11 | Shank dia. d (mm): 10 | Neck dia. d1 (mm): 9.5 | l (mm): 23 | Overall length L (mm): 170 | Shank: Carbide, straight | Clamp screw: ETND0307F | Wrench: TWP08S
LRE120100S-S12C Insert dia. D (mm): 12, 13 | Shank dia. d (mm): 12 | Neck dia. d1 (mm): 11.5 | l (mm): 100 | Overall length L (mm): 156 | Shank: Carbide, straight | Clamp screw: ETND03509 | Wrench: TWP10S
LRE120150S-S12C Insert dia. D (mm): 12, 13 | Shank dia. d (mm): 12 | Neck dia. d1 (mm): 11.5 | l (mm): 150 | Overall length L (mm): 206 | Shank: Carbide, straight | Clamp screw: ETND03509 | Wrench: TWP10S
LRE120025S-S12C-150 Insert dia. D (mm): 12, 13 | Shank dia. d (mm): 12 | Neck dia. d1 (mm): 11.5 | l (mm): 25 | Overall length L (mm): 150 | Shank: Carbide, straight | Clamp screw: ETND03509 | Wrench: TWP10S
LRE120025S-S12C-200 Insert dia. D (mm): 12, 13 | Shank dia. d (mm): 12 | Neck dia. d1 (mm): 11.5 | l (mm): 25 | Overall length L (mm): 200 | Shank: Carbide, straight | Clamp screw: ETND03509 | Wrench: TWP10S
LRE160100S-S16C Insert dia. D (mm): 16, 17 | Shank dia. d (mm): 16 | Neck dia. d1 (mm): 15.5 | l (mm): 100 | Overall length L (mm): 160 | Shank: Carbide, straight | Clamp screw: ETND0413 | Wrench: TWP15S
LRE160150S-S16C Insert dia. D (mm): 16, 17 | Shank dia. d (mm): 16 | Neck dia. d1 (mm): 15.5 | l (mm): 150 | Overall length L (mm): 210 | Shank: Carbide, straight | Clamp screw: ETND0413 | Wrench: TWP15S
LRE160030S-S16C-160 Insert dia. D (mm): 16, 17 | Shank dia. d (mm): 16 | Neck dia. d1 (mm): 15.5 | l (mm): 30 | Overall length L (mm): 160 | Shank: Carbide, straight | Clamp screw: ETND0413 | Wrench: TWP15S
LRE160030S-S16C-210 Insert dia. D (mm): 16, 17 | Shank dia. d (mm): 16 | Neck dia. d1 (mm): 15.5 | l (mm): 30 | Overall length L (mm): 210 | Shank: Carbide, straight | Clamp screw: ETND0413 | Wrench: TWP15S
LRE200120S-S20C Insert dia. D (mm): 20, 21 | Shank dia. d (mm): 20 | Neck dia. d1 (mm): 19.5 | l (mm): 120 | Overall length L (mm): 190 | Shank: Carbide, straight | Clamp screw: ETKD0516 | Wrench: TWP20
LRE200170S-S20C Insert dia. D (mm): 20, 21 | Shank dia. d (mm): 20 | Neck dia. d1 (mm): 19.5 | l (mm): 170 | Overall length L (mm): 240 | Shank: Carbide, straight | Clamp screw: ETKD0516 | Wrench: TWP20
LRE200035S-S20C-190 Insert dia. D (mm): 20, 21 | Shank dia. d (mm): 20 | Neck dia. d1 (mm): 19.5 | l (mm): 35 | Overall length L (mm): 190 | Shank: Carbide, straight | Clamp screw: ETKD0516 | Wrench: TWP20
LRE200035S-S20C-240 Insert dia. D (mm): 20, 21 | Shank dia. d (mm): 20 | Neck dia. d1 (mm): 19.5 | l (mm): 35 | Overall length L (mm): 240 | Shank: Carbide, straight | Clamp screw: ETKD0516 | Wrench: TWP20
LRE250140S-S25C Insert dia. D (mm): 25, 26 | Shank dia. d (mm): 25 | Neck dia. d1 (mm): 24.5 | l (mm): 140 | Overall length L (mm): 220 | Shank: Carbide, straight | Clamp screw: ETKD0620 | Wrench: TWP25
LRE250170S-S25C Insert dia. D (mm): 25, 26 | Shank dia. d (mm): 25 | Neck dia. d1 (mm): 24.5 | l (mm): 170 | Overall length L (mm): 250 | Shank: Carbide, straight | Clamp screw: ETKD0620 | Wrench: TWP25
LRE250040S-S25C-220 Insert dia. D (mm): 25, 26 | Shank dia. d (mm): 25 | Neck dia. d1 (mm): 24.5 | l (mm): 40 | Overall length L (mm): 220 | Shank: Carbide, straight | Clamp screw: ETKD0620 | Wrench: TWP25
LRE250040S-S25C-250 Insert dia. D (mm): 25, 26 | Shank dia. d (mm): 25 | Neck dia. d1 (mm): 24.5 | l (mm): 40 | Overall length L (mm): 250 | Shank: Carbide, straight | Clamp screw: ETKD0620 | Wrench: TWP25
LRE300140S-S32C Insert dia. D (mm): 30, 31 | Shank dia. d (mm): 32 | Neck dia. d1 (mm): 29.5 | l (mm): 140 | Overall length L (mm): 230 | Shank: Carbide, straight | Clamp screw: ETGD0825 | Wrench: TWP40
LRE300170S-S32C Insert dia. D (mm): 30, 31 | Shank dia. d (mm): 32 | Neck dia. d1 (mm): 29.5 | l (mm): 170 | Overall length L (mm): 260 | Shank: Carbide, straight | Clamp screw: ETGD0825 | Wrench: TWP40
LRE300050S-S32C-230 Insert dia. D (mm): 30, 31 | Shank dia. d (mm): 32 | Neck dia. d1 (mm): 29.5 | l (mm): 50 | Overall length L (mm): 230 | Shank: Carbide, straight | Clamp screw: ETGD0825 | Wrench: TWP40
LRE300050S-S32C-260 Insert dia. D (mm): 30, 31 | Shank dia. d (mm): 32 | Neck dia. d1 (mm): 29..5 | l (mm): 50 | Overall length L (mm): 260 | Shank: Carbide, straight | Clamp screw: ETGD0825 | Wrench: TWP40
LRE320140S-S32C Insert dia. D (mm): 32 | Shank dia. d (mm): 32 | Neck dia. d1 (mm): 31.5 | l (mm): 140 | Overall length L (mm): 230 | Shank: Carbide, straight | Clamp screw: ETGD0825 | Wrench: TWP40
LRE320170S-S32C Insert dia. D (mm): 32 | Shank dia. d (mm): 32 | Neck dia. d1 (mm): 31.5 | l (mm): 170 | Overall length L (mm): 260 | Shank: Carbide, straight | Clamp screw: ETGD0825 | Wrench: TWP40
LRE320050S-S32C-230 Insert dia. D (mm): 32 | Shank dia. d (mm): 32 | Neck dia. d1 (mm): 31.5 | l (mm): 50 | Overall length L (mm): 230 | Shank: Carbide, straight | Clamp screw: ETGD0825 | Wrench: TWP40
LRE320050S-S32C-260 Insert dia. D (mm): 32 | Shank dia. d (mm): 32 | Neck dia. d1 (mm): 31.5 | l (mm): 50 | Overall length L (mm): 260 | Shank: Carbide, straight | Clamp screw: ETGD0825 | Wrench: TWP40
Milling CuttersKorloy
28 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Laser Mill Corner Radius Holder LRE, Carbide Shank

Brand Korloy·Milling Cutters

Available part numbers (28)

LRE100080S-S10C, LRE100120S-S10C, LRE100023S-S10C-130, LRE100023S-S10C-170, LRE120100S-S12C, LRE120150S-S12C, LRE120025S-S12C-150, LRE120025S-S12C-200, LRE160100S-S16C, LRE160150S-S16C + 18 more — see full table ↓
