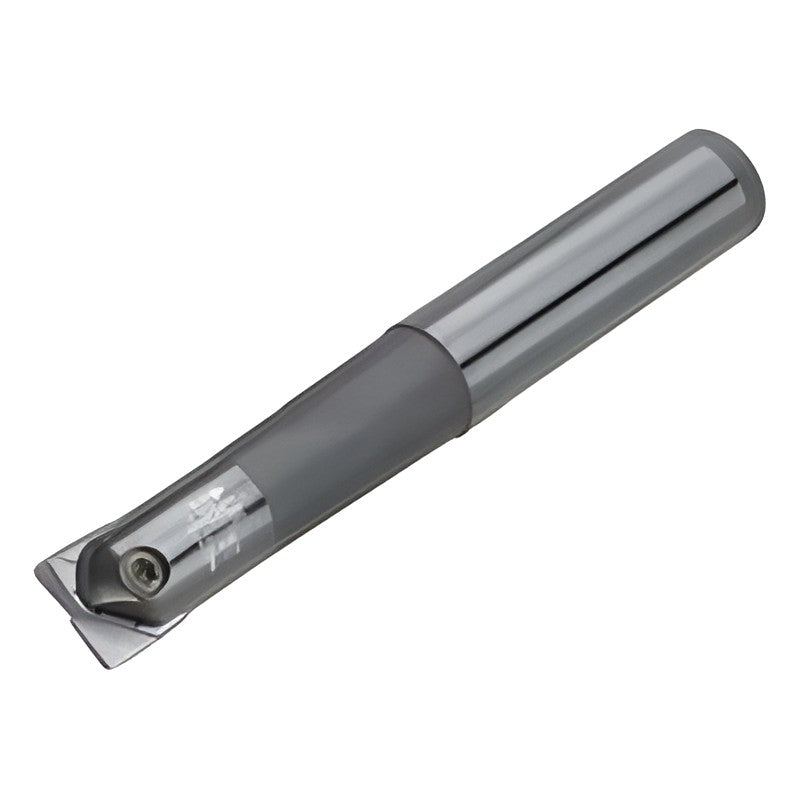

Korloy Laser Mill Corner Radius Holder LRE, Steel Shank

Korloy Laser Mill Corner Radius Holder LRE, Steel Shank

Laser Mill LRE steel-shank holders in taper and straight types for screw-on corner radius finishing inserts.

Key features

  • Taper and straight neck types
  • Through coolant / MQL applicable

Specifications

Shank material Steel
LRE100025T-S12 Insert dia. D (mm): 10, 11 | Shank dia. d (mm): 12 | Neck dia. d1 (mm): 9.5 | l (mm): 25 | Overall length L (mm): 111 | Shank: Steel, taper | Clamp screw: ETND0307F | Wrench: TWP08S
LRE100050T-S12 Insert dia. D (mm): 10, 11 | Shank dia. d (mm): 12 | Neck dia. d1 (mm): 9.5 | l (mm): 50 | Overall length L (mm): 150 | Shank: Steel, taper | Clamp screw: ETND0307F | Wrench: TWP08S
LRE120060T-S16 Insert dia. D (mm): 12, 13 | Shank dia. d (mm): 16 | Neck dia. d1 (mm): 11.5 | l (mm): 60 | Overall length L (mm): 160 | Shank: Steel, taper | Clamp screw: ETND03509 | Wrench: TWP10S
LRE120030S-S12 Insert dia. D (mm): 12, 13 | Shank dia. d (mm): 12 | Neck dia. d1 (mm): 11.5 | l (mm): 30 | Overall length L (mm): 111 | Shank: Steel, straight | Clamp screw: ETND03509 | Wrench: TWP10S
LRE160050S-S16 Insert dia. D (mm): 16, 17 | Shank dia. d (mm): 16 | Neck dia. d1 (mm): 15.5 | l (mm): 50 | Overall length L (mm): 131 | Shank: Steel, straight | Clamp screw: ETND0413 | Wrench: TWP15S
LRE160060S-S16 Insert dia. D (mm): 16, 17 | Shank dia. d (mm): 16 | Neck dia. d1 (mm): 15.5 | l (mm): 60 | Overall length L (mm): 160 | Shank: Steel, straight | Clamp screw: ETND0413 | Wrench: TWP15S
LRE200060S-S20 Insert dia. D (mm): 20, 21 | Shank dia. d (mm): 20 | Neck dia. d1 (mm): 19.5 | l (mm): 60 | Overall length L (mm): 145 | Shank: Steel, straight | Clamp screw: ETKD0516 | Wrench: TWP20
LRE200080S-S20 Insert dia. D (mm): 20, 21 | Shank dia. d (mm): 20 | Neck dia. d1 (mm): 19.5 | l (mm): 80 | Overall length L (mm): 180 | Shank: Steel, straight | Clamp screw: ETKD0516 | Wrench: TWP20
LRE250070S-S25 Insert dia. D (mm): 25, 26 | Shank dia. d (mm): 25 | Neck dia. d1 (mm): 24.5 | l (mm): 70 | Overall length L (mm): 145 | Shank: Steel, straight | Clamp screw: ETKD0620 | Wrench: TWP25
LRE250100S-S25 Insert dia. D (mm): 25, 26 | Shank dia. d (mm): 25 | Neck dia. d1 (mm): 24.5 | l (mm): 100 | Overall length L (mm): 225 | Shank: Steel, straight | Clamp screw: ETKD0620 | Wrench: TWP25
LRE300070S-S32 Insert dia. D (mm): 30, 31 | Shank dia. d (mm): 32 | Neck dia. d1 (mm): 29.5 | l (mm): 70 | Overall length L (mm): 160 | Shank: Steel, straight | Clamp screw: ETGD0825 | Wrench: TWP40
LRE300100S-S32 Insert dia. D (mm): 30, 31 | Shank dia. d (mm): 32 | Neck dia. d1 (mm): 29.5 | l (mm): 100 | Overall length L (mm): 225 | Shank: Steel, straight | Clamp screw: ETGD0825 | Wrench: TWP40
LRE320080S-S32 Insert dia. D (mm): 32 | Shank dia. d (mm): 32 | Neck dia. d1 (mm): 31.5 | l (mm): 80 | Overall length L (mm): 160 | Shank: Steel, straight | Clamp screw: ETGD0825 | Wrench: TWP40
LRE320100S-S32 Insert dia. D (mm): 32 | Shank dia. d (mm): 32 | Neck dia. d1 (mm): 31.5 | l (mm): 100 | Overall length L (mm): 225 | Shank: Steel, straight | Clamp screw: ETGD0825 | Wrench: TWP40
Milling CuttersKorloy
14 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Laser Mill Corner Radius Holder LRE, Steel Shank

Brand Korloy·Milling Cutters

Available part numbers (14)

LRE100025T-S12, LRE100050T-S12, LRE120060T-S16, LRE120030S-S12, LRE160050S-S16, LRE160060S-S16, LRE200060S-S20, LRE200080S-S20, LRE250070S-S25, LRE250100S-S25 + 4 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LRE100025T-S12Insert dia. D (mm): 10, 11 | Shank dia. d (mm): 12 | Neck dia. d1 (mm): 9.5 | l (mm): 25 | Overall length L (mm): 111 | Shank: Steel, taper | Clamp screw: ETND0307F | Wrench: TWP08S
LRE100050T-S12Insert dia. D (mm): 10, 11 | Shank dia. d (mm): 12 | Neck dia. d1 (mm): 9.5 | l (mm): 50 | Overall length L (mm): 150 | Shank: Steel, taper | Clamp screw: ETND0307F | Wrench: TWP08S
LRE120060T-S16Insert dia. D (mm): 12, 13 | Shank dia. d (mm): 16 | Neck dia. d1 (mm): 11.5 | l (mm): 60 | Overall length L (mm): 160 | Shank: Steel, taper | Clamp screw: ETND03509 | Wrench: TWP10S
LRE120030S-S12Insert dia. D (mm): 12, 13 | Shank dia. d (mm): 12 | Neck dia. d1 (mm): 11.5 | l (mm): 30 | Overall length L (mm): 111 | Shank: Steel, straight | Clamp screw: ETND03509 | Wrench: TWP10S
LRE160050S-S16Insert dia. D (mm): 16, 17 | Shank dia. d (mm): 16 | Neck dia. d1 (mm): 15.5 | l (mm): 50 | Overall length L (mm): 131 | Shank: Steel, straight | Clamp screw: ETND0413 | Wrench: TWP15S
LRE160060S-S16Insert dia. D (mm): 16, 17 | Shank dia. d (mm): 16 | Neck dia. d1 (mm): 15.5 | l (mm): 60 | Overall length L (mm): 160 | Shank: Steel, straight | Clamp screw: ETND0413 | Wrench: TWP15S
LRE200060S-S20Insert dia. D (mm): 20, 21 | Shank dia. d (mm): 20 | Neck dia. d1 (mm): 19.5 | l (mm): 60 | Overall length L (mm): 145 | Shank: Steel, straight | Clamp screw: ETKD0516 | Wrench: TWP20
LRE200080S-S20Insert dia. D (mm): 20, 21 | Shank dia. d (mm): 20 | Neck dia. d1 (mm): 19.5 | l (mm): 80 | Overall length L (mm): 180 | Shank: Steel, straight | Clamp screw: ETKD0516 | Wrench: TWP20
LRE250070S-S25Insert dia. D (mm): 25, 26 | Shank dia. d (mm): 25 | Neck dia. d1 (mm): 24.5 | l (mm): 70 | Overall length L (mm): 145 | Shank: Steel, straight | Clamp screw: ETKD0620 | Wrench: TWP25
LRE250100S-S25Insert dia. D (mm): 25, 26 | Shank dia. d (mm): 25 | Neck dia. d1 (mm): 24.5 | l (mm): 100 | Overall length L (mm): 225 | Shank: Steel, straight | Clamp screw: ETKD0620 | Wrench: TWP25
LRE300070S-S32Insert dia. D (mm): 30, 31 | Shank dia. d (mm): 32 | Neck dia. d1 (mm): 29.5 | l (mm): 70 | Overall length L (mm): 160 | Shank: Steel, straight | Clamp screw: ETGD0825 | Wrench: TWP40
LRE300100S-S32Insert dia. D (mm): 30, 31 | Shank dia. d (mm): 32 | Neck dia. d1 (mm): 29.5 | l (mm): 100 | Overall length L (mm): 225 | Shank: Steel, straight | Clamp screw: ETGD0825 | Wrench: TWP40
LRE320080S-S32Insert dia. D (mm): 32 | Shank dia. d (mm): 32 | Neck dia. d1 (mm): 31.5 | l (mm): 80 | Overall length L (mm): 160 | Shank: Steel, straight | Clamp screw: ETGD0825 | Wrench: TWP40
LRE320100S-S32Insert dia. D (mm): 32 | Shank dia. d (mm): 32 | Neck dia. d1 (mm): 31.5 | l (mm): 100 | Overall length L (mm): 225 | Shank: Steel, straight | Clamp screw: ETGD0825 | Wrench: TWP40
