• Korloy Mach Solid Flat Drill MSFD-2P
1 1

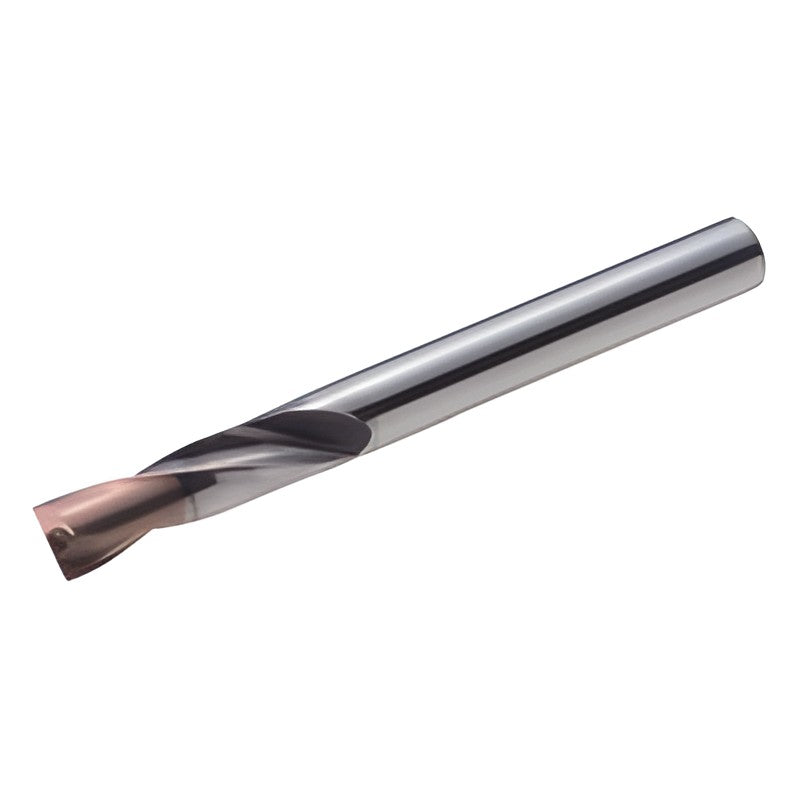

Korloy Mach Solid Flat Drill MSFD-2P

Korloy Mach Solid Flat Drill MSFD-2P

Mach Solid Flat Drill with 180 degree point angle for ramped, curved or flat workpieces, 2xD.

Specifications

Grade PC325U
Point angle 180°
Twist angle 20°
Thinning R type
Coolant External
Shank tolerance h6
MSFD121-2P D (mm): 12.1 | Shank d (mm): 14 | l1 (mm): 50.8 | l2 (mm): 51.8 | L (mm): 100
MSFD122-2P D (mm): 12.2 | Shank d (mm): 14 | l1 (mm): 51.2 | l2 (mm): 52.2 | L (mm): 100
MSFD123-2P D (mm): 12.3 | Shank d (mm): 14 | l1 (mm): 51.7 | l2 (mm): 52.7 | L (mm): 100
MSFD124-2P D (mm): 12.4 | Shank d (mm): 14 | l1 (mm): 52.1 | l2 (mm): 53.1 | L (mm): 100
MSFD125-2P D (mm): 12.5 | Shank d (mm): 14 | l1 (mm): 52.5 | l2 (mm): 53.5 | L (mm): 100
MSFD126-2P D (mm): 12.6 | Shank d (mm): 14 | l1 (mm): 52.9 | l2 (mm): 53.9 | L (mm): 100
MSFD127-2P D (mm): 12.7 | Shank d (mm): 14 | l1 (mm): 53.3 | l2 (mm): 54.3 | L (mm): 100
MSFD128-2P D (mm): 12.8 | Shank d (mm): 14 | l1 (mm): 53.8 | l2 (mm): 54.8 | L (mm): 100
MSFD129-2P D (mm): 12.9 | Shank d (mm): 14 | l1 (mm): 54.2 | l2 (mm): 55.2 | L (mm): 100
MSFD130-2P D (mm): 13.0 | Shank d (mm): 14 | l1 (mm): 54.6 | l2 (mm): 55.6 | L (mm): 100
MSFD131-2P D (mm): 13.1 | Shank d (mm): 14 | l1 (mm): 55.0 | l2 (mm): 56.0 | L (mm): 100
MSFD132-2P D (mm): 13.2 | Shank d (mm): 14 | l1 (mm): 55.4 | l2 (mm): 56.4 | L (mm): 100
MSFD133-2P D (mm): 13.3 | Shank d (mm): 14 | l1 (mm): 55.9 | l2 (mm): 56.9 | L (mm): 100
MSFD134-2P D (mm): 13.4 | Shank d (mm): 14 | l1 (mm): 56.3 | l2 (mm): 57.3 | L (mm): 100
MSFD135-2P D (mm): 13.5 | Shank d (mm): 14 | l1 (mm): 56.7 | l2 (mm): 57.7 | L (mm): 110
MSFD136-2P D (mm): 13.6 | Shank d (mm): 14 | l1 (mm): 57.1 | l2 (mm): 58.1 | L (mm): 110
MSFD137-2P D (mm): 13.7 | Shank d (mm): 14 | l1 (mm): 57.5 | l2 (mm): 58.5 | L (mm): 110
MSFD138-2P D (mm): 13.8 | Shank d (mm): 14 | l1 (mm): 58.0 | l2 (mm): 59.0 | L (mm): 110
MSFD139-2P D (mm): 13.9 | Shank d (mm): 14 | l1 (mm): 58.4 | l2 (mm): 59.4 | L (mm): 110
MSFD140-2P D (mm): 14.0 | Shank d (mm): 14 | l1 (mm): 58.8 | l2 (mm): 59.8 | L (mm): 110
MSFD141-2P D (mm): 14.1 | Shank d (mm): 16 | l1 (mm): 59.2 | l2 (mm): 60.2 | L (mm): 110
MSFD142-2P D (mm): 14.2 | Shank d (mm): 16 | l1 (mm): 59.6 | l2 (mm): 60.6 | L (mm): 110
MSFD143-2P D (mm): 14.3 | Shank d (mm): 16 | l1 (mm): 60.1 | l2 (mm): 61.1 | L (mm): 110
MSFD144-2P D (mm): 14.4 | Shank d (mm): 16 | l1 (mm): 60.5 | l2 (mm): 61.5 | L (mm): 110
MSFD145-2P D (mm): 14.5 | Shank d (mm): 16 | l1 (mm): 60.9 | l2 (mm): 61.9 | L (mm): 110
MSFD146-2P D (mm): 14.6 | Shank d (mm): 16 | l1 (mm): 61.3 | l2 (mm): 62.3 | L (mm): 110
MSFD147-2P D (mm): 14.7 | Shank d (mm): 16 | l1 (mm): 61.7 | l2 (mm): 62.7 | L (mm): 110
MSFD148-2P D (mm): 14.8 | Shank d (mm): 16 | l1 (mm): 62.2 | l2 (mm): 63.2 | L (mm): 110
MSFD149-2P D (mm): 14.9 | Shank d (mm): 16 | l1 (mm): 62.6 | l2 (mm): 63.6 | L (mm): 110
MSFD150-2P D (mm): 15.0 | Shank d (mm): 16 | l1 (mm): 63.0 | l2 (mm): 64.0 | L (mm): 110
MSFD151-2P D (mm): 15.1 | Shank d (mm): 16 | l1 (mm): 65.0 | l2 (mm): 66.0 | L (mm): 115
MSFD152-2P D (mm): 15.2 | Shank d (mm): 16 | l1 (mm): 65.0 | l2 (mm): 66.0 | L (mm): 115
MSFD153-2P D (mm): 15.3 | Shank d (mm): 16 | l1 (mm): 65.1 | l2 (mm): 66.1 | L (mm): 115
MSFD154-2P D (mm): 15.4 | Shank d (mm): 16 | l1 (mm): 65.1 | l2 (mm): 66.1 | L (mm): 115
MSFD155-2P D (mm): 15.5 | Shank d (mm): 16 | l1 (mm): 65.1 | l2 (mm): 66.1 | L (mm): 115
MSFD156-2P D (mm): 15.6 | Shank d (mm): 16 | l1 (mm): 67.1 | l2 (mm): 68.1 | L (mm): 115
MSFD157-2P D (mm): 15.7 | Shank d (mm): 16 | l1 (mm): 67.1 | l2 (mm): 68.1 | L (mm): 115
MSFD158-2P D (mm): 15.8 | Shank d (mm): 16 | l1 (mm): 67.2 | l2 (mm): 68.2 | L (mm): 115
MSFD159-2P D (mm): 15.9 | Shank d (mm): 16 | l1 (mm): 67.2 | l2 (mm): 68.2 | L (mm): 115
MSFD160-2P D (mm): 16.0 | Shank d (mm): 16 | l1 (mm): 67.2 | l2 (mm): 68.2 | L (mm): 115
DrillsKorloy
40 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Mach Solid Flat Drill MSFD-2P

Brand Korloy·Drills

Available part numbers (40)

MSFD121-2P, MSFD122-2P, MSFD123-2P, MSFD124-2P, MSFD125-2P, MSFD126-2P, MSFD127-2P, MSFD128-2P, MSFD129-2P, MSFD130-2P + 30 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MSFD121-2PD (mm): 12.1 | Shank d (mm): 14 | l1 (mm): 50.8 | l2 (mm): 51.8 | L (mm): 100
MSFD122-2PD (mm): 12.2 | Shank d (mm): 14 | l1 (mm): 51.2 | l2 (mm): 52.2 | L (mm): 100
MSFD123-2PD (mm): 12.3 | Shank d (mm): 14 | l1 (mm): 51.7 | l2 (mm): 52.7 | L (mm): 100
MSFD124-2PD (mm): 12.4 | Shank d (mm): 14 | l1 (mm): 52.1 | l2 (mm): 53.1 | L (mm): 100
MSFD125-2PD (mm): 12.5 | Shank d (mm): 14 | l1 (mm): 52.5 | l2 (mm): 53.5 | L (mm): 100
MSFD126-2PD (mm): 12.6 | Shank d (mm): 14 | l1 (mm): 52.9 | l2 (mm): 53.9 | L (mm): 100
MSFD127-2PD (mm): 12.7 | Shank d (mm): 14 | l1 (mm): 53.3 | l2 (mm): 54.3 | L (mm): 100
MSFD128-2PD (mm): 12.8 | Shank d (mm): 14 | l1 (mm): 53.8 | l2 (mm): 54.8 | L (mm): 100
MSFD129-2PD (mm): 12.9 | Shank d (mm): 14 | l1 (mm): 54.2 | l2 (mm): 55.2 | L (mm): 100
MSFD130-2PD (mm): 13.0 | Shank d (mm): 14 | l1 (mm): 54.6 | l2 (mm): 55.6 | L (mm): 100
MSFD131-2PD (mm): 13.1 | Shank d (mm): 14 | l1 (mm): 55.0 | l2 (mm): 56.0 | L (mm): 100
MSFD132-2PD (mm): 13.2 | Shank d (mm): 14 | l1 (mm): 55.4 | l2 (mm): 56.4 | L (mm): 100
MSFD133-2PD (mm): 13.3 | Shank d (mm): 14 | l1 (mm): 55.9 | l2 (mm): 56.9 | L (mm): 100
MSFD134-2PD (mm): 13.4 | Shank d (mm): 14 | l1 (mm): 56.3 | l2 (mm): 57.3 | L (mm): 100
MSFD135-2PD (mm): 13.5 | Shank d (mm): 14 | l1 (mm): 56.7 | l2 (mm): 57.7 | L (mm): 110
MSFD136-2PD (mm): 13.6 | Shank d (mm): 14 | l1 (mm): 57.1 | l2 (mm): 58.1 | L (mm): 110
MSFD137-2PD (mm): 13.7 | Shank d (mm): 14 | l1 (mm): 57.5 | l2 (mm): 58.5 | L (mm): 110
MSFD138-2PD (mm): 13.8 | Shank d (mm): 14 | l1 (mm): 58.0 | l2 (mm): 59.0 | L (mm): 110
MSFD139-2PD (mm): 13.9 | Shank d (mm): 14 | l1 (mm): 58.4 | l2 (mm): 59.4 | L (mm): 110
MSFD140-2PD (mm): 14.0 | Shank d (mm): 14 | l1 (mm): 58.8 | l2 (mm): 59.8 | L (mm): 110
MSFD141-2PD (mm): 14.1 | Shank d (mm): 16 | l1 (mm): 59.2 | l2 (mm): 60.2 | L (mm): 110
MSFD142-2PD (mm): 14.2 | Shank d (mm): 16 | l1 (mm): 59.6 | l2 (mm): 60.6 | L (mm): 110
MSFD143-2PD (mm): 14.3 | Shank d (mm): 16 | l1 (mm): 60.1 | l2 (mm): 61.1 | L (mm): 110
MSFD144-2PD (mm): 14.4 | Shank d (mm): 16 | l1 (mm): 60.5 | l2 (mm): 61.5 | L (mm): 110
MSFD145-2PD (mm): 14.5 | Shank d (mm): 16 | l1 (mm): 60.9 | l2 (mm): 61.9 | L (mm): 110
MSFD146-2PD (mm): 14.6 | Shank d (mm): 16 | l1 (mm): 61.3 | l2 (mm): 62.3 | L (mm): 110
MSFD147-2PD (mm): 14.7 | Shank d (mm): 16 | l1 (mm): 61.7 | l2 (mm): 62.7 | L (mm): 110
MSFD148-2PD (mm): 14.8 | Shank d (mm): 16 | l1 (mm): 62.2 | l2 (mm): 63.2 | L (mm): 110
MSFD149-2PD (mm): 14.9 | Shank d (mm): 16 | l1 (mm): 62.6 | l2 (mm): 63.6 | L (mm): 110
MSFD150-2PD (mm): 15.0 | Shank d (mm): 16 | l1 (mm): 63.0 | l2 (mm): 64.0 | L (mm): 110
MSFD151-2PD (mm): 15.1 | Shank d (mm): 16 | l1 (mm): 65.0 | l2 (mm): 66.0 | L (mm): 115
MSFD152-2PD (mm): 15.2 | Shank d (mm): 16 | l1 (mm): 65.0 | l2 (mm): 66.0 | L (mm): 115
MSFD153-2PD (mm): 15.3 | Shank d (mm): 16 | l1 (mm): 65.1 | l2 (mm): 66.1 | L (mm): 115
MSFD154-2PD (mm): 15.4 | Shank d (mm): 16 | l1 (mm): 65.1 | l2 (mm): 66.1 | L (mm): 115
MSFD155-2PD (mm): 15.5 | Shank d (mm): 16 | l1 (mm): 65.1 | l2 (mm): 66.1 | L (mm): 115
MSFD156-2PD (mm): 15.6 | Shank d (mm): 16 | l1 (mm): 67.1 | l2 (mm): 68.1 | L (mm): 115
MSFD157-2PD (mm): 15.7 | Shank d (mm): 16 | l1 (mm): 67.1 | l2 (mm): 68.1 | L (mm): 115
MSFD158-2PD (mm): 15.8 | Shank d (mm): 16 | l1 (mm): 67.2 | l2 (mm): 68.2 | L (mm): 115
MSFD159-2PD (mm): 15.9 | Shank d (mm): 16 | l1 (mm): 67.2 | l2 (mm): 68.2 | L (mm): 115
MSFD160-2PD (mm): 16.0 | Shank d (mm): 16 | l1 (mm): 67.2 | l2 (mm): 68.2 | L (mm): 115
