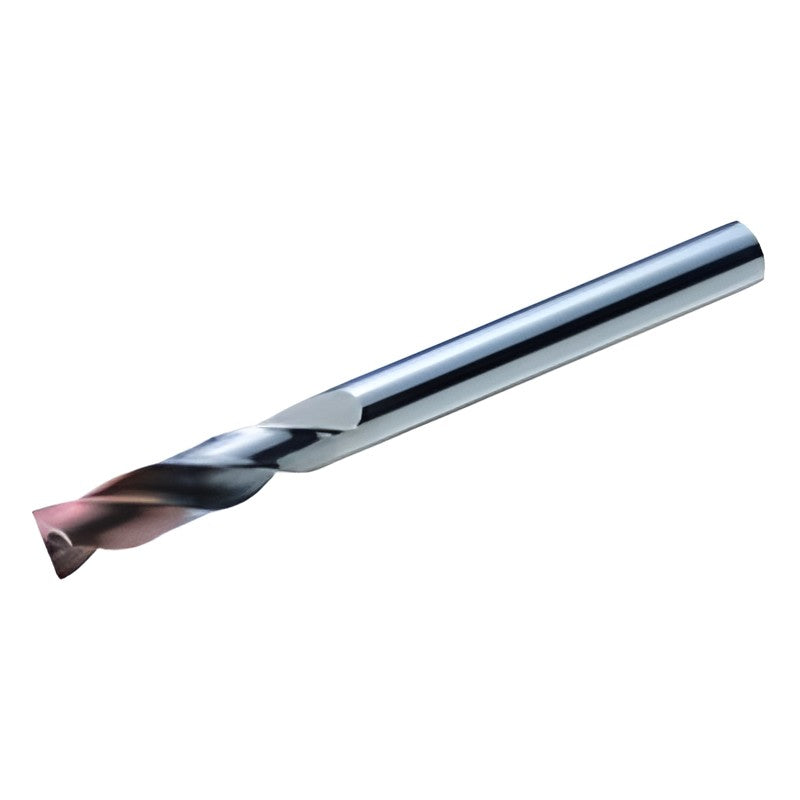

Korloy Mach Solid Flat Drill with Oil Hole MSFDH 3D

Korloy Mach Solid Flat Drill with Oil Hole MSFDH 3D

Flat-bottom solid carbide drill for ramped, curved or flat workpiece surfaces and flat-bottom holes in steel, Ø2.5 to Ø12 mm. Through-coolant version.

Key features

  • Flat point for drilling on inclined or curved surfaces
  • Flat-bottom holes and counterbores
  • Low thrust force
  • PC325U grade for steel

Specifications

Workpiece Steel (P)
Grade PC325U
MSFDH025-3P D (mm): 2.5 | Shank d (mm): 3.0 | l1 (mm): 17 | l2 (mm): 18 | L (mm): 58 | Aspect ratio: 3D
MSFDH026-3P D (mm): 2.6 | Shank d (mm): 3.0 | l1 (mm): 17 | l2 (mm): 18 | L (mm): 58 | Aspect ratio: 3D
MSFDH027-3P D (mm): 2.7 | Shank d (mm): 3.0 | l1 (mm): 17 | l2 (mm): 18 | L (mm): 58 | Aspect ratio: 3D
MSFDH028-3P D (mm): 2.8 | Shank d (mm): 3.0 | l1 (mm): 17 | l2 (mm): 18 | L (mm): 58 | Aspect ratio: 3D
MSFDH029-3P D (mm): 2.9 | Shank d (mm): 3.0 | l1 (mm): 17 | l2 (mm): 18 | L (mm): 58 | Aspect ratio: 3D
MSFDH030-3P D (mm): 3.0 | Shank d (mm): 6.0 | l1 (mm): 20 | l2 (mm): 21 | L (mm): 62 | Aspect ratio: 3D
MSFDH031-3P D (mm): 3.1 | Shank d (mm): 6.0 | l1 (mm): 20 | l2 (mm): 21 | L (mm): 62 | Aspect ratio: 3D
MSFDH032-3P D (mm): 3.2 | Shank d (mm): 6.0 | l1 (mm): 20 | l2 (mm): 21 | L (mm): 62 | Aspect ratio: 3D
MSFDH033-3P D (mm): 3.3 | Shank d (mm): 6.0 | l1 (mm): 20 | l2 (mm): 21 | L (mm): 62 | Aspect ratio: 3D
MSFDH034-3P D (mm): 3.4 | Shank d (mm): 6.0 | l1 (mm): 20 | l2 (mm): 21 | L (mm): 62 | Aspect ratio: 3D
MSFDH035-3P D (mm): 3.5 | Shank d (mm): 6.0 | l1 (mm): 20 | l2 (mm): 21 | L (mm): 62 | Aspect ratio: 3D
MSFDH036-3P D (mm): 3.6 | Shank d (mm): 6.0 | l1 (mm): 20 | l2 (mm): 21 | L (mm): 62 | Aspect ratio: 3D
MSFDH037-3P D (mm): 3.7 | Shank d (mm): 6.0 | l1 (mm): 20 | l2 (mm): 21 | L (mm): 62 | Aspect ratio: 3D
MSFDH038-3P D (mm): 3.8 | Shank d (mm): 6.0 | l1 (mm): 24 | l2 (mm): 25 | L (mm): 66 | Aspect ratio: 3D
MSFDH039-3P D (mm): 3.9 | Shank d (mm): 6.0 | l1 (mm): 24 | l2 (mm): 25 | L (mm): 66 | Aspect ratio: 3D
MSFDH040-3P D (mm): 4.0 | Shank d (mm): 6.0 | l1 (mm): 24 | l2 (mm): 25 | L (mm): 66 | Aspect ratio: 3D
MSFDH041-3P D (mm): 4.1 | Shank d (mm): 6.0 | l1 (mm): 24 | l2 (mm): 25 | L (mm): 66 | Aspect ratio: 3D
MSFDH042-3P D (mm): 4.2 | Shank d (mm): 6.0 | l1 (mm): 24 | l2 (mm): 25 | L (mm): 66 | Aspect ratio: 3D
MSFDH043-3P D (mm): 4.3 | Shank d (mm): 6.0 | l1 (mm): 24 | l2 (mm): 25 | L (mm): 66 | Aspect ratio: 3D
MSFDH044-3P D (mm): 4.4 | Shank d (mm): 6.0 | l1 (mm): 24 | l2 (mm): 25 | L (mm): 66 | Aspect ratio: 3D
MSFDH045-3P D (mm): 4.5 | Shank d (mm): 6.0 | l1 (mm): 24 | l2 (mm): 25 | L (mm): 66 | Aspect ratio: 3D
MSFDH046-3P D (mm): 4.6 | Shank d (mm): 6.0 | l1 (mm): 24 | l2 (mm): 25 | L (mm): 66 | Aspect ratio: 3D
MSFDH047-3P D (mm): 4.7 | Shank d (mm): 6.0 | l1 (mm): 24 | l2 (mm): 25 | L (mm): 66 | Aspect ratio: 3D
MSFDH048-3P D (mm): 4.8 | Shank d (mm): 6.0 | l1 (mm): 28 | l2 (mm): 29 | L (mm): 66 | Aspect ratio: 3D
MSFDH049-3P D (mm): 4.9 | Shank d (mm): 6.0 | l1 (mm): 28 | l2 (mm): 29 | L (mm): 66 | Aspect ratio: 3D
MSFDH050-3P D (mm): 5.0 | Shank d (mm): 6.0 | l1 (mm): 28 | l2 (mm): 29 | L (mm): 66 | Aspect ratio: 3D
MSFDH051-3P D (mm): 5.1 | Shank d (mm): 6.0 | l1 (mm): 28 | l2 (mm): 29 | L (mm): 66 | Aspect ratio: 3D
MSFDH052-3P D (mm): 5.2 | Shank d (mm): 6.0 | l1 (mm): 28 | l2 (mm): 29 | L (mm): 66 | Aspect ratio: 3D
MSFDH053-3P D (mm): 5.3 | Shank d (mm): 6.0 | l1 (mm): 28 | l2 (mm): 29 | L (mm): 66 | Aspect ratio: 3D
MSFDH054-3P D (mm): 5.4 | Shank d (mm): 6.0 | l1 (mm): 28 | l2 (mm): 29 | L (mm): 66 | Aspect ratio: 3D
MSFDH055-3P D (mm): 5.5 | Shank d (mm): 6.0 | l1 (mm): 28 | l2 (mm): 29 | L (mm): 66 | Aspect ratio: 3D
MSFDH056-3P D (mm): 5.6 | Shank d (mm): 6.0 | l1 (mm): 28 | l2 (mm): 29 | L (mm): 66 | Aspect ratio: 3D
MSFDH057-3P D (mm): 5.7 | Shank d (mm): 6.0 | l1 (mm): 28 | l2 (mm): 29 | L (mm): 66 | Aspect ratio: 3D
MSFDH058-3P D (mm): 5.8 | Shank d (mm): 6.0 | l1 (mm): 28 | l2 (mm): 29 | L (mm): 66 | Aspect ratio: 3D
MSFDH059-3P D (mm): 5.9 | Shank d (mm): 6.0 | l1 (mm): 28 | l2 (mm): 29 | L (mm): 66 | Aspect ratio: 3D
MSFDH060-3P D (mm): 6.0 | Shank d (mm): 6.0 | l1 (mm): 28 | l2 (mm): 29 | L (mm): 66 | Aspect ratio: 3D
MSFDH061-3P D (mm): 6.1 | Shank d (mm): 8.0 | l1 (mm): 34 | l2 (mm): 35 | L (mm): 79 | Aspect ratio: 3D
MSFDH062-3P D (mm): 6.2 | Shank d (mm): 8.0 | l1 (mm): 34 | l2 (mm): 35 | L (mm): 79 | Aspect ratio: 3D
MSFDH063-3P D (mm): 6.3 | Shank d (mm): 8.0 | l1 (mm): 34 | l2 (mm): 35 | L (mm): 79 | Aspect ratio: 3D
MSFDH064-3P D (mm): 6.4 | Shank d (mm): 8.0 | l1 (mm): 34 | l2 (mm): 35 | L (mm): 79 | Aspect ratio: 3D
MSFDH065-3P D (mm): 6.5 | Shank d (mm): 8.0 | l1 (mm): 34 | l2 (mm): 35 | L (mm): 79 | Aspect ratio: 3D
MSFDH066-3P D (mm): 6.6 | Shank d (mm): 8.0 | l1 (mm): 34 | l2 (mm): 35 | L (mm): 79 | Aspect ratio: 3D
MSFDH067-3P D (mm): 6.7 | Shank d (mm): 8.0 | l1 (mm): 34 | l2 (mm): 35 | L (mm): 79 | Aspect ratio: 3D
MSFDH068-3P D (mm): 6.8 | Shank d (mm): 8.0 | l1 (mm): 34 | l2 (mm): 35 | L (mm): 79 | Aspect ratio: 3D
MSFDH069-3P D (mm): 6.9 | Shank d (mm): 8.0 | l1 (mm): 34 | l2 (mm): 35 | L (mm): 79 | Aspect ratio: 3D
MSFDH070-3P D (mm): 7.0 | Shank d (mm): 8.0 | l1 (mm): 34 | l2 (mm): 35 | L (mm): 79 | Aspect ratio: 3D
MSFDH071-3P D (mm): 7.1 | Shank d (mm): 8.0 | l1 (mm): 41 | l2 (mm): 42 | L (mm): 79 | Aspect ratio: 3D
MSFDH072-3P D (mm): 7.2 | Shank d (mm): 8.0 | l1 (mm): 41 | l2 (mm): 42 | L (mm): 79 | Aspect ratio: 3D
MSFDH073-3P D (mm): 7.3 | Shank d (mm): 8.0 | l1 (mm): 41 | l2 (mm): 42 | L (mm): 79 | Aspect ratio: 3D
MSFDH074-3P D (mm): 7.4 | Shank d (mm): 8.0 | l1 (mm): 41 | l2 (mm): 42 | L (mm): 79 | Aspect ratio: 3D
MSFDH075-3P D (mm): 7.5 | Shank d (mm): 8.0 | l1 (mm): 41 | l2 (mm): 42 | L (mm): 79 | Aspect ratio: 3D
MSFDH076-3P D (mm): 7.6 | Shank d (mm): 8.0 | l1 (mm): 41 | l2 (mm): 42 | L (mm): 79 | Aspect ratio: 3D
MSFDH077-3P D (mm): 7.7 | Shank d (mm): 8.0 | l1 (mm): 41 | l2 (mm): 42 | L (mm): 79 | Aspect ratio: 3D
MSFDH078-3P D (mm): 7.8 | Shank d (mm): 8.0 | l1 (mm): 41 | l2 (mm): 42 | L (mm): 79 | Aspect ratio: 3D
MSFDH079-3P D (mm): 7.9 | Shank d (mm): 8.0 | l1 (mm): 41 | l2 (mm): 42 | L (mm): 79 | Aspect ratio: 3D
MSFDH080-3P D (mm): 8.0 | Shank d (mm): 8.0 | l1 (mm): 41 | l2 (mm): 42 | L (mm): 79 | Aspect ratio: 3D
MSFDH081-3P D (mm): 8.1 | Shank d (mm): 10.0 | l1 (mm): 47 | l2 (mm): 48 | L (mm): 89 | Aspect ratio: 3D
MSFDH082-3P D (mm): 8.2 | Shank d (mm): 10.0 | l1 (mm): 47 | l2 (mm): 48 | L (mm): 89 | Aspect ratio: 3D
MSFDH083-3P D (mm): 8.3 | Shank d (mm): 10.0 | l1 (mm): 47 | l2 (mm): 48 | L (mm): 89 | Aspect ratio: 3D
MSFDH084-3P D (mm): 8.4 | Shank d (mm): 10.0 | l1 (mm): 47 | l2 (mm): 48 | L (mm): 89 | Aspect ratio: 3D
MSFDH085-3P D (mm): 8.5 | Shank d (mm): 10.0 | l1 (mm): 47 | l2 (mm): 48 | L (mm): 89 | Aspect ratio: 3D
MSFDH086-3P D (mm): 8.6 | Shank d (mm): 10.0 | l1 (mm): 47 | l2 (mm): 48 | L (mm): 89 | Aspect ratio: 3D
MSFDH087-3P D (mm): 8.7 | Shank d (mm): 10.0 | l1 (mm): 47 | l2 (mm): 48 | L (mm): 89 | Aspect ratio: 3D
MSFDH088-3P D (mm): 8.8 | Shank d (mm): 10.0 | l1 (mm): 47 | l2 (mm): 48 | L (mm): 89 | Aspect ratio: 3D
MSFDH089-3P D (mm): 8.9 | Shank d (mm): 10.0 | l1 (mm): 47 | l2 (mm): 48 | L (mm): 89 | Aspect ratio: 3D
MSFDH090-3P D (mm): 9.0 | Shank d (mm): 10.0 | l1 (mm): 47 | l2 (mm): 48 | L (mm): 89 | Aspect ratio: 3D
MSFDH091-3P D (mm): 9.1 | Shank d (mm): 10.0 | l1 (mm): 47 | l2 (mm): 48 | L (mm): 89 | Aspect ratio: 3D
MSFDH092-3P D (mm): 9.2 | Shank d (mm): 10.0 | l1 (mm): 47 | l2 (mm): 48 | L (mm): 89 | Aspect ratio: 3D
MSFDH093-3P D (mm): 9.3 | Shank d (mm): 10.0 | l1 (mm): 47 | l2 (mm): 48 | L (mm): 89 | Aspect ratio: 3D
MSFDH094-3P D (mm): 9.4 | Shank d (mm): 10.0 | l1 (mm): 47 | l2 (mm): 48 | L (mm): 89 | Aspect ratio: 3D
MSFDH095-3P D (mm): 9.5 | Shank d (mm): 10.0 | l1 (mm): 47 | l2 (mm): 48 | L (mm): 89 | Aspect ratio: 3D
MSFDH096-3P D (mm): 9.6 | Shank d (mm): 10.0 | l1 (mm): 47 | l2 (mm): 48 | L (mm): 89 | Aspect ratio: 3D
MSFDH097-3P D (mm): 9.7 | Shank d (mm): 10.0 | l1 (mm): 47 | l2 (mm): 48 | L (mm): 89 | Aspect ratio: 3D
MSFDH098-3P D (mm): 9.8 | Shank d (mm): 10.0 | l1 (mm): 47 | l2 (mm): 48 | L (mm): 89 | Aspect ratio: 3D
MSFDH099-3P D (mm): 9.9 | Shank d (mm): 10.0 | l1 (mm): 47 | l2 (mm): 48 | L (mm): 89 | Aspect ratio: 3D
MSFDH100-3P D (mm): 10.0 | Shank d (mm): 10.0 | l1 (mm): 47 | l2 (mm): 48 | L (mm): 89 | Aspect ratio: 3D
MSFDH101-3P D (mm): 10.1 | Shank d (mm): 12.0 | l1 (mm): 55 | l2 (mm): 56 | L (mm): 102 | Aspect ratio: 3D
MSFDH102-3P D (mm): 10.2 | Shank d (mm): 12.0 | l1 (mm): 55 | l2 (mm): 56 | L (mm): 102 | Aspect ratio: 3D
MSFDH103-3P D (mm): 10.3 | Shank d (mm): 12.0 | l1 (mm): 55 | l2 (mm): 56 | L (mm): 102 | Aspect ratio: 3D
MSFDH104-3P D (mm): 10.4 | Shank d (mm): 12.0 | l1 (mm): 55 | l2 (mm): 56 | L (mm): 102 | Aspect ratio: 3D
MSFDH105-3P D (mm): 10.5 | Shank d (mm): 12.0 | l1 (mm): 55 | l2 (mm): 56 | L (mm): 102 | Aspect ratio: 3D
MSFDH106-3P D (mm): 10.6 | Shank d (mm): 12.0 | l1 (mm): 55 | l2 (mm): 56 | L (mm): 102 | Aspect ratio: 3D
MSFDH107-3P D (mm): 10.7 | Shank d (mm): 12.0 | l1 (mm): 55 | l2 (mm): 56 | L (mm): 102 | Aspect ratio: 3D
MSFDH108-3P D (mm): 10.8 | Shank d (mm): 12.0 | l1 (mm): 55 | l2 (mm): 56 | L (mm): 102 | Aspect ratio: 3D
MSFDH109-3P D (mm): 10.9 | Shank d (mm): 12.0 | l1 (mm): 55 | l2 (mm): 56 | L (mm): 102 | Aspect ratio: 3D
MSFDH110-3P D (mm): 11.0 | Shank d (mm): 12.0 | l1 (mm): 55 | l2 (mm): 56 | L (mm): 102 | Aspect ratio: 3D
MSFDH111-3P D (mm): 11.1 | Shank d (mm): 12.0 | l1 (mm): 55 | l2 (mm): 56 | L (mm): 102 | Aspect ratio: 3D
MSFDH112-3P D (mm): 11.2 | Shank d (mm): 12.0 | l1 (mm): 55 | l2 (mm): 56 | L (mm): 102 | Aspect ratio: 3D
MSFDH113-3P D (mm): 11.3 | Shank d (mm): 12.0 | l1 (mm): 55 | l2 (mm): 56 | L (mm): 102 | Aspect ratio: 3D
MSFDH114-3P D (mm): 11.4 | Shank d (mm): 12.0 | l1 (mm): 55 | l2 (mm): 56 | L (mm): 102 | Aspect ratio: 3D
MSFDH115-3P D (mm): 11.5 | Shank d (mm): 12.0 | l1 (mm): 55 | l2 (mm): 56 | L (mm): 102 | Aspect ratio: 3D
MSFDH116-3P D (mm): 11.6 | Shank d (mm): 12.0 | l1 (mm): 55 | l2 (mm): 56 | L (mm): 102 | Aspect ratio: 3D
MSFDH117-3P D (mm): 11.7 | Shank d (mm): 12.0 | l1 (mm): 55 | l2 (mm): 56 | L (mm): 102 | Aspect ratio: 3D
MSFDH118-3P D (mm): 11.8 | Shank d (mm): 12.0 | l1 (mm): 55 | l2 (mm): 56 | L (mm): 102 | Aspect ratio: 3D
MSFDH119-3P D (mm): 11.9 | Shank d (mm): 12.0 | l1 (mm): 55 | l2 (mm): 56 | L (mm): 102 | Aspect ratio: 3D
MSFDH120-3P D (mm): 12.0 | Shank d (mm): 12.0 | l1 (mm): 55 | l2 (mm): 56 | L (mm): 102 | Aspect ratio: 3D
