Korloy Mach Solid Flat Drill with Oil Hole MSFDH-3P

Korloy Mach Solid Flat Drill with Oil Hole MSFDH-3P

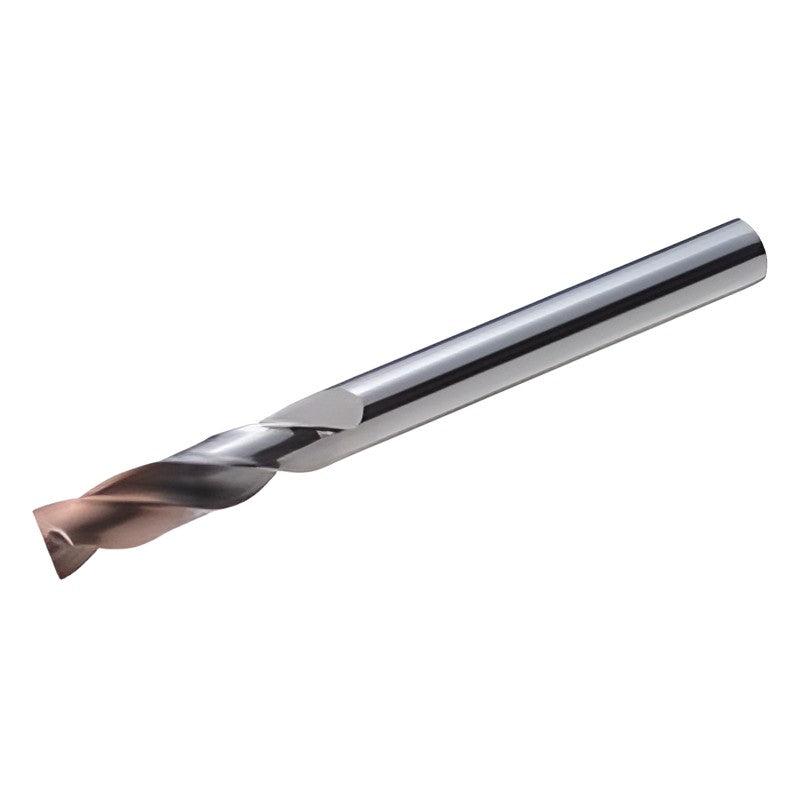

Mach Solid Flat Drill with oil holes and 180 degree point angle for ramped, curved or flat workpieces, 3xD.

Specifications

Grade PC325U
Point angle 180°
Twist angle 30°
Thinning R type
Coolant Through
Shank tolerance h6
MSFDH121-3P D (mm): 12.1 | Shank d (mm): 14 | l1 (mm): 60 | l2 (mm): 61 | L (mm): 107
MSFDH122-3P D (mm): 12.2 | Shank d (mm): 14 | l1 (mm): 60 | l2 (mm): 61 | L (mm): 107
MSFDH123-3P D (mm): 12.3 | Shank d (mm): 14 | l1 (mm): 60 | l2 (mm): 61 | L (mm): 107
MSFDH124-3P D (mm): 12.4 | Shank d (mm): 14 | l1 (mm): 60 | l2 (mm): 61 | L (mm): 107
MSFDH125-3P D (mm): 12.5 | Shank d (mm): 14 | l1 (mm): 60 | l2 (mm): 61 | L (mm): 107
MSFDH126-3P D (mm): 12.6 | Shank d (mm): 14 | l1 (mm): 60 | l2 (mm): 61 | L (mm): 107
MSFDH127-3P D (mm): 12.7 | Shank d (mm): 14 | l1 (mm): 60 | l2 (mm): 61 | L (mm): 107
MSFDH128-3P D (mm): 12.8 | Shank d (mm): 14 | l1 (mm): 60 | l2 (mm): 61 | L (mm): 107
MSFDH129-3P D (mm): 12.9 | Shank d (mm): 14 | l1 (mm): 60 | l2 (mm): 61 | L (mm): 107
MSFDH130-3P D (mm): 13.0 | Shank d (mm): 14 | l1 (mm): 60 | l2 (mm): 61 | L (mm): 107
MSFDH131-3P D (mm): 13.1 | Shank d (mm): 14 | l1 (mm): 60 | l2 (mm): 61 | L (mm): 107
MSFDH132-3P D (mm): 13.2 | Shank d (mm): 14 | l1 (mm): 60 | l2 (mm): 61 | L (mm): 107
MSFDH133-3P D (mm): 13.3 | Shank d (mm): 14 | l1 (mm): 60 | l2 (mm): 61 | L (mm): 107
MSFDH134-3P D (mm): 13.4 | Shank d (mm): 14 | l1 (mm): 60 | l2 (mm): 61 | L (mm): 107
MSFDH135-3P D (mm): 13.5 | Shank d (mm): 14 | l1 (mm): 60 | l2 (mm): 61 | L (mm): 107
MSFDH136-3P D (mm): 13.6 | Shank d (mm): 14 | l1 (mm): 60 | l2 (mm): 61 | L (mm): 107
MSFDH137-3P D (mm): 13.7 | Shank d (mm): 14 | l1 (mm): 60 | l2 (mm): 61 | L (mm): 107
MSFDH138-3P D (mm): 13.8 | Shank d (mm): 14 | l1 (mm): 60 | l2 (mm): 61 | L (mm): 107
MSFDH139-3P D (mm): 13.9 | Shank d (mm): 14 | l1 (mm): 60 | l2 (mm): 61 | L (mm): 107
MSFDH140-3P D (mm): 14.0 | Shank d (mm): 14 | l1 (mm): 60 | l2 (mm): 61 | L (mm): 107
MSFDH141-3P D (mm): 14.1 | Shank d (mm): 16 | l1 (mm): 65 | l2 (mm): 66 | L (mm): 115
MSFDH142-3P D (mm): 14.2 | Shank d (mm): 16 | l1 (mm): 65 | l2 (mm): 66 | L (mm): 115
MSFDH143-3P D (mm): 14.3 | Shank d (mm): 16 | l1 (mm): 65 | l2 (mm): 66 | L (mm): 115
MSFDH144-3P D (mm): 14.4 | Shank d (mm): 16 | l1 (mm): 65 | l2 (mm): 66 | L (mm): 115
MSFDH145-3P D (mm): 14.5 | Shank d (mm): 16 | l1 (mm): 65 | l2 (mm): 66 | L (mm): 115
MSFDH146-3P D (mm): 14.6 | Shank d (mm): 16 | l1 (mm): 65 | l2 (mm): 66 | L (mm): 115
MSFDH147-3P D (mm): 14.7 | Shank d (mm): 16 | l1 (mm): 65 | l2 (mm): 66 | L (mm): 115
MSFDH148-3P D (mm): 14.8 | Shank d (mm): 16 | l1 (mm): 65 | l2 (mm): 66 | L (mm): 115
MSFDH149-3P D (mm): 14.9 | Shank d (mm): 16 | l1 (mm): 65 | l2 (mm): 66 | L (mm): 115
MSFDH150-3P D (mm): 15.0 | Shank d (mm): 16 | l1 (mm): 65 | l2 (mm): 66 | L (mm): 115
MSFDH151-3P D (mm): 15.1 | Shank d (mm): 16 | l1 (mm): 65 | l2 (mm): 66 | L (mm): 115
MSFDH152-3P D (mm): 15.2 | Shank d (mm): 16 | l1 (mm): 65 | l2 (mm): 66 | L (mm): 115
MSFDH153-3P D (mm): 15.3 | Shank d (mm): 16 | l1 (mm): 65 | l2 (mm): 66 | L (mm): 115
MSFDH154-3P D (mm): 15.4 | Shank d (mm): 16 | l1 (mm): 65 | l2 (mm): 66 | L (mm): 115
MSFDH155-3P D (mm): 15.5 | Shank d (mm): 16 | l1 (mm): 65 | l2 (mm): 66 | L (mm): 115
MSFDH156-3P D (mm): 15.6 | Shank d (mm): 16 | l1 (mm): 65 | l2 (mm): 66 | L (mm): 115
MSFDH157-3P D (mm): 15.7 | Shank d (mm): 16 | l1 (mm): 65 | l2 (mm): 66 | L (mm): 115
MSFDH158-3P D (mm): 15.8 | Shank d (mm): 16 | l1 (mm): 65 | l2 (mm): 66 | L (mm): 115
MSFDH159-3P D (mm): 15.9 | Shank d (mm): 16 | l1 (mm): 65 | l2 (mm): 66 | L (mm): 115
MSFDH160-3P D (mm): 16.0 | Shank d (mm): 16 | l1 (mm): 65 | l2 (mm): 66 | L (mm): 115
DrillsKorloy
40 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Mach Solid Flat Drill with Oil Hole MSFDH-3P

Brand Korloy·Drills

Available part numbers (40)

MSFDH121-3P, MSFDH122-3P, MSFDH123-3P, MSFDH124-3P, MSFDH125-3P, MSFDH126-3P, MSFDH127-3P, MSFDH128-3P, MSFDH129-3P, MSFDH130-3P + 30 more — see full table ↓
