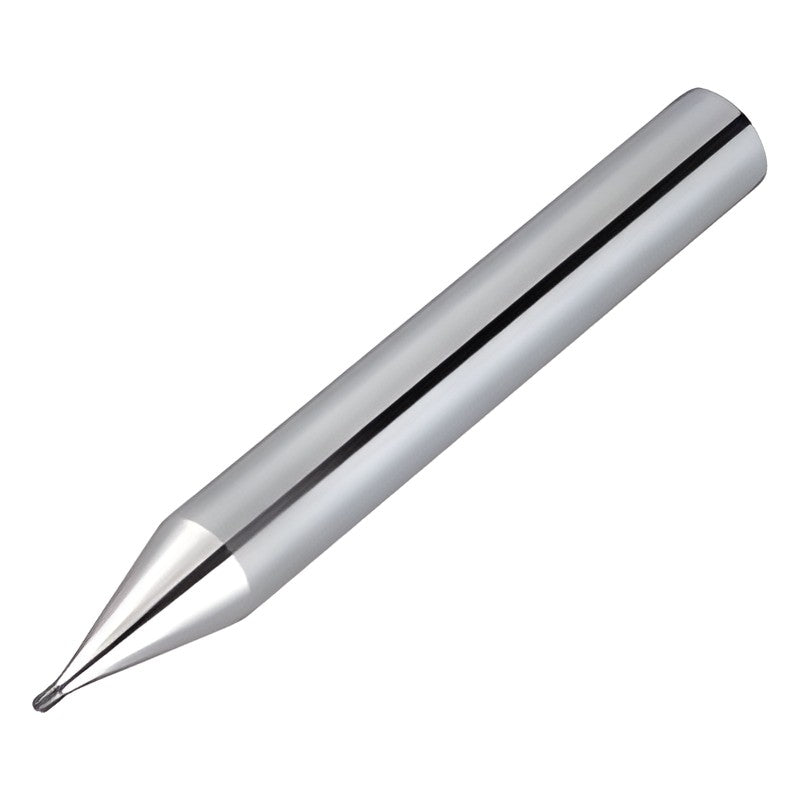

Korloy Mirror cBN Ball End Mill cBN-MBE2000

Korloy Mirror cBN Ball End Mill cBN-MBE2000

cBN ball end mill for mirror finishing of high-hardness molds and high-precision workpieces.

Key features

  • cBN cutting edge for high-hardness cutting
  • For polishing of high-precision workpieces and high-hardness molds
  • Nano-level surface finish from ultra-fine edge
  • 2-flute ball type
  • h4 shank
  • DC tolerance 0.000 ~ -0.008 mm, R tolerance ±0.003 mm

Specifications

Series cBN-MBE2000
Shape Ball
Material cBN
Shank tolerance h4
DC tolerance (mm) 0.000 ~ -0.008
R tolerance (mm) ±0.003
Diameter range (mm) 0.4 ~ 2.0
Overall length LF (mm) 50
Shank diameter DCON-MS (mm) 4
cBN-MBE2004-050-N005S04 Cutting diameter DC (mm): 0.4 | Ball radius RE (mm): 0.2 | Flute length APMX (mm): 0.33 | Neck length LU (mm): 0.5 | Overall length LF (mm): 50 | Shank diameter DCON-MS (mm): 4
cBN-MBE2004-050-N010S04 Cutting diameter DC (mm): 0.4 | Ball radius RE (mm): 0.2 | Flute length APMX (mm): 0.33 | Neck length LU (mm): 1 | Overall length LF (mm): 50 | Shank diameter DCON-MS (mm): 4
cBN-MBE2005-050-N010S04 Cutting diameter DC (mm): 0.5 | Ball radius RE (mm): 0.25 | Flute length APMX (mm): 0.38 | Neck length LU (mm): 1 | Overall length LF (mm): 50 | Shank diameter DCON-MS (mm): 4
cBN-MBE2006-050-N015S04 Cutting diameter DC (mm): 0.6 | Ball radius RE (mm): 0.3 | Flute length APMX (mm): 0.5 | Neck length LU (mm): 1.5 | Overall length LF (mm): 50 | Shank diameter DCON-MS (mm): 4
cBN-MBE2008-050-N020S04 Cutting diameter DC (mm): 0.8 | Ball radius RE (mm): 0.4 | Flute length APMX (mm): 0.6 | Neck length LU (mm): 2 | Overall length LF (mm): 50 | Shank diameter DCON-MS (mm): 4
cBN-MBE2010-050-N025S04 Cutting diameter DC (mm): 1 | Ball radius RE (mm): 0.5 | Flute length APMX (mm): 0.7 | Neck length LU (mm): 2.5 | Overall length LF (mm): 50 | Shank diameter DCON-MS (mm): 4
cBN-MBE2012-050-N030S04 Cutting diameter DC (mm): 1.2 | Ball radius RE (mm): 0.6 | Flute length APMX (mm): 0.8 | Neck length LU (mm): 3 | Overall length LF (mm): 50 | Shank diameter DCON-MS (mm): 4
cBN-MBE2015-050-N040S04 Cutting diameter DC (mm): 1.5 | Ball radius RE (mm): 0.75 | Flute length APMX (mm): 1 | Neck length LU (mm): 4 | Overall length LF (mm): 50 | Shank diameter DCON-MS (mm): 4
cBN-MBE2020-050-N050S04 Cutting diameter DC (mm): 2 | Ball radius RE (mm): 1 | Flute length APMX (mm): 1.2 | Neck length LU (mm): 5 | Overall length LF (mm): 50 | Shank diameter DCON-MS (mm): 4
Ball End MillsKorloy
9 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Mirror cBN Ball End Mill cBN-MBE2000

Brand Korloy·Ball End Mills

Available part numbers (9)

cBN-MBE2004-050-N005S04, cBN-MBE2004-050-N010S04, cBN-MBE2005-050-N010S04, cBN-MBE2006-050-N015S04, cBN-MBE2008-050-N020S04, cBN-MBE2010-050-N025S04, cBN-MBE2012-050-N030S04, cBN-MBE2015-050-N040S04, cBN-MBE2020-050-N050S04
