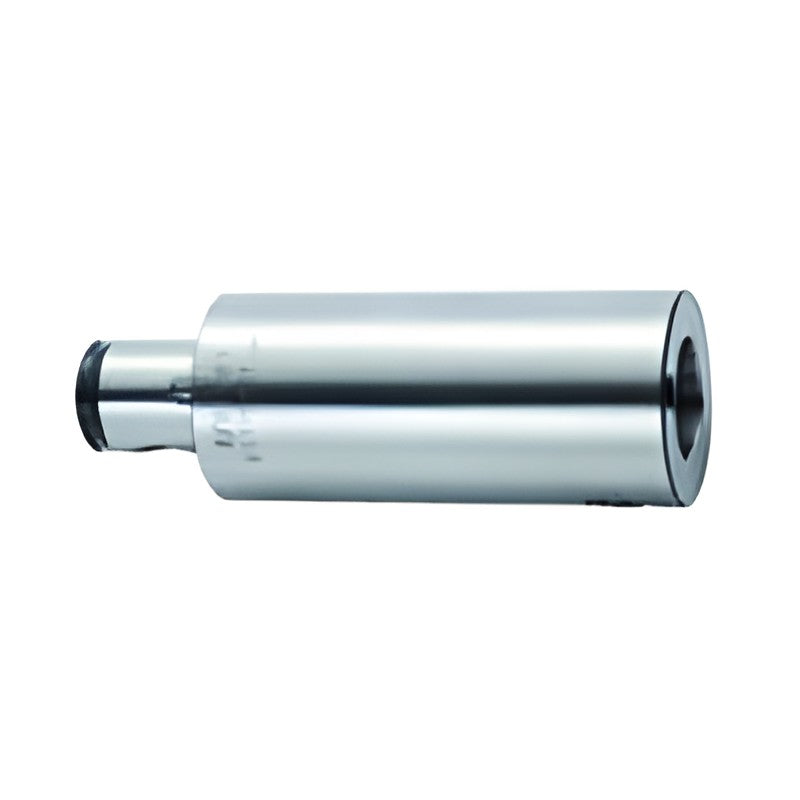

Korloy Modular Extension Bar EXT

Korloy Modular Extension Bar EXT

Extension bar for the MD modular system to increase tool length.

Key features

  • MD modular connection
  • Joined with taper screw
EXT-1930F C (mm): 19 | d (mm): 11 | L (mm): 30 | d1 (mm): 11 | Thread G: M5
EXT-1950F C (mm): 19 | d (mm): 11 | L (mm): 50 | d1 (mm): 11 | Thread G: M5
EXT-2530F C (mm): 25 | d (mm): 14 | L (mm): 30 | d1 (mm): 14 | Thread G: M6
EXT-2550F C (mm): 25 | d (mm): 14 | L (mm): 50 | d1 (mm): 14 | Thread G: M6
EXT-3235F C (mm): 32 | d (mm): 18 | L (mm): 35 | d1 (mm): 18 | Thread G: M8
EXT-3260F C (mm): 32 | d (mm): 18 | L (mm): 60 | d1 (mm): 18 | Thread G: M8
EXT-4040F C (mm): 40 | d (mm): 22 | L (mm): 40 | d1 (mm): 22 | Thread G: M10
EXT-4090F C (mm): 40 | d (mm): 22 | L (mm): 90 | d1 (mm): 22 | Thread G: M12
EXT-5050F C (mm): 50 | d (mm): 28 | L (mm): 50 | d1 (mm): 28 | Thread G: M12
EXT-50100F C (mm): 50 | d (mm): 28 | L (mm): 100 | d1 (mm): 28 | Thread G: M12
EXT-6360F C (mm): 63 | d (mm): 36 | L (mm): 60 | d1 (mm): 36 | Thread G: M16
EXT-63120F C (mm): 63 | d (mm): 36 | L (mm): 120 | d1 (mm): 36 | Thread G: M16
EXT-8070F C (mm): 80 | d (mm): 45 | L (mm): 70 | d1 (mm): 45 | Thread G: M16
EXT-80120F C (mm): 80 | d (mm): 45 | L (mm): 120 | d1 (mm): 45 | Thread G: M16
EXT-9080F C (mm): 90 | d (mm): 45 | L (mm): 80 | d1 (mm): 45 | Thread G: M16
EXT-90130F C (mm): 90 | d (mm): 45 | L (mm): 130 | d1 (mm): 45 | Thread G: M16
Extension BarsKorloy
16 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Modular Extension Bar EXT

Brand Korloy·Extension Bars

Available part numbers (16)

EXT-1930F, EXT-1950F, EXT-2530F, EXT-2550F, EXT-3235F, EXT-3260F, EXT-4040F, EXT-4090F, EXT-5050F, EXT-50100F + 6 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
EXT-1930FC (mm): 19 | d (mm): 11 | L (mm): 30 | d1 (mm): 11 | Thread G: M5
EXT-1950FC (mm): 19 | d (mm): 11 | L (mm): 50 | d1 (mm): 11 | Thread G: M5
EXT-2530FC (mm): 25 | d (mm): 14 | L (mm): 30 | d1 (mm): 14 | Thread G: M6
EXT-2550FC (mm): 25 | d (mm): 14 | L (mm): 50 | d1 (mm): 14 | Thread G: M6
EXT-3235FC (mm): 32 | d (mm): 18 | L (mm): 35 | d1 (mm): 18 | Thread G: M8
EXT-3260FC (mm): 32 | d (mm): 18 | L (mm): 60 | d1 (mm): 18 | Thread G: M8
EXT-4040FC (mm): 40 | d (mm): 22 | L (mm): 40 | d1 (mm): 22 | Thread G: M10
EXT-4090FC (mm): 40 | d (mm): 22 | L (mm): 90 | d1 (mm): 22 | Thread G: M12
EXT-5050FC (mm): 50 | d (mm): 28 | L (mm): 50 | d1 (mm): 28 | Thread G: M12
EXT-50100FC (mm): 50 | d (mm): 28 | L (mm): 100 | d1 (mm): 28 | Thread G: M12
EXT-6360FC (mm): 63 | d (mm): 36 | L (mm): 60 | d1 (mm): 36 | Thread G: M16
EXT-63120FC (mm): 63 | d (mm): 36 | L (mm): 120 | d1 (mm): 36 | Thread G: M16
EXT-8070FC (mm): 80 | d (mm): 45 | L (mm): 70 | d1 (mm): 45 | Thread G: M16
EXT-80120FC (mm): 80 | d (mm): 45 | L (mm): 120 | d1 (mm): 45 | Thread G: M16
EXT-9080FC (mm): 90 | d (mm): 45 | L (mm): 80 | d1 (mm): 45 | Thread G: M16
EXT-90130FC (mm): 90 | d (mm): 45 | L (mm): 130 | d1 (mm): 45 | Thread G: M16
