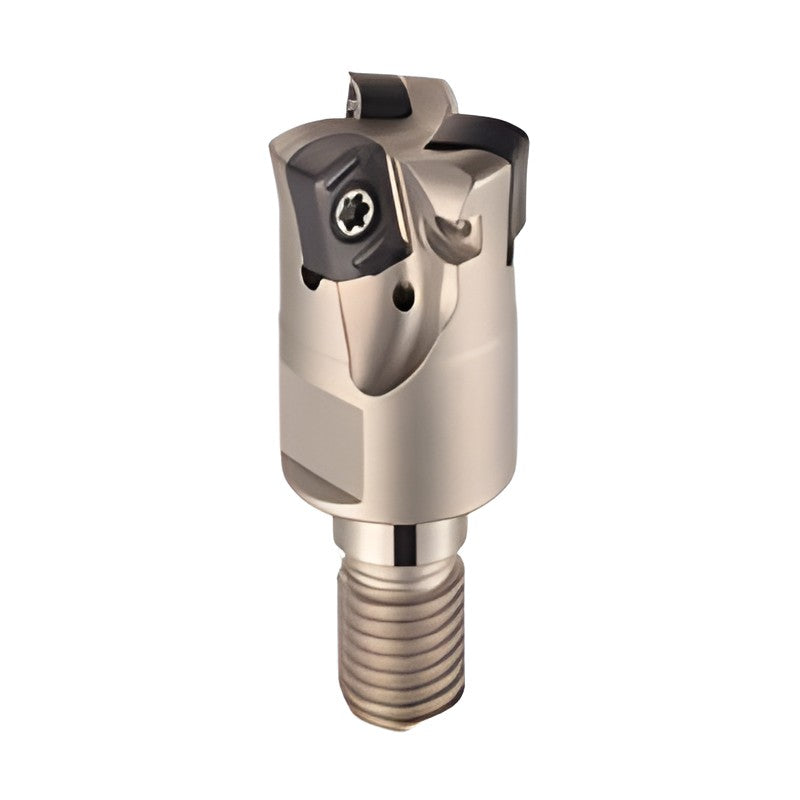

Korloy Modular Head End Mill HFMDM-LN06

Korloy Modular Head End Mill HFMDM-LN06

High feed milling tool with double-sided 4-corner inserts for small diameters.

Key features

  • Economical 4-corner double-sided insert
  • Fine pitch from thin elongated insert
  • High rake and helix angle reduce cutting load
  • Concave clamping system against chipping
HFMDM016R-2-M08-LN06 Teeth: 2 | D (mm): 16 | d (mm): 14.5 | d1 (mm): 8.5 | l (mm): 25 | L (mm): 42 | Thread: M08 | ap max (mm): 0.7 | Weight (kg): 0.03 | Stock: Yes
HFMDM017R-2-M08-LN06 Teeth: 2 | D (mm): 17 | d (mm): 14.5 | d1 (mm): 8.5 | l (mm): 25 | L (mm): 42 | Thread: M08 | ap max (mm): 1.0 | Weight (kg): 0.03 | Stock: Yes
HFMDM018R-2-M08-LN06 Teeth: 2 | D (mm): 18 | d (mm): 14.5 | d1 (mm): 8.5 | l (mm): 25 | L (mm): 42 | Thread: M08 | ap max (mm): 1.0 | Weight (kg): 0.04
HFMDM019R-2-M08-LN06 Teeth: 2 | D (mm): 19 | d (mm): 14.5 | d1 (mm): 8.5 | l (mm): 25 | L (mm): 42 | Thread: M08 | ap max (mm): 1.0 | Weight (kg): 0.05
HFMDM020R-3-M10-LN06 Teeth: 3 | D (mm): 20 | d (mm): 18 | d1 (mm): 10.5 | l (mm): 30 | L (mm): 51 | Thread: M10 | ap max (mm): 1.0 | Weight (kg): 0.06 | Stock: Yes
HFMDM021R-3-M10-LN06 Teeth: 3 | D (mm): 21 | d (mm): 18 | d1 (mm): 10.5 | l (mm): 30 | L (mm): 51 | Thread: M10 | ap max (mm): 1.0 | Weight (kg): 0.07 | Stock: Yes
HFMDM025R-4-M12-LN06 Teeth: 4 | D (mm): 25 | d (mm): 23 | d1 (mm): 12.5 | l (mm): 35 | L (mm): 59 | Thread: M12 | ap max (mm): 1.0 | Weight (kg): 0.10 | Stock: Yes
HFMDM026R-4-M12-LN06 Teeth: 4 | D (mm): 26 | d (mm): 23 | d1 (mm): 12.5 | l (mm): 35 | L (mm): 59 | Thread: M12 | ap max (mm): 1.0 | Weight (kg): 0.10
HFMDM032R-5-M16-LN06 Teeth: 5 | D (mm): 32 | d (mm): 29 | d1 (mm): 17 | l (mm): 40 | L (mm): 67 | Thread: M16 | ap max (mm): 1.0 | Weight (kg): 0.20 | Stock: Yes
HFMDM033R-5-M16-LN06 Teeth: 5 | D (mm): 33 | d (mm): 29 | d1 (mm): 17 | l (mm): 40 | L (mm): 67 | Thread: M16 | ap max (mm): 1.0 | Weight (kg): 0.20
HFMDM035R-5-M16-LN06 Teeth: 5 | D (mm): 35 | d (mm): 29 | d1 (mm): 17 | l (mm): 40 | L (mm): 67 | Thread: M16 | ap max (mm): 1.0 | Weight (kg): 0.21
HFMDM040R-6-M16-LN06 Teeth: 6 | D (mm): 40 | d (mm): 29 | d1 (mm): 17 | l (mm): 40 | L (mm): 67 | Thread: M16 | ap max (mm): 1.0 | Weight (kg): 0.24
HFMDM042R-6-M16-LN06 Teeth: 6 | D (mm): 42 | d (mm): 29 | d1 (mm): 17 | l (mm): 40 | L (mm): 67 | Thread: M16 | ap max (mm): 1.0 | Weight (kg): 0.25
Milling CuttersKorloy
13 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Modular Head End Mill HFMDM-LN06

Brand Korloy·Milling Cutters

Available part numbers (13)

HFMDM016R-2-M08-LN06, HFMDM017R-2-M08-LN06, HFMDM018R-2-M08-LN06, HFMDM019R-2-M08-LN06, HFMDM020R-3-M10-LN06, HFMDM021R-3-M10-LN06, HFMDM025R-4-M12-LN06, HFMDM026R-4-M12-LN06, HFMDM032R-5-M16-LN06, HFMDM033R-5-M16-LN06 + 3 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HFMDM016R-2-M08-LN06Teeth: 2 | D (mm): 16 | d (mm): 14.5 | d1 (mm): 8.5 | l (mm): 25 | L (mm): 42 | Thread: M08 | ap max (mm): 0.7 | Weight (kg): 0.03 | Stock: Yes
HFMDM017R-2-M08-LN06Teeth: 2 | D (mm): 17 | d (mm): 14.5 | d1 (mm): 8.5 | l (mm): 25 | L (mm): 42 | Thread: M08 | ap max (mm): 1.0 | Weight (kg): 0.03 | Stock: Yes
HFMDM018R-2-M08-LN06Teeth: 2 | D (mm): 18 | d (mm): 14.5 | d1 (mm): 8.5 | l (mm): 25 | L (mm): 42 | Thread: M08 | ap max (mm): 1.0 | Weight (kg): 0.04
HFMDM019R-2-M08-LN06Teeth: 2 | D (mm): 19 | d (mm): 14.5 | d1 (mm): 8.5 | l (mm): 25 | L (mm): 42 | Thread: M08 | ap max (mm): 1.0 | Weight (kg): 0.05
HFMDM020R-3-M10-LN06Teeth: 3 | D (mm): 20 | d (mm): 18 | d1 (mm): 10.5 | l (mm): 30 | L (mm): 51 | Thread: M10 | ap max (mm): 1.0 | Weight (kg): 0.06 | Stock: Yes
HFMDM021R-3-M10-LN06Teeth: 3 | D (mm): 21 | d (mm): 18 | d1 (mm): 10.5 | l (mm): 30 | L (mm): 51 | Thread: M10 | ap max (mm): 1.0 | Weight (kg): 0.07 | Stock: Yes
HFMDM025R-4-M12-LN06Teeth: 4 | D (mm): 25 | d (mm): 23 | d1 (mm): 12.5 | l (mm): 35 | L (mm): 59 | Thread: M12 | ap max (mm): 1.0 | Weight (kg): 0.10 | Stock: Yes
HFMDM026R-4-M12-LN06Teeth: 4 | D (mm): 26 | d (mm): 23 | d1 (mm): 12.5 | l (mm): 35 | L (mm): 59 | Thread: M12 | ap max (mm): 1.0 | Weight (kg): 0.10
HFMDM032R-5-M16-LN06Teeth: 5 | D (mm): 32 | d (mm): 29 | d1 (mm): 17 | l (mm): 40 | L (mm): 67 | Thread: M16 | ap max (mm): 1.0 | Weight (kg): 0.20 | Stock: Yes
HFMDM033R-5-M16-LN06Teeth: 5 | D (mm): 33 | d (mm): 29 | d1 (mm): 17 | l (mm): 40 | L (mm): 67 | Thread: M16 | ap max (mm): 1.0 | Weight (kg): 0.20
HFMDM035R-5-M16-LN06Teeth: 5 | D (mm): 35 | d (mm): 29 | d1 (mm): 17 | l (mm): 40 | L (mm): 67 | Thread: M16 | ap max (mm): 1.0 | Weight (kg): 0.21
HFMDM040R-6-M16-LN06Teeth: 6 | D (mm): 40 | d (mm): 29 | d1 (mm): 17 | l (mm): 40 | L (mm): 67 | Thread: M16 | ap max (mm): 1.0 | Weight (kg): 0.24
HFMDM042R-6-M16-LN06Teeth: 6 | D (mm): 42 | d (mm): 29 | d1 (mm): 17 | l (mm): 40 | L (mm): 67 | Thread: M16 | ap max (mm): 1.0 | Weight (kg): 0.25
