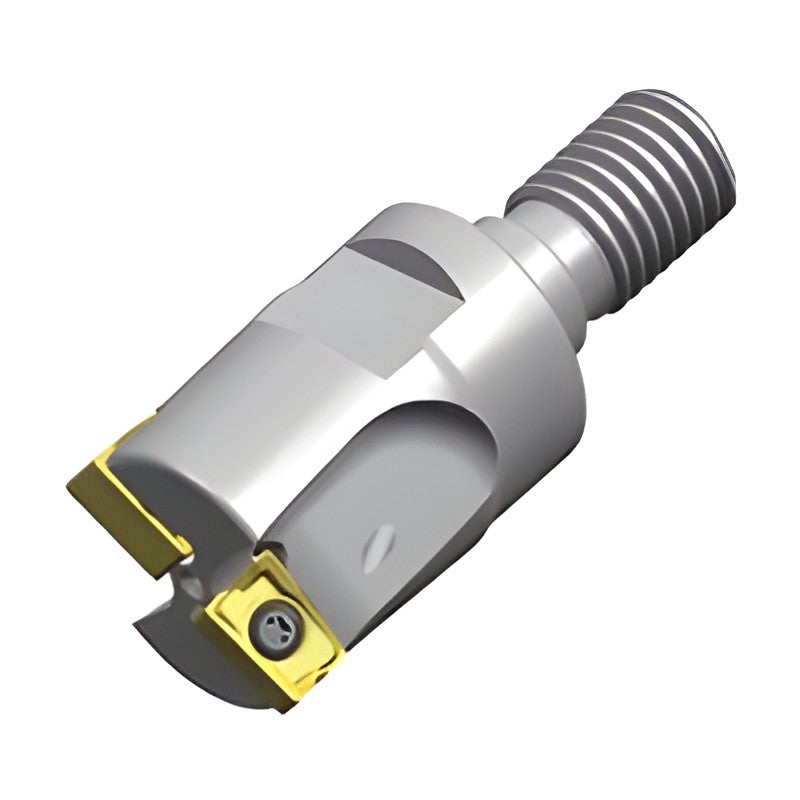

Korloy Modular Head End Mill RM4ZM3000

Korloy Modular Head End Mill RM4ZM3000

Economical multi-purpose plunge milling tool with double-sided 4-corner inserts for plunging, shouldering and facing.

Key features

  • Double-sided 4-corner insert
  • Plunge machining for slotting and pocketing
  • Max plunging depth 9.0 mm (3000 type) / 14.0 mm (4000 type)
RM4ZM3025HR-M12 Teeth: 2 | D (mm): 25 | d (mm): 23 | d1 (mm): 12.5 | l (mm): 35 | L (mm): 59 | Thread: M12 | ap max (mm): 1.5 | ae max (mm): 9.0 | Weight (kg): 0.11
RM4ZM3032HR-M16 Teeth: 3 | D (mm): 32 | d (mm): 29 | d1 (mm): 17 | l (mm): 40 | L (mm): 67 | Thread: M16 | ap max (mm): 1.5 | ae max (mm): 9.0 | Weight (kg): 0.21 | Stock: Yes
RM4ZM3040HR-M16 Teeth: 4 | D (mm): 40 | d (mm): 29 | d1 (mm): 17 | l (mm): 40 | L (mm): 67 | Thread: M16 | ap max (mm): 1.5 | ae max (mm): 9.0 | Weight (kg): 0.28
Milling CuttersKorloy
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Modular Head End Mill RM4ZM3000

Brand Korloy·Milling Cutters

Available part numbers (3)

RM4ZM3025HR-M12, RM4ZM3032HR-M16, RM4ZM3040HR-M16

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
RM4ZM3025HR-M12Teeth: 2 | D (mm): 25 | d (mm): 23 | d1 (mm): 12.5 | l (mm): 35 | L (mm): 59 | Thread: M12 | ap max (mm): 1.5 | ae max (mm): 9.0 | Weight (kg): 0.11
RM4ZM3032HR-M16Teeth: 3 | D (mm): 32 | d (mm): 29 | d1 (mm): 17 | l (mm): 40 | L (mm): 67 | Thread: M16 | ap max (mm): 1.5 | ae max (mm): 9.0 | Weight (kg): 0.21 | Stock: Yes
RM4ZM3040HR-M16Teeth: 4 | D (mm): 40 | d (mm): 29 | d1 (mm): 17 | l (mm): 40 | L (mm): 67 | Thread: M16 | ap max (mm): 1.5 | ae max (mm): 9.0 | Weight (kg): 0.28
