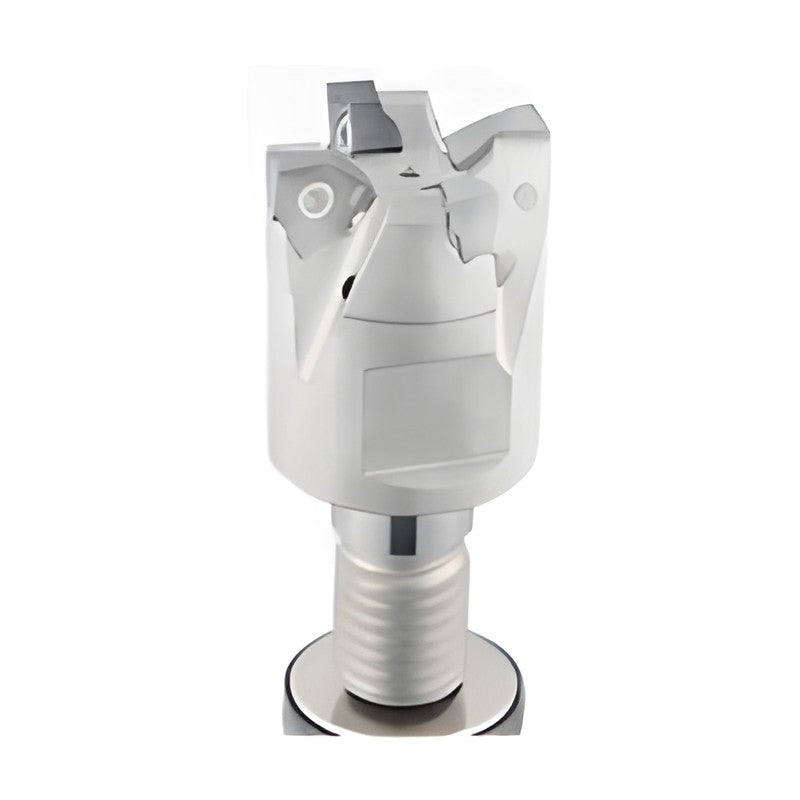

Korloy Modular Head End Mill RM6PM

Korloy Modular Head End Mill RM6PM

Milling tool for perpendicular shouldering with double-sided 6-corner inserts.

Key features

  • Double-sided insert with 6 cutting corners
  • 3 clamping surfaces and strong clamping screws for stable clamping
  • High precision and excellent perpendicularity
  • High rake angle and sharp edges for low cutting resistance
  • Suited to high speed and high feed machining
RM6PM020R-2-M10-WN04 Teeth: 2 | D (mm): 20 | d (mm): 18 | d1 (mm): 10.5 | l (mm): 30 | L (mm): 50 | Thread: 10 | ap max (mm): 4.3 | Weight (kg): 0.06
RM6PM020R-3-M10-WN04 Teeth: 3 | D (mm): 20 | d (mm): 18 | d1 (mm): 10.5 | l (mm): 30 | L (mm): 50 | Thread: 10 | ap max (mm): 4.3 | Weight (kg): 0.06
RM6PM025R-4-M12-WN04 Teeth: 4 | D (mm): 25 | d (mm): 23 | d1 (mm): 12.5 | l (mm): 30 | L (mm): 53 | Thread: 12 | ap max (mm): 4.3 | Weight (kg): 0.1
RM6PM025R-5-M12-WN04 Teeth: 5 | D (mm): 25 | d (mm): 23 | d1 (mm): 12.5 | l (mm): 30 | L (mm): 53 | Thread: 12 | ap max (mm): 4.3 | Weight (kg): 0.09
RM6PM032R-5-M16-WN04 Teeth: 5 | D (mm): 32 | d (mm): 29 | d1 (mm): 17 | l (mm): 40 | L (mm): 66 | Thread: 16 | ap max (mm): 4.3 | Weight (kg): 0.25
RM6PM032R-6-M16-WN04 Teeth: 6 | D (mm): 32 | d (mm): 29 | d1 (mm): 17 | l (mm): 40 | L (mm): 66 | Thread: 16 | ap max (mm): 4.3 | Weight (kg): 0.24
RM6PM032R-2-M16-WN08 Teeth: 2 | D (mm): 32 | d (mm): 29 | d1 (mm): 17 | l (mm): 43 | L (mm): 69 | Thread: 16 | ap max (mm): 8.2 | Weight (kg): 0.22
RM6PM040R-3-M16-WN08 Teeth: 3 | D (mm): 40 | d (mm): 29 | d1 (mm): 17 | l (mm): 43 | L (mm): 69 | Thread: 16 | ap max (mm): 8.2 | Weight (kg): 0.31
RM6PM040R-4-M16-WN08 Teeth: 4 | D (mm): 40 | d (mm): 29 | d1 (mm): 17 | l (mm): 43 | L (mm): 69 | Thread: 16 | ap max (mm): 8.2 | Weight (kg): 0.30
Milling CuttersKorloy
9 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Modular Head End Mill RM6PM

Brand Korloy·Milling Cutters

Available part numbers (9)

RM6PM020R-2-M10-WN04, RM6PM020R-3-M10-WN04, RM6PM025R-4-M12-WN04, RM6PM025R-5-M12-WN04, RM6PM032R-5-M16-WN04, RM6PM032R-6-M16-WN04, RM6PM032R-2-M16-WN08, RM6PM040R-3-M16-WN08, RM6PM040R-4-M16-WN08

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
RM6PM020R-2-M10-WN04Teeth: 2 | D (mm): 20 | d (mm): 18 | d1 (mm): 10.5 | l (mm): 30 | L (mm): 50 | Thread: 10 | ap max (mm): 4.3 | Weight (kg): 0.06
RM6PM020R-3-M10-WN04Teeth: 3 | D (mm): 20 | d (mm): 18 | d1 (mm): 10.5 | l (mm): 30 | L (mm): 50 | Thread: 10 | ap max (mm): 4.3 | Weight (kg): 0.06
RM6PM025R-4-M12-WN04Teeth: 4 | D (mm): 25 | d (mm): 23 | d1 (mm): 12.5 | l (mm): 30 | L (mm): 53 | Thread: 12 | ap max (mm): 4.3 | Weight (kg): 0.1
RM6PM025R-5-M12-WN04Teeth: 5 | D (mm): 25 | d (mm): 23 | d1 (mm): 12.5 | l (mm): 30 | L (mm): 53 | Thread: 12 | ap max (mm): 4.3 | Weight (kg): 0.09
RM6PM032R-5-M16-WN04Teeth: 5 | D (mm): 32 | d (mm): 29 | d1 (mm): 17 | l (mm): 40 | L (mm): 66 | Thread: 16 | ap max (mm): 4.3 | Weight (kg): 0.25
RM6PM032R-6-M16-WN04Teeth: 6 | D (mm): 32 | d (mm): 29 | d1 (mm): 17 | l (mm): 40 | L (mm): 66 | Thread: 16 | ap max (mm): 4.3 | Weight (kg): 0.24
RM6PM032R-2-M16-WN08Teeth: 2 | D (mm): 32 | d (mm): 29 | d1 (mm): 17 | l (mm): 43 | L (mm): 69 | Thread: 16 | ap max (mm): 8.2 | Weight (kg): 0.22
RM6PM040R-3-M16-WN08Teeth: 3 | D (mm): 40 | d (mm): 29 | d1 (mm): 17 | l (mm): 43 | L (mm): 69 | Thread: 16 | ap max (mm): 8.2 | Weight (kg): 0.31
RM6PM040R-4-M16-WN08Teeth: 4 | D (mm): 40 | d (mm): 29 | d1 (mm): 17 | l (mm): 43 | L (mm): 69 | Thread: 16 | ap max (mm): 8.2 | Weight (kg): 0.30
