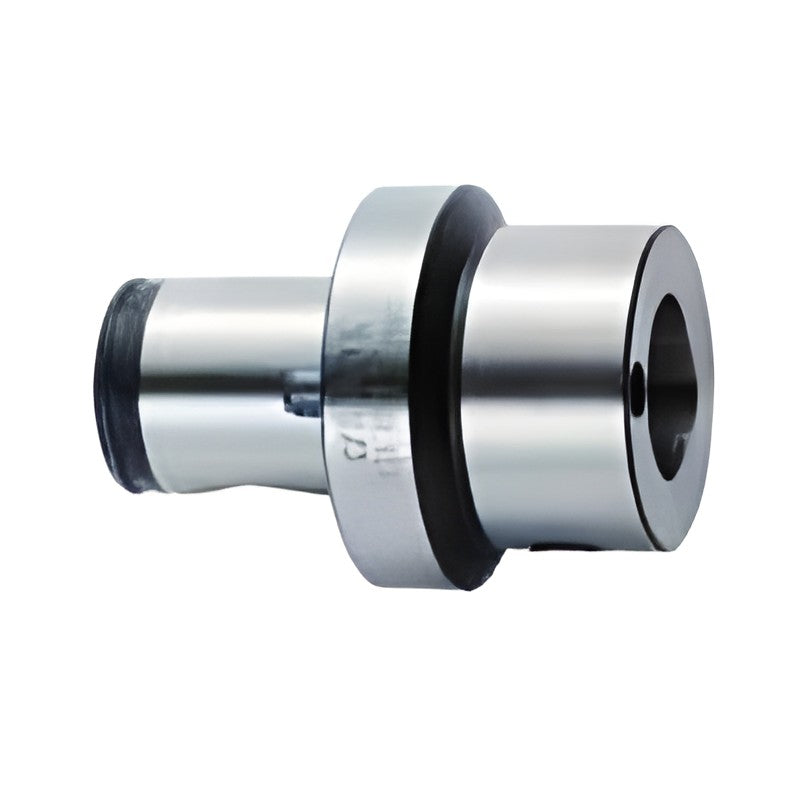

Korloy Modular Reducer Bar RDC

Korloy Modular Reducer Bar RDC

Reducer bar for the MD modular system to connect a smaller modular size.

Key features

  • MD modular connection
  • Joined with taper screw
RDC-3225F d (mm): 18 | C1 (mm): 25 | d1 (mm): 14 | C (mm): 32 | L (mm): 30 | L1 (mm): 9 | Thread G: M6
RDC-4025F d (mm): 22 | C1 (mm): 25 | d1 (mm): 14 | C (mm): 40 | L (mm): 30 | L1 (mm): 9 | Thread G: M6
RDC-4032F d (mm): 22 | C1 (mm): 32 | d1 (mm): 18 | C (mm): 40 | L (mm): 30 | L1 (mm): 9 | Thread G: M8
RDC-5025F d (mm): 28 | C1 (mm): 25 | d1 (mm): 14 | C (mm): 50 | L (mm): 30 | L1 (mm): 9 | Thread G: M6
RDC-5032F d (mm): 28 | C1 (mm): 32 | d1 (mm): 18 | C (mm): 50 | L (mm): 30 | L1 (mm): 9 | Thread G: M8
RDC-5040F d (mm): 28 | C1 (mm): 40 | d1 (mm): 22 | C (mm): 50 | L (mm): 40 | L1 (mm): 10 | Thread G: M10
RDC-6325F d (mm): 36 | C1 (mm): 25 | d1 (mm): 14 | C (mm): 63 | L (mm): 30 | L1 (mm): 9 | Thread G: M6
RDC-6332F d (mm): 36 | C1 (mm): 32 | d1 (mm): 18 | C (mm): 63 | L (mm): 30 | L1 (mm): 9 | Thread G: M8
RDC-6340F d (mm): 36 | C1 (mm): 40 | d1 (mm): 22 | C (mm): 63 | L (mm): 40 | L1 (mm): 10 | Thread G: M10
RDC-6350F d (mm): 36 | C1 (mm): 50 | d1 (mm): 28 | C (mm): 63 | L (mm): 45 | L1 (mm): 10 | Thread G: M12
RDC-8032F d (mm): 45 | C1 (mm): 32 | d1 (mm): 18 | C (mm): 80 | L (mm): 30 | L1 (mm): 9 | Thread G: M6
RDC-8040F d (mm): 45 | C1 (mm): 40 | d1 (mm): 22 | C (mm): 80 | L (mm): 40 | L1 (mm): 10 | Thread G: M10
RDC-8050F d (mm): 45 | C1 (mm): 50 | d1 (mm): 28 | C (mm): 80 | L (mm): 45 | L1 (mm): 10 | Thread G: M12
RDC-8063F d (mm): 45 | C1 (mm): 63 | d1 (mm): 36 | C (mm): 80 | L (mm): 50 | L1 (mm): 13 | Thread G: M16
ReducersKorloy
14 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Modular Reducer Bar RDC

Brand Korloy·Reducers

Available part numbers (14)

RDC-3225F, RDC-4025F, RDC-4032F, RDC-5025F, RDC-5032F, RDC-5040F, RDC-6325F, RDC-6332F, RDC-6340F, RDC-6350F + 4 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
RDC-3225Fd (mm): 18 | C1 (mm): 25 | d1 (mm): 14 | C (mm): 32 | L (mm): 30 | L1 (mm): 9 | Thread G: M6
RDC-4025Fd (mm): 22 | C1 (mm): 25 | d1 (mm): 14 | C (mm): 40 | L (mm): 30 | L1 (mm): 9 | Thread G: M6
RDC-4032Fd (mm): 22 | C1 (mm): 32 | d1 (mm): 18 | C (mm): 40 | L (mm): 30 | L1 (mm): 9 | Thread G: M8
RDC-5025Fd (mm): 28 | C1 (mm): 25 | d1 (mm): 14 | C (mm): 50 | L (mm): 30 | L1 (mm): 9 | Thread G: M6
RDC-5032Fd (mm): 28 | C1 (mm): 32 | d1 (mm): 18 | C (mm): 50 | L (mm): 30 | L1 (mm): 9 | Thread G: M8
RDC-5040Fd (mm): 28 | C1 (mm): 40 | d1 (mm): 22 | C (mm): 50 | L (mm): 40 | L1 (mm): 10 | Thread G: M10
RDC-6325Fd (mm): 36 | C1 (mm): 25 | d1 (mm): 14 | C (mm): 63 | L (mm): 30 | L1 (mm): 9 | Thread G: M6
RDC-6332Fd (mm): 36 | C1 (mm): 32 | d1 (mm): 18 | C (mm): 63 | L (mm): 30 | L1 (mm): 9 | Thread G: M8
RDC-6340Fd (mm): 36 | C1 (mm): 40 | d1 (mm): 22 | C (mm): 63 | L (mm): 40 | L1 (mm): 10 | Thread G: M10
RDC-6350Fd (mm): 36 | C1 (mm): 50 | d1 (mm): 28 | C (mm): 63 | L (mm): 45 | L1 (mm): 10 | Thread G: M12
RDC-8032Fd (mm): 45 | C1 (mm): 32 | d1 (mm): 18 | C (mm): 80 | L (mm): 30 | L1 (mm): 9 | Thread G: M6
RDC-8040Fd (mm): 45 | C1 (mm): 40 | d1 (mm): 22 | C (mm): 80 | L (mm): 40 | L1 (mm): 10 | Thread G: M10
RDC-8050Fd (mm): 45 | C1 (mm): 50 | d1 (mm): 28 | C (mm): 80 | L (mm): 45 | L1 (mm): 10 | Thread G: M12
RDC-8063Fd (mm): 45 | C1 (mm): 63 | d1 (mm): 36 | C (mm): 80 | L (mm): 50 | L1 (mm): 13 | Thread G: M16
