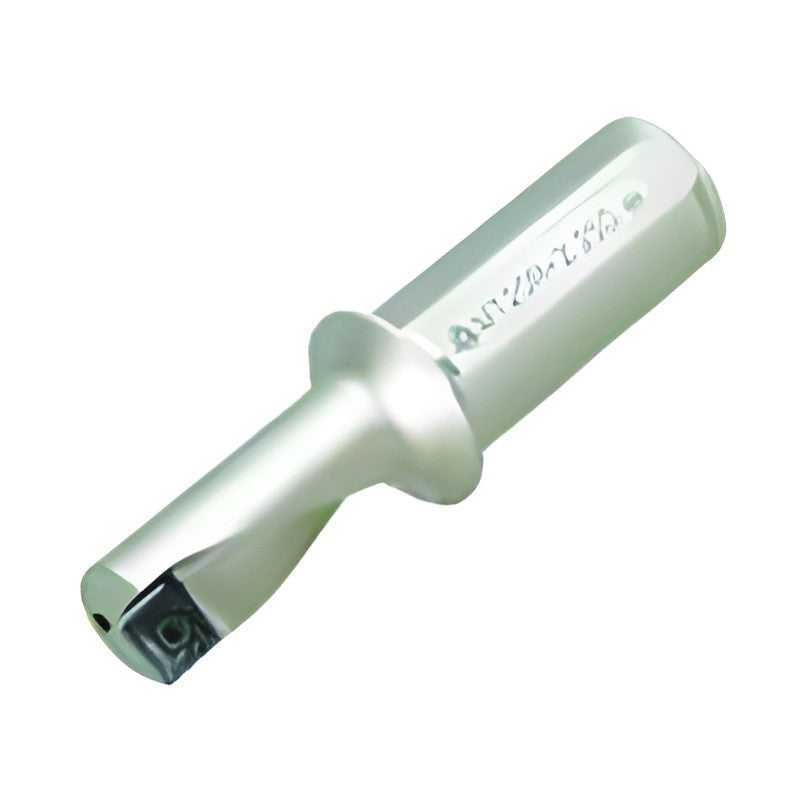

Korloy Multi Turn Drilling and Turning Tool MT 2.25D

Korloy Multi Turn Drilling and Turning Tool MT 2.25D

Multi-function holder using square QC inserts for drilling, internal and external turning and facing, Ø10 to Ø32 mm.

Key features

  • Drilling, internal/external turning and facing with one tool
  • Double coolant system for chip evacuation and tool life
  • Drill diameter adjustable by offset compensation
  • Tool design optimized by FEM analysis
MT10R-2.25D D (mm): 10 | Shank d (mm): 12 | l (mm): 22.5 | L (mm): 69.5 | Insert: QC□T050204-CM/CA | Screw: FTNA0204S | Wrench: TW06P | Aspect ratio: 2.25D | Hand: Right
MT10L-2.25D D (mm): 10 | Shank d (mm): 12 | l (mm): 22.5 | L (mm): 69.5 | Insert: QC□T050204-CM/CA | Screw: FTNA0204S | Wrench: TW06P | Aspect ratio: 2.25D | Hand: Left
MT12R-2.25D D (mm): 12 | Shank d (mm): 16 | l (mm): 27.0 | L (mm): 78.0 | Insert: QC□T060204-CM/CA | Screw: FTNA02205S | Wrench: TW06P | Aspect ratio: 2.25D | Hand: Right
MT12L-2.25D D (mm): 12 | Shank d (mm): 16 | l (mm): 27.0 | L (mm): 78.0 | Insert: QC□T060204-CM/CA | Screw: FTNA02205S | Wrench: TW06P | Aspect ratio: 2.25D | Hand: Left
MT14R-2.25D D (mm): 14 | Shank d (mm): 16 | l (mm): 31.5 | L (mm): 83.5 | Insert: QC□T070304-CM/CA | Screw: FTKA02555 | Wrench: TW07P | Aspect ratio: 2.25D | Hand: Right
MT14L-2.25D D (mm): 14 | Shank d (mm): 16 | l (mm): 31.5 | L (mm): 83.5 | Insert: QC□T070304-CM/CA | Screw: FTKA02555 | Wrench: TW07P | Aspect ratio: 2.25D | Hand: Left
MT16R-2.25D D (mm): 16 | Shank d (mm): 20 | l (mm): 36.0 | L (mm): 94.0 | Insert: QC□T080304-CM/CA | Screw: FTNA0306 | Wrench: TW09P | Aspect ratio: 2.25D | Hand: Right
MT16L-2.25D D (mm): 16 | Shank d (mm): 20 | l (mm): 36.0 | L (mm): 94.0 | Insert: QC□T080304-CM/CA | Screw: FTNA0306 | Wrench: TW09P | Aspect ratio: 2.25D | Hand: Left
MT20R-2.25D D (mm): 20 | Shank d (mm): 25 | l (mm): 45.0 | L (mm): 111.0 | Insert: QC□T10T304-CM/CA | Screw: FTNA03508 | Wrench: TW15P | Aspect ratio: 2.25D | Hand: Right
MT20L-2.25D D (mm): 20 | Shank d (mm): 25 | l (mm): 45.0 | L (mm): 111.0 | Insert: QC□T10T304-CM/CA | Screw: FTNA03508 | Wrench: TW15P | Aspect ratio: 2.25D | Hand: Left
MT25R-2.25D D (mm): 25 | Shank d (mm): 32 | l (mm): 56.5 | L (mm): 130.0 | Insert: QC□T130408-CM/CA | Screw: FTNC04509 | Wrench: TW20S | Aspect ratio: 2.25D | Hand: Right
MT25L-2.25D D (mm): 25 | Shank d (mm): 32 | l (mm): 56.5 | L (mm): 130.0 | Insert: QC□T130408-CM/CA | Screw: FTNC04509 | Wrench: TW20S | Aspect ratio: 2.25D | Hand: Left
MT32R-2.25D D (mm): 32 | Shank d (mm): 40 | l (mm): 72.0 | L (mm): 160.0 | Insert: QC□T170508-CM/CA | Screw: FTNC04511 | Wrench: TW20S | Aspect ratio: 2.25D | Hand: Right
MT32L-2.25D D (mm): 32 | Shank d (mm): 40 | l (mm): 72.0 | L (mm): 160.0 | Insert: QC□T170508-CM/CA | Screw: FTNC04511 | Wrench: TW20S | Aspect ratio: 2.25D | Hand: Left
