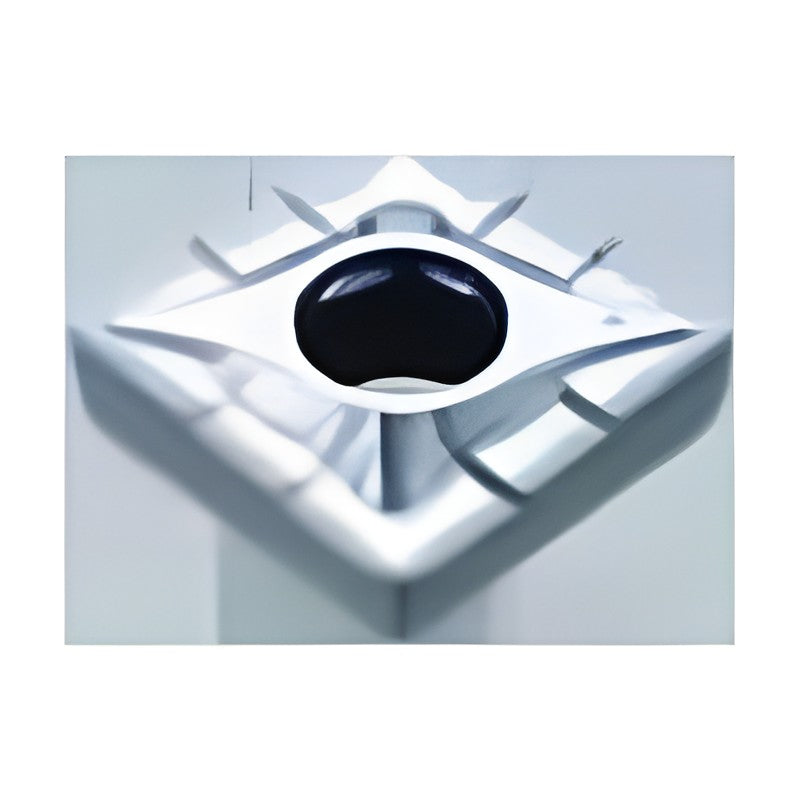

Korloy Multi Turn Insert QCGT CA for Non-Ferrous

Korloy Multi Turn Insert QCGT CA for Non-Ferrous

Uncoated square insert with sharp CA chip breaker for Multi Turn MT holders, for non-ferrous machining.

Key features

  • Stepped cutting edge for drilling and turning
  • Special chip former for better chip evacuation
QCGT050204-CA H01 l (mm): 5.0 | d (mm): 5.4 | t (mm): 2.10 | r (mm): 0.4 | d1 (mm): 2.3 | Chip breaker: CA | Grade: H01 | Stock: Yes
QCGT060204-CA H01 l (mm): 6.0 | d (mm): 6.4 | t (mm): 2.38 | r (mm): 0.4 | d1 (mm): 2.5 | Chip breaker: CA | Grade: H01 | Stock: Yes
QCGT070304-CA H01 l (mm): 7.0 | d (mm): 7.4 | t (mm): 3.18 | r (mm): 0.4 | d1 (mm): 2.8 | Chip breaker: CA | Grade: H01 | Stock: Yes
QCGT080304-CA H01 l (mm): 8.0 | d (mm): 8.4 | t (mm): 3.18 | r (mm): 0.4 | d1 (mm): 3.4 | Chip breaker: CA | Grade: H01 | Stock: Yes
QCGT10T304-CA H01 l (mm): 10.0 | d (mm): 10.4 | t (mm): 3.97 | r (mm): 0.4 | d1 (mm): 4.0 | Chip breaker: CA | Grade: H01 | Stock: Yes
QCGT130408-CA H01 l (mm): 12.7 | d (mm): 13.5 | t (mm): 4.76 | r (mm): 0.8 | d1 (mm): 5.5 | Chip breaker: CA | Grade: H01 | Stock: Yes
QCGT170508-CA H01 l (mm): 16.7 | d (mm): 17.5 | t (mm): 5.56 | r (mm): 0.8 | d1 (mm): 5.5 | Chip breaker: CA | Grade: H01 | Stock: Yes
Drill InsertsKorloy
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Multi Turn Insert QCGT CA for Non-Ferrous

Brand Korloy·Drill Inserts

Available part numbers (7)

QCGT050204-CA H01, QCGT060204-CA H01, QCGT070304-CA H01, QCGT080304-CA H01, QCGT10T304-CA H01, QCGT130408-CA H01, QCGT170508-CA H01

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
QCGT050204-CA H01l (mm): 5.0 | d (mm): 5.4 | t (mm): 2.10 | r (mm): 0.4 | d1 (mm): 2.3 | Chip breaker: CA | Grade: H01 | Stock: Yes
QCGT060204-CA H01l (mm): 6.0 | d (mm): 6.4 | t (mm): 2.38 | r (mm): 0.4 | d1 (mm): 2.5 | Chip breaker: CA | Grade: H01 | Stock: Yes
QCGT070304-CA H01l (mm): 7.0 | d (mm): 7.4 | t (mm): 3.18 | r (mm): 0.4 | d1 (mm): 2.8 | Chip breaker: CA | Grade: H01 | Stock: Yes
QCGT080304-CA H01l (mm): 8.0 | d (mm): 8.4 | t (mm): 3.18 | r (mm): 0.4 | d1 (mm): 3.4 | Chip breaker: CA | Grade: H01 | Stock: Yes
QCGT10T304-CA H01l (mm): 10.0 | d (mm): 10.4 | t (mm): 3.97 | r (mm): 0.4 | d1 (mm): 4.0 | Chip breaker: CA | Grade: H01 | Stock: Yes
QCGT130408-CA H01l (mm): 12.7 | d (mm): 13.5 | t (mm): 4.76 | r (mm): 0.8 | d1 (mm): 5.5 | Chip breaker: CA | Grade: H01 | Stock: Yes
QCGT170508-CA H01l (mm): 16.7 | d (mm): 17.5 | t (mm): 5.56 | r (mm): 0.8 | d1 (mm): 5.5 | Chip breaker: CA | Grade: H01 | Stock: Yes
