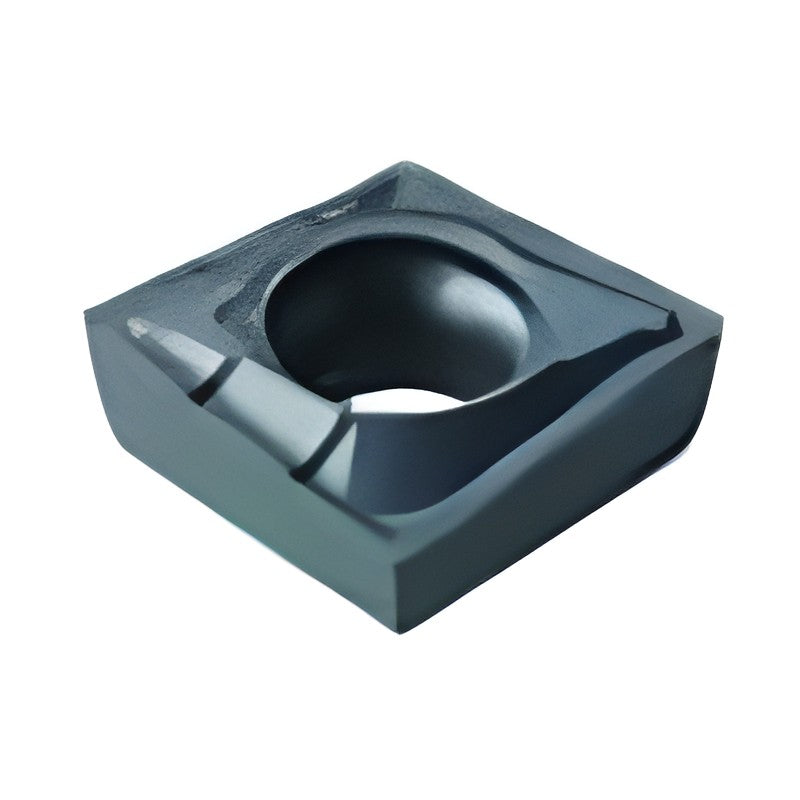

Korloy Multi Turn Insert QCMT CM

Korloy Multi Turn Insert QCMT CM

Square insert with 7 degree relief for Multi Turn MT holders, used for drilling, turning and facing.

Key features

  • Stepped cutting edge for drilling and turning
  • Special chip former for better chip evacuation
QCMT050204-CM NC3225 l (mm): 5.0 | d (mm): 5.4 | t (mm): 2.10 | r (mm): 0.4 | d1 (mm): 2.3 | Chip breaker: CM | Grade: NC3225 | Stock: Yes
QCMT050204-CM NC6315 l (mm): 5.0 | d (mm): 5.4 | t (mm): 2.10 | r (mm): 0.4 | d1 (mm): 2.3 | Chip breaker: CM | Grade: NC6315 | Stock: Yes
QCMT050204-CM PC5300 l (mm): 5.0 | d (mm): 5.4 | t (mm): 2.10 | r (mm): 0.4 | d1 (mm): 2.3 | Chip breaker: CM | Grade: PC5300 | Stock: Yes
QCMT060204-CM NC3225 l (mm): 6.0 | d (mm): 6.4 | t (mm): 2.38 | r (mm): 0.4 | d1 (mm): 2.5 | Chip breaker: CM | Grade: NC3225 | Stock: Yes
QCMT060204-CM NC6315 l (mm): 6.0 | d (mm): 6.4 | t (mm): 2.38 | r (mm): 0.4 | d1 (mm): 2.5 | Chip breaker: CM | Grade: NC6315 | Stock: Yes
QCMT060204-CM PC5300 l (mm): 6.0 | d (mm): 6.4 | t (mm): 2.38 | r (mm): 0.4 | d1 (mm): 2.5 | Chip breaker: CM | Grade: PC5300 | Stock: Yes
QCMT070304-CM NC3225 l (mm): 7.0 | d (mm): 7.4 | t (mm): 3.18 | r (mm): 0.4 | d1 (mm): 2.8 | Chip breaker: CM | Grade: NC3225 | Stock: Yes
QCMT070304-CM NC6315 l (mm): 7.0 | d (mm): 7.4 | t (mm): 3.18 | r (mm): 0.4 | d1 (mm): 2.8 | Chip breaker: CM | Grade: NC6315 | Stock: Yes
QCMT070304-CM PC5300 l (mm): 7.0 | d (mm): 7.4 | t (mm): 3.18 | r (mm): 0.4 | d1 (mm): 2.8 | Chip breaker: CM | Grade: PC5300 | Stock: Yes
QCMT080304-CM NC3225 l (mm): 8.0 | d (mm): 8.4 | t (mm): 3.18 | r (mm): 0.4 | d1 (mm): 3.4 | Chip breaker: CM | Grade: NC3225 | Stock: Yes
QCMT080304-CM NC6315 l (mm): 8.0 | d (mm): 8.4 | t (mm): 3.18 | r (mm): 0.4 | d1 (mm): 3.4 | Chip breaker: CM | Grade: NC6315 | Stock: Yes
QCMT080304-CM PC5300 l (mm): 8.0 | d (mm): 8.4 | t (mm): 3.18 | r (mm): 0.4 | d1 (mm): 3.4 | Chip breaker: CM | Grade: PC5300 | Stock: Yes
QCMT10T304-CM NC3225 l (mm): 10.0 | d (mm): 10.4 | t (mm): 3.97 | r (mm): 0.4 | d1 (mm): 4.0 | Chip breaker: CM | Grade: NC3225 | Stock: Yes
QCMT10T304-CM NC6315 l (mm): 10.0 | d (mm): 10.4 | t (mm): 3.97 | r (mm): 0.4 | d1 (mm): 4.0 | Chip breaker: CM | Grade: NC6315 | Stock: Yes
QCMT10T304-CM PC5300 l (mm): 10.0 | d (mm): 10.4 | t (mm): 3.97 | r (mm): 0.4 | d1 (mm): 4.0 | Chip breaker: CM | Grade: PC5300 | Stock: Yes
QCMT130408-CM NC3225 l (mm): 12.7 | d (mm): 13.5 | t (mm): 4.76 | r (mm): 0.8 | d1 (mm): 5.5 | Chip breaker: CM | Grade: NC3225 | Stock: Yes
QCMT130408-CM NC6315 l (mm): 12.7 | d (mm): 13.5 | t (mm): 4.76 | r (mm): 0.8 | d1 (mm): 5.5 | Chip breaker: CM | Grade: NC6315 | Stock: Yes
QCMT130408-CM PC5300 l (mm): 12.7 | d (mm): 13.5 | t (mm): 4.76 | r (mm): 0.8 | d1 (mm): 5.5 | Chip breaker: CM | Grade: PC5300 | Stock: Yes
QCMT170508-CM NC3225 l (mm): 16.7 | d (mm): 17.5 | t (mm): 5.56 | r (mm): 0.8 | d1 (mm): 5.5 | Chip breaker: CM | Grade: NC3225 | Stock: Yes
QCMT170508-CM NC6315 l (mm): 16.7 | d (mm): 17.5 | t (mm): 5.56 | r (mm): 0.8 | d1 (mm): 5.5 | Chip breaker: CM | Grade: NC6315 | Stock: Yes
QCMT170508-CM PC5300 l (mm): 16.7 | d (mm): 17.5 | t (mm): 5.56 | r (mm): 0.8 | d1 (mm): 5.5 | Chip breaker: CM | Grade: PC5300 | Stock: Yes
Drill InsertsKorloy
21 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Multi Turn Insert QCMT CM

Brand Korloy·Drill Inserts

Available part numbers (21)

QCMT050204-CM NC3225, QCMT050204-CM NC6315, QCMT050204-CM PC5300, QCMT060204-CM NC3225, QCMT060204-CM NC6315, QCMT060204-CM PC5300, QCMT070304-CM NC3225, QCMT070304-CM NC6315, QCMT070304-CM PC5300, QCMT080304-CM NC3225 + 11 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
QCMT050204-CM NC3225l (mm): 5.0 | d (mm): 5.4 | t (mm): 2.10 | r (mm): 0.4 | d1 (mm): 2.3 | Chip breaker: CM | Grade: NC3225 | Stock: Yes
QCMT050204-CM NC6315l (mm): 5.0 | d (mm): 5.4 | t (mm): 2.10 | r (mm): 0.4 | d1 (mm): 2.3 | Chip breaker: CM | Grade: NC6315 | Stock: Yes
QCMT050204-CM PC5300l (mm): 5.0 | d (mm): 5.4 | t (mm): 2.10 | r (mm): 0.4 | d1 (mm): 2.3 | Chip breaker: CM | Grade: PC5300 | Stock: Yes
QCMT060204-CM NC3225l (mm): 6.0 | d (mm): 6.4 | t (mm): 2.38 | r (mm): 0.4 | d1 (mm): 2.5 | Chip breaker: CM | Grade: NC3225 | Stock: Yes
QCMT060204-CM NC6315l (mm): 6.0 | d (mm): 6.4 | t (mm): 2.38 | r (mm): 0.4 | d1 (mm): 2.5 | Chip breaker: CM | Grade: NC6315 | Stock: Yes
QCMT060204-CM PC5300l (mm): 6.0 | d (mm): 6.4 | t (mm): 2.38 | r (mm): 0.4 | d1 (mm): 2.5 | Chip breaker: CM | Grade: PC5300 | Stock: Yes
QCMT070304-CM NC3225l (mm): 7.0 | d (mm): 7.4 | t (mm): 3.18 | r (mm): 0.4 | d1 (mm): 2.8 | Chip breaker: CM | Grade: NC3225 | Stock: Yes
QCMT070304-CM NC6315l (mm): 7.0 | d (mm): 7.4 | t (mm): 3.18 | r (mm): 0.4 | d1 (mm): 2.8 | Chip breaker: CM | Grade: NC6315 | Stock: Yes
QCMT070304-CM PC5300l (mm): 7.0 | d (mm): 7.4 | t (mm): 3.18 | r (mm): 0.4 | d1 (mm): 2.8 | Chip breaker: CM | Grade: PC5300 | Stock: Yes
QCMT080304-CM NC3225l (mm): 8.0 | d (mm): 8.4 | t (mm): 3.18 | r (mm): 0.4 | d1 (mm): 3.4 | Chip breaker: CM | Grade: NC3225 | Stock: Yes
QCMT080304-CM NC6315l (mm): 8.0 | d (mm): 8.4 | t (mm): 3.18 | r (mm): 0.4 | d1 (mm): 3.4 | Chip breaker: CM | Grade: NC6315 | Stock: Yes
QCMT080304-CM PC5300l (mm): 8.0 | d (mm): 8.4 | t (mm): 3.18 | r (mm): 0.4 | d1 (mm): 3.4 | Chip breaker: CM | Grade: PC5300 | Stock: Yes
QCMT10T304-CM NC3225l (mm): 10.0 | d (mm): 10.4 | t (mm): 3.97 | r (mm): 0.4 | d1 (mm): 4.0 | Chip breaker: CM | Grade: NC3225 | Stock: Yes
QCMT10T304-CM NC6315l (mm): 10.0 | d (mm): 10.4 | t (mm): 3.97 | r (mm): 0.4 | d1 (mm): 4.0 | Chip breaker: CM | Grade: NC6315 | Stock: Yes
QCMT10T304-CM PC5300l (mm): 10.0 | d (mm): 10.4 | t (mm): 3.97 | r (mm): 0.4 | d1 (mm): 4.0 | Chip breaker: CM | Grade: PC5300 | Stock: Yes
QCMT130408-CM NC3225l (mm): 12.7 | d (mm): 13.5 | t (mm): 4.76 | r (mm): 0.8 | d1 (mm): 5.5 | Chip breaker: CM | Grade: NC3225 | Stock: Yes
QCMT130408-CM NC6315l (mm): 12.7 | d (mm): 13.5 | t (mm): 4.76 | r (mm): 0.8 | d1 (mm): 5.5 | Chip breaker: CM | Grade: NC6315 | Stock: Yes
QCMT130408-CM PC5300l (mm): 12.7 | d (mm): 13.5 | t (mm): 4.76 | r (mm): 0.8 | d1 (mm): 5.5 | Chip breaker: CM | Grade: PC5300 | Stock: Yes
QCMT170508-CM NC3225l (mm): 16.7 | d (mm): 17.5 | t (mm): 5.56 | r (mm): 0.8 | d1 (mm): 5.5 | Chip breaker: CM | Grade: NC3225 | Stock: Yes
QCMT170508-CM NC6315l (mm): 16.7 | d (mm): 17.5 | t (mm): 5.56 | r (mm): 0.8 | d1 (mm): 5.5 | Chip breaker: CM | Grade: NC6315 | Stock: Yes
QCMT170508-CM PC5300l (mm): 16.7 | d (mm): 17.5 | t (mm): 5.56 | r (mm): 0.8 | d1 (mm): 5.5 | Chip breaker: CM | Grade: PC5300 | Stock: Yes
