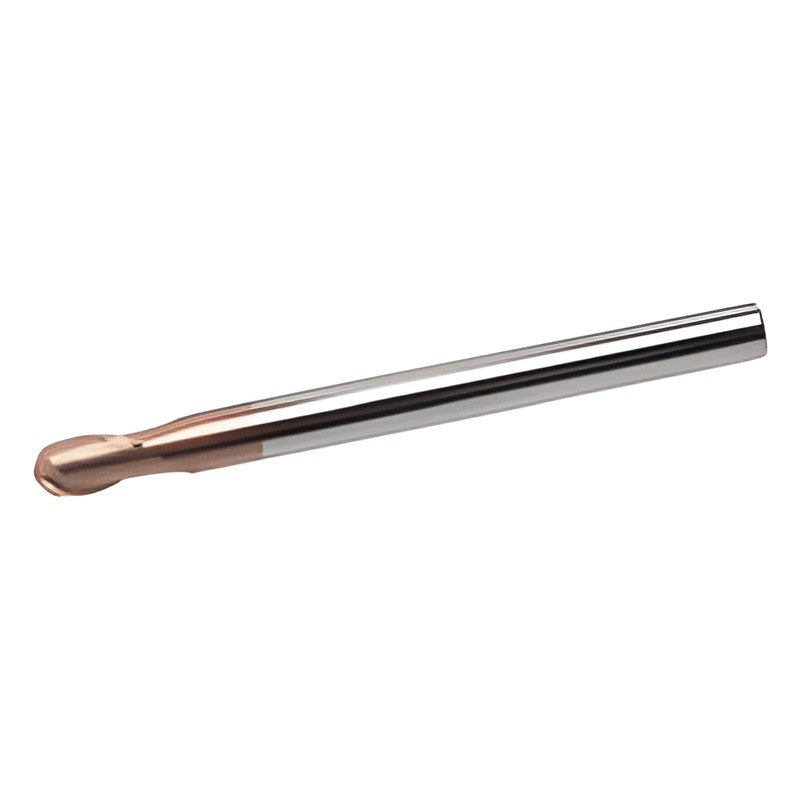

Korloy PBE2000 High Hardness Ball End Mill

Korloy PBE2000 High Hardness Ball End Mill

Solid carbide end mill for high speed, high accuracy machining of high hardened and heat-treated steel up to HRC70.

Key features

  • For hardened steel up to HRC70
  • New coating technology improves wear resistance
  • High speed and highly accurate machining

Specifications

Grade PC303S
Helix angle 30 deg
Shank tolerance h5
PBE2005-040 Ball radius R (mm): 0.25 | Dia. D (mm): 0.5 | Shank dia. d (mm): 6 | Flute length l (mm): 1 | Overall length L (mm): 40 | Flutes: 2
PBE2010-050 Ball radius R (mm): 0.5 | Dia. D (mm): 1 | Shank dia. d (mm): 6 | Flute length l (mm): 2.5 | Overall length L (mm): 50 | Flutes: 2
PBE2012-050 Ball radius R (mm): 0.6 | Dia. D (mm): 1.2 | Shank dia. d (mm): 6 | Flute length l (mm): 3 | Overall length L (mm): 50 | Flutes: 2
PBE2015-050 Ball radius R (mm): 0.75 | Dia. D (mm): 1.5 | Shank dia. d (mm): 6 | Flute length l (mm): 4 | Overall length L (mm): 50 | Flutes: 2
PBE2020-050 Ball radius R (mm): 1 | Dia. D (mm): 2 | Shank dia. d (mm): 6 | Flute length l (mm): 5 | Overall length L (mm): 50 | Flutes: 2
PBE2025-060 Ball radius R (mm): 1.25 | Dia. D (mm): 2.5 | Shank dia. d (mm): 6 | Flute length l (mm): 7 | Overall length L (mm): 60 | Flutes: 2
PBE2030-060 Ball radius R (mm): 1.5 | Dia. D (mm): 3 | Shank dia. d (mm): 6 | Flute length l (mm): 8 | Overall length L (mm): 60 | Flutes: 2
PBE2040-070 Ball radius R (mm): 2 | Dia. D (mm): 4 | Shank dia. d (mm): 6 | Flute length l (mm): 8 | Overall length L (mm): 70 | Flutes: 2
PBE2050-080 Ball radius R (mm): 2.5 | Dia. D (mm): 5 | Shank dia. d (mm): 6 | Flute length l (mm): 10 | Overall length L (mm): 80 | Flutes: 2
PBE2060-090 Ball radius R (mm): 3 | Dia. D (mm): 6 | Shank dia. d (mm): 6 | Flute length l (mm): 12 | Overall length L (mm): 90 | Flutes: 2
PBE2080-100 Ball radius R (mm): 4 | Dia. D (mm): 8 | Shank dia. d (mm): 8 | Flute length l (mm): 14 | Overall length L (mm): 100 | Flutes: 2
PBE2100-100 Ball radius R (mm): 5 | Dia. D (mm): 10 | Shank dia. d (mm): 10 | Flute length l (mm): 18 | Overall length L (mm): 100 | Flutes: 2
PBE2120-110 Ball radius R (mm): 6 | Dia. D (mm): 12 | Shank dia. d (mm): 12 | Flute length l (mm): 22 | Overall length L (mm): 110 | Flutes: 2
Ball End MillsKorloy
13 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy PBE2000 High Hardness Ball End Mill

Brand Korloy·Ball End Mills

Available part numbers (13)

PBE2005-040, PBE2010-050, PBE2012-050, PBE2015-050, PBE2020-050, PBE2025-060, PBE2030-060, PBE2040-070, PBE2050-080, PBE2060-090 + 3 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
PBE2005-040Ball radius R (mm): 0.25 | Dia. D (mm): 0.5 | Shank dia. d (mm): 6 | Flute length l (mm): 1 | Overall length L (mm): 40 | Flutes: 2
PBE2010-050Ball radius R (mm): 0.5 | Dia. D (mm): 1 | Shank dia. d (mm): 6 | Flute length l (mm): 2.5 | Overall length L (mm): 50 | Flutes: 2
PBE2012-050Ball radius R (mm): 0.6 | Dia. D (mm): 1.2 | Shank dia. d (mm): 6 | Flute length l (mm): 3 | Overall length L (mm): 50 | Flutes: 2
PBE2015-050Ball radius R (mm): 0.75 | Dia. D (mm): 1.5 | Shank dia. d (mm): 6 | Flute length l (mm): 4 | Overall length L (mm): 50 | Flutes: 2
PBE2020-050Ball radius R (mm): 1 | Dia. D (mm): 2 | Shank dia. d (mm): 6 | Flute length l (mm): 5 | Overall length L (mm): 50 | Flutes: 2
PBE2025-060Ball radius R (mm): 1.25 | Dia. D (mm): 2.5 | Shank dia. d (mm): 6 | Flute length l (mm): 7 | Overall length L (mm): 60 | Flutes: 2
PBE2030-060Ball radius R (mm): 1.5 | Dia. D (mm): 3 | Shank dia. d (mm): 6 | Flute length l (mm): 8 | Overall length L (mm): 60 | Flutes: 2
PBE2040-070Ball radius R (mm): 2 | Dia. D (mm): 4 | Shank dia. d (mm): 6 | Flute length l (mm): 8 | Overall length L (mm): 70 | Flutes: 2
PBE2050-080Ball radius R (mm): 2.5 | Dia. D (mm): 5 | Shank dia. d (mm): 6 | Flute length l (mm): 10 | Overall length L (mm): 80 | Flutes: 2
PBE2060-090Ball radius R (mm): 3 | Dia. D (mm): 6 | Shank dia. d (mm): 6 | Flute length l (mm): 12 | Overall length L (mm): 90 | Flutes: 2
PBE2080-100Ball radius R (mm): 4 | Dia. D (mm): 8 | Shank dia. d (mm): 8 | Flute length l (mm): 14 | Overall length L (mm): 100 | Flutes: 2
PBE2100-100Ball radius R (mm): 5 | Dia. D (mm): 10 | Shank dia. d (mm): 10 | Flute length l (mm): 18 | Overall length L (mm): 100 | Flutes: 2
PBE2120-110Ball radius R (mm): 6 | Dia. D (mm): 12 | Shank dia. d (mm): 12 | Flute length l (mm): 22 | Overall length L (mm): 110 | Flutes: 2
