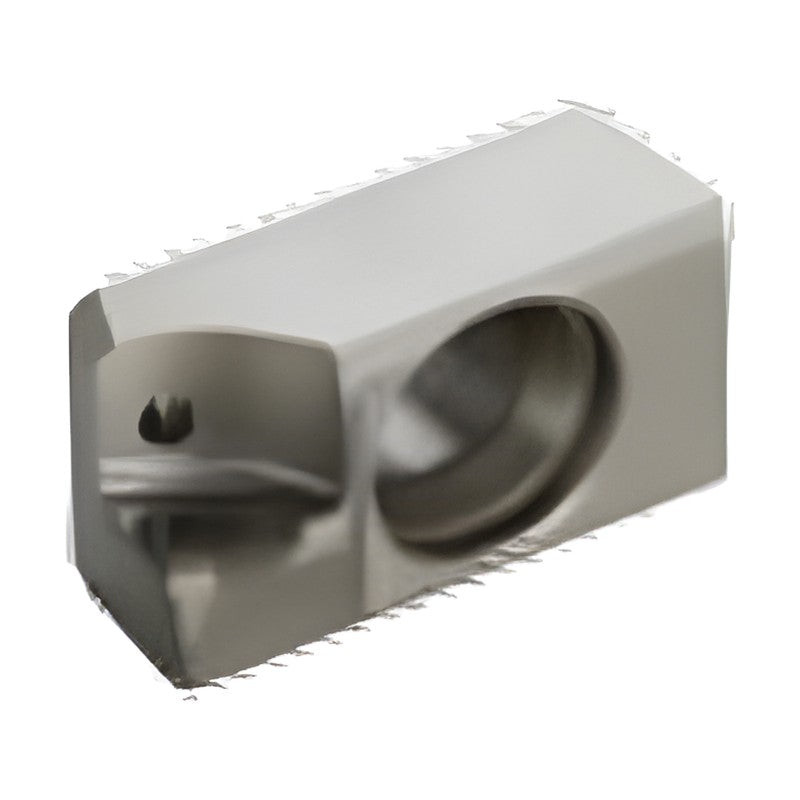

Korloy PCD Blade BAMPR for Aero Mill Plus

Korloy PCD Blade BAMPR for Aero Mill Plus

Adjustable PCD blade for the Aero Mill Plus APD(M)-PB face milling cutter, in facing and wiper versions.

Key features

  • PCD blade for medium cutting to finishing of aluminum alloys
  • Direct coolant onto the blade for longer tool life
  • Spanner fine adjustment in 1 µm steps
  • Facing, flat wiper and radius wiper versions

Specifications

Applicable holder APD(M)-PB (Aero Mill Plus)
Cutting edge material PCD
Grade DP150
Length 25.5 mm
Thickness 7 mm
Hole size 6.7 mm
BAMPR-XAF DP150 Grade: DP150 | Application: Facing | Length: 25.5 mm | Width: 10.5 mm | Thickness: 7 mm | Hole size: 6.7 mm
BAMPR-XAW DP150 Grade: DP150 | Application: Wiper (flat) | Length: 25.5 mm | Width: 10 mm | Thickness: 7 mm | Hole size: 6.7 mm
BAMPR-XAWR DP150 Grade: DP150 | Application: Wiper (radius) | Length: 25.5 mm | Width: 10 mm | Thickness: 7 mm | Hole size: 6.7 mm
PCD InsertsKorloy
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy PCD Blade BAMPR for Aero Mill Plus

Brand Korloy·PCD Inserts

Available part numbers (3)

BAMPR-XAF DP150, BAMPR-XAW DP150, BAMPR-XAWR DP150

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
BAMPR-XAF DP150Grade: DP150 | Application: Facing | Length: 25.5 mm | Width: 10.5 mm | Thickness: 7 mm | Hole size: 6.7 mm
BAMPR-XAW DP150Grade: DP150 | Application: Wiper (flat) | Length: 25.5 mm | Width: 10 mm | Thickness: 7 mm | Hole size: 6.7 mm
BAMPR-XAWR DP150Grade: DP150 | Application: Wiper (radius) | Length: 25.5 mm | Width: 10 mm | Thickness: 7 mm | Hole size: 6.7 mm
